Model NO.
KEMING-7088-BB
Price:
USD 0.85-1.15
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:KEMING-7088-BB
  • Screen Dimension:20*20mm


Product Describtion

 business card (2)



1.9mm blue dot 8*8 anode dot matrix display 20*20mm



Features:

1, Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

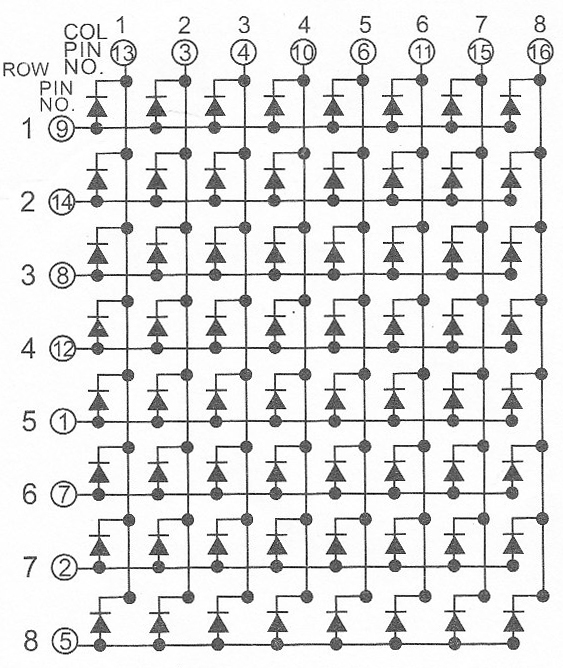

Package dimension & Internal circuit diagram





 7088.01

7088.02



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200



 Product details:

Item No.KEMING-7088-BB
Dimension20*20*5.9mm
dot1.9mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color BLUE

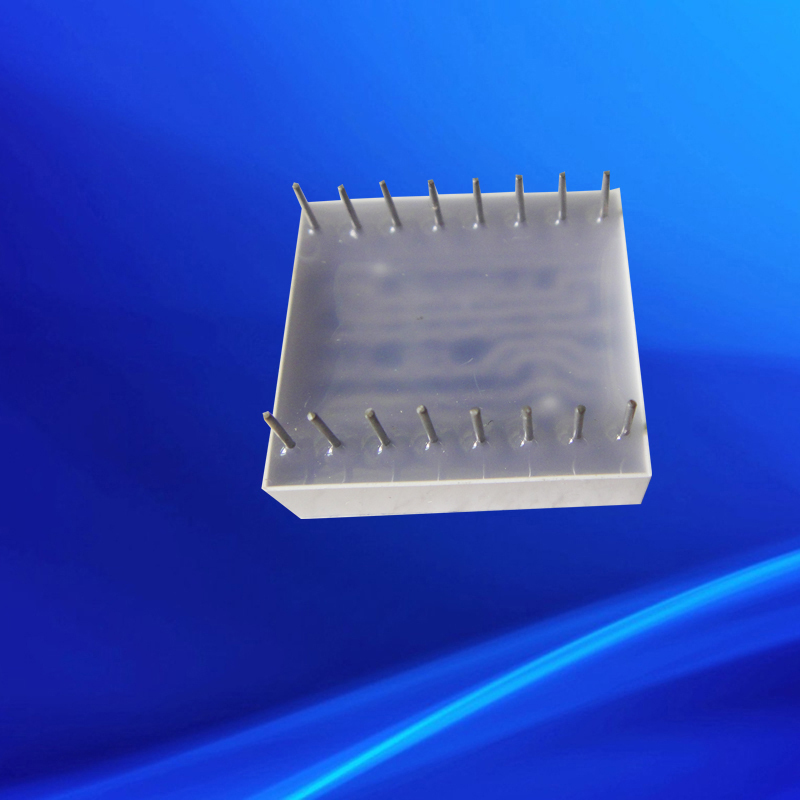

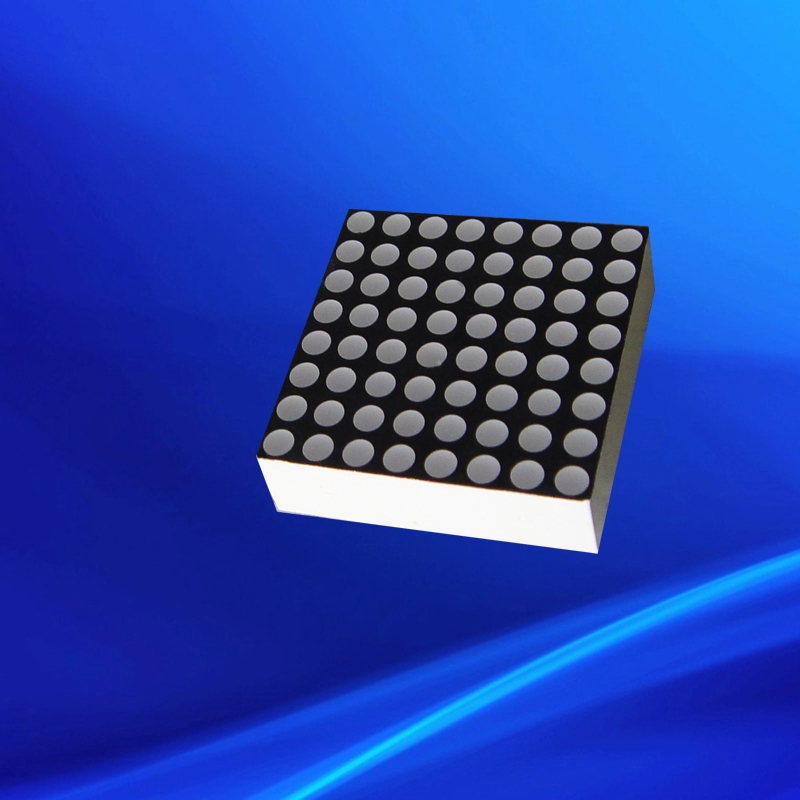

 7088.47088.2

Our Services




Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4.Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led







Packaging & Shipping

Working process

kem working process



 packing & shipping



Factory pictures

 factory

Related Products

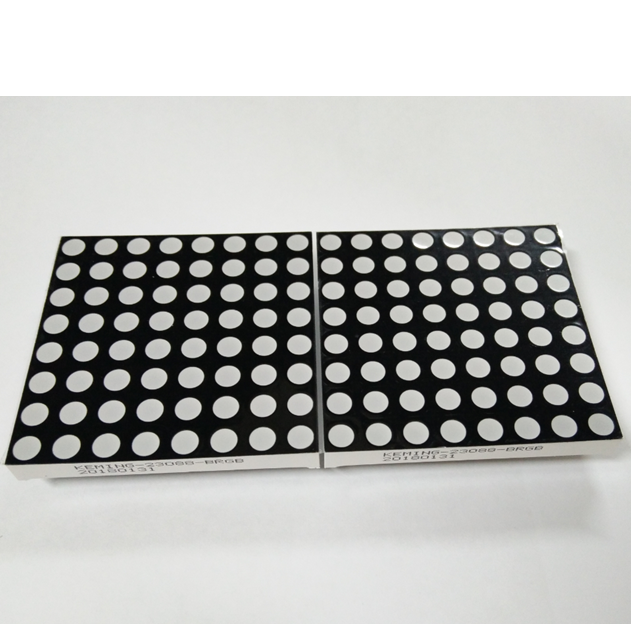

 23088-rgb 8*8 dot matrix display



KEMING -23088-BRGB

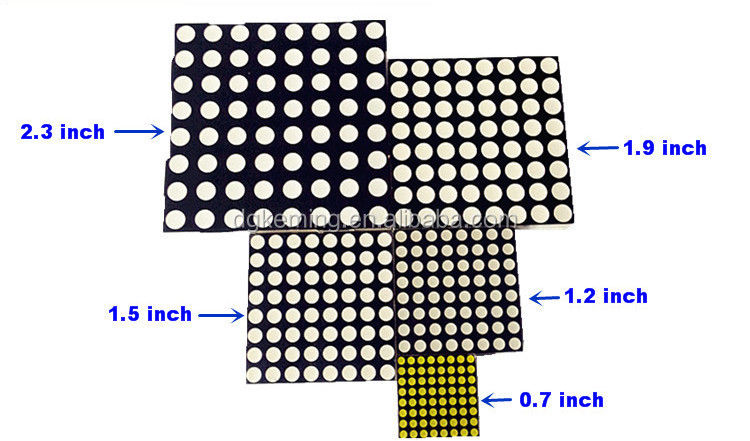

 8x8 dot matrix led related product
