Model NO.
HOUKEM-2821-AW
Price:
USD 0.30-0.50
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Application:digital counter, time clock, home appliance
  • Color:white
  • Panel Size:15*10*6mm
  • Model Number:HOUKEM-2821-AW
  • Brand Name:HOUKEM


Product Describtion



 business

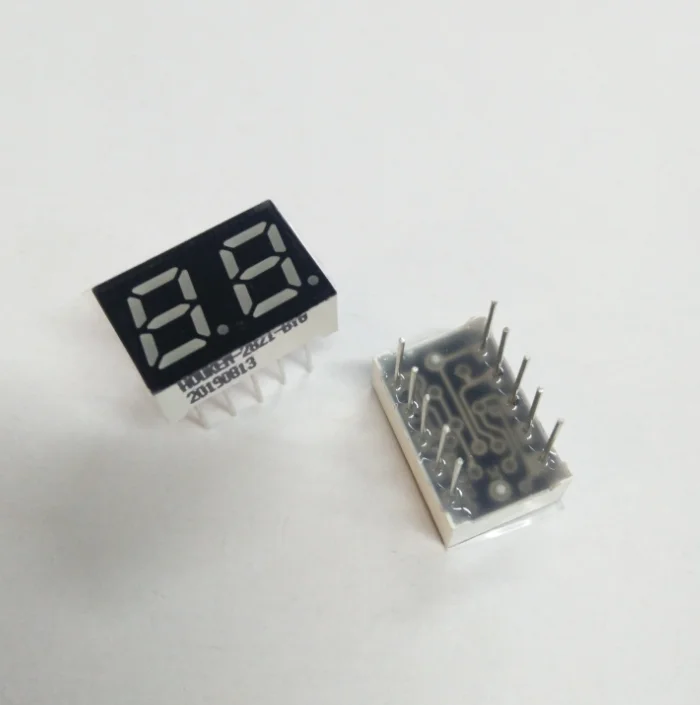

 0.28'' 2 digit 7 segment led display white

Features:

1, Low consumption

2, High brightness



Product details:

Item No.HOUKEM-2821-AW
Dimension15*10*6mm
digit height0.28'' (7mm)
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color  white

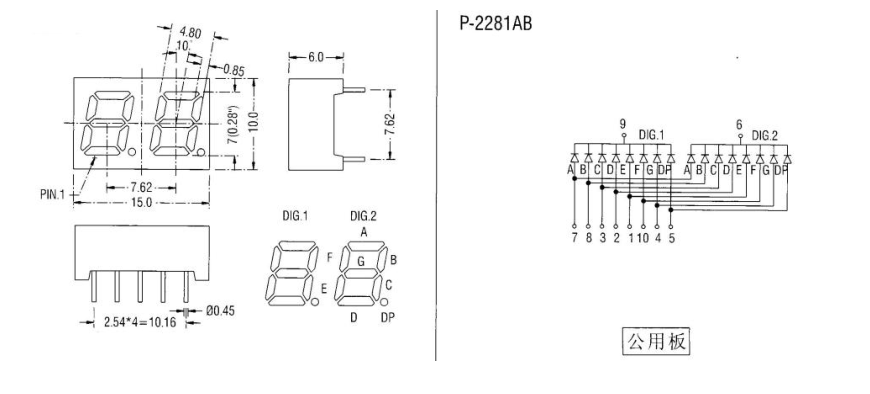

Package dimension & Internal circuit diagram





0.28'' 7 segment led display



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.8

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.8

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF-10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.8

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.8

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200









Two years quality warranty

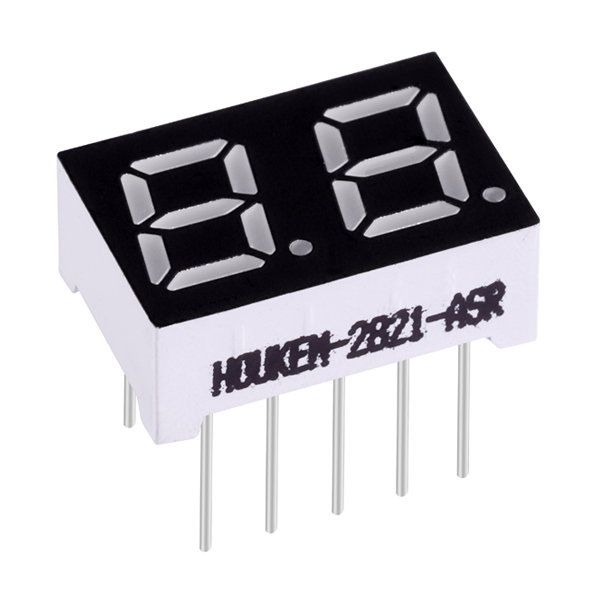

 2 digit 7 segment led display 0.28''

0.28 inch 2 digit 7 segment led display







Our Services

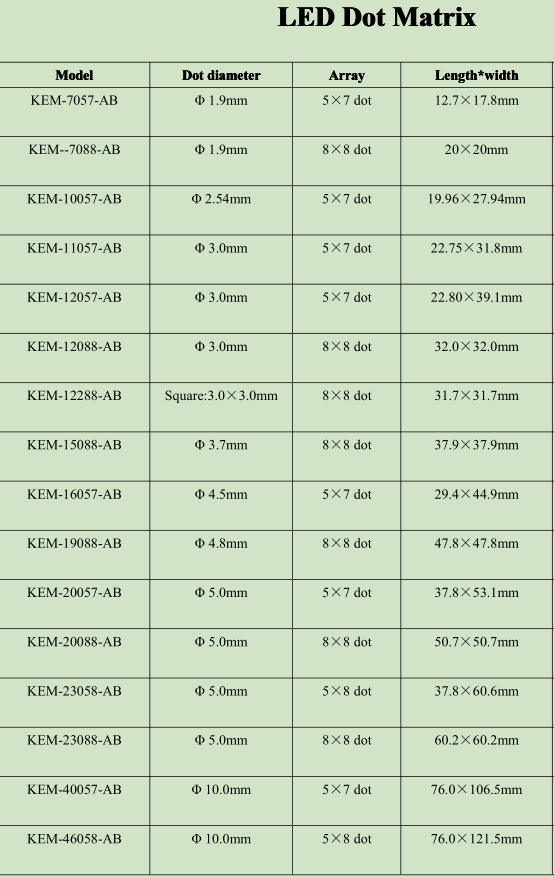

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display



7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',  0.3'',  0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39''



Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available


 custom 7 segment led display

Packaging & Shipping

packing & shipping

Certifications

 Houke-certifictes

Contact us





Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
