Model No: Houkem-12057-BW

White 5x7 LED Dot Matrix Display 12057-BW

The Houkem-12057-BW white 5x7 LED dot matrix display features 3mm LED dots and a compact 22.8 × 39.1 × 8.0mm package. Designed for industrial control panels, electronic instruments, and OEM equipment, it supports clear character and status indication.
minimum order :
1 piece
Country of Origin :
FOB Shenzhen
Quantity :
$0.53 - $0.60 / piece
add to cart
Contact Now

White 5x7 LED Dot Matrix Display Overview

TheWhite 5x7 LED Dot Matrix Display, model Houkem-12057-BW, is a compact LED display component designed for industrial equipment, electronic instruments, home appliances, and OEM control panels.

Featuring 35 white LED dots arranged in a 5×7 matrix, this display supports letters, numbers, and simple status symbols when connected to a compatible control circuit. Its 3.0mm dot diameter and 22.8 × 39.1 × 8.0mm package make it suitable for space-constrained electronic assemblies.

Manufactured by Houkem in Guangdong, China, the 12057-BW series offers uniform illumination, configurable display specifications, and options for OEM integration.

Technical Specifications

Houkem-12057-BW Product Parameters

ParameterSpecification
Model NumberHoukem-12057-BW
Display Type5×7 LED Dot Matrix
LED Dot Arrangement5 columns × 7 rows
Dot Diameter3.0mm
Dimensions22.8 × 39.1 × 8.0mm
Emitting ColorWhite
Surface ColorBlack / Grey
Epoxy ColorMilky White / Clear
Luminous Intensity80–100 mcd/chip
PolarityCathode / Anode options
Listed Pixel Pitch8mm — requires verification
ApplicationIndoor electronic equipment
Rated Lifespan50,000 hours (supplier-stated)
DatasheetAvailable upon request
ManufacturerHoukem, Guangdong, China

The original listing also identifies this product using the fields Full Color,8mm Pixels,SDK,Stretch Bar, and Advertising Publish. These classifications require technical verification because the primary specification identifies a single-color white LED matrix component.

Product Features

  • 5×7 LED matrix: Supports basic alphanumeric characters and status indicators.

  • 3mm LED dots: Provides a compact arrangement of 35 white light-emitting points.

  • Uniform illumination: Designed for consistent visibility across the matrix.

  • Compact dimensions: Suitable for integration into industrial control assemblies.

  • Polarity options: Common cathode and common anode configurations are listed.

  • OEM flexibility: Alternative display specifications can be discussed with Houkem's engineering team.

Dimensions and Internal Circuit Diagram

The Houkem-12057-BW measures 22.8 × 39.1 × 8.0mm, with a specified LED dot diameter of 3.0mm.

Before PCB integration, engineers should confirm the selected polarity, pin assignment, electrical ratings, and mechanical dimensions against the approved datasheet.

The original dimension drawing and internal circuit diagram should be retained as technical references for product evaluation.

Industrial Applications

Industrial Equipment and Control Panels

The 5x7 LED matrix can display simple equipment statuses, operating indicators, and short alphanumeric information within compatible industrial control systems.

Electronic Instruments and Digital Clocks

Its compact layout supports character-based information displays in electronic instruments, timers, and clock assemblies that use suitable matrix-driving circuits.

Home Appliance Control Displays

Manufacturers can integrate white LED dot matrix components into appliance interfaces requiring simple visual notifications or operating-status information.

Custom Electronic Display Projects

Houkem also supports discussions about alternative display colors, packaging configurations, and application-specific requirements for OEM manufacturers.

Houkem LED Display Manufacturing

Houkem is a Guangdong-based manufacturer specializing in customized LED displays, SMD and through-hole 7-segment displays, LED dot matrix products, UV LEDs, and IR LEDs.

The company reports 19 years of LED manufacturing experience, an ISO 9001-certified quality management system, and its own R&D capabilities.

Product certification information includes CE, RoHS, REACH, and EMC claims. Applicable documentation should be confirmed for the selected product and target market.

Sample Orders, Production and Delivery

Purchasing ItemSupplier Information
Sample OrdersAccepted for testing and evaluation
Stocked Sample Lead Time3–7 days
Mass Production Lead Time25–30 days
Quotation TermsFOB, CIF, CFR, EXW
PackagingColor box and carton
Custom PackagingAvailable upon request
Custom BrandingSubject to MOQ requirements
Warranty2 years
Quality ControlProducts tested before shipment
LogisticsDoor-to-door shipping arrangements available

Houkem provides factory-direct quotations, pre-sales technical assistance, after-sales support, and customized manufacturing discussions for qualified B2B projects.

Frequently Asked Questions

Can we obtain the 12057-BW datasheet before PCB design?

Yes, Houkem can provide available technical documentation. Request the pin diagram, polarity configuration, and electrical specifications for engineering verification.

Can we test samples before placing a production order?

Yes, sample orders are accepted. Confirm the required configuration and sample availability with the sales team before ordering.

Can the white 5x7 LED dot matrix display be customized?

Customization can be discussed for OEM applications. Share your electrical, optical, mechanical, and quantity requirements for a feasibility review.

What is the minimum order quantity for bulk purchasing?

MOQ depends on the selected configuration and customization requirements. Contact Houkem with your estimated annual demand for confirmation.

Can Houkem support repeat orders and international delivery?

Houkem offers bulk production and international shipping arrangements. Confirm production scheduling, delivery terms, and packaging requirements when requesting a quotation.

Request a Quote for the 12057-BW LED Display

Looking for a reliable manufacturer of White 5x7 LED Dot Matrix Displays?

Contact Houkem for technical documentation, product samples, OEM customization, and competitive factory-direct quotations.

Share your required quantity, electrical specifications, application, and delivery destination to receive a tailored proposal.

Request a Quote or Contact Our Sales Team

QUALITY ASSURANCE
Certificates & Quality Standards
As a professional LED manufacturer, our 7 segment led display,7 segment smd display,dot matrix,ir led,uv led,high power led fully comply with European Union import requirements.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Certificate 01

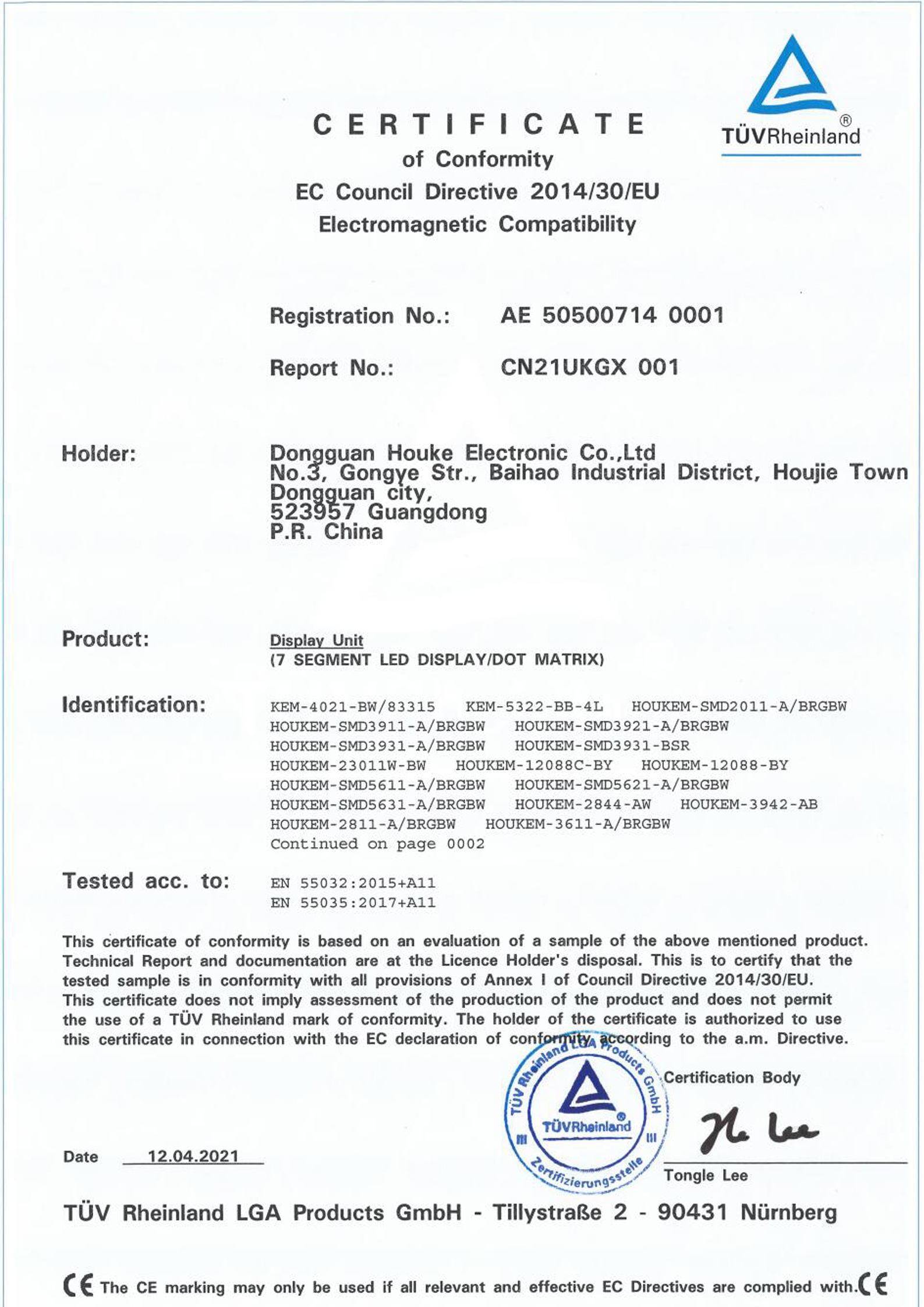

UR / IR LED RoHS Certificate
01
Certificate 02
UR / IR LED SVHC Compliance Certificate
02
Certificate 03
7-Segment LED Display Certificate
03
Certificate 04
7-Segment LED Display Certificate
04
Certificate 05
UR / IR LED CE Certificate
05
Certificate 06
7-Segment LED Display Certificate
06
Certificate 07
UR / IR LED EMC Certificate
07
Certificate 08
7-Segment LED Display Certificate
08

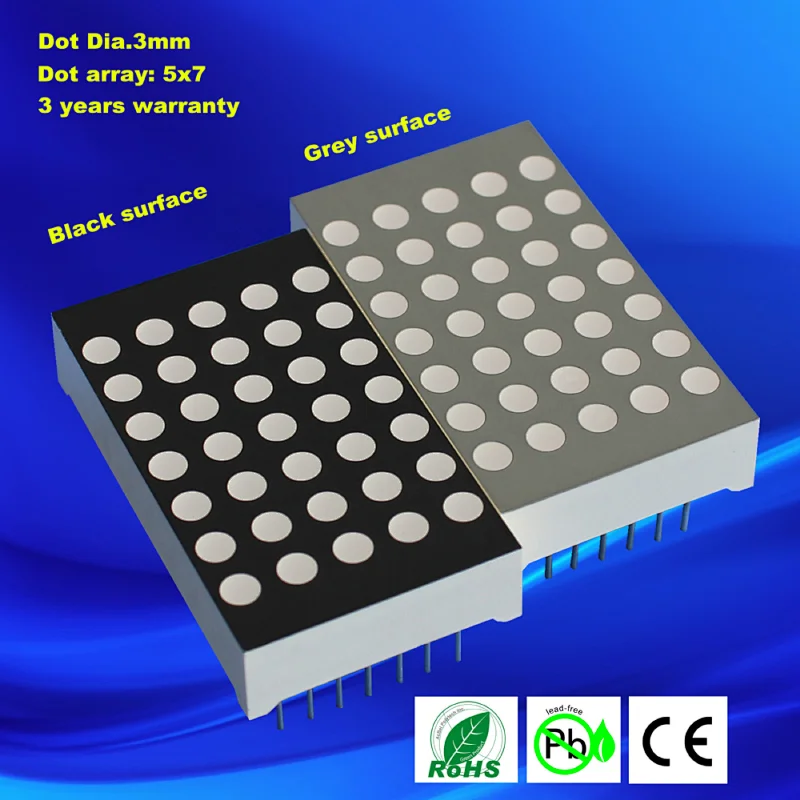

Houkem 12057-BW white LED dot matrix display product view

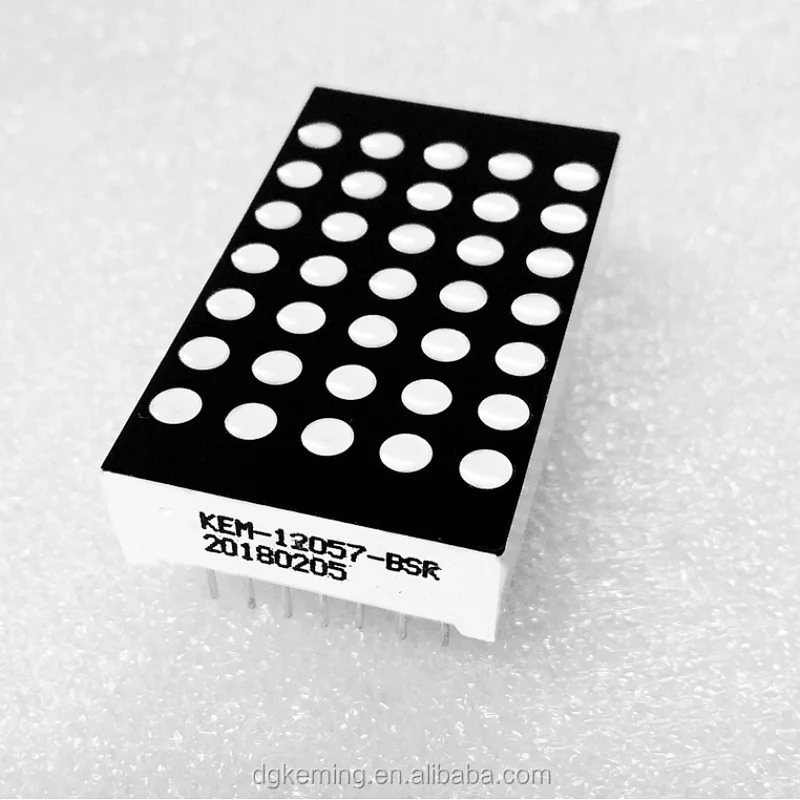

3mm white 5x7 LED matrix display close-up
White 5x7 LED dot matrix display component details
Houkem 12057-BW white LED matrix display structure
5x7 white LED dot matrix display housing details
White LED dot matrix display connection pins
Houkem 12057-BW dimensions and internal circuit diagram
LED display integrated into industrial equipment
LED matrix display application in a digital clock
LED display used in a home appliance control panel
Houkem LED display manufacturing company profile

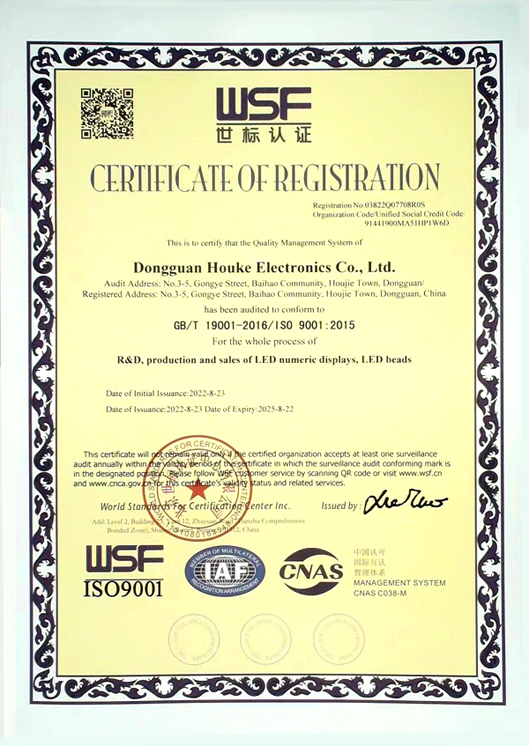

Houkem LED product certification documents
