110mw 290nm 293 nm 300nm 298nm 295nm uvb led high power 5W uvb led 295nm 293nm for vitamin d
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Vitamin D, phototherapy
- Lifespan (hours):10000
- Working Time (hours):10000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:5w
- Viewing Angle(°):60
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:5W High Power uvb LED 295nm
- Emitting Colour:puple
- Forward Voltage:5-6v
- Warranty:2 Years
- Wave length:290-300nm
- Current:700mA
- Chip Size:48*48mil
- Application:Medical Treatment, phototherapy
- Wavelength:295nm
- Chip brand:PW
High power 5w 290nm 293nm 298nm 295nm 300nm uvb led
Electrical and optical characteristics (Ta = 25℃, If=700mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 700mA | 5 | 5.5 | 6 | V |
Radiant Flux [mW] | mW | IF = 700mA | -- | 110 | -- | mw |

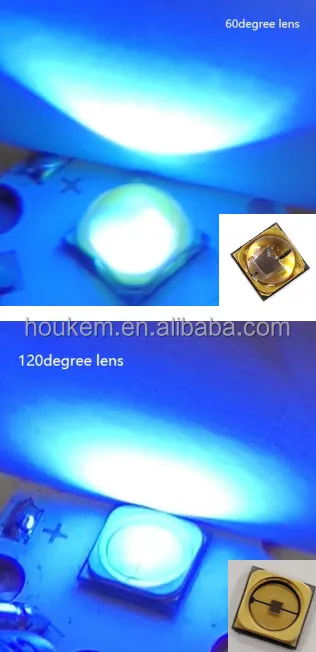

Viewing Angle | 2θ1/2 | IF = 700mA | ---- | 60 | ---- | Deg. |
Dominate Wavelength | λd | IF = 700mA | 290 | 295 | 300 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization

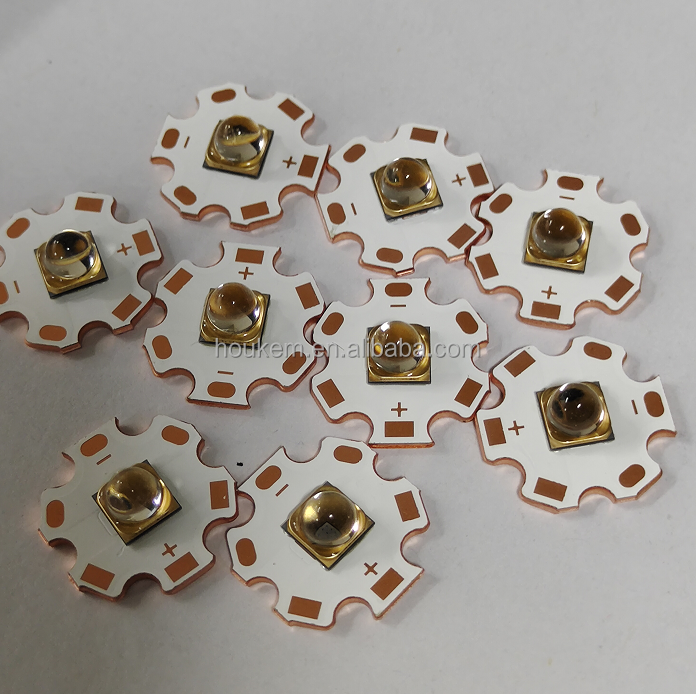

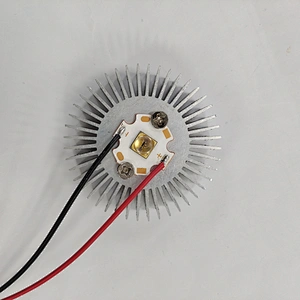

with red copper pcb board

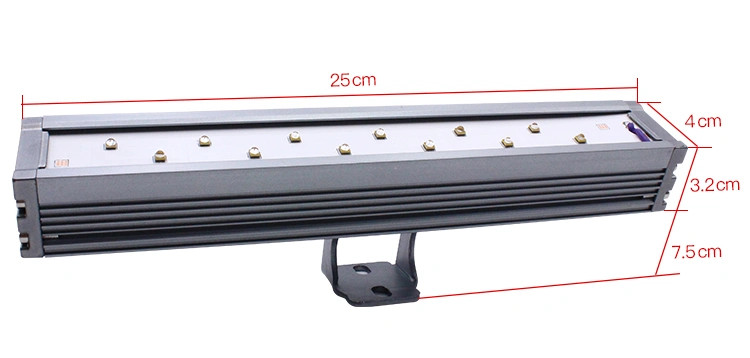

LED light
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, uvc led light, 10w-200w led flood light, and all LED lighting application solution.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4.what payment method can you accept?
A: T/T, Paypal, Western Union, Credit card, Alipay, Wechat.
Q7. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
