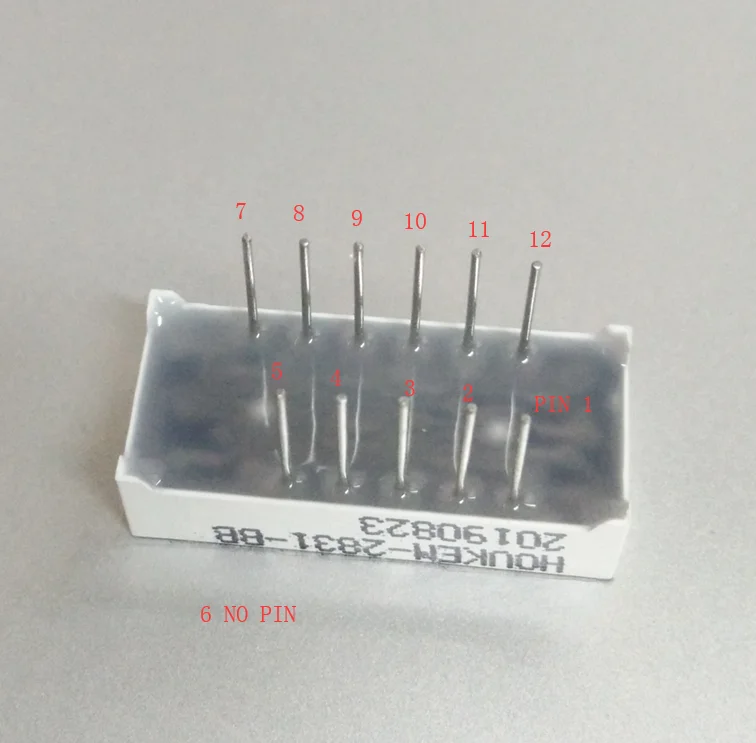

0.28 inch 3 digit green 7 seg led
- Place of Origin:CN;GUA
- Application:stewpot, induction cookers, rice cooker
- Color:green
- Panel Size:22.5*10mm
- Model Number:HOUKEM-2831-BYG
- Brand Name:HOUKEM
Yellow green 0.28 inch 3 digit 7 segment led display for induction cookers/ stewpot/ rice cookers
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-2831-BB |
| Dimension | 22.5*10*6mm |
| digit height | 0.28'' (7mm) |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | yellow green |

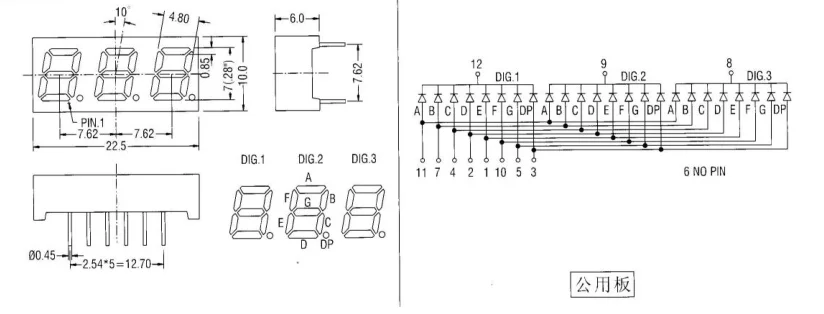

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.8 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.8 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF-10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.8 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.8 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.7 | 2.9 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.7 | 2.9 | 180 | 250 |
White | IF=10-15mA | - | - | 2.7 | 2.9 | 180 | 200 |
Two years quality warranty
If you need other size, please kindly click the pictures.
Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.56'' |
| 6 digit | 0.3'', 0.36'' |
14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available
