10W High Power 900nm IR LED COB Module
10W High Power 900nm IR LED COB Module
Houkem manufactures high performance 900nm IR LED modules with 10W output power, stable infrared radiation and customizable wavelengths. This high power infrared LED is designed for industrial lighting, machine vision, night vision systems, optical sensing and other professional applications.
Product Overview

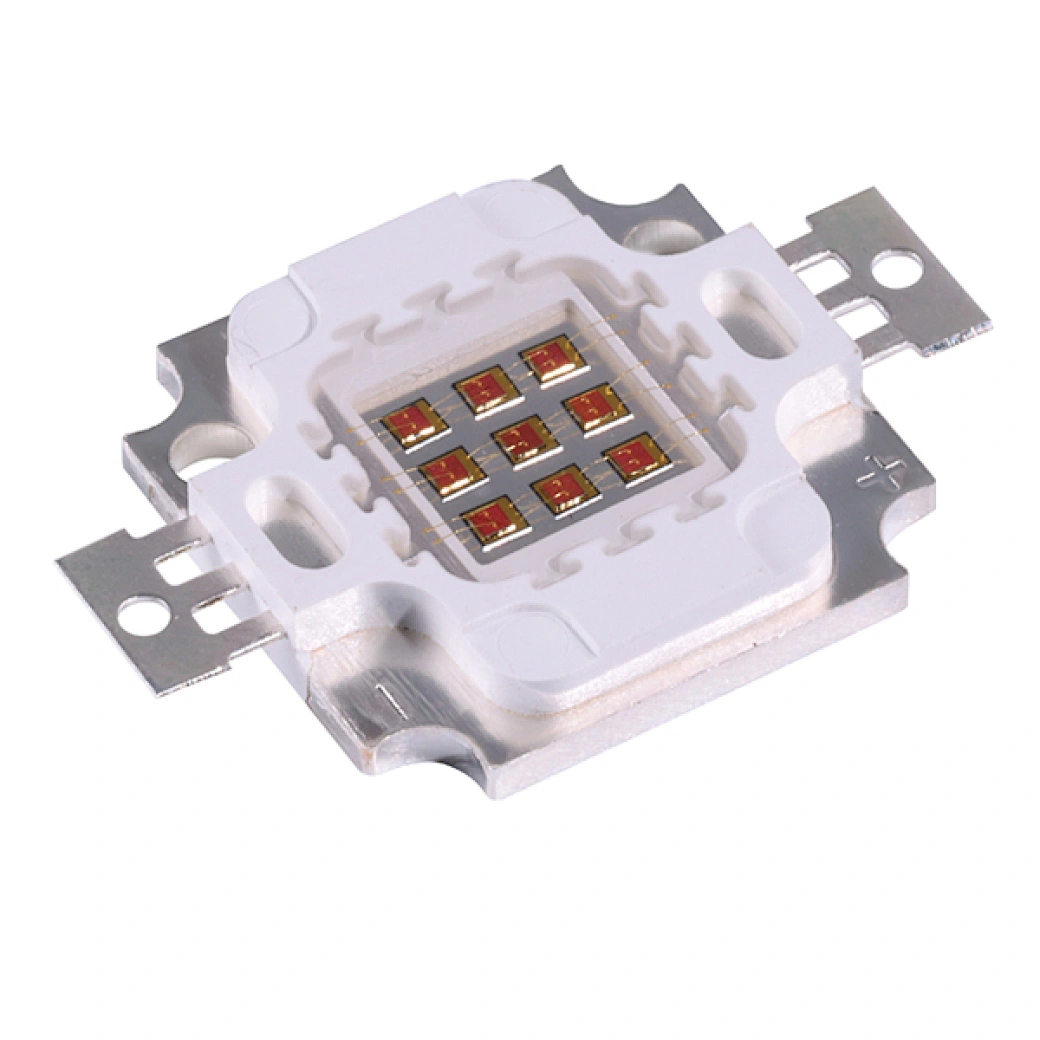

The10W High Power 900nm IR LED COB Module (Model: HOUKEM-HP10W-910) is a compact and powerful infrared light source designed for professional applications requiring stable near infrared output.
With a wavelength range of 900nm-910nm, high optical power of 450-630mW, and excellent thermal performance, this High Power IR LED provides reliable performance for industrial equipment manufacturers, optical systems and customized infrared solutions.
Houkem supports customized wavelength options from 700nm to 1550nm, helping customers develop specialized infrared lighting and sensing products.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 10W High Power 900nm IR LED |
| Model Number | HOUKEM-HP10W-910 |
| LED Type | High Power Infrared LED |
| Power | 10W |
| Wavelength | 900nm-910nm |
| Optional Wavelength | 700nm-1550nm |
| Optical Power | 450-630mW |
| Forward Voltage | 4-5V |
| Forward Current | 1050mA |
| Viewing Angle | 140° |
| Chip Material | InGaN |
| Chip Brand | Epileds |
| Chip Quantity | 9PCS |
| PCB Material | 2.0mm Red Copper Plate |
| Lifespan | 50,000 Hours |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 80℃ |
| Certification | CE, RoHS, ISO9001 |
| Warranty | 2 Years |
| Place of Origin | Guangdong, China |
Electrical and Optical Characteristics (Ta = 25℃)
| Item | High Power 10W IR LED 900nm |
|---|---|
| Power | 10W |
| Color | Red |
| Chip Size | 42*42mil |
| Wavelength | 900-910nm |
| Forward Current | 1050mA |
| Forward Voltage | 4-5V |
| Optical Power | 450-630mW |
| Certification | CE, RoHS, ISO9001 |
Available Wavelength Options
Houkem provides customized infrared LED solutions with multiple wavelength options:
| Wavelength Range | Application Direction |
|---|---|
| 700-800nm | Optical sensing and detection |
| 830-850nm | Machine vision and monitoring |
| 880-890nm | Infrared illumination |
| 900-910nm | Night vision and industrial applications |
| 910-920nm | Optical measurement systems |
| 930-980nm | Sensor and detection equipment |
| 1000-1550nm | Specialized infrared applications |
High Power IR LED Features
High Optical Output
The 10W 900nm IR LED delivers strong infrared radiation output of 450-630mW, making it suitable for applications requiring long-distance and stable illumination.
Excellent Thermal Performance
The LED uses a 2.0mm red copper PCB base to improve heat dissipation and maintain stable operation during continuous use.
Long Operating Lifetime
With up to 50,000 hours lifetime, this infrared COB LED provides reliable performance for industrial equipment and professional systems.
Custom Wavelength Support
Houkem can customize infrared LED wavelengths from 700nm to 1550nm according to customer application requirements.

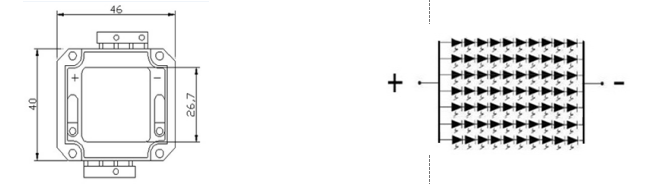

Product Structure Options
10 Series 7 Parallel
- 70pcs LED chips
- Chip size: 42mil

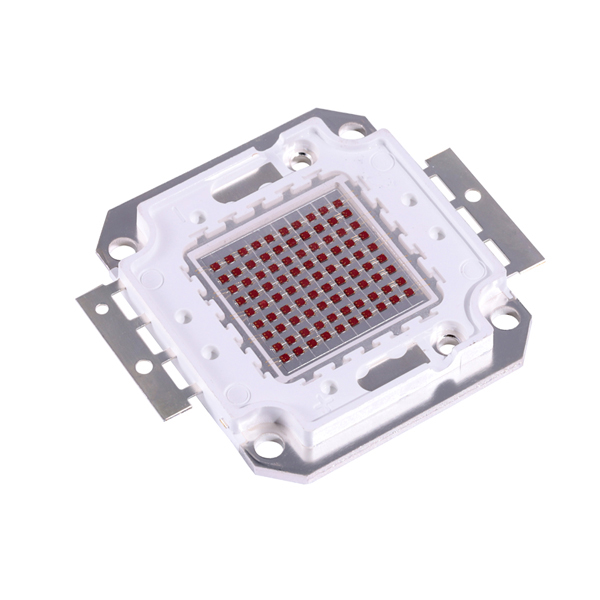

10 Series 10 Parallel
- 100pcs LED chips
- Chip size: 42mil

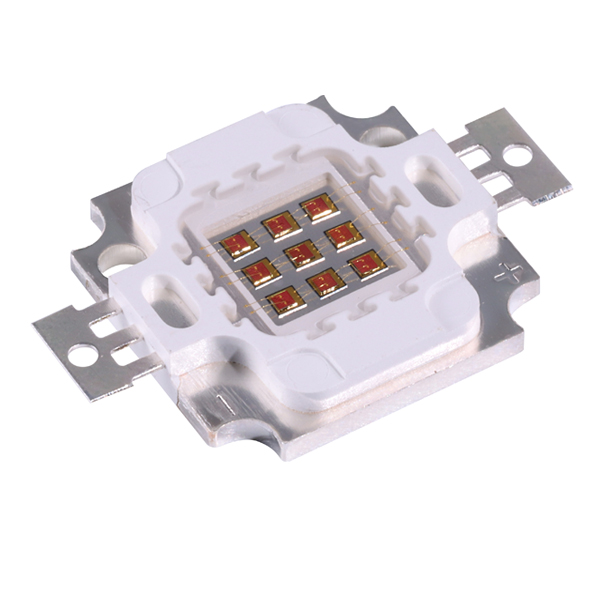

10W IR LED
- 3 Series 3 Parallel
- 9pcs LED chips
- Chip size: 42mil

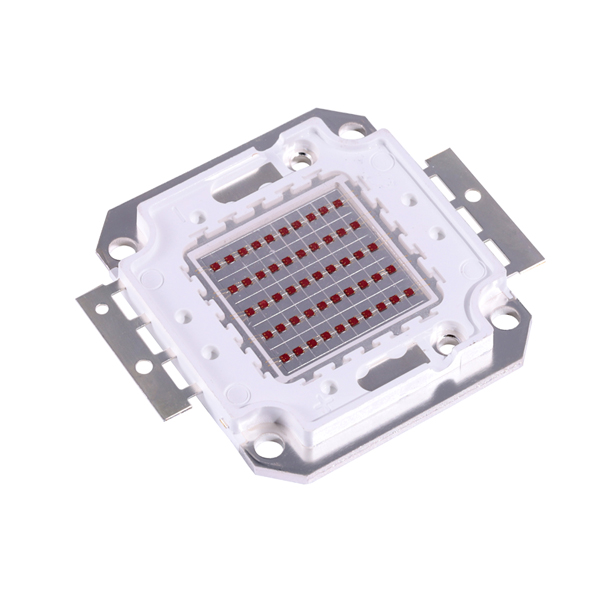

50W IR LED
- 10 Series 5 Parallel configuration

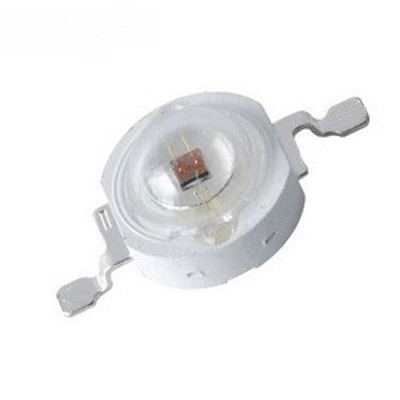

1W IR LED
- Current: 300-350mA
- Voltage: 1.5-1.6V
3W IR LED
- Current: 600-700mA
- Voltage: 1.5-1.6V

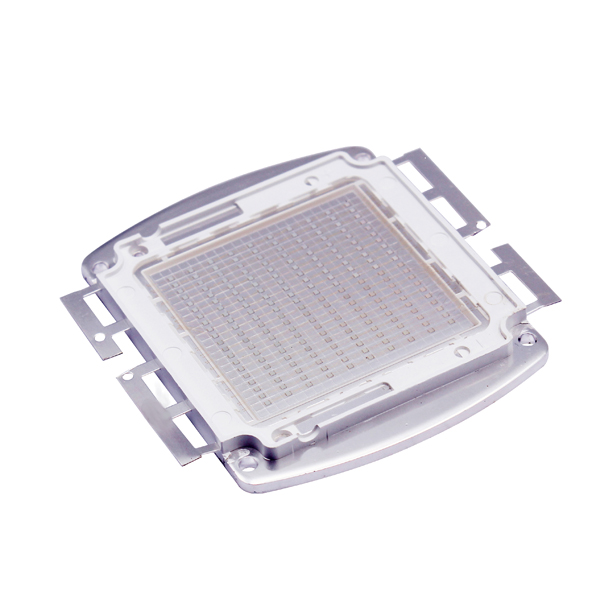

500W High Power IR LED Array
- 500pcs LED chips

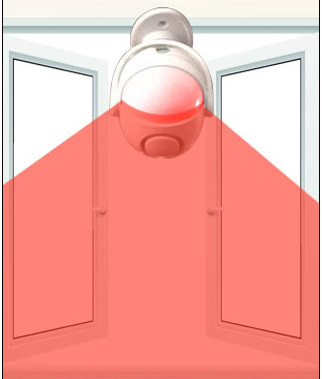

Applications of 900nm IR LED
Night Vision Systems
The900nm IR LED provides invisible infrared illumination for night vision cameras, security monitoring systems and imaging equipment.
Machine Vision
High power infrared LED sources are widely used in industrial cameras, inspection equipment and automated vision systems.
Optical Detection Systems
The stable wavelength output makes this infrared LED suitable for optical sensing, measurement and scientific instruments.
Customized Industrial Equipment
Houkem provides OEM infrared LED solutions for equipment manufacturers requiring specific wavelengths, power levels and package designs.
Product Safety Notice
When using infrared LED products:
- Do not directly look into the LED light source during operation.
- Avoid direct exposure to eyes and skin.
- Use appropriate protective equipment during testing.
- Add safety labels to products containing infrared LED modules.
- Keep products away from children.
Why Choose Houkem as Your IR LED Manufacturer?
20+ Years LED Manufacturing Experience
Established in 2003, Houkem specializes in LED product development, manufacturing and customized solutions.
Our product range includes:
- High Power LED
- Infrared LED
- UV LED
- COB LED
- SMD LED
- LED display products
Professional Customization Capability
Houkem provides:
- Custom wavelength solutions
- Custom power configurations
- OEM/ODM production
- Engineering support
Quality Control
All products are tested before shipment and comply with:
- CE
- RoHS
- ISO9001 standards
Global Supply Experience
Our LED products are exported to customers in:
- USA
- Germany
- Japan
- Korea
- Other global markets
FAQ About 900nm IR LED
What is the wavelength range of this 900nm IR LED?
This product operates at 900nm-910nm wavelength and supports customized infrared wavelengths from 700nm to 1550nm.
Can Houkem customize the infrared LED wavelength?
Yes. Houkem provides customized wavelength, power and package solutions based on customer application requirements.
What applications are suitable for a 10W High Power IR LED?
This infrared LED is commonly used for night vision, machine vision, optical sensing and industrial illumination systems.
What is the lifetime of this infrared COB LED?
The product has a rated lifetime of up to 50,000 hours under proper operating conditions.
Does Houkem provide OEM production for infrared LED projects?
Yes. Houkem supports OEM/ODM production, engineering assistance and customized infrared LED solutions for professional customers.
