10w 50w 100w red led 660nm 670nm 675nm 680nm 690nm high power led
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Chip Material:INGAN
- Emitting Color:Red
- Power:10w
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:10W High Power LED 660nm
- Emitting Colour:red
- Forward Current:900-1050mA
- Forward Voltage:6-7v
- Lifespan:50000 Hours
- Application:Indoor Light, stage light
- Warranty:2 Years
- Wave length:655nm-660nm
- warranty:2 Years
- other Wavelength:625nm 670nm 675nm 680nm 690nm
- Certification:ce, RoHS

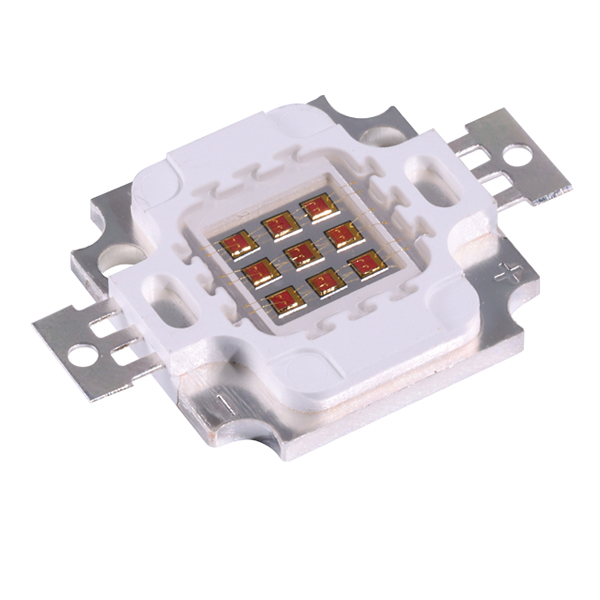

High power 10w 660nm red led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 1050mA | 6.6 | 6.9 | 7.2 | V |
Luminous Flux | Φv | IF = 1050mA | 400 | 3430 | 4060 | mw |
Viewing Angle | 2θ1/2 | IF = 1050mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 1050mA | 655 | 659 | 660 | nm |
3 series 3 parallel
10pcs red led
We are the LED professional manufacturer, we off led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
