10mm 5x7 dual color led dot matrix display module
10mm 5x7 dual color led dot matrix display module
10mm 5x7 dual color led dot matrix display module
10mm 5x7 dual color led dot matrix display module
10mm 5x7 dual color led dot matrix display module

10mm 5x7 dual color led dot matrix display module

Model NO.
KEM-40057A/BEG
Price:
USD 2.50-3.50 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED 5*7 round dot matrix)
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Tube Chip Color:milky white or as emitting color
  • Brand Name:KEM
  • Model Number:KEM-40057A/BEG
  • Screen Dimension:76*106.5mm


10 mm 5x7 dual color led dot matrix display module


Contact us

Sales:Ellen Liu

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Wechat:ellen432555

Whatsapp:+8618825779357

Email:sales3.jpgdgkeming.com.cn

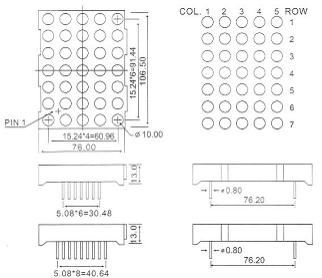

 Dimension and Internal Curcuit :





40057 1

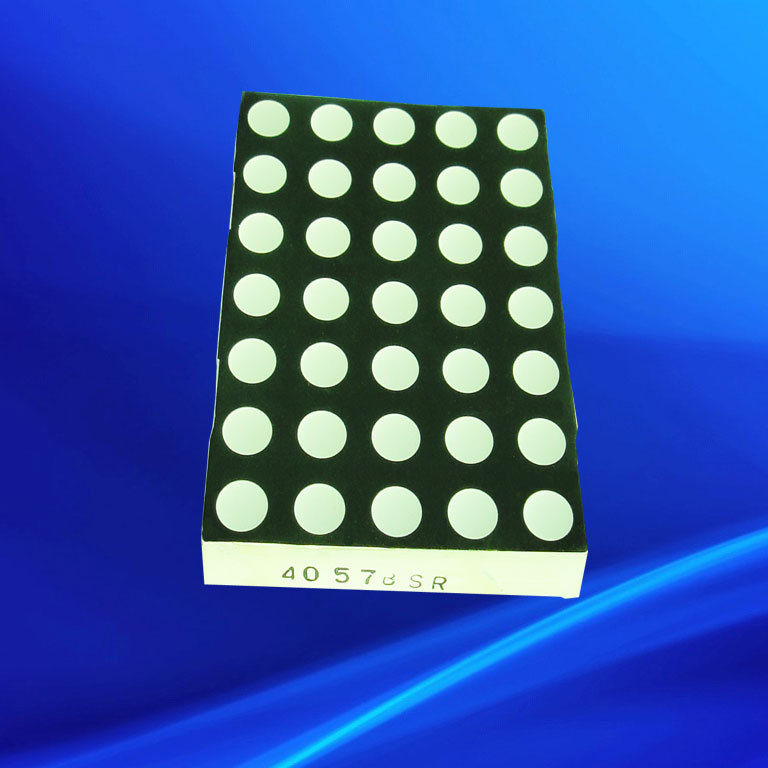

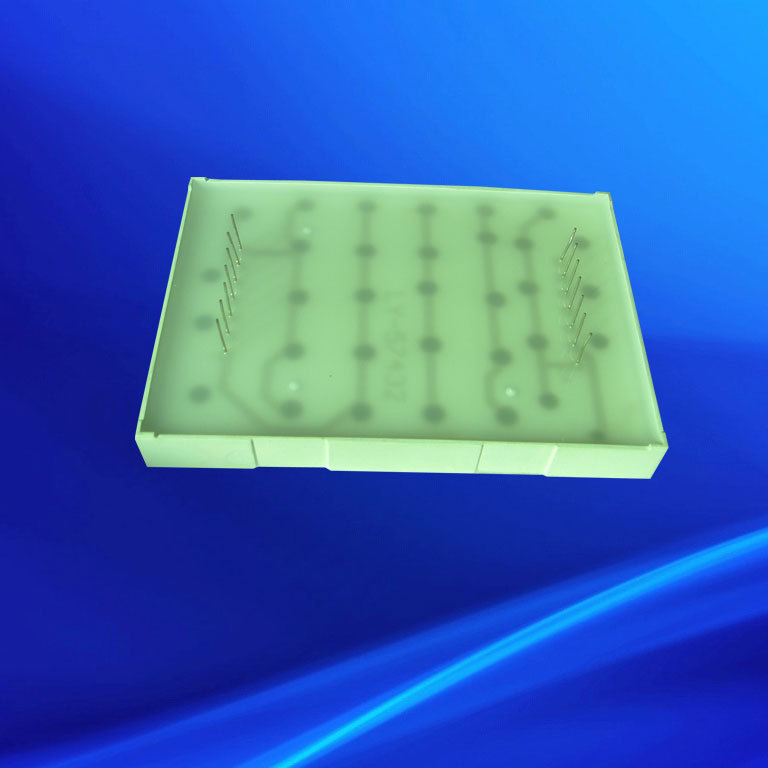

More Pictures for your easy ref





10 mm dot matrix on alibaba

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
  • Face color : black / gray.
  • Surface dot type : epoxy diffusion / clear lens.

Part details :



Model.

:KEM-40057A/B



Description

:76*106.5mm



Surface color

:Black / gray/red



Emitting color

: red,blue,green,white,yellow,amber



Wavelength

475-635 nm



Luminous intensity

50-200mcd



Voltage/ Current

1.8-3.3v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode

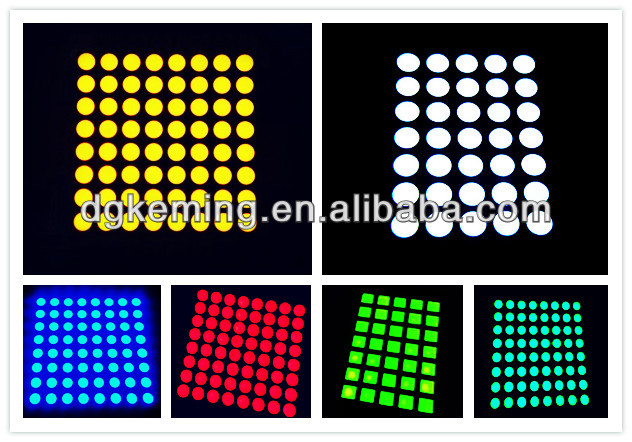

Various color available for  10 mm dot matrix on alibaba  :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA



If the PCB curcuit can not meet your need, pls contact me for other choices.









10 mm dot matrix on alibaba



What We Can Provide:

7 segment / 14 segment / 16 segment display :



 1 Digit

:

 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8"

 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16"



 2 Digit

: 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3"



 3 Digit

: 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8"



 4 Digit

:

 0.25"0.28"0.3"0.36"0.39"0.4"

 0.5"0.52"0.56"0.8"



Emitting Color Available

:Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB



Standard Face color

:Black Face / Gray Face (white segment)



PCB Polarity

:Common Anode / Commone Cathode



LED Dot Matrix Display:



Dot Array

:8*8 /  5*7 /  5*8 / 7*11



Dot Shape

:Round Dot , Square Dot



Dot Diameter

:

1.9mm, 3.0mm, 3.45mm,3.7mm

4.8mm, 5.0mm, 6.0mm, 10mm



Various Color

:

Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB.





Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.



We Promise:

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Experienced sales and engineers will answer all your requirements in fluent English.

3. Advanced equipments & good material:ASM machines; chips,PCB boards & epoxy resin of RoHS compliant.

4. No matter big order or small order, we will provide our products with the best quality & also best service.

5. We are a direct factory in Dongguan and we've been doing the OEM and ODM service for over 10 years.



Welcome To Inquire!
