100w ir led 930nm 935nm led invisible high power ir led
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):0.03
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:INGAN
- Emitting Color:Red
- Power:100w
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power ir LED 930nm
- Emitting Colour:red
- Forward Current:3000-3500mA
- Forward Voltage:15-16v
- Application:medical treatment, laser light
- Warranty:2 Years
- Wave length:930nm-935nm
- other Wavelength:255nm-1550nm
- Certification:RoHS,CE
High power 100w 935nm 930nm ir led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 100w ir LED 930NM |
| Power | 100w |
| Color | red |
| Diode Brand | Epileds |
| Wavelength | 805-810nm, 830-840nm,850-855nm, 880-890nm, 910-920nm, 930-935nm, 940-945nm, 970-980nm, 980-990nm, 995-1000nm, 1010-1020nm, 1040-1050nm, 1030-1035nm,1540-1550nm |
| Radiant power | 300mw/chip |
| Forward Current | 900-1050mA |
| Forward Voltage | 4-6v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
3 series 3 parallel, 9pcs 810nm led chip, chip size: 42mil
50w ,10 series 5 parallel, 7.5--8v
1w 810nm ir led, 300-350mA,1.5-1.6V, 1series 1 parallel
3w810nm ir led, 600-700mA,1.5-1.6V, 1 series 2 parallel

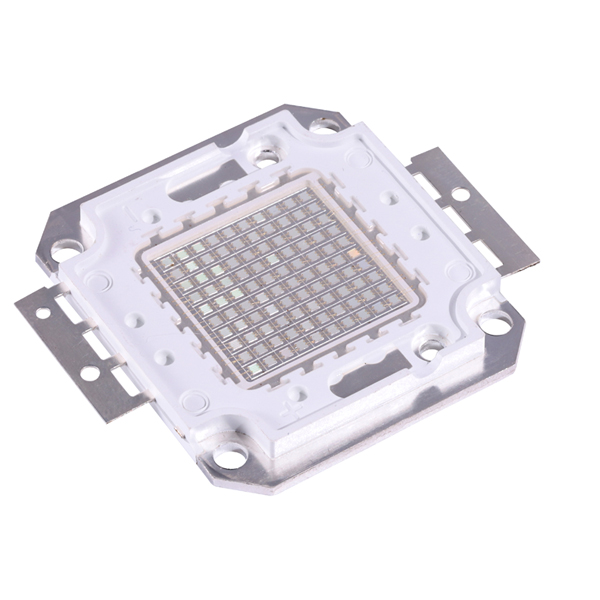

100w
10 series 10 parallel, 15-16v

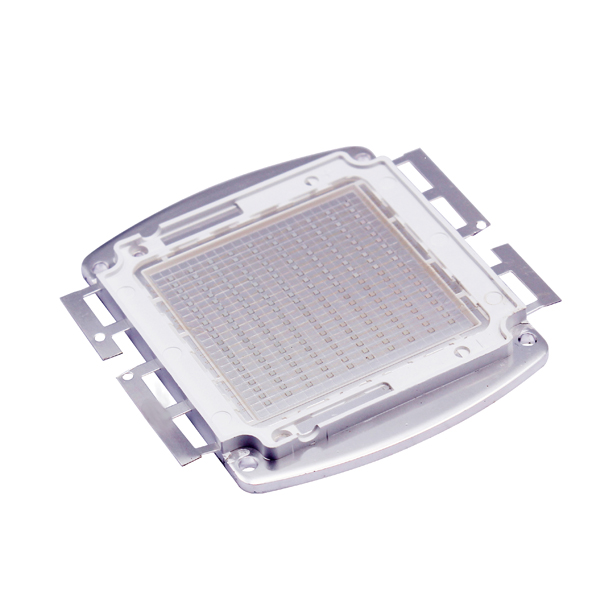

500w, 500PCS 810nm led chip
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, UVC LED sterilizer light, 10w-200w led flood light, and all LED lighting application solution.
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and carton. Welcome to customize if you need.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
EXW is available.
Q6: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q7: Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
