Cheap price high power blue led 100w 440nm 445nm 450nm 460nm 465nm 470nm 480nm blue led
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:INGAN
- Emitting Color:blue
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power blue LED 465nm
- Emitting Colour:blue
- Forward Current:3000-3500mA
- Forward Voltage:30-33v
- Wave length:460-465nm
- Chip brand:Epileds 45mil
- Other Wavelength:460-465nm
- Base material:Red Copper
- Certification:RoHS, CE, ISO9001
- other wattage:1w -1500w are available

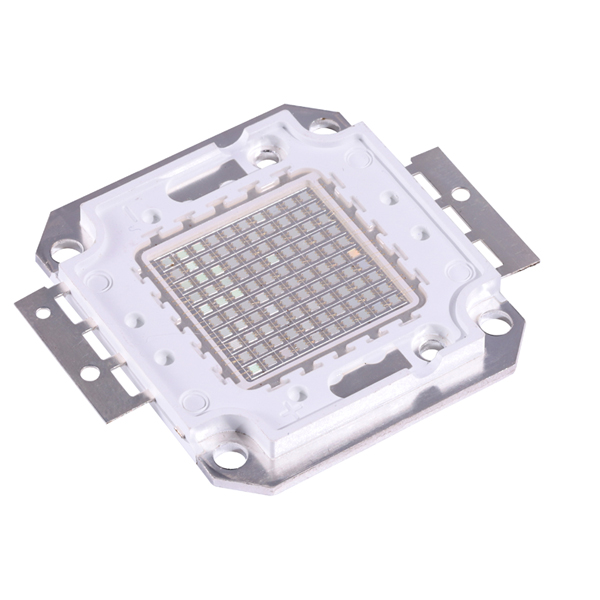

High power 100w 465nm 460nm blue led
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 3500mA | 29 | 30 | 30 | V |
Radiant power Flux | Φv | IF = 3500mA | 48000 | 51000 | 52000 | mW |
Viewing Angle | 2θ1/2 | IF = 3500mA | ---- | 140 | ---- | Deg. |
Dominate Wavelength | λd | IF = 3500mA | 460 | --- | 465 | nm |
| Wavelength | 365-370nm,380-385nm,390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm, 440-450nm, 460-465nm, 470-475nm,480-485nm |

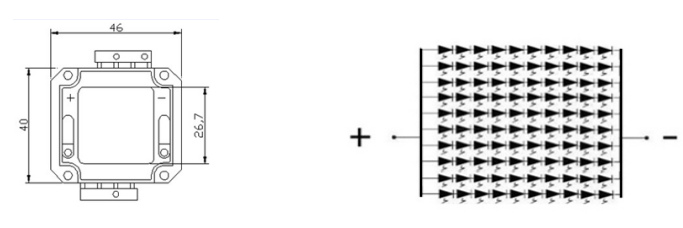

10 series& 10parallel

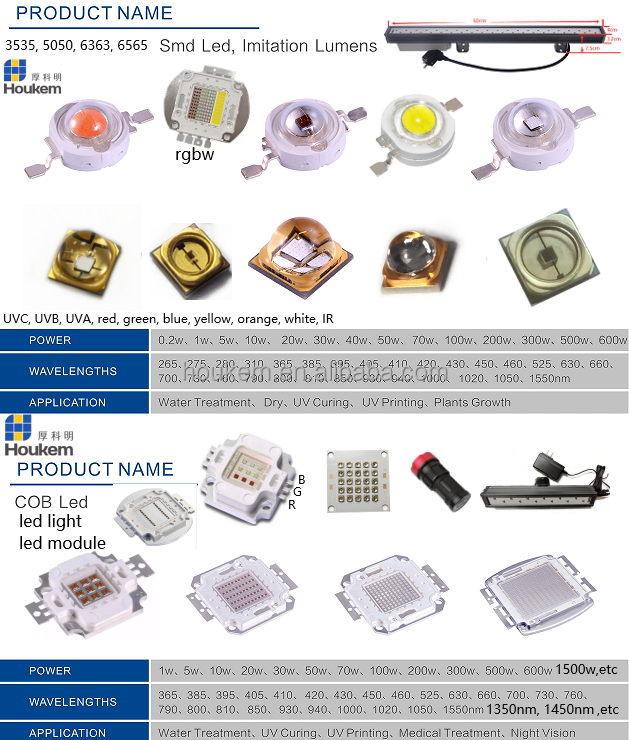

Established in 2003, Houkem has 19 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator displays,
High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

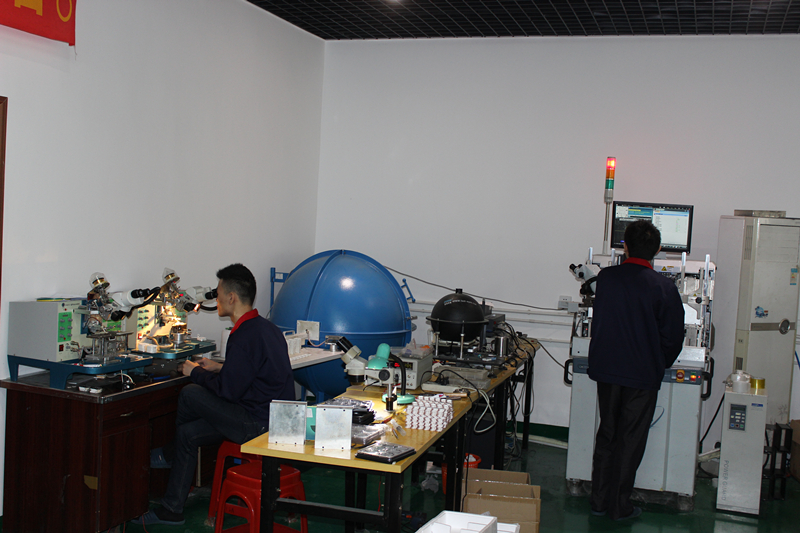

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
