0.6W 308nm UVB LED Chip
308nm UVB LED for Phototherapy and Medical Devices
The308nm UVB LED is a specialized ultraviolet light source designed for phototherapy equipment, medical research devices, skin treatment systems, and scientific instrumentation. Operating within the UVB spectrum (305–315nm), this wavelength range is widely used in controlled medical and laboratory environments where precise ultraviolet output is required.
HOUKEM's0.6W 308nm UVB LED adopts a compact 3535 SMD package and delivers stable UVB performance with low power consumption, flexible lens options, and reliable long-term operation. With over 20 years of LED manufacturing experience, HOUKEM supports OEM and ODM customization for professional B2B customers worldwide.
Product Features
Precise UVB Wavelength Output
This308nm UVB LED provides a dominant wavelength range of 305–315nm, making it suitable for phototherapy equipment, dermatology devices, and UV scientific applications requiring controlled UVB exposure.

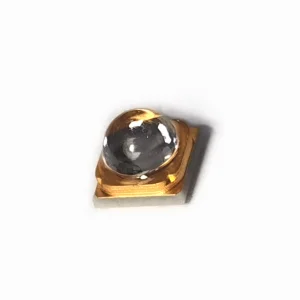

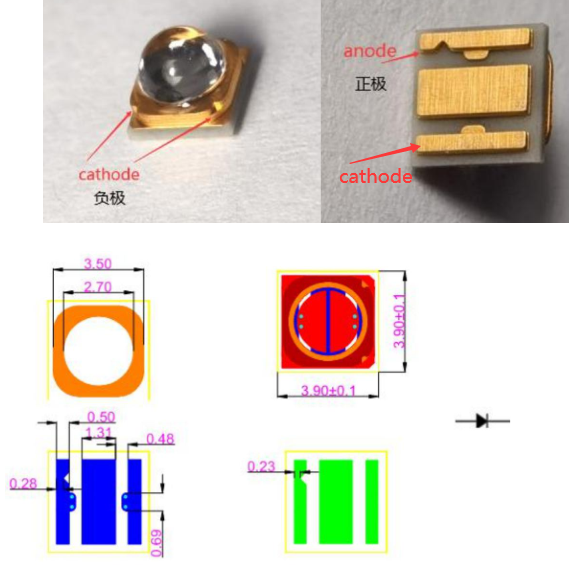

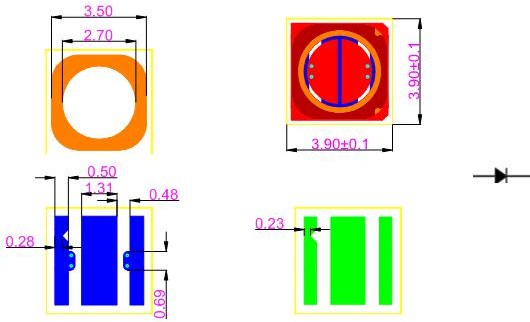

Compact 3535 SMD Package
The 3535 SMD design allows easy integration into medical instruments, handheld devices, UV modules, and customized lighting systems while maintaining efficient thermal performance.

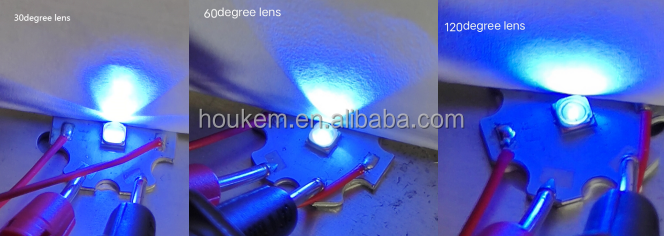

Multiple Lens Options Available
To meet different optical requirements, this UVB LED can be supplied with:
- 30° Lens
- 60° Lens
- 90° Lens
- 120° Lens
These beam angle options help engineers optimize irradiation distance and light distribution according to application requirements.
Reliable Industrial Performance
Built using high-quality semiconductor materials, the LED offers stable output and consistent performance throughout its service life.
Technical Specifications
Electrical and Optical Parameters
| Parameter | Specification |
|---|---|
| Product Model | HOUKEM-06W-310-60 |
| Product Type | UVB LED |
| Package Type | 3535 SMD |
| Power | 0.6W |

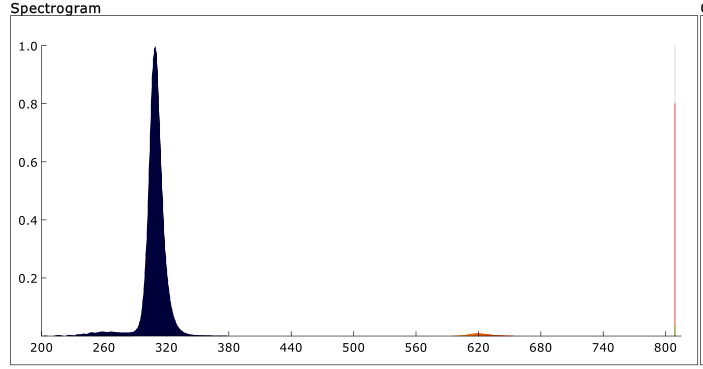

| Wavelength | 305–315nm |
| Typical Peak Wavelength | 308nm |
| Radiant Flux | 10–12mW |
| Forward Voltage | 5.5–6V |
| Current | 100mA |
| Chip Quantity | 1PC |
| Viewing Angle | 30° / 60° / 90° / 120° |
| Emitting Color | Purple |
| Lifespan | 10,000 Hours |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Warranty | 2 Years |
| Certification | CE, RoHS |
Additional Product Information
| Item | Value |
|---|---|
| Chip Material | AlGaInP |
| Chip Size | 20 × 20 mil |
| Product Weight | 0.001kg |
| Input Voltage | DC 5.5–6V |
| Lighting Solution Service | Phototherapy Design Support |
| Place of Origin | Guangdong, China |
| Brand | HOUKEM |
Typical Applications
Phototherapy Equipment
The308nm UVB LED is commonly integrated into phototherapy systems designed for controlled UVB exposure. Its compact size and stable wavelength output make it suitable for portable and fixed medical devices.
Medical Treatment Devices
Medical equipment manufacturers often select UVB LEDs for phototherapy because of their compact footprint, low energy consumption, and easy integration into modern healthcare devices.
Scientific Research Instruments
Universities, laboratories, and research institutes use 308nm UVB LEDs in spectroscopy, optical testing, UV measurement systems, and experimental research projects.
Customized UV Modules
The 3535 package and multiple lens configurations allow system integrators to develop customized UV LED modules for specialized industrial and scientific applications.
Why Choose HOUKEM UVB LEDs?
Professional UV LED Manufacturer
Dongguan Houke Electronic Co., Limited specializes in:
- UV LEDs
- UVB LEDs
- UVA LEDs
- UVC LEDs
- IR LEDs
- High-power LED modules
Our engineering team provides customized solutions including:
- LED module design
- Driver integration
- Heat sink solutions
- Cooling fan solutions
- Customized wavelength selection
Strict Quality Control
Every308nm UVB LED undergoes comprehensive testing before shipment to ensure stable optical performance and product consistency.
OEM & ODM Capability
We support:
- Customized wavelength solutions
- Private label production
- Customized packaging
- Custom PCB design
- Optical lens customization
Global Export Experience
Our products are exported to customers in:
- United States
- Germany
- Japan
- South Korea
- Europe
- Southeast Asia
Manufacturing Capability
Established in 2003, HOUKEM has accumulated extensive experience in the development and production of LED products, including:
- UV LED chips
- UVB LED modules
- Infrared LEDs
- SMD LEDs
- COB LEDs
- LED display components
- Custom LED lighting solutions
Advanced automated production equipment and spectrum testing systems help ensure consistent quality and reliable performance.
FAQ
What is the typical wavelength of this UVB LED?
The dominant wavelength range is 305–315nm, with 308nm UVB LED being the most commonly supplied configuration. Customized wavelength sorting may be available for volume orders.
Can this UVB LED be used for phototherapy equipment?
Yes. This product is specifically designed for phototherapy and medical device applications. Our engineering team can also assist with module integration and optical design.
Do you offer custom lens angles?
Yes. We provide 30°, 60°, 90°, and 120° lens options. Custom optical solutions can be developed for OEM projects.
Is OEM or private label service available?
Yes. HOUKEM supports OEM and ODM manufacturing, including customized packaging, labeling, wavelength selection, and PCB design.
What is the minimum order quantity?
Sample orders are available for testing and evaluation. For mass production projects, MOQ can be discussed based on product specifications and customization requirements.
Request a Quote
Looking for a reliable 308nm UVB LED supplier for phototherapy devices, medical equipment, or scientific instruments?
HOUKEM provides:
- Factory-direct pricing
- Fast sample support
- OEM & ODM services
- Technical engineering assistance
- Stable global supply capability
Contact our team today to receive datasheets, sample information, customization options, and a competitive quotation for your next UV LED project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
