Model No: HOUKEM-3621-BB
0.36 inch 10 pin 2 digit 7 seg led display led blue 7 segment - Houkem
7 segment display houkem is 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
5000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.30 - US $3.00 / pieces
- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Blue
- Display Function:Graphics
- Pixels:20mm
- Brand Name: Houkem
- Model Number:Houkem-3621-BB
- Screen Dimension:12.6*19mm
Product Describtion

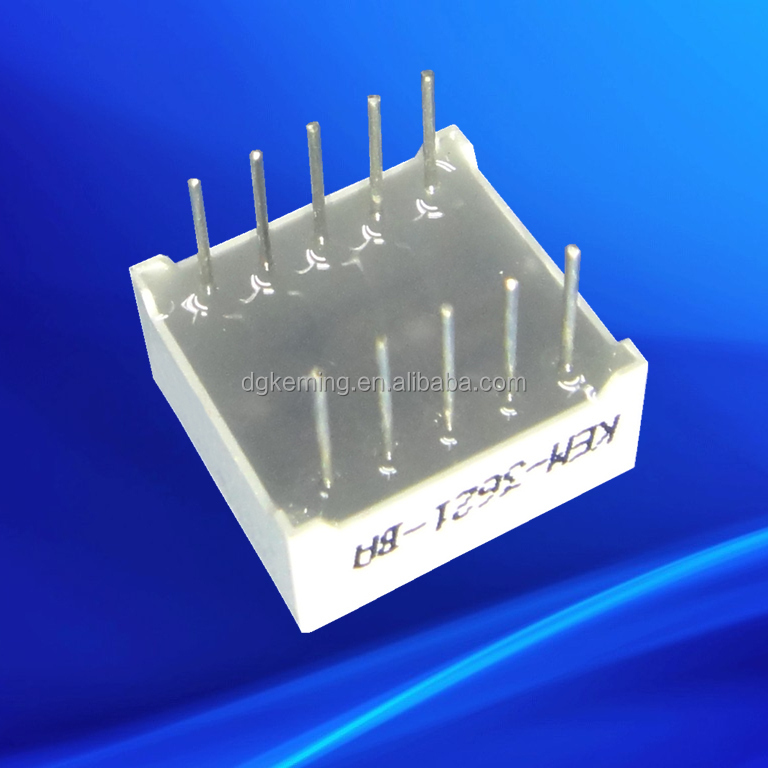

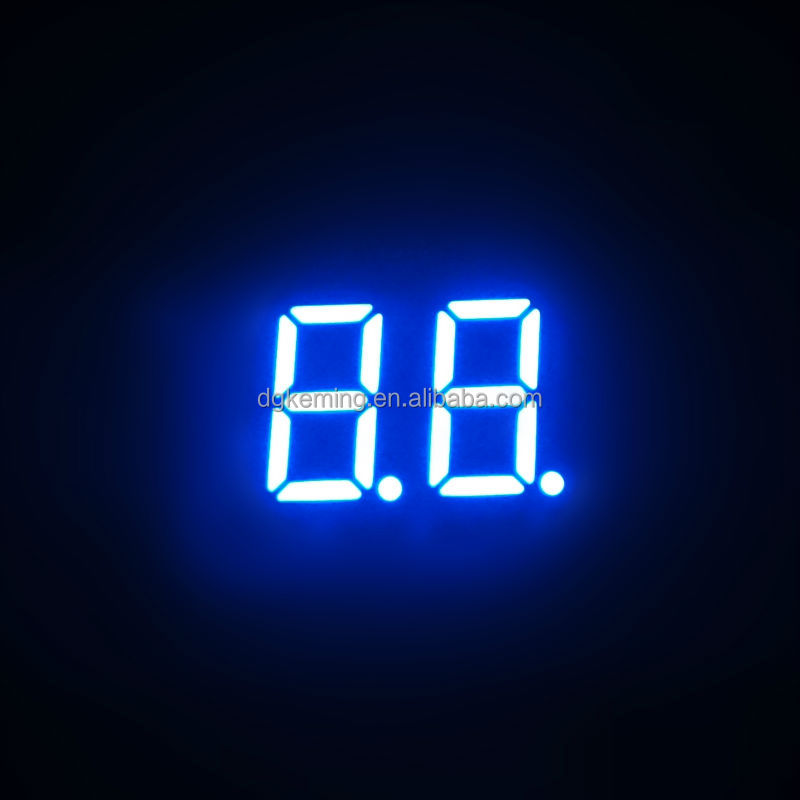

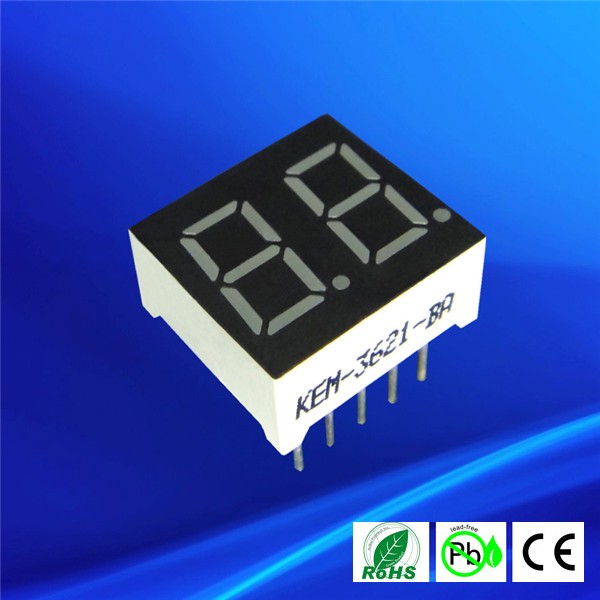

10 pin 2 digit 7 seg led display Houkem-3611 led blue 7 segment
Low consumption!
High brightness!
| Item No. | HOUKEM-3621-BB |
| Dimension | 19.3*14*8mm |
| Digit height | 0.36'' |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | blue |
| Luminious intensity | 150-200mcd |
| Pin configuration | common anode |

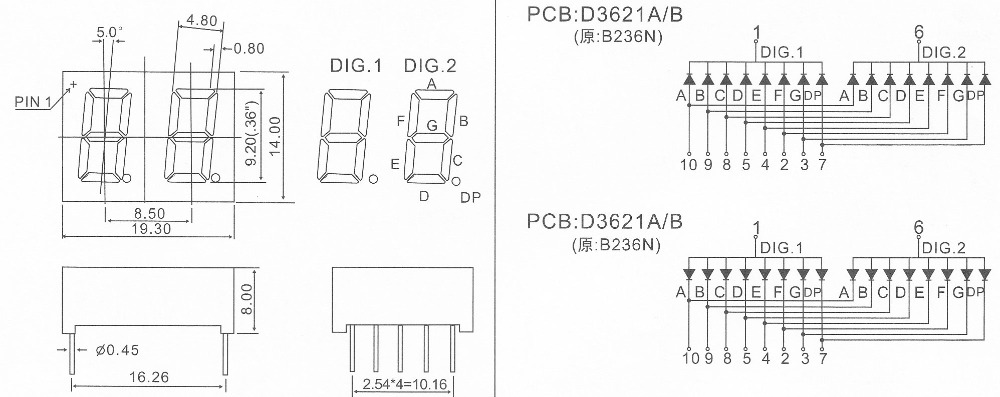

Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Our Services
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Any delivery way is available.
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service, we can offer---- FREE SAMPLES for your test within 3-5 days.
Custom service:

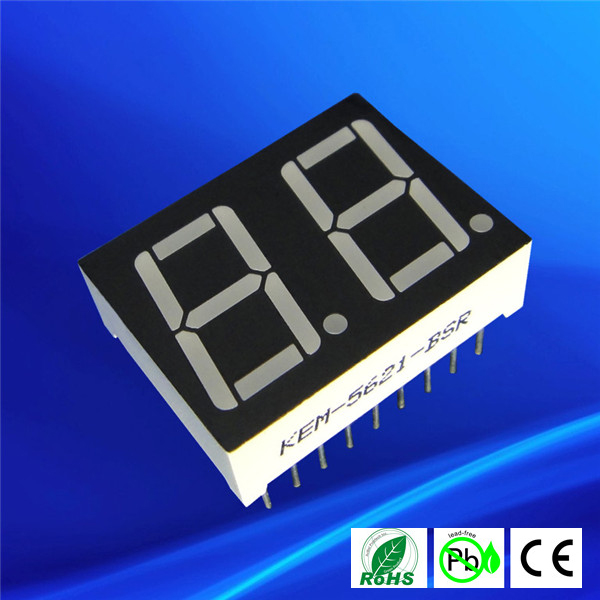

1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.
4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
5. high power led: white /red /blue/green/IR/UV led
warranty:
Two years quality warranty

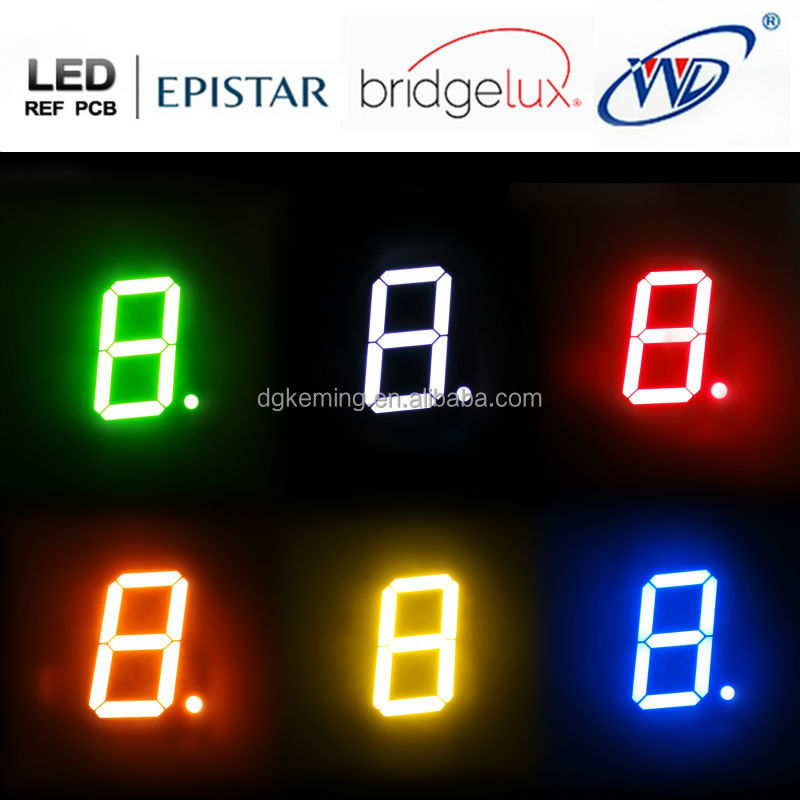

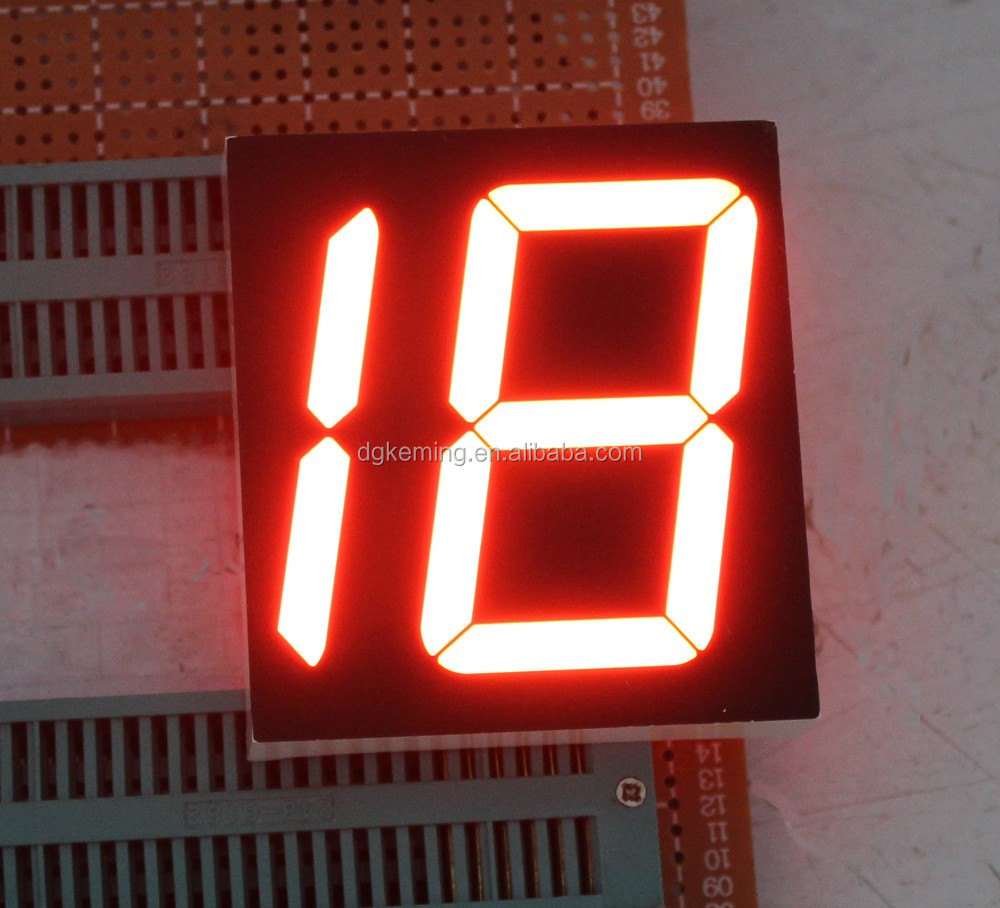

Other color
