Model No: HOUKEM-7057-A/BB
high brightness Houkem-7057-AB blue small 1.9mm matrix led 5x7 display
dot matrix display houkem is led dot matrix display professional manufacturer
minimum order :
1 piece
Quantity :
$0.42 - $0.42 / piece
- Application:Indoor
- Color:blue
- Panel Size:12.7*17.8mm
- Pixel Pitch:2.54
- Supplier Type:ODM, OEM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-7057-A/BB
- Brand Name:HOUKEM
- use:advertising publish, welcome display, subway
- Function:SDK
- Pixels:2.54mm
- Specification:Digital Poster
- Screen Dimension:12.7*17.8*6.3mm
- Package:EPE
- Array:5x7
- Dot size:1.9mm
- Surface color:black/gray
- Wavelength:465-475nm
- Luminous Intensity:200-250mcd
- Voltage:3V
- Current:20mA
- Manufacturer:China factory
Products Description
high brightness Houkem-7057-AB blue small 1.9mm matrix led 5x7 display
Part No. | HOUKEM-7057-AB | Dimension | 12.7*17.8*6.3 mm | |||
Dot array | 5x7 | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | blue | |||
Luminous intensity | 200-250mcd/chip | Polarity | Common cathode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||

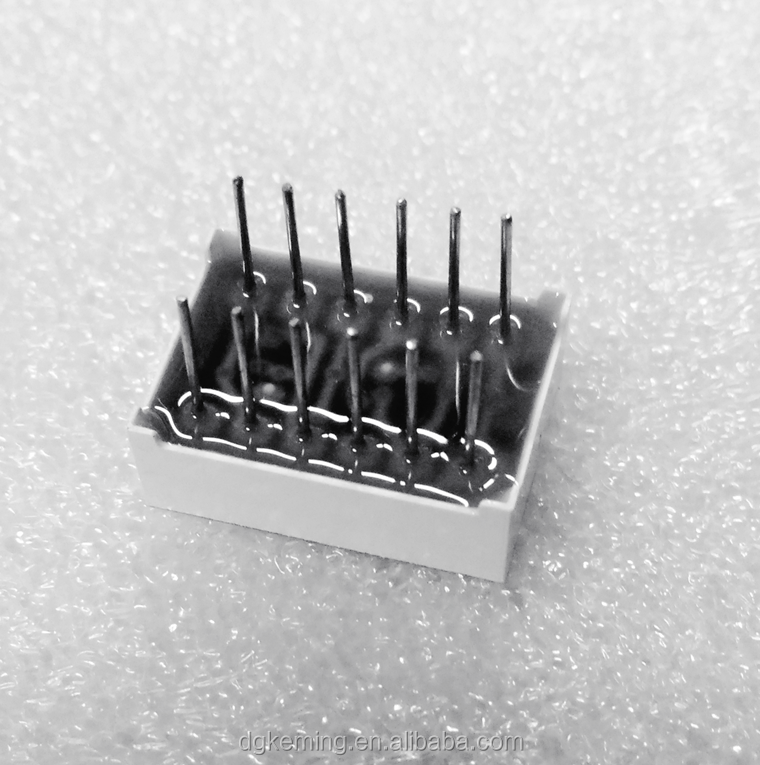

Details Images
Features:
1.1.9mm 5x7 led matrix
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

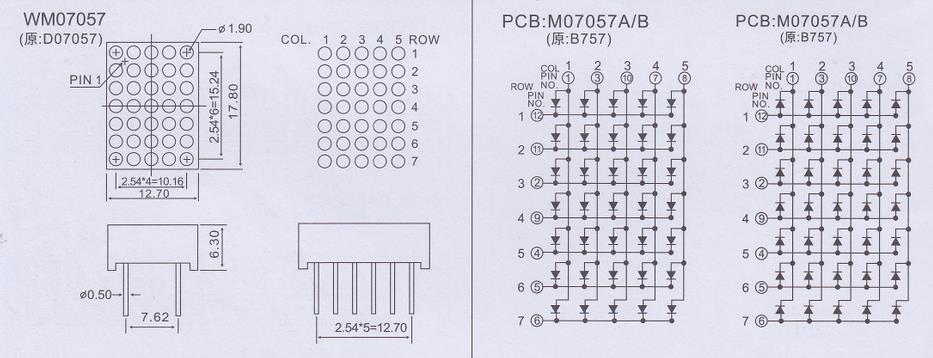

Dimension and Internal Circuit Diagram
Relative Products:

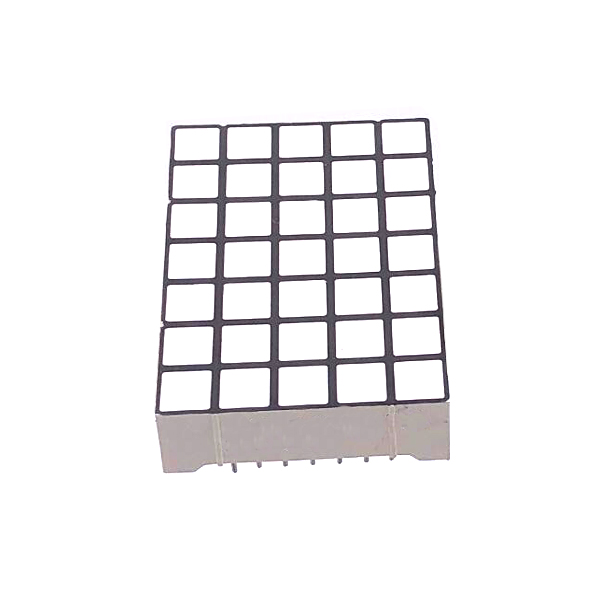

square 5x7 dot matrix

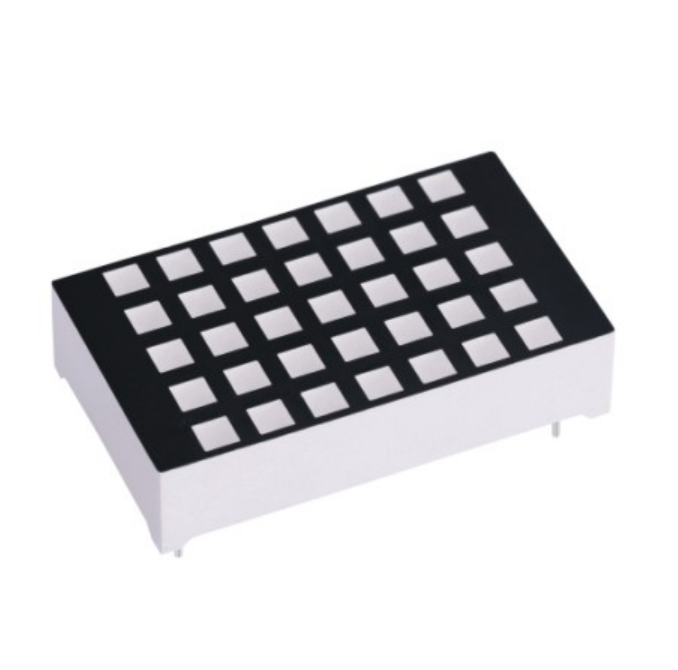

square 5*7 led matrix

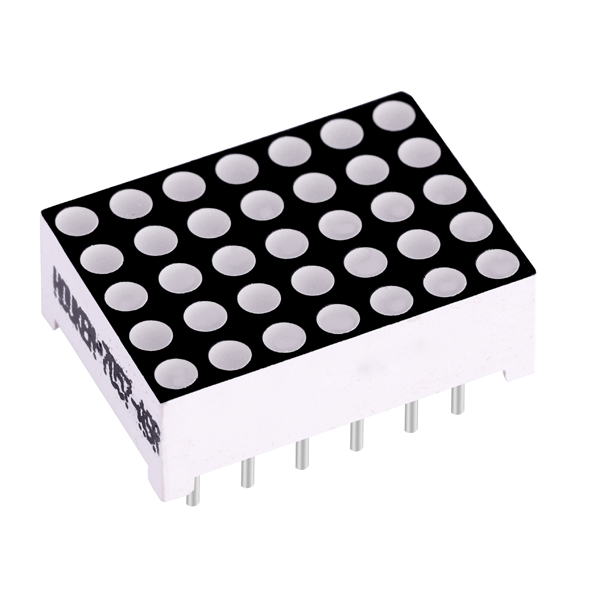

round 5x7 dot matrix

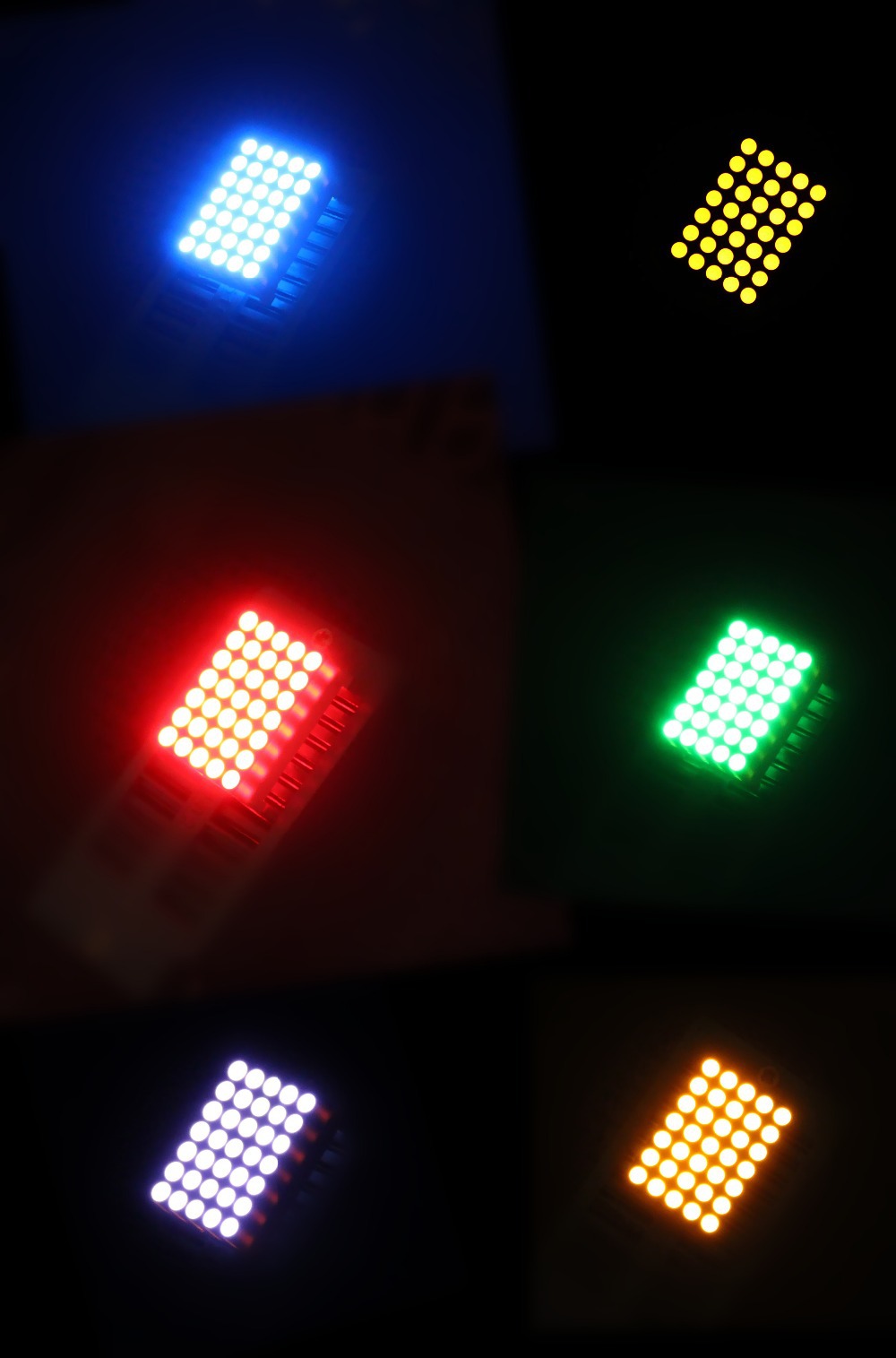

All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

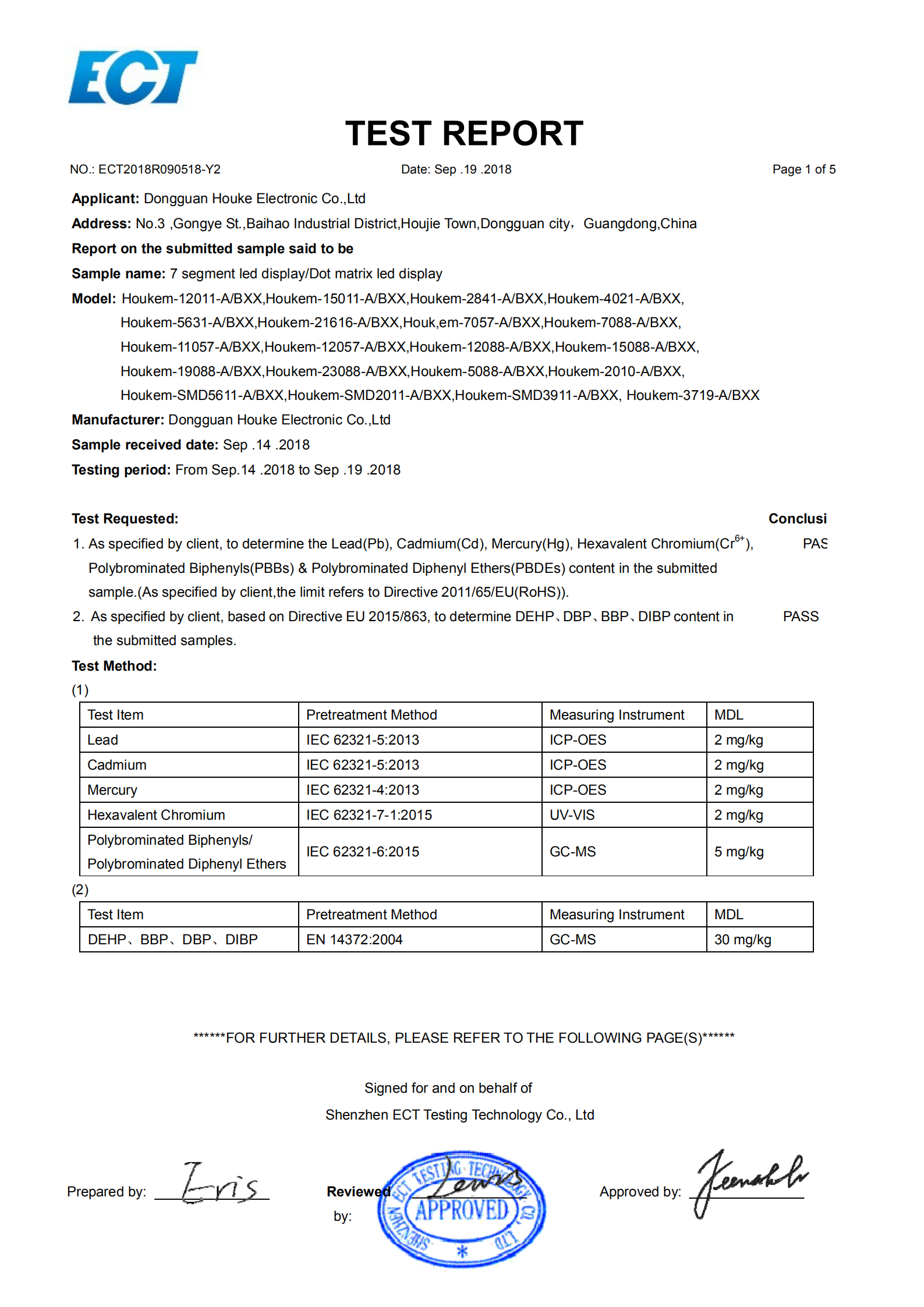

Certifications
