5x7 LED Matrix Display Module with 1.9mm LED dots

1.9mm 5x7 LED Matrix module for electronic display applications

HOUKEM LED Dot Matrix Display module with high brightness LED chips

Compact 5x7 LED Matrix Display component for industrial equipment

5x7 LED Matrix module with super red LED display output

Custom LED Matrix Module manufacturer with OEM and ODM solutions

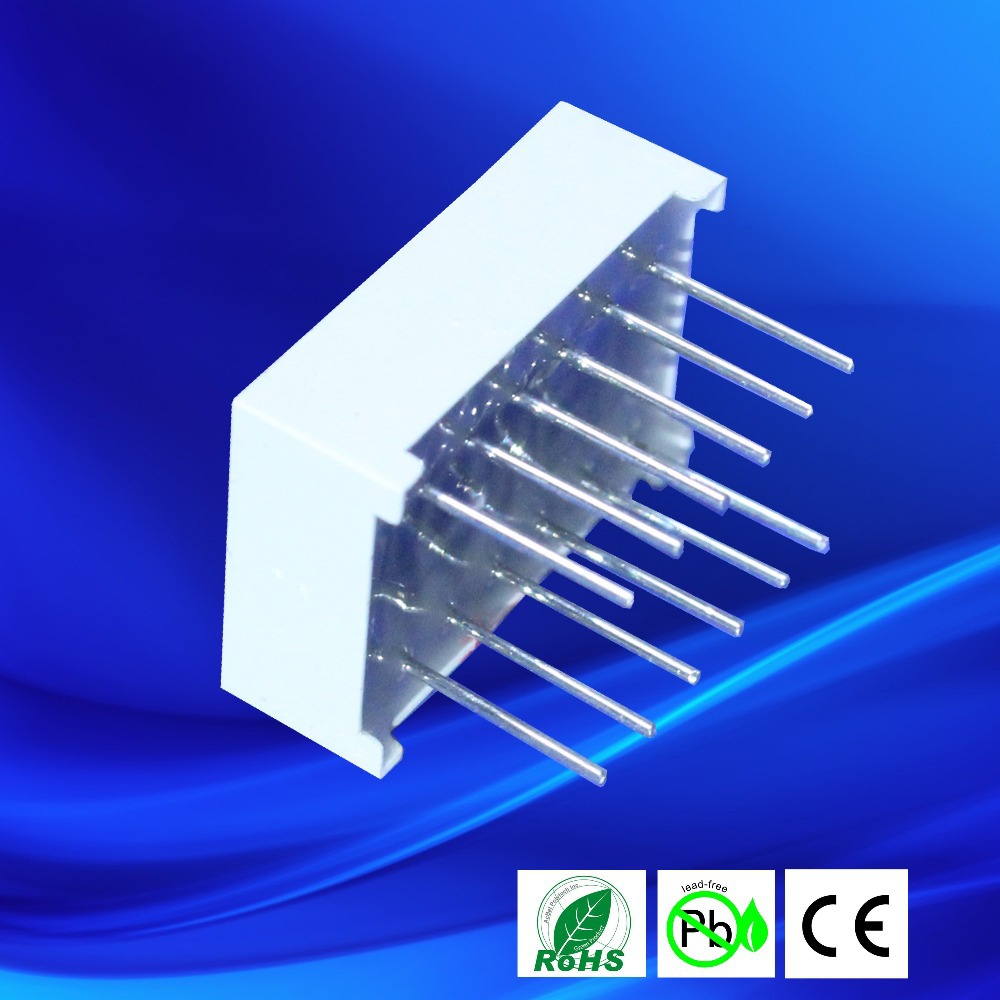

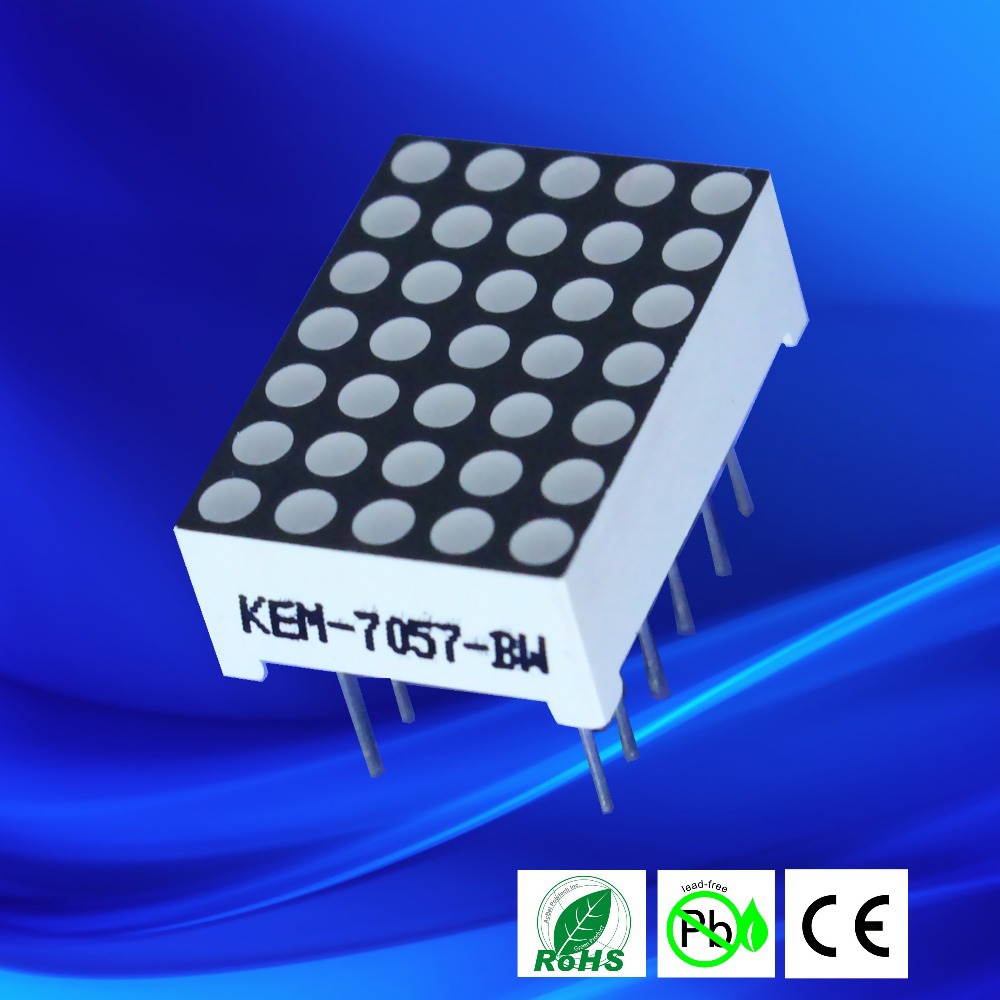

Model No: KEM-7057-A/BSR(LTP-1057AE)

5x7 LED Matrix Display Module 1.9mm

HOUKEM 5x7 LED Matrix Display Module features a compact 1.9mm dot design, high brightness LED chips, and reliable performance for industrial equipment, electronic instruments, and customized display applications. OEM and ODM solutions are available.

Country of Origin :

Shenzhen/guangzhou

Quantity :

$0.38 - $1.30 / piece

add to cart

Contact Now

5x7 LED Matrix Display Module Overview

HOUKEM5x7 LED Matrix is a compact and reliable LED dot matrix display module designed for industrial equipment, electronic instruments, control systems, and customized display applications. Featuring a 5×7 dot array structure with a 1.9mm dot diameter, this LED module provides clear character display, stable brightness, and excellent reliability for professional electronic applications.

As an experienced LED display manufacturer, HOUKEM provides high-quality LED Dot Matrix Display solutions with OEM and ODM support. This product is available in different emitting colors and can be customized according to customer requirements for industrial control panels, embedded systems, and electronic devices.

Key Features of 5x7 LED Matrix Display Module

The HOUKEM 5x7 LED Matrix Module is designed for applications requiring compact size, efficient performance, and long-term operation.

Main features include:

Compact 5×7 dot matrix structure
1.9mm LED dot diameter for detailed display
High brightness LED chips from Taiwan Epistar
Wide viewing angle design
Low power consumption
Solid-state reliability and long service life
Compatible with ASCII and EBCDIC codes
Horizontal stackable design for flexible integration
Indoor and outdoor application support
OEM and custom production available

Product Specifications

Parameter	Specification
Product Name	5x7 LED Matrix Display Module
Model Number	KEM-7057-A/BSR (LTP-1057AE)
Display Function	Graphics

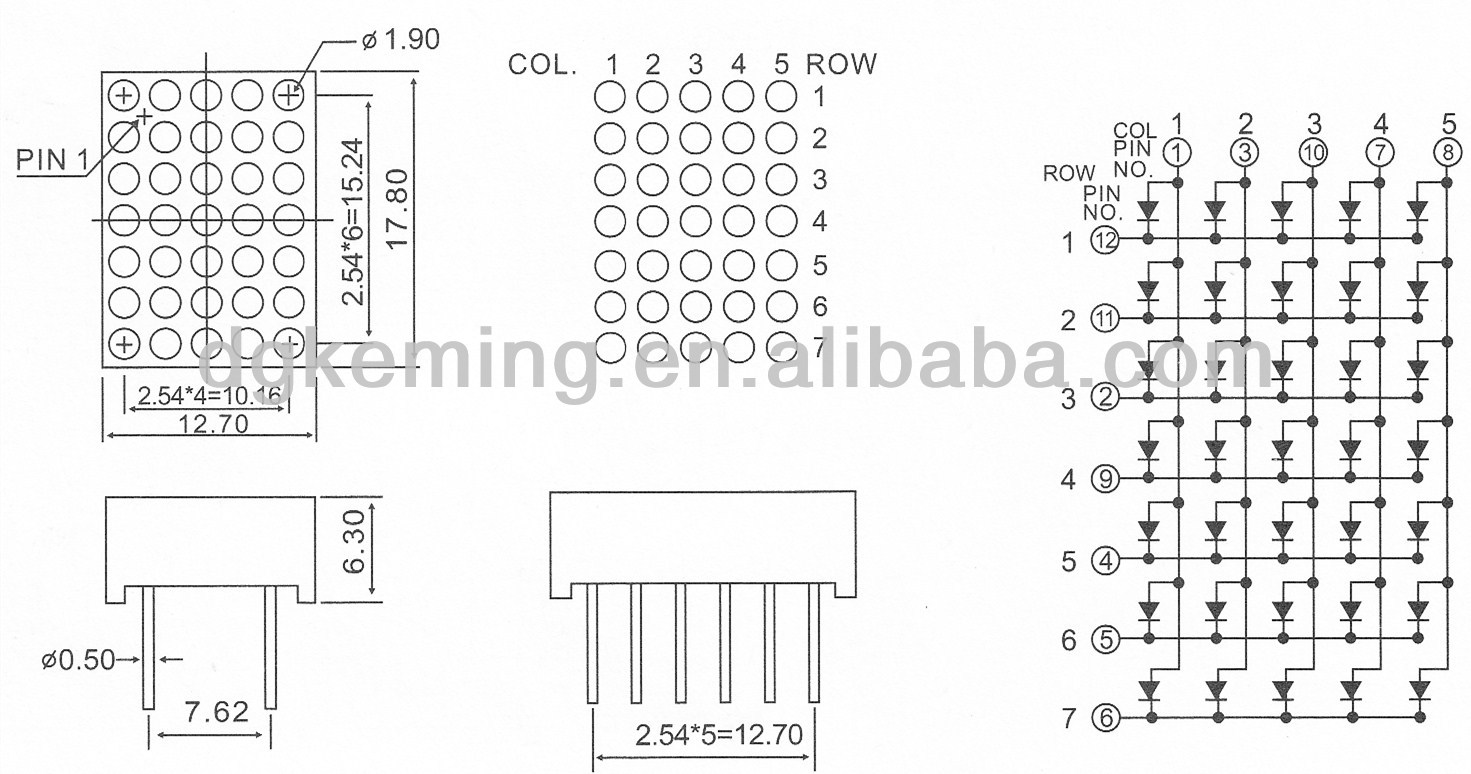

LED Array	5×7 Dot Matrix
Dot Diameter	1.9mm
Screen Dimension	12.7×17.8mm
Surface Color	Black or Grey

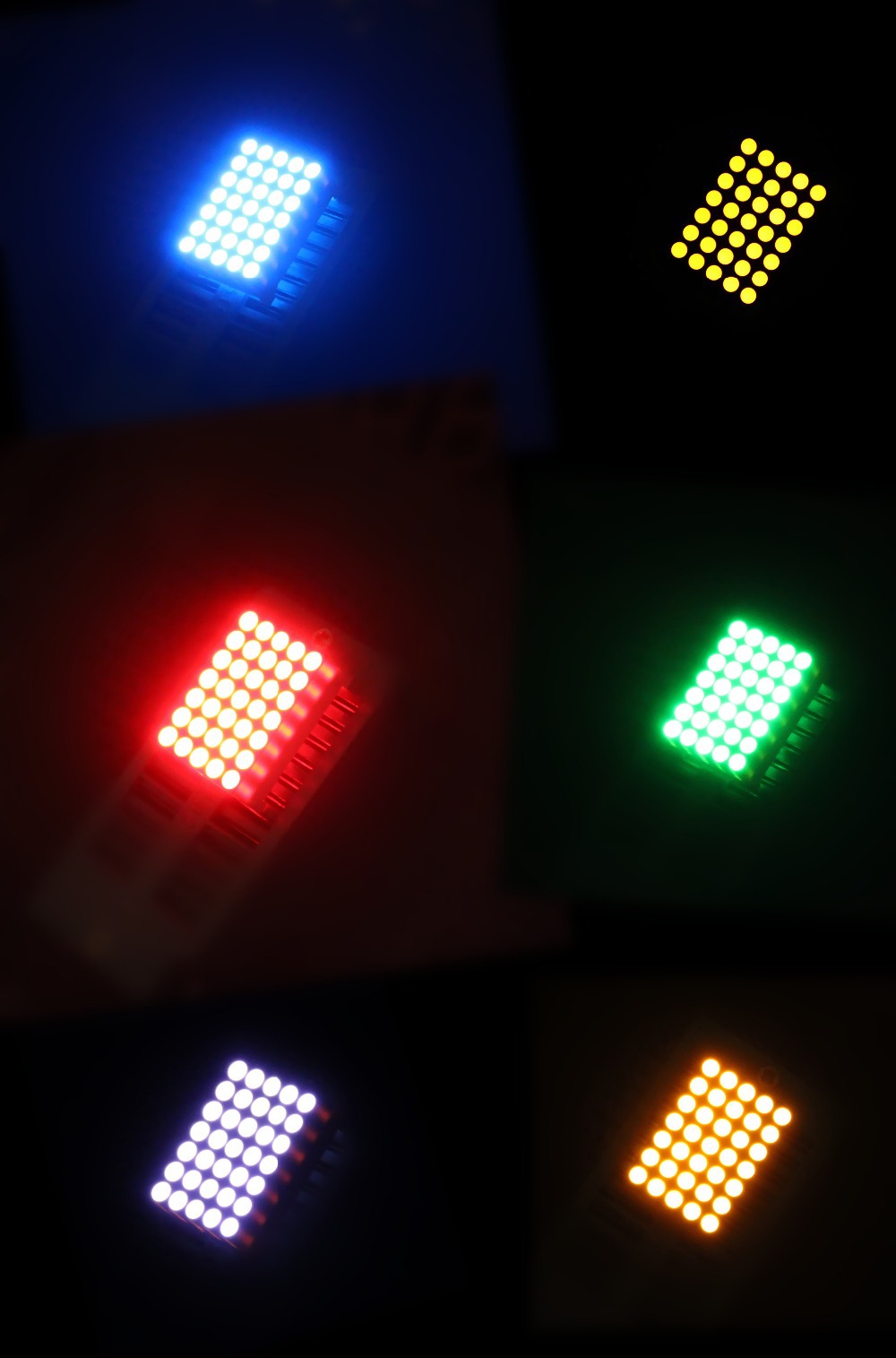

Emitting Color	Super Red / White / Green
LED Source	Taiwan Epistar LED
Display Type	LED Dot Matrix Display
Usage	Indoor / Outdoor
Warranty	3 Years
Polarity	Anode Column, Cathode Row
Certification	Available upon request

Optical Performance of 5x7 LED Matrix

The HOUKEM 5x7 LED Matrix uses high-quality LED chips to achieve stable brightness and consistent display performance.

Standard Parameters

Parameter	Specification
Array	5×7 Round Dot
Diameter	1.9mm
Display Size	12.7×17.8mm
Emitting Color	Ultra White
Color Temperature	2800K - 6500K - 15000K
Luminous Intensity	230mcd per LED chip
Surface Color	Black or Grey
Epoxy Color	Water Clear or Milk Diffusion
Polarity	Anode Column / Cathode Row

The compact structure makes this LED Dot Matrix Display suitable for products where space efficiency and clear information display are required.

Compact LED Matrix Design and Custom Options

The HOUKEM LED Matrix Module is designed for easy integration into electronic systems. The module supports flexible installation and can be customized for different engineering requirements.

Available customization options include:

Different LED emitting colors
Customized dimensions
Customized brightness levels
Different dot sizes
OEM branding
Special packaging requirements

If the standard dimension or circuit design does not meet your project requirements, HOUKEM can provide customized LED display solutions based on your application.

Available LED Matrix Display Models

Besides the 1.9mm 5×7 LED Matrix, HOUKEM also provides multiple LED dot matrix options:

Model	Dot Diameter	Array	Dimension
KEM-7057-AB	1.9mm	5×7 Dot	12.7×17.8mm
KEM-7088-AB	1.9mm	8×8 Dot	20×20mm
KEM-10057-AB	2.54mm	5×7 Dot	19.96×27.94mm
KEM-11057-AB	3.0mm	5×7 Dot	22.75×31.8mm
KEM-12088-AB	3.0mm	8×8 Dot	32×32mm
KEM-15088-AB	3.7mm	8×8 Dot	37.9×37.9mm
KEM-20057-AB	5.0mm	5×7 Dot	37.8×53.1mm
KEM-40057-AB	10.0mm	5×7 Dot	76×106.5mm

This wide product range allows customers to select the most suitable LED display module according to size, brightness, and application requirements.

Applications of LED Dot Matrix Display

The HOUKEM LED Dot Matrix Display Module is widely used in:

Industrial Equipment

Machine control panels
Industrial indicators
Automation equipment displays

Electronic Instruments

Measuring instruments
Digital controllers
Embedded electronic devices

Information Display Systems

Digital displays
Character displays
Customized electronic products

Commercial Equipment

Indoor display devices
User interface systems
Smart control equipment

Why Choose HOUKEM LED Matrix Solutions?

HOUKEM has more than 15 years of experience in LED display manufacturing, specializing in:

LED Dot Matrix Display
LED Matrix Module
7 Segment LED Display
Customized LED Display Solutions
UV LED and IR LED products

With professional production capabilities, strict quality control, and OEM customization support, HOUKEM supplies reliable LED components for global customers.

Our advantages include:

Factory-direct pricing
Professional R&D support
Customized product development
Quality inspection before shipment
Long-term supply capability
Global export experience

FAQ

What is the main application of a 5x7 LED Matrix?

A 5x7 LED Matrix is mainly used for character display, industrial indicators, electronic instruments, and embedded control systems.

Can HOUKEM customize the LED Matrix Display Module?

Yes. HOUKEM supports OEM and ODM customization, including size, color, brightness, packaging, and electrical specifications.

What LED colors are available for this product?

The module supports multiple colors including super red, white, green, and customized color options.

What is the advantage of a 1.9mm LED dot design?

The 1.9mm dot structure provides a compact display solution suitable for applications requiring limited installation space.

Does HOUKEM provide samples before bulk orders?

Yes. Sample orders are available for quality testing and engineering verification before mass production.

Contact HOUKEM for Custom LED Matrix Solutions

Looking for a reliable 5x7 LED Matrix manufacturer?

HOUKEM provides professional LED Dot Matrix Display modules with stable quality, flexible customization, and competitive factory pricing. Contact our team today to discuss your project requirements and request a customized quotation.
