Model No: HOUKEM-7057-A/BSR(LTP-1057AE)

1.9mm 5x7 dot matrix display, ltp-1057ahr led dot matrix

dot matrix display houkem is dot matrix led display professional manufacturer

minimum order :

1 piece

Country of Origin :

Shenzhen/guangzhou

Quantity :

$0.46 - $0.86 / piece

add to cart

Contact Now

Place of Origin:Guangdong, China
Model Number:KEM-7057-A/BSR(LTP-1057AE)
Brand Name:KEM
Tube Chip Color:Red
Display Function:Graphics
Pixels:20mm
Usage:indoor/outdoor
Screen Dimension:12.7*17.8mm
Screen dimension:12.7x17.8mm
Surface color:Black or grey
Emitting color:Super red
Dot diameter:1.9mm
Array:5x7 dots
Peakwave lenght:515~525nm
Luminous intensity:80mcd/chip
Warranty:3 years
LED Source:Taiwan Epsitar LED
Key word:led matrix

Features of 1.9mm 5x7 white dot matrix / led matrix module/2.54mm pitch led dot matrix display:

- Low power requirement.
- Single Plane, Wide Viewing Angle.
- Solid State Reliability.
- Compatible With Usascll and Ebcdic codes..
- Stackable Horizontally.

Buying Guides

Part No.	KEM-7057-A/BW
Array	5x7 round dot
Diameter	1.9mm
Display size	12.7*17.8mm
Emitting color	Ultra white
Color Temperature	2800K -6500K- 15000K
Luminous intensity	230mcd per led chip
Surface color	Black or grey
Expory color	Water clear or Milk diffusion
Polarity	Anode Column Cathode Row

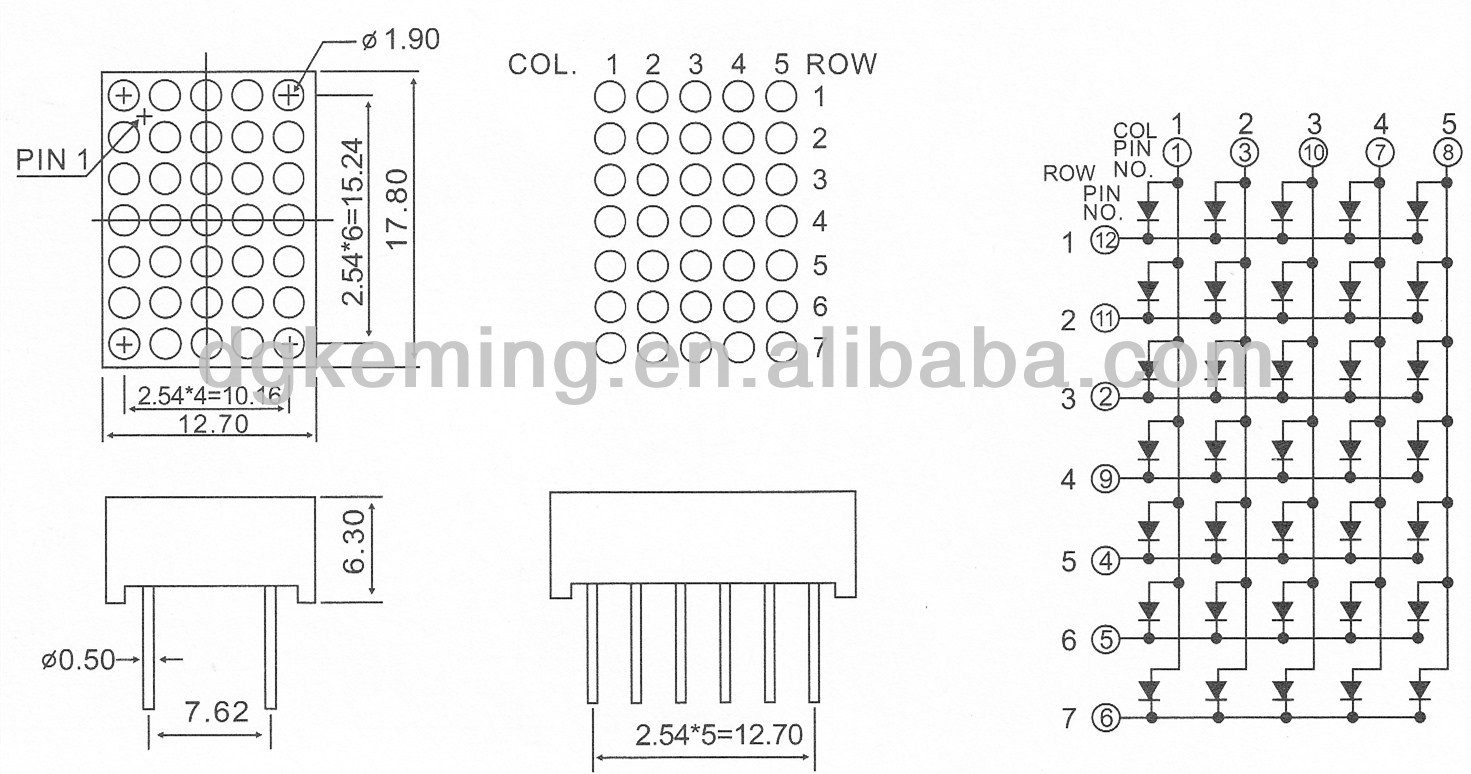

Dimension and Diagram of 1.9mm 5x7green led matrix display

If the dimension & diagram not match your need, kindly advised me for other choices.

Product Overviews

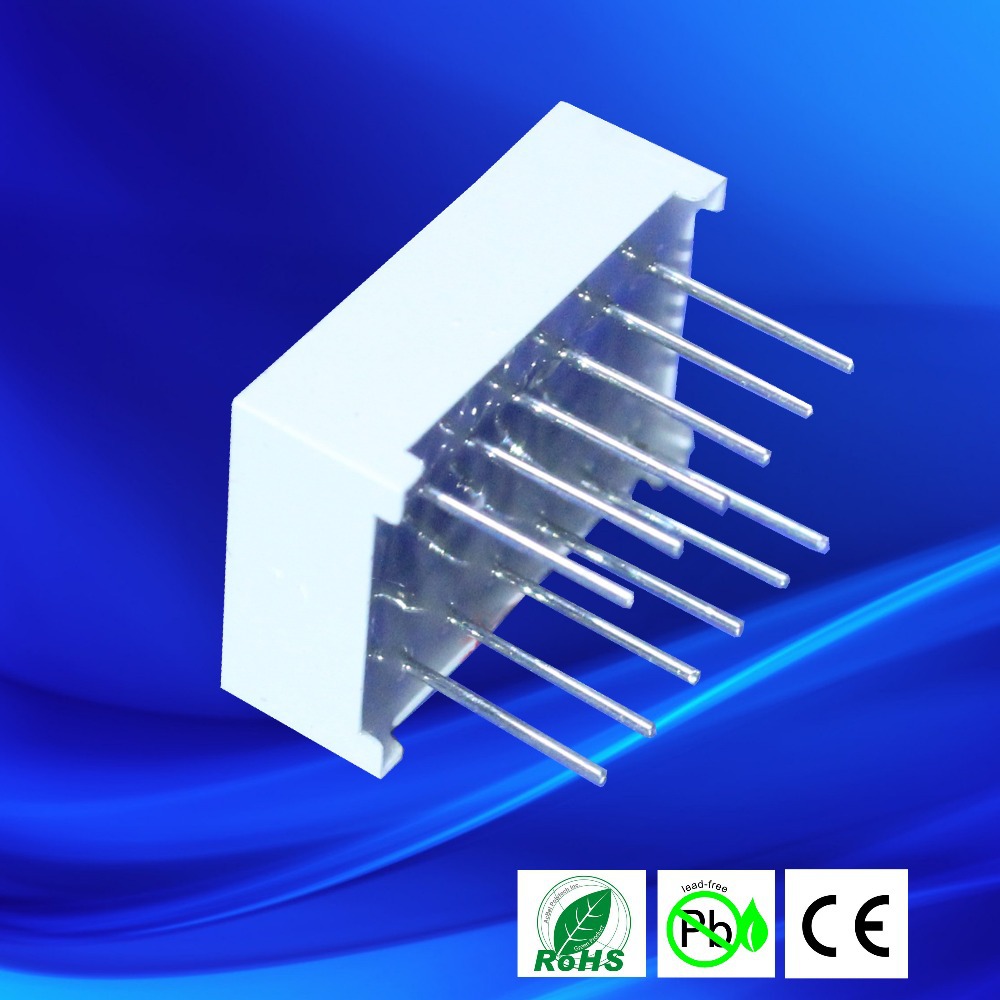

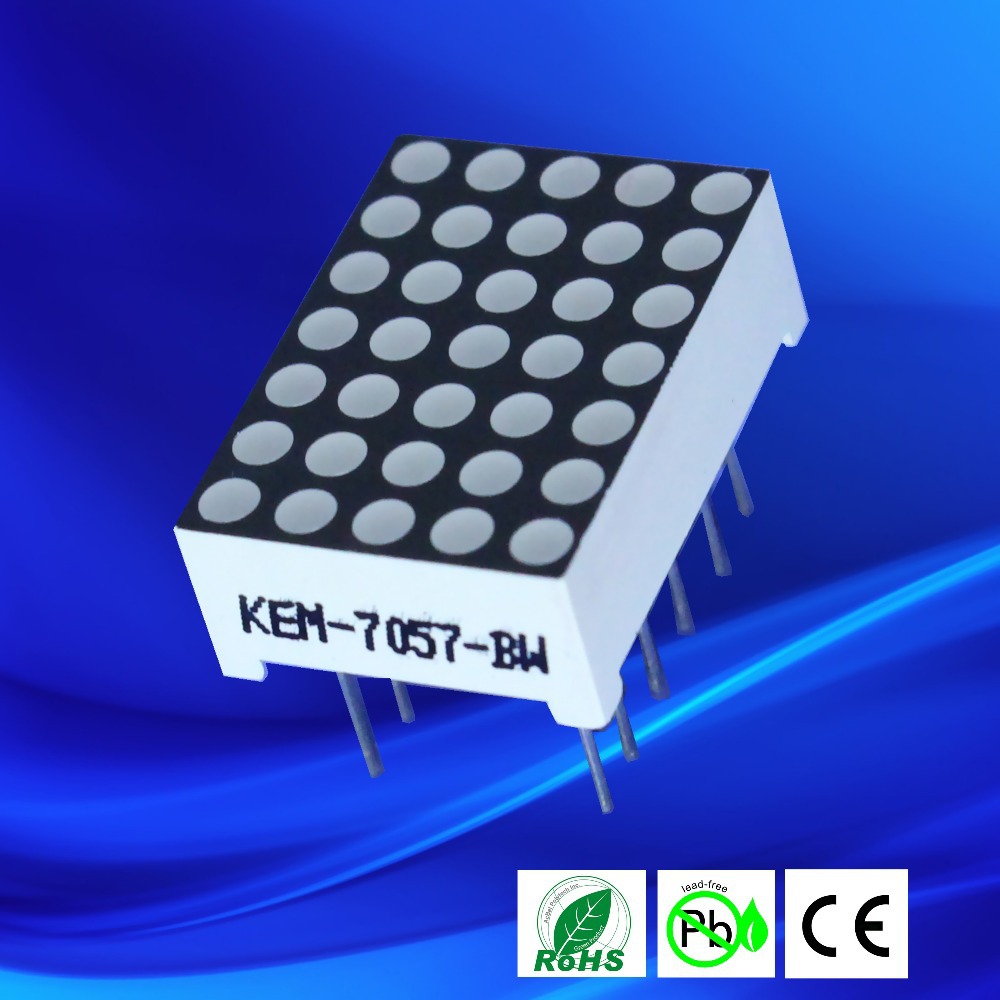

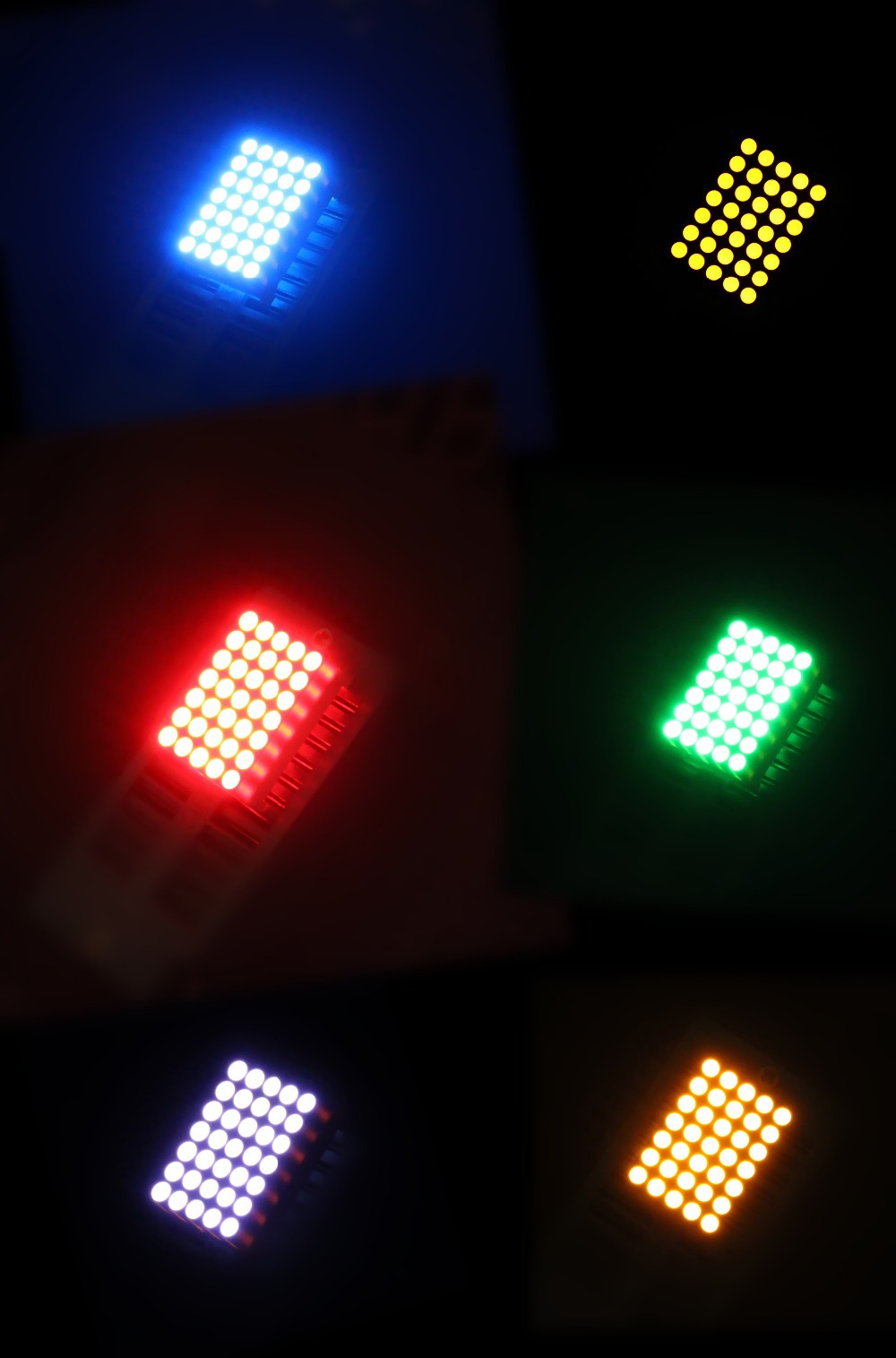

Products pictures of 1.9mm 5x7 green led matrix display

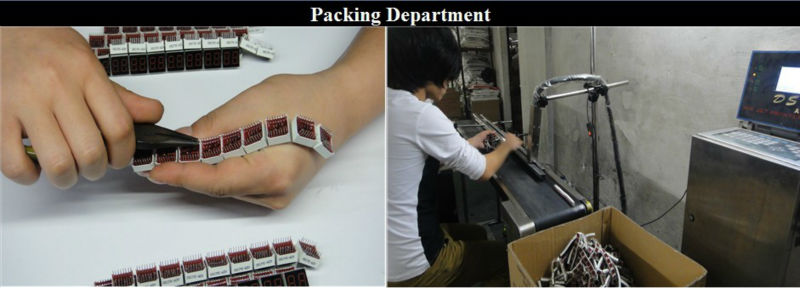

Our safe packing of 1.9mm 5x7 green led matrix display

Other size for you choice

Model	Dot diameter	Array	Length*Width
KEM-7057-AB	1.9mm	5*7 dot	12.7*17.8mm
KEM-7088-AB	1.9mm	8*8 dot	20*20mm
KEM-10057-AB	2.54mm	5*7 dot	19.96*27.94mm
KEM-11057-AB	3.0mm	5*7 dot	22.75*31.8mm
KEM-12057-AB	3.0mm	5*7 dot	22.80*39.1mm
KEM-12088-AB	3.0mm	8*8 dot	32.0*32.0mm
KEM-12288-AB	square 3.0*3.0mm	8*8 dot	31.7*31.7mm
KEM-15088-AB	3.7mm	8*8 dot	37.9*37.9mm
KEM16057-AB	4.5mm	5*7 dot	29.4*44.9mm
KEM-19088-AB	4.8mm	8*8 dot	47.8*44.9mm
KEM-20057-AB	5.0mm	5*7 dot	37.8*53.1mm
KEM-20088-AB	5.0mm	8*8 dot	50.7*50.7mm
KEM-23058-AB	5.0mm	5*8 dot	37.8*60.6mm
KEM-2488-AB	square6.0*6.0mm	8*8 dot	60.2*60.2mm
KEM-40057-AB	10.0mm	5*7 dot	76.0*106.5mm
KEM-46058-AB	5.0mm	5*8 dot	76.0*121.5mm
