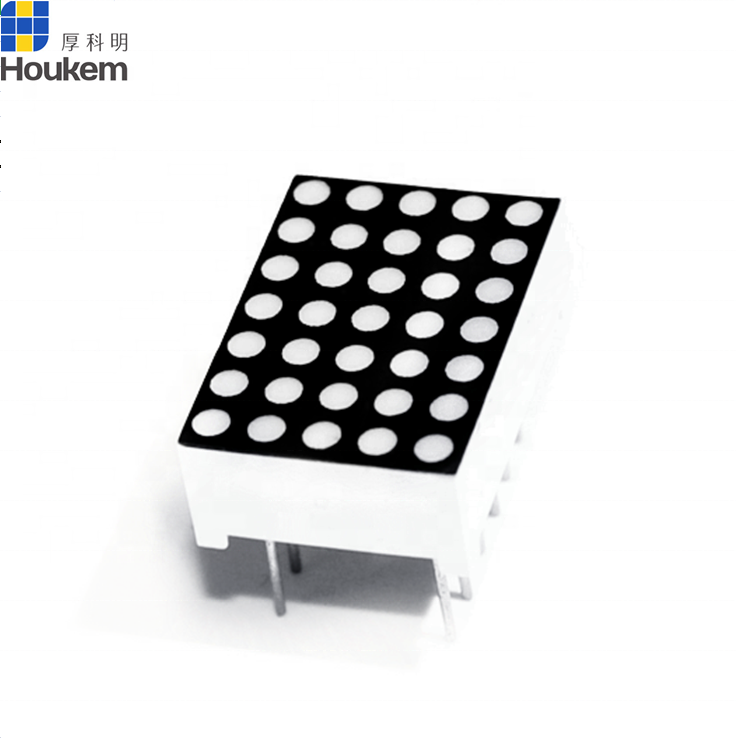

1.9 mm 5*7 dual color led matrix, 12.7*17.8mm led dot matrix display
- Place of Origin:CN;GUA
- Usage:Indoor
- Display Function:Graphics
- Pixels:25mm
- Tube Chip Color:red & green
- Brand Name:KEM
- Model Number:HOUKEM-7057-BSRG
- Screen Dimension:12.7*17.8mm
1.9 mm dot 5*7 bicolor led matrix / 12.7*17.8mm red and green 5x7 Dot Array Leds
Features:
1, Low consumption
2, High brightness

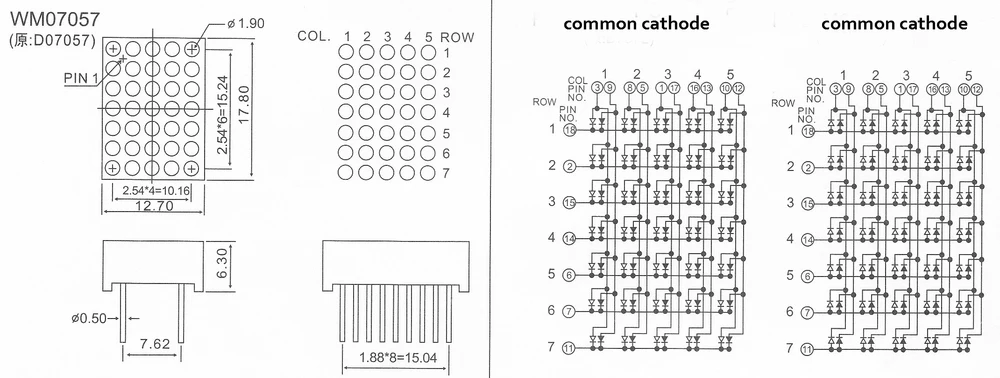

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Product details:
| Item No. | HOUKEM-7057-BSRG |
| Dimension | 12.7*17.8*6.3mm |
| dot | 1.9mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | super red and super green |
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green,
super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

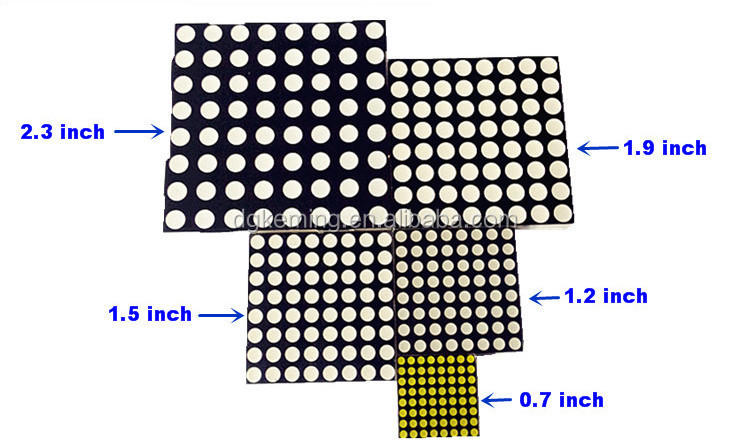

4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
5. high power led: white /red /blue/green/IR/UV led
warranty:
Two years quality warranty
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power 260nm to 1050nm LED arrays,
COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light,
and all LED lighting application solution.etc.
