Model No: HOUKEM-21616-AW

1.8mm round 16x16 dot matrix white color led matrix 40*40mm

dot matrix led display houkem is 7 segment led display professional manufacturer
minimum order :
10 pieces
Supply Ability :
50000pieces / Day
Country of Origin :
shenzhen guangzhou
Quantity :
USD7.80 - USD8.00 / pieces
add to cart
Contact Now
  • Place of Origin:CN;GUA
  • Application:Graphics, air conditioner, running machine
  • Color:white
  • Panel Size:40*40mm
  • Model Number:HOUKEM-21616-AW
  • Brand Name:HOUKEM
Product Describtion

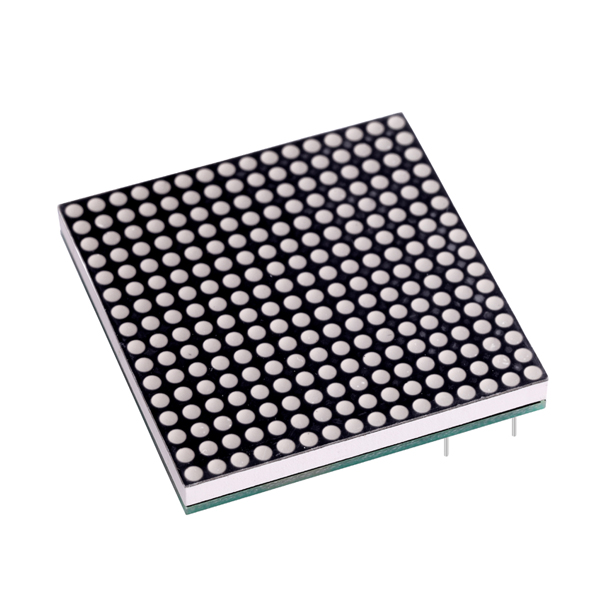

round 16x16 dot matrix white

1,Low consumption 2, High brightness

Item No.HOUKEM-21616-AW
Dimension40*40*4.5mm
Surface color Black /Grey
Plastic filmmilky white/ clear
Emitting color White

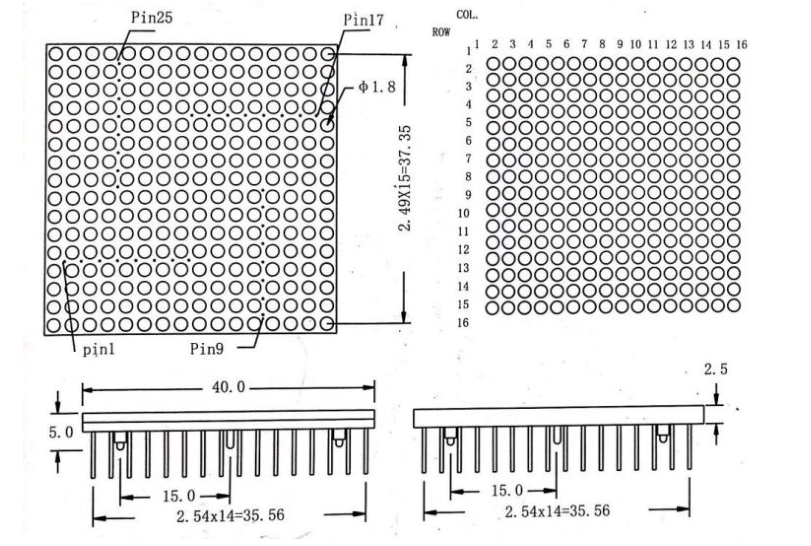

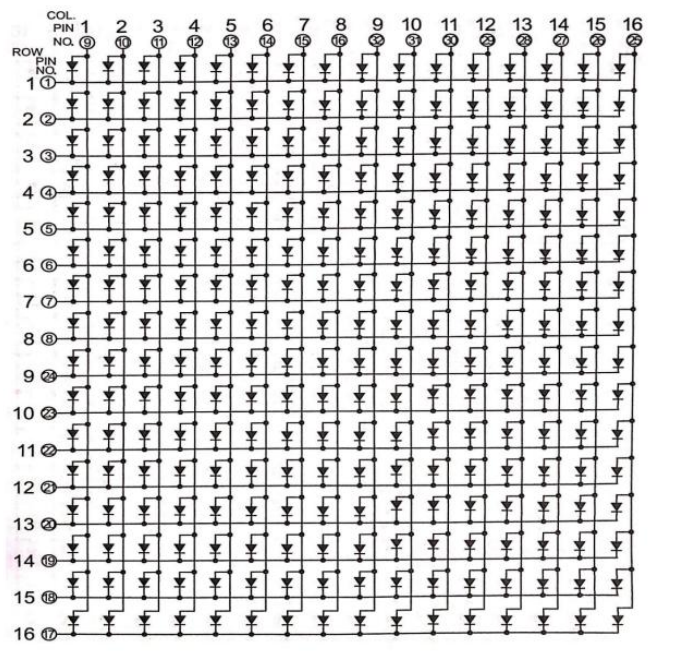

Package dimension & Internal circuit diagram

16x16 dot matrix white

Two years quality warranty

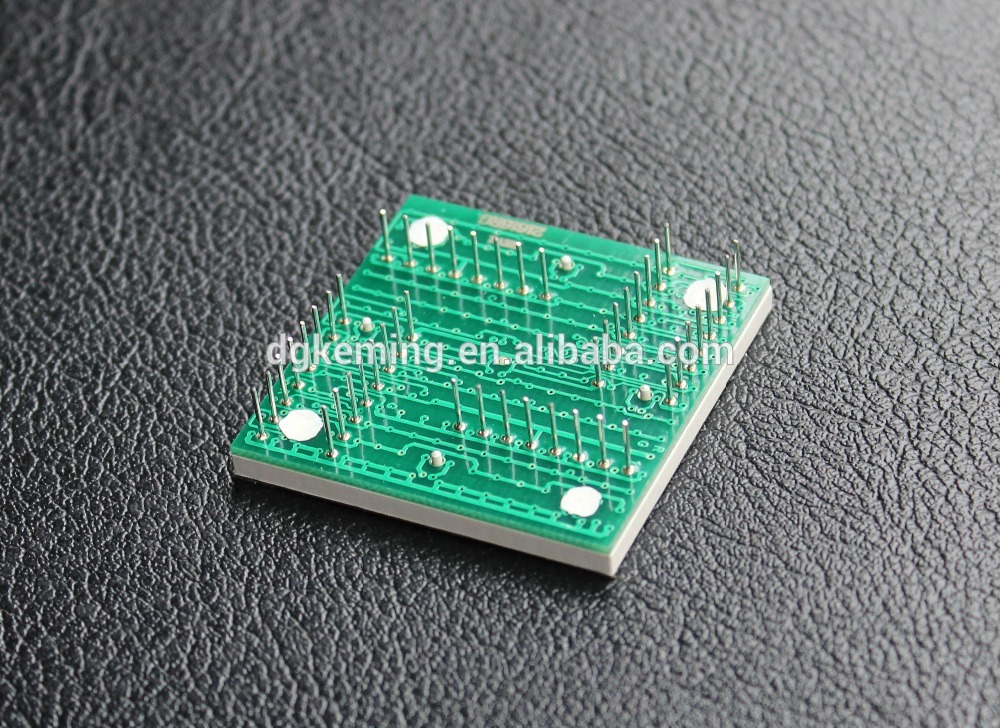

2161631616-11-14

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

200

250

White

IF=10-15mA

-

-

2.7

2.9

200

220
