blue color 1 digit 7 segment led display 1.8 inch
blue color 1 digit 7 segment led display 1.8 inch
blue color 1 digit 7 segment led display 1.8 inch
Model No: HOUKEM-18011-BB

1.8 inch 7 segment led display blue big seven segment display 1.8'' Houkem-18011-bb

7 segment display houkem is led 7 segment display professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.45 - US $0.55 / piece
add to cart
Contact Now
  • Application:Indoor, scoreboard/ game machine, Indoor
  • Color:blue
  • Panel Size:38*56*11mm
  • Pixel Pitch:2.54
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-18011-BB
  • Brand Name:HOUKEM
  • use:advertising publish
  • Pixels:2.54
  • Specification:-
  • Product name:1.8 inch one digit 7segment led display
  • Warranty:2Years
  • Forward Voltage:3V
  • PCB Polarity:common anode
  • operating temperature:-35 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE, ROHS,ISO9001,REACH
  • Material:GsAsPN+plastic case
Product Describtion

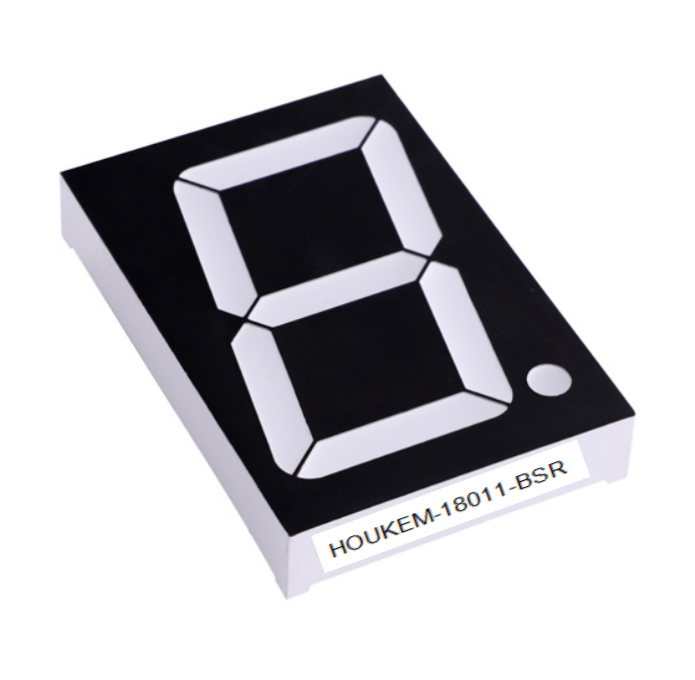

1 digit 1.8'' 7 segment display CA blue seven segment display 1.8 inch

1, Low consumption 2, High brightness 3, High intensity and reliability 4, Easy assembly

HOUKEM-18011-AB(common cathode)---- CC ; HOUKEM-18011-BB (common anode) ----- CA

Item No.HOUKEM-18011-BB
Dimension38*56*11mm
Surface color Black / Grey /white
epoxy colorwhite
Emitting color blue

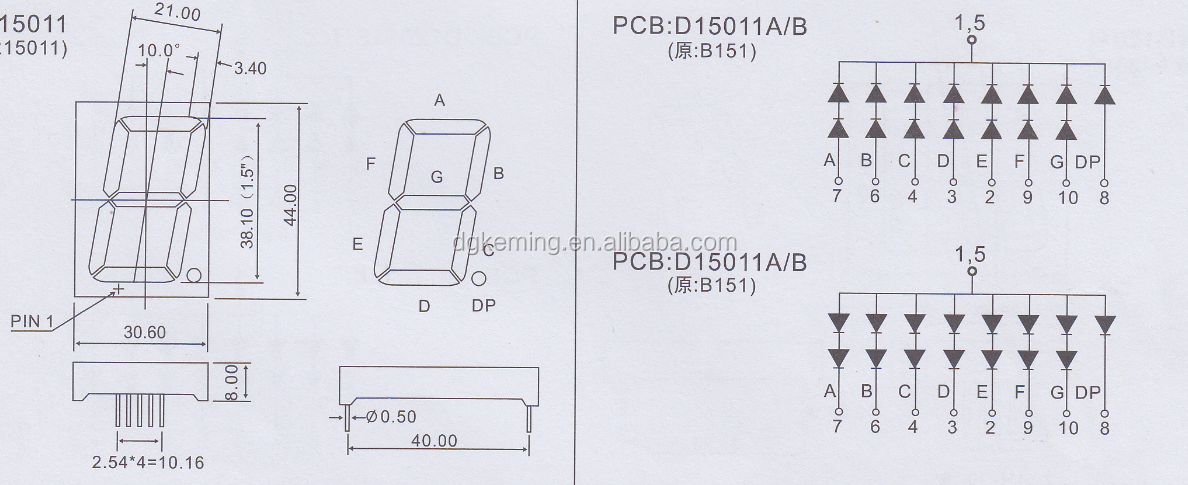

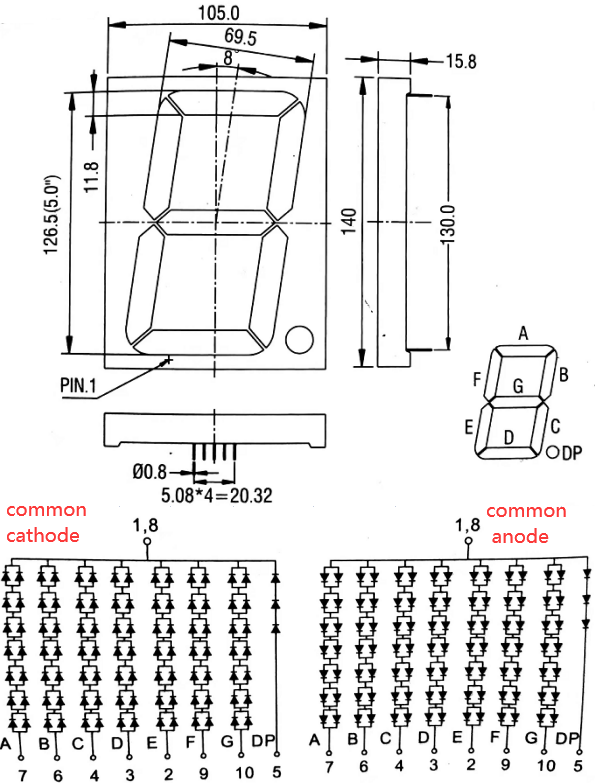

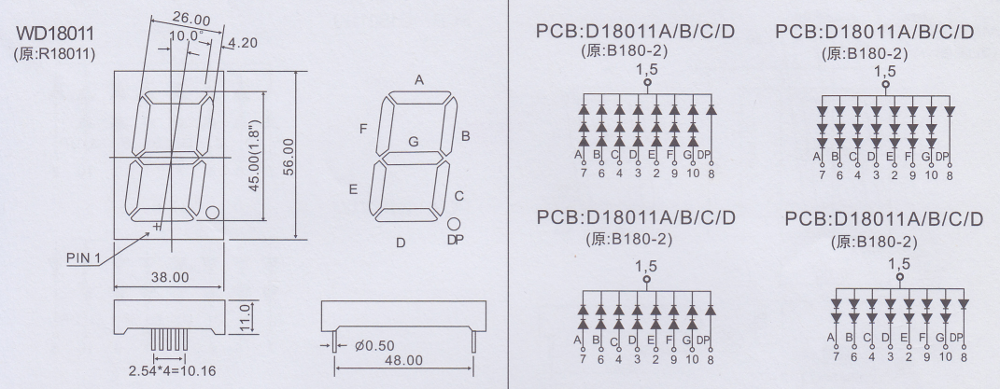

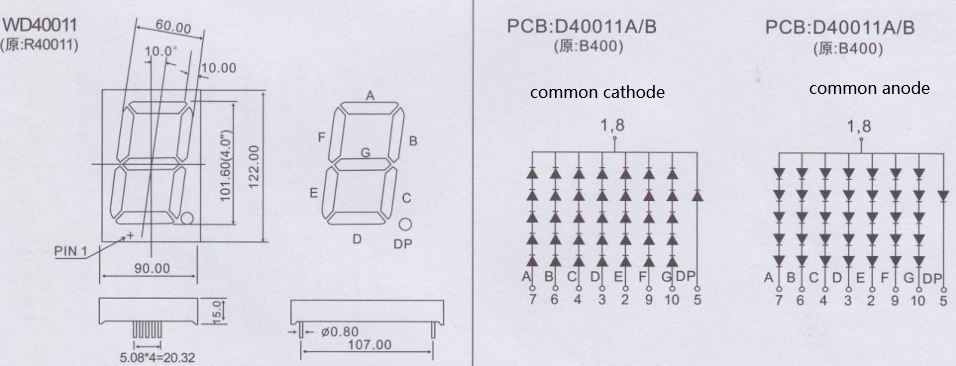

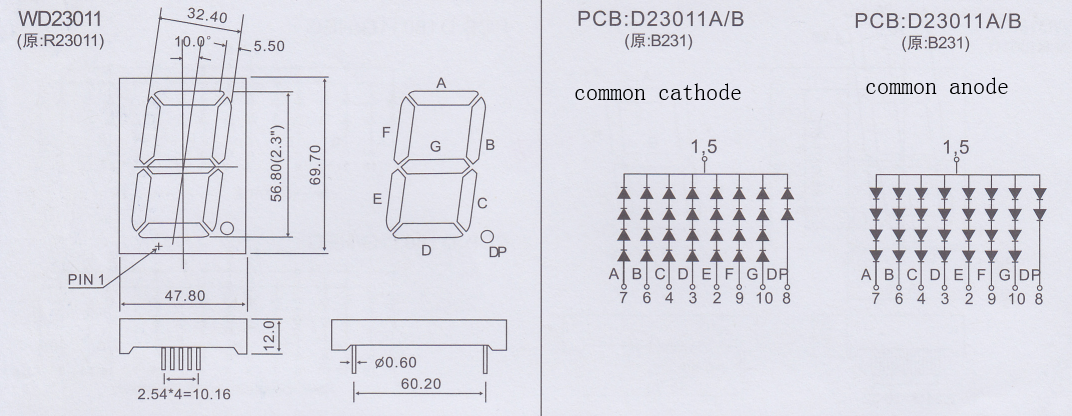

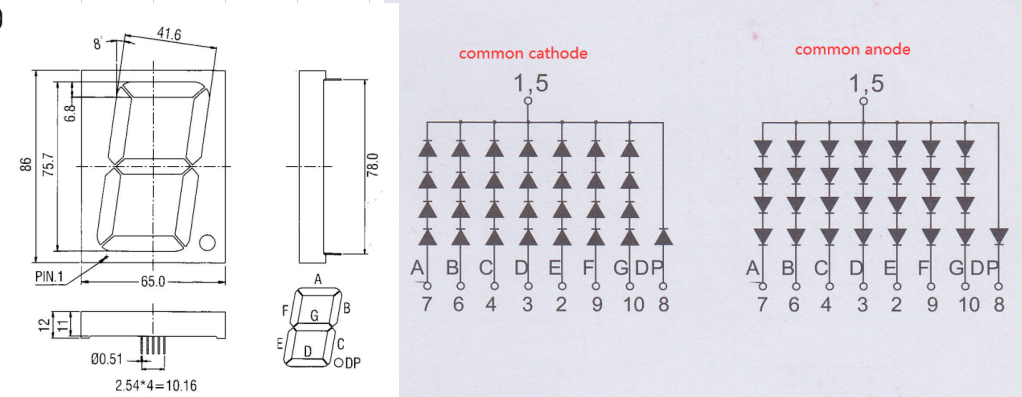

Package dimension & Internal circuit diagram

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Two years quality warranty , sample are available

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

2

2.1

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.95

3.0

150

200

Pure green

IF=15mA

515-525

40

2.95

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

180

200

Our Services

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.39'', 0.54''
3 digit0.54''
4 digit0.39'', 0.54‘’

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

4, customized product are available

Contact us

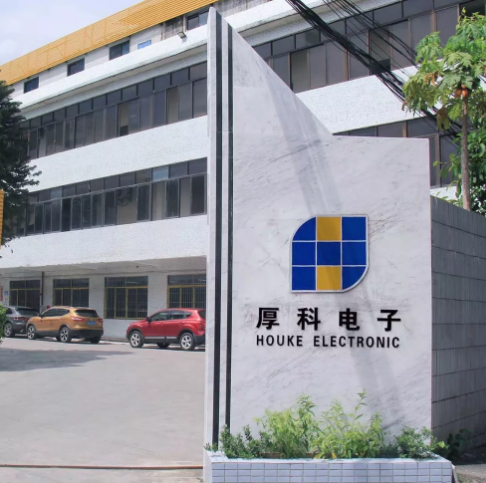

Established in 2003, Houkem has 19 years professional manufacturer experience, development, production, sale and service of LED products,
