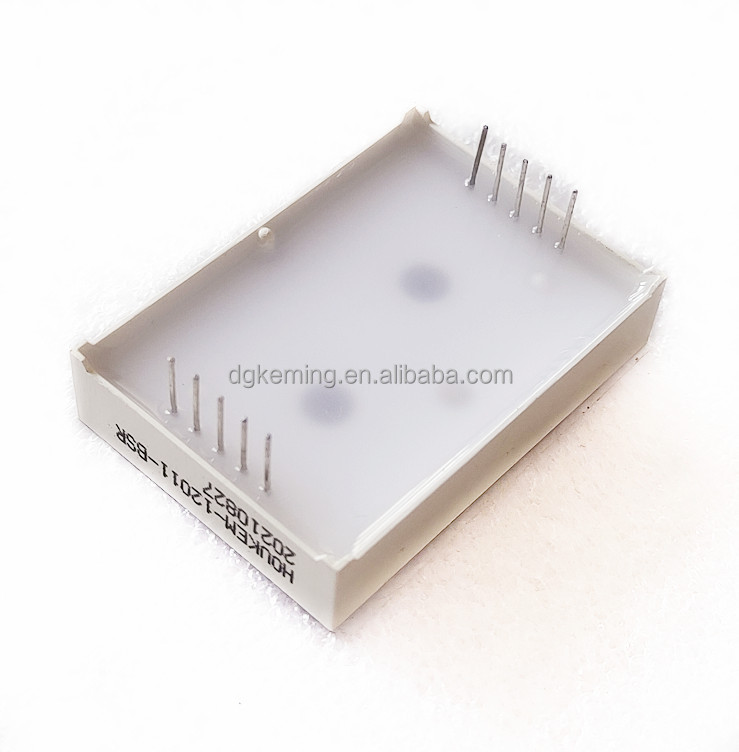

1.2" size 7 segment led common cathode display 1 digit red segment

Model NO.
HOUKEM-12011-ASR
Price:
USD 0.23-0.50
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-12011-ASR
  • Screen Dimension:28.8*40.8mm


Product Describtion
business

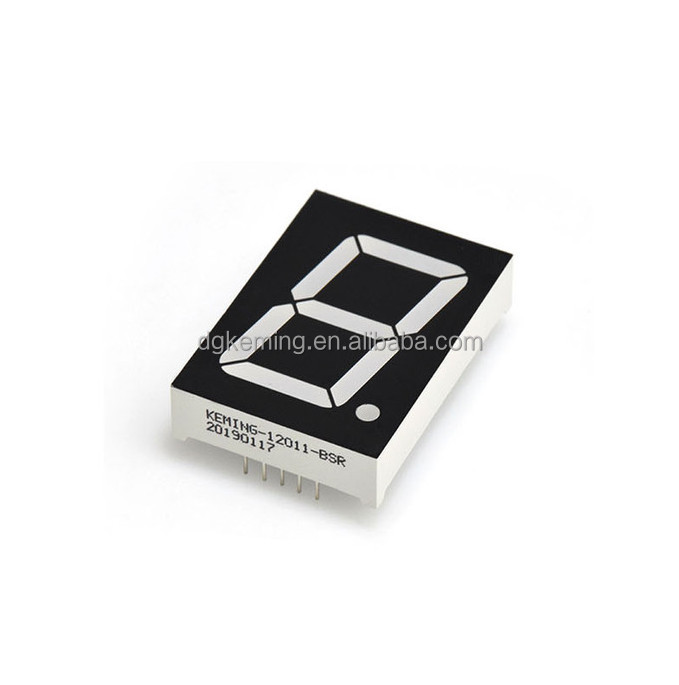

1.2'' size 7 segment display  1 digit  1.2inch com.cathode red



1,Low consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly



Item No.KEMING-12011-ASR
Dimension28.8*40.8*9mm
Surface color  Black  /Grey
epoxy color white
Emitting color RED





Two years quality warranty

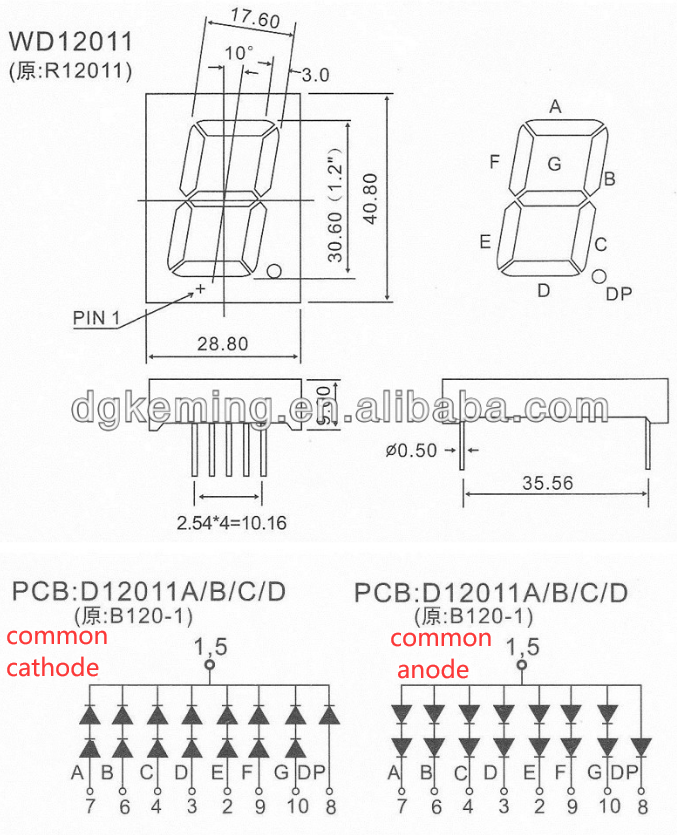

Package dimension & Internal circuit diagram

 12011





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



 12011-2





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Different color epoxy are available

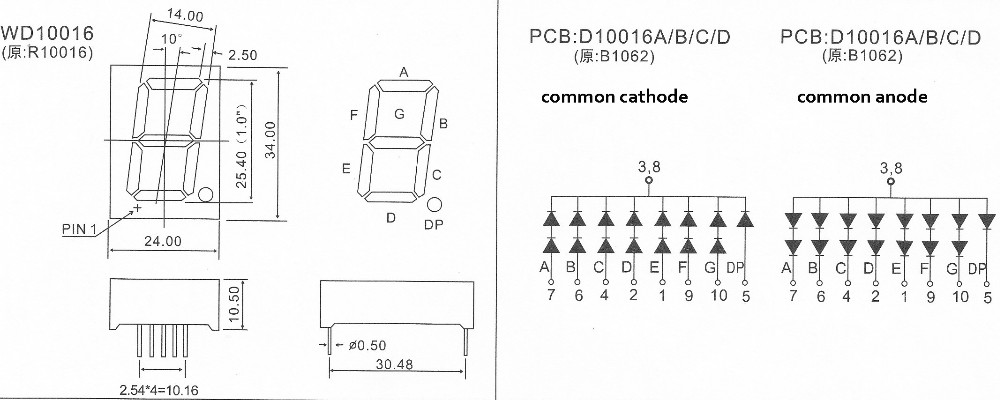

 1inch 10016 (27)

Our Services


Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----  SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led





Working Process

working process



Application



application-6311

Packaging & Shipping



packing & shipping

Contact us





Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.
