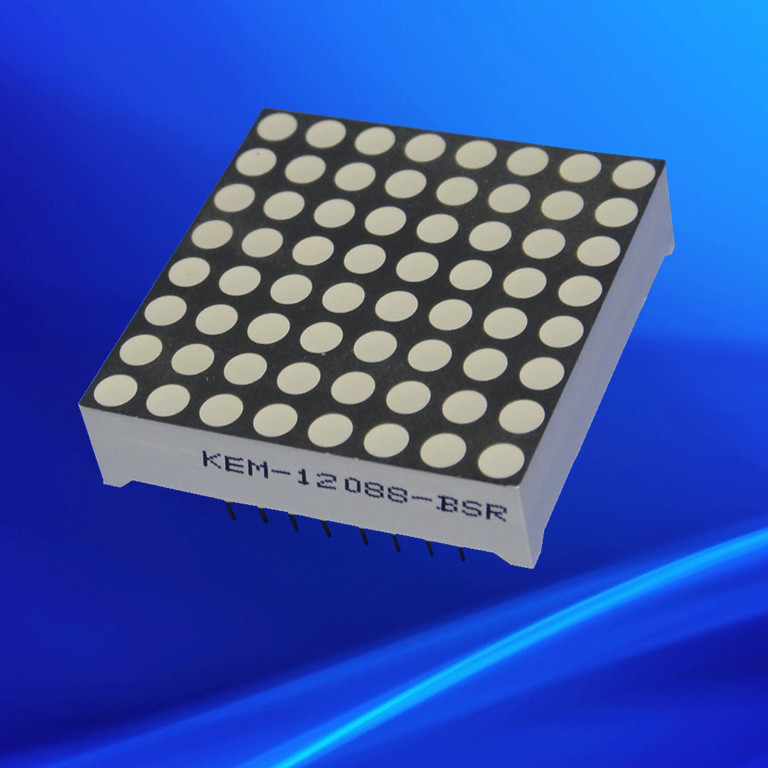

1.2 inch 3mm led dot matrix 8x8 green
- Application:led display
- Color:green
- Panel Size:32*32mm
- Pixel Pitch:4mm
- Place of Origin:Guangdong, China
- Model Number:KEM-12088A/BSG
- Brand Name:KEM
- Screen Dimension:32*32mm
- Various color:green
- Face color:Black or Gray or red
- Polarity:Common Cathode or Common Anode
- Working current:15-20mA
- Working voltage:1.8-3.3V
- OEM:Yes
- Manufature:China factory
- package:EPE
- Rohs:yes
1.2 inch 3mm led dot matrix 8x8 green 8x8 led matrix display

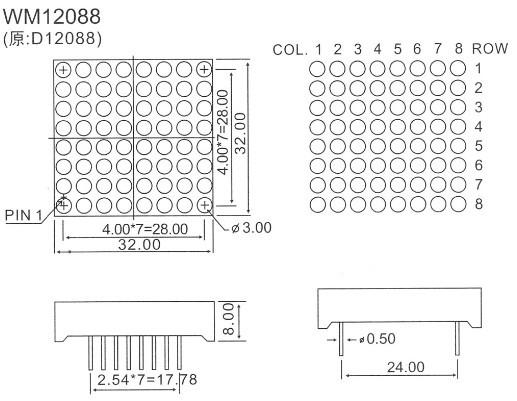

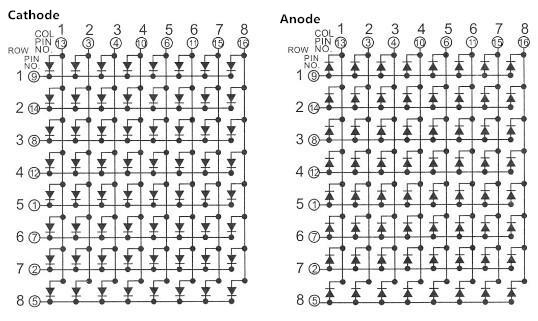

Dimension and Internal Curcuit of two color 8x8 led dot matrix display 60.2*60.2 mm :


More Pictures of two color 8x8 led dot matrix display 60.2*60.2 mm for your easy ref


Other colors ,please click the pictures below:

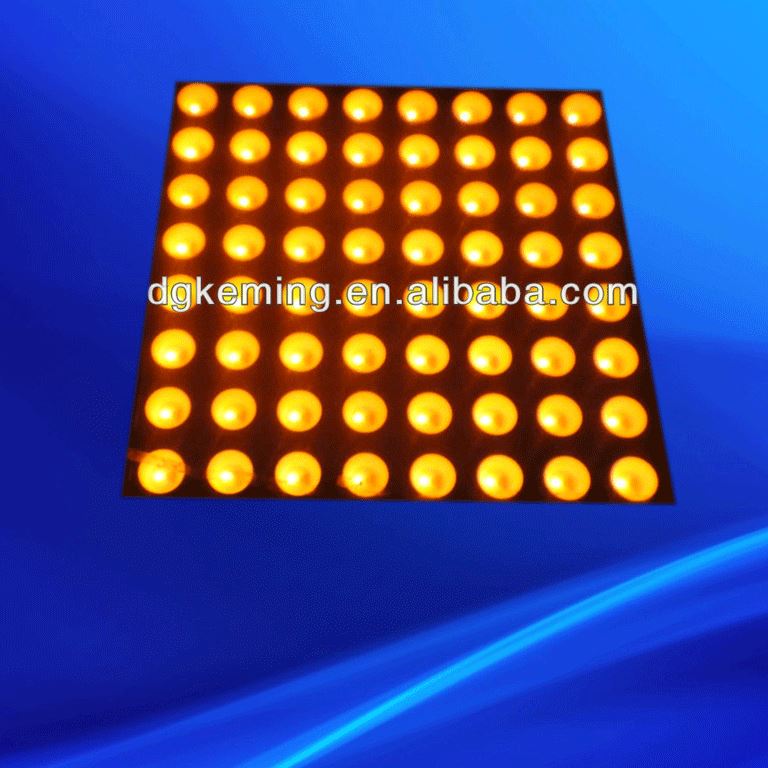

yellow

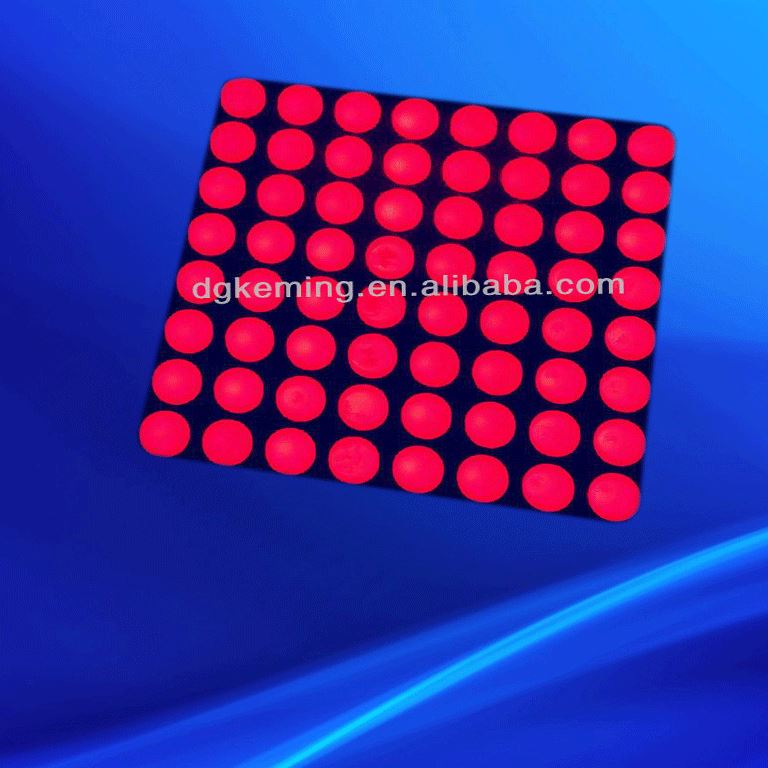

super red

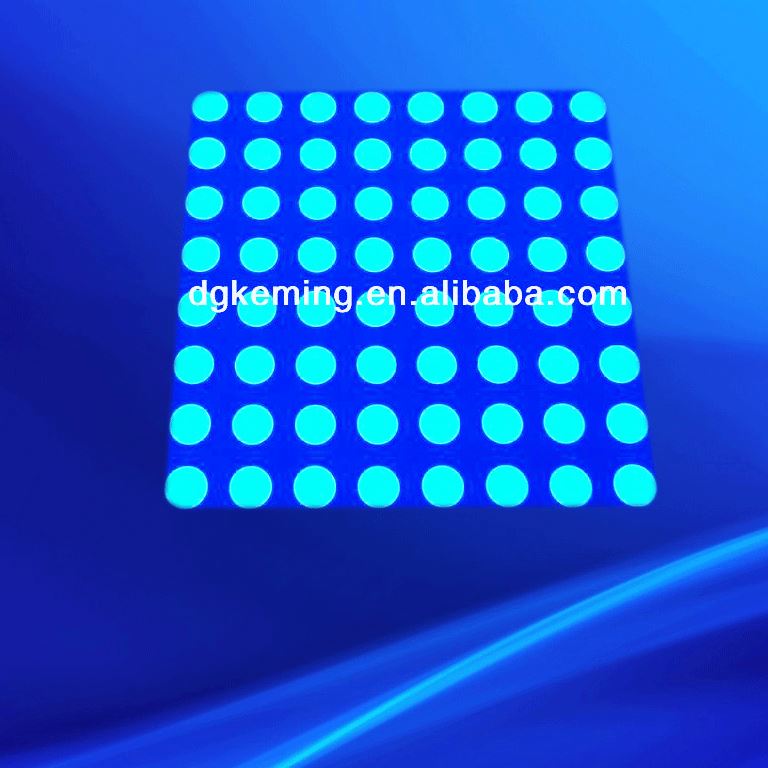

blue

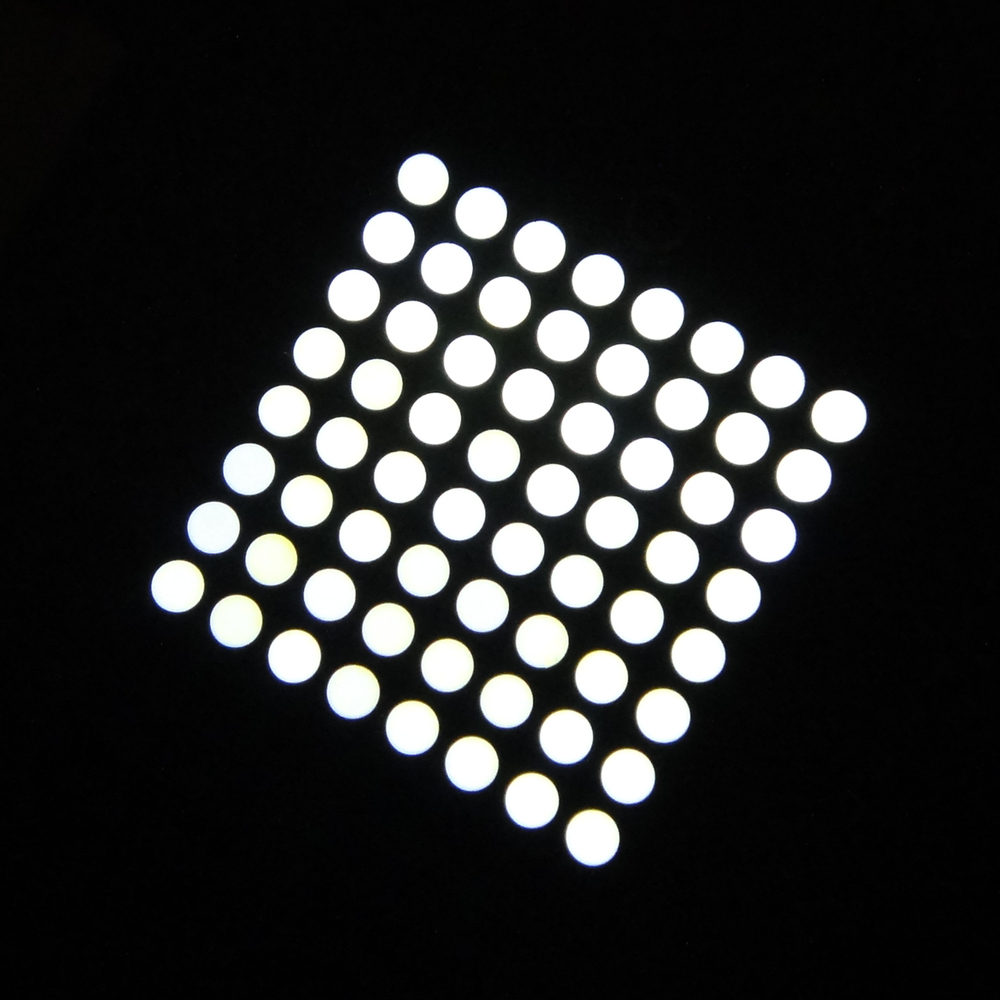

white
Other hot products(more details please click the link or picture):
Part details of two color 8x8 led dot matrix display 60.2*60.2 mm :
Model. | : | KEM-12088A/BSG |
Description | : | 32*32mm |
Surface color | : | Black / gray/red |
Emitting color | : | super green color |
Wavelength | : | 475-635 nm |
Luminous intensity | : | 50-200mcd |
Voltage/ Current | : | 1.8-3.3v / 15-20mA |
PCB Polarity | : | Common Cathode or Common Anode |
Various color available for KEM 23088 round dot matrix :
Dominant Wavelength Luminous Intensity
Red: 620 - 630nm Red: 70-90 mcd (1.8-2.3v / 20mA)
High red: 635 - 640 nm High red: 50-70 mcd (1.8-2.3v / 20mA)
Green: 565 - 575 nm Green: 70-90 mcd (1.8-2.3v / 20mA)
Yellow: 585 - 595 nm Yellow: 40-50 mcd (1.8-2.3v / 20mA)
Amber: 600 - 605nm Amber: 30 mcd (1.8-2.3v / 20mA)
Blue: 460 - 475nm Blue: 40-50 mcd (3.0-3.3v / 20mA)
Pure green: 515 - 525nm Pure green: 180-250 mcd (3.0-3.3v / 20mA)
White : 450-460 nm White: 100-180 mcd (3.0-3.3v / 20mA
What We Can Provide:
7 segment / 14 segment / 16 segment display :
1 Digit | : | 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8" 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16" |
2 Digit | : | 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3" |
3 Digit | : | 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8" |
4 Digit | : | 0.25"0.28"0.3"0.36"0.39"0.4" 0.5"0.52"0.56"0.8" |
Emitting Color Available | : | Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB |
Standard Face color | : | Black Face / Gray Face (white segment) |
PCB Polarity | : | Common Anode / Commone Cathode |
LED Dot Matrix Display:
Dot Array | : | 8*8 / 5*7 / 5*8 / 7*11 |
Dot Shape | : | Round Dot , Square Dot |
Dot Diameter | : | 1.9mm, 3.0mm, 3.45mm,3.7mm 4.8mm, 5.0mm, 6.0mm, 10mm |
Various Color | : | Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB. |
Established in 2003,our factory is specialized in LED products, including 7 segment
LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph
arraysand LED directon indicator displays.etc.

Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-7 days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
Fordefective batch products, we will resend them to you or we can discuss the solution
including re-call according to real situation.
