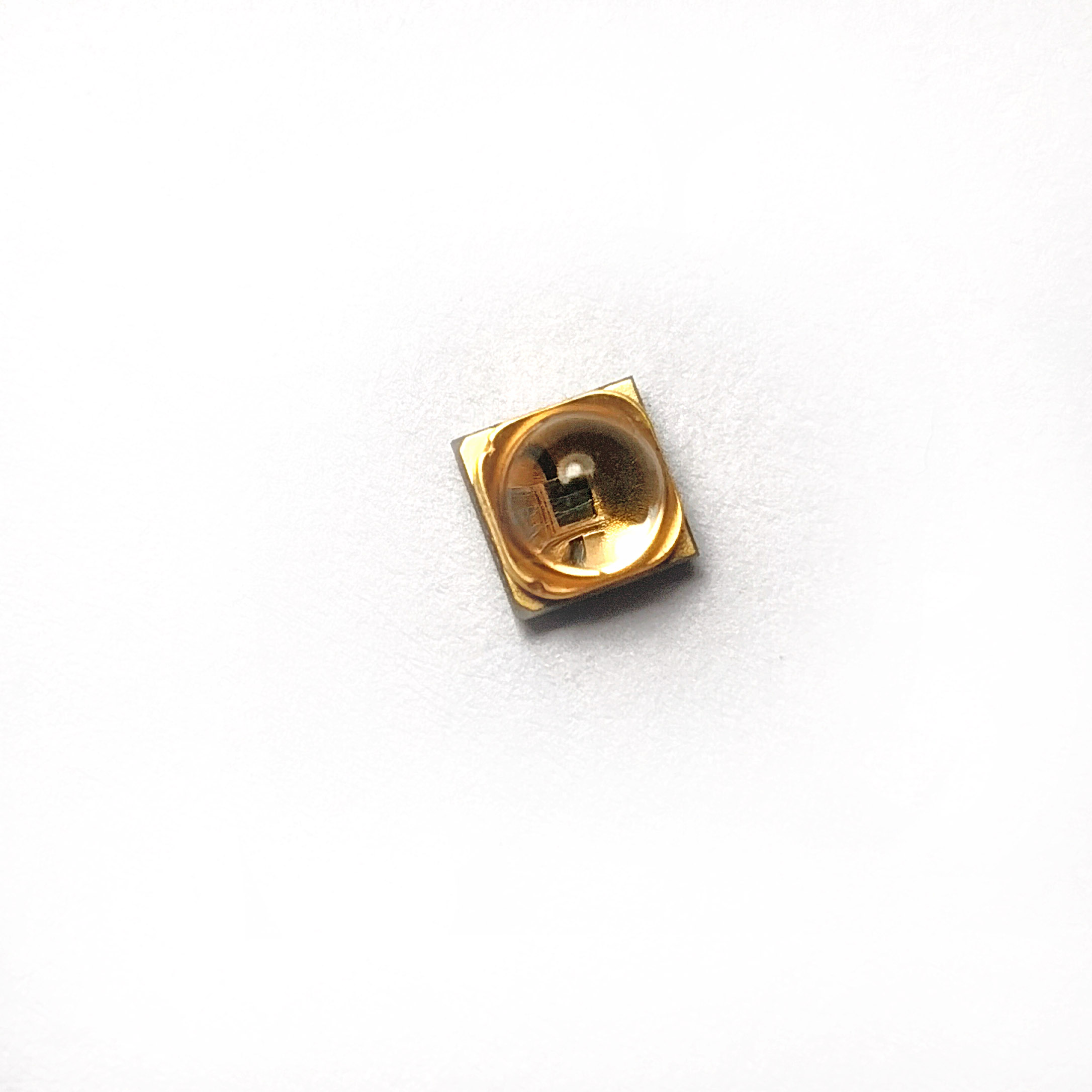

0.2W 3535 SMD 275nm 280nm 20mil UVC LED

UVC LED,275nm UV LED,275nm 280nm UVC

Delivery :

EXW

minimum order :

1 piece

Supply Ability :

200piece / Week

Stock Time :

7Day

Country of Origin :

Dongguan/ Guangdong

Quantity :

US $0.72 - US $0.90 / piece

add to cart

Contact Now

UVC LED,275nm UV LED,275nm 280nm UVC

Input Voltage(V):5-7V
Warranty(Year):2-Year
Type:UV LED
Support Dimmer:NO
Lighting solutions service:datasheet
Lifespan (hours):50000
Working Time (hours):50000
Product Weight（kg）:0.001
Chip Material:INGAN
Emitting Color:UV
Luminous Intensity:Max. 20W/cm^2
Optical Attenuation(%):1
Power:0.6W
Power Dissipation:0.6
Viewing Angle(°):100±5
Color Rendering Index(Ra):1
Color Temperature:Ultraviolet
Operating Temperature(℃):-40 - 70
Storage Temperature(℃):-40 - 100
Place of Origin:Guangdong, China
Wavelength:275-280nm
Product Name:0.2W 3535 SMD 275nm 280nm 20mil UVC LED 15mW
Keyword:275nm 280nm uv led
Certification:RoHS, CE
LED chips:Bridgelux , epistar and so on
Lifetime:50000 hours
Voltage:5.7V
current: 20-40 mA
Warranty:2 years
Luminous Flux(lm):3.5-6.5mw

0.2W 3535 SMD 275nm 280nm 20mil UVC LED

Specification

*Item*	HOUKEM-HP0.2UVC-275-3535	Radiant Flux	3.5-6.5mW
*Power*	0.2W	View Angle	60 /120 degrees
*Chip Quantity*	1	Wavelength	275-280nm
*Color*	purple	Forward Voltage	5-7V

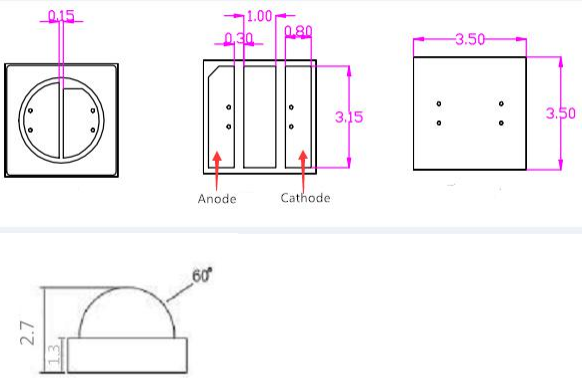

Products Dimension

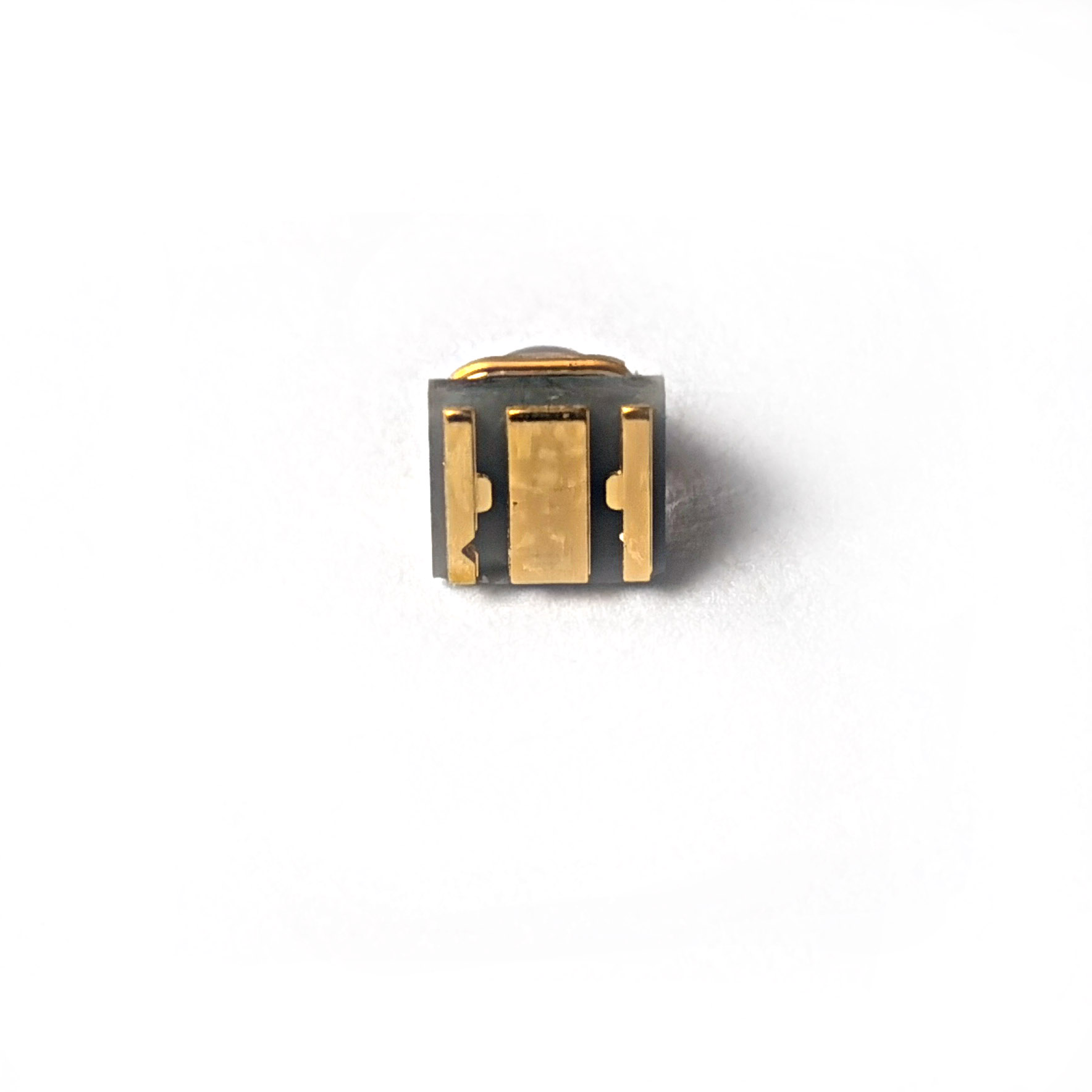

Details Images

Relative Products

Application

Company Profie
