0.56 inch numeric 7 segment 3 digits ammeter and voltmeter led display

Model NO.
KEM-5631-A/BSR
Price:
USD 0.10-0.74 / pieces
Delivery:
FOB
Minimum order quantity:
500 pieces
Supply Ability:
20000 pieces / Day
Country of Origin:
shenzhen/guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:OUTDOOR
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:KEM-5631-A/BSR
  • Screen Dimension:37.6*19mm


0.56 inch numeric 7 segment 3 digits ammeter and voltmeter led display
We can provide different sizes , digits & various color as per customer's request.

Pin quantity12 pins
Digit height0.56"
Digit number3 digit
 pictures of single color led display module :
5631-1015631-1045631-105

Part Drawing and Internal Circuit of single color led display module :

single color led display module



 If the circuit can not meet your need, pls advise me for other more choices.

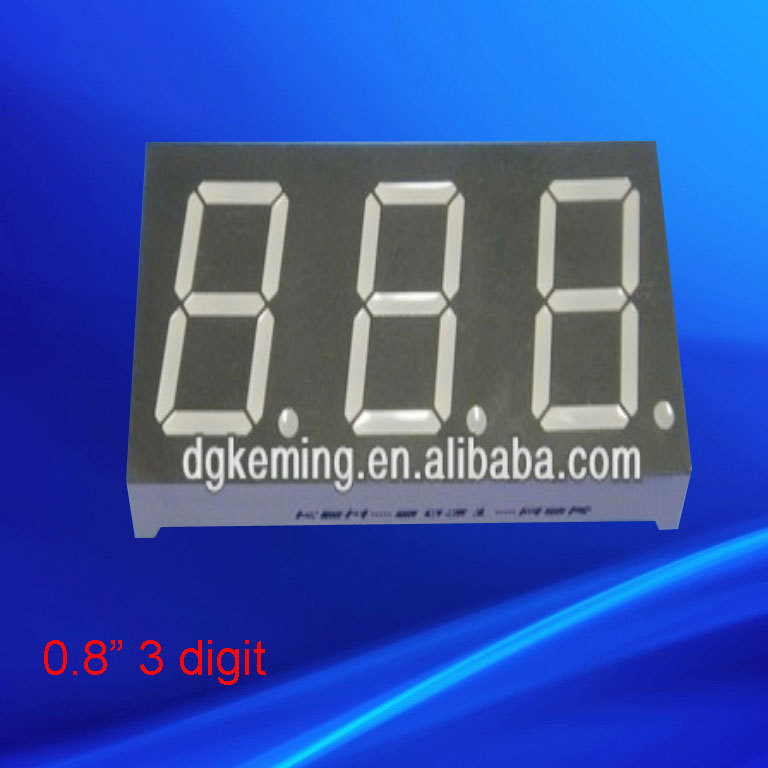

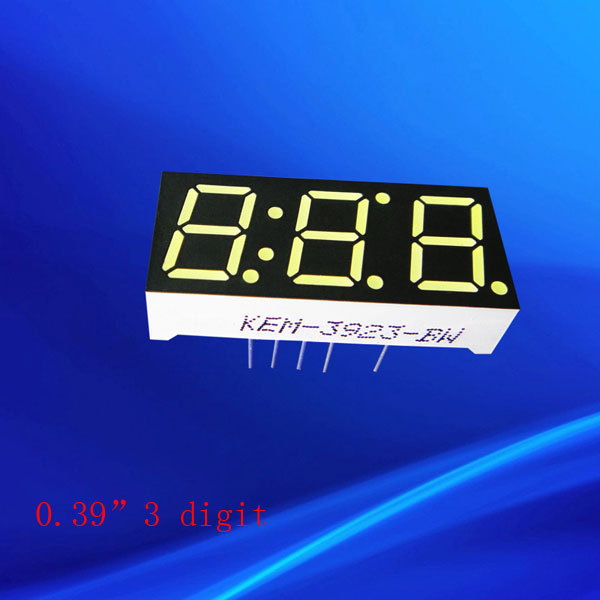

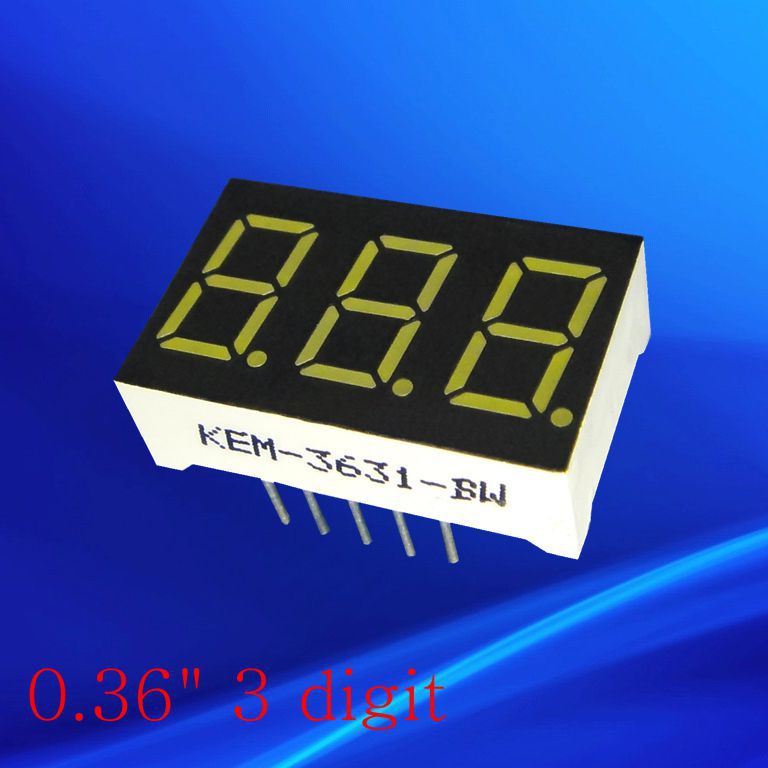

Other similar hot products:




Features of single color led display module :
  • Low current operation.
  • Low power consumption.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB .
  • Face color : black / gray .
  • Polarity : common anode / cathode

Various color available for single color led display module :

Dominant Wavelength                     Luminous Intensity

Red: 640 - 645nm                                      Red: 70-90 mcd                        (1.8-2.3v / 20mA)

High red: 620 - 625 nm                              High red: 50-70 mcd                 (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                 Green: 70-90 mcd                     (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                 Yellow: 40-50 mcd                    (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                  Amber: 30 mcd                         (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                      Blue: 40-50 mcd                         (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                           Pure green: 180-250 mcd           (3.0-3.3v / 20mA)

White : 450-460 nm                                    White: 100-180 mcd                    (3.0-3.3v / 20mA)

Package:


certificate:

Rohs
