0.56 inch k segment led display 14 segment alphanumeric display Houkem-5322-BB-4L
- Place of Origin:CN;GUA
- Application:K segment led display
- Color:Per your choice
- Panel Size:25.1*21.2mm
- Pixel Pitch:2.54
- Model Number:Houkem-5322-BB-4L
- Brand Name:Houkem
China k segment led display modules 14 segment alphanumeric led display part Houkem-5322-BB-4L

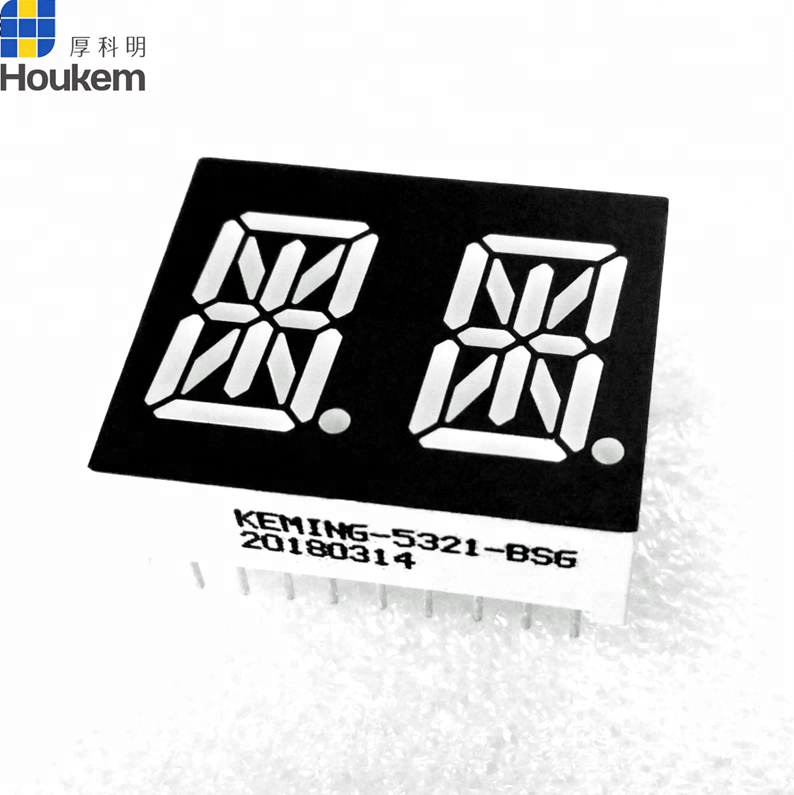

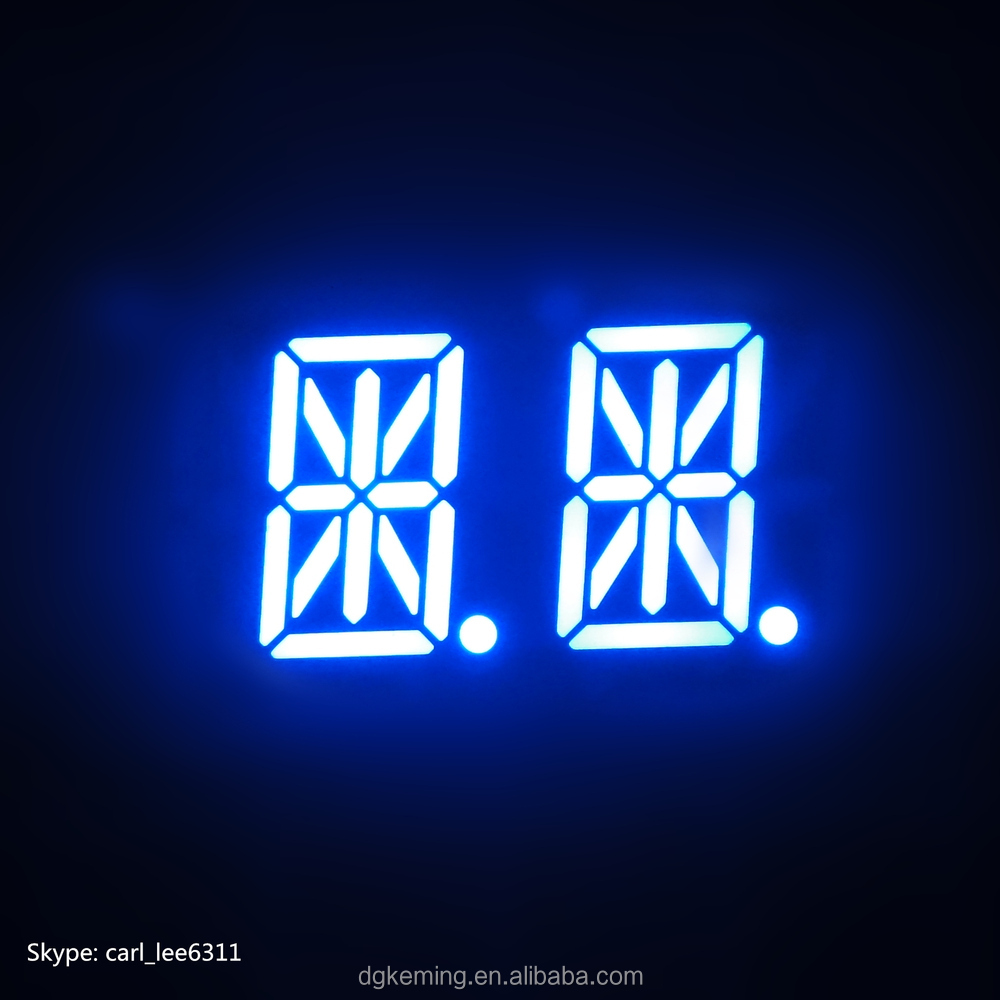

Light on

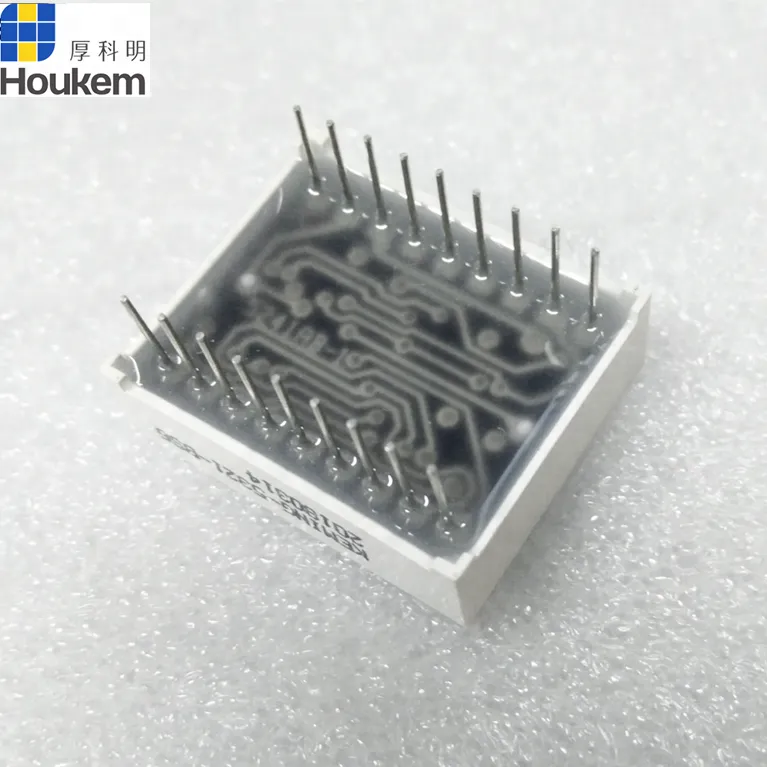

Light off

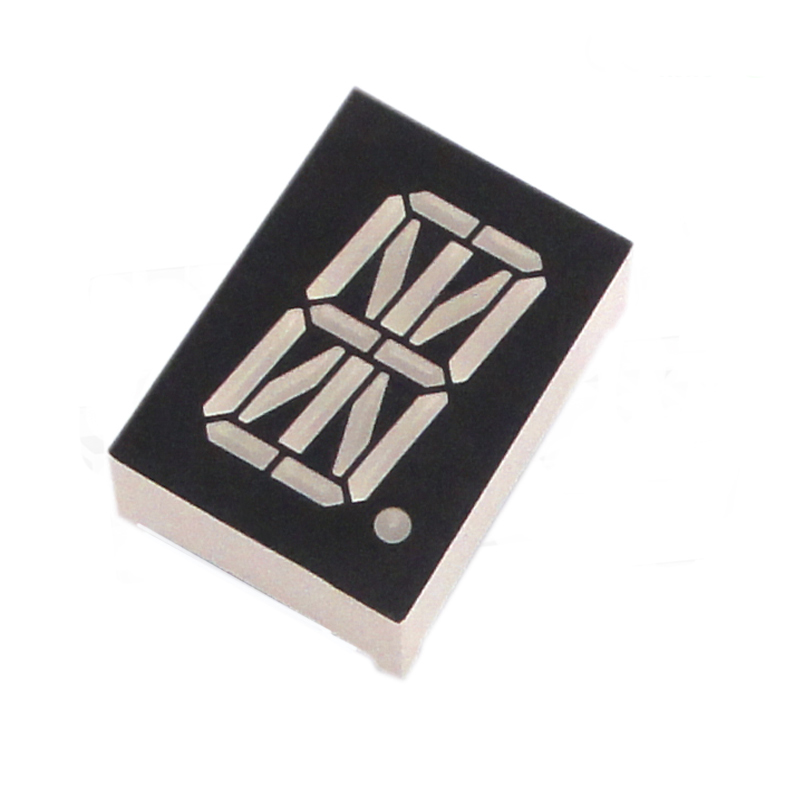

Single digit is also available:
Model | Houkem-5322-BB-4L |
Digit height | 0.53 inch |
Digit number | 2 |
Segment color | white |
Face color | black or Grey |
Emitting color | Ultra blue |
Dominant wavelength | 475nm |
Luminous intensity | 200mcd/chip |
Forward voltage | 2.8-3.2v/chip |
Reverse voltage | 5 v |
Recommend used current | 20mA |
Operating temperature range | 25~75 |

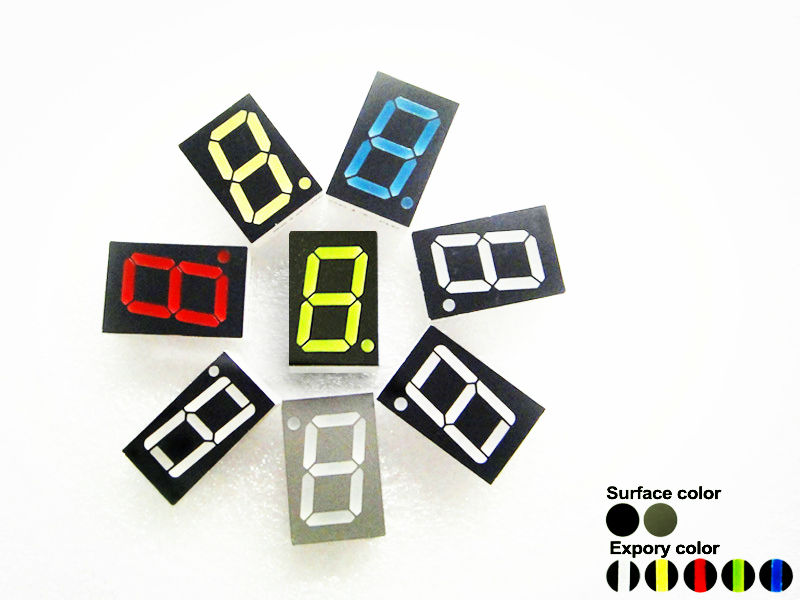

Choice for Surface color & Epoxy color

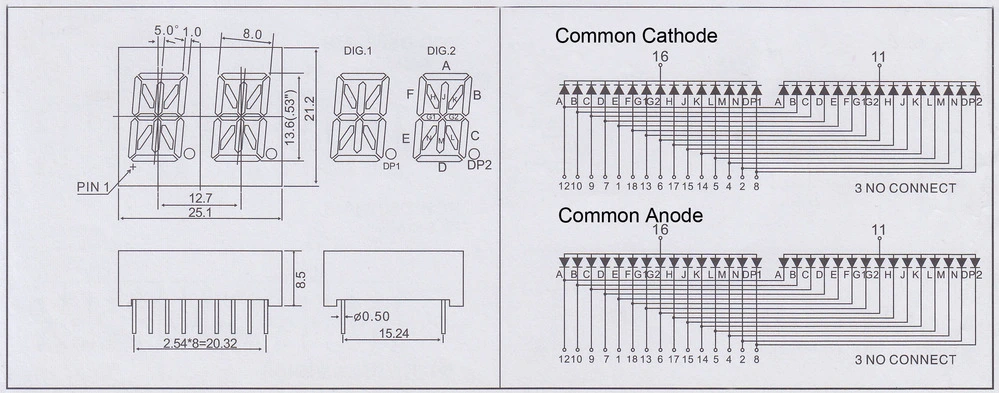

Package dimension & Internal circuit diagram

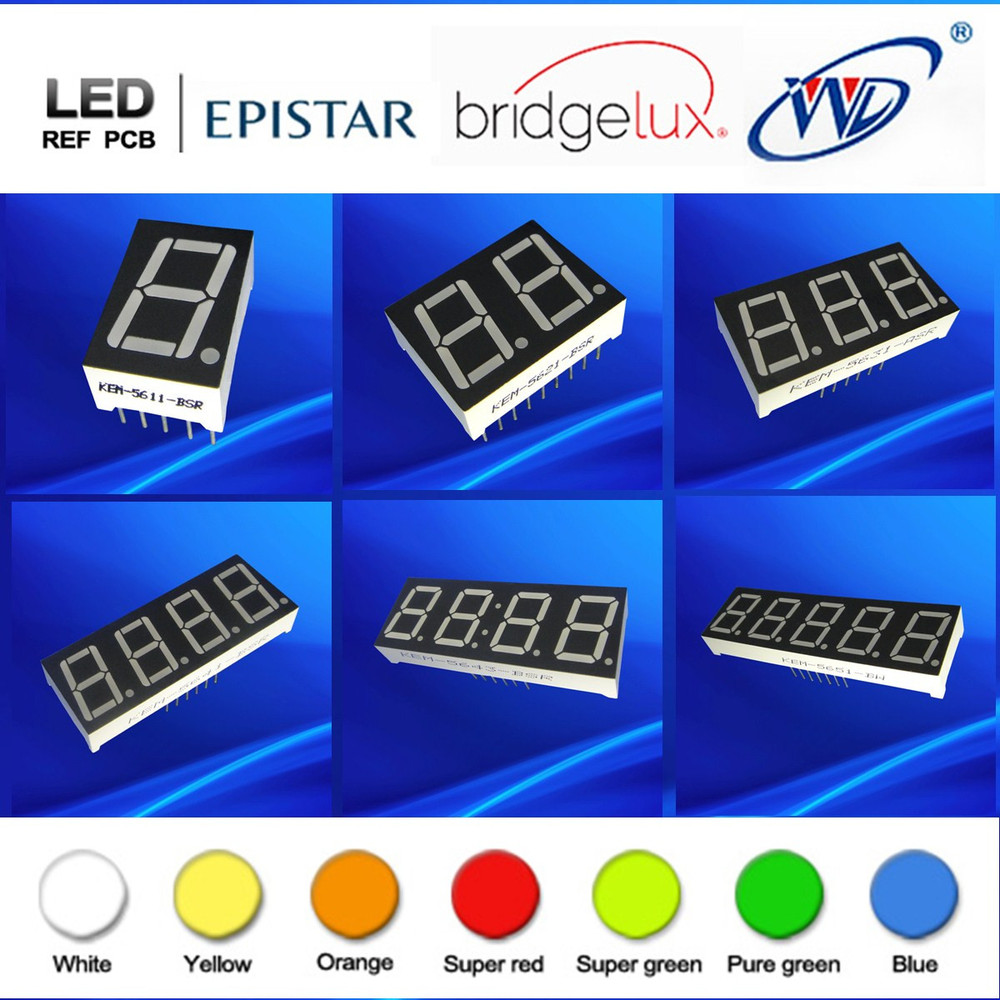

---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color

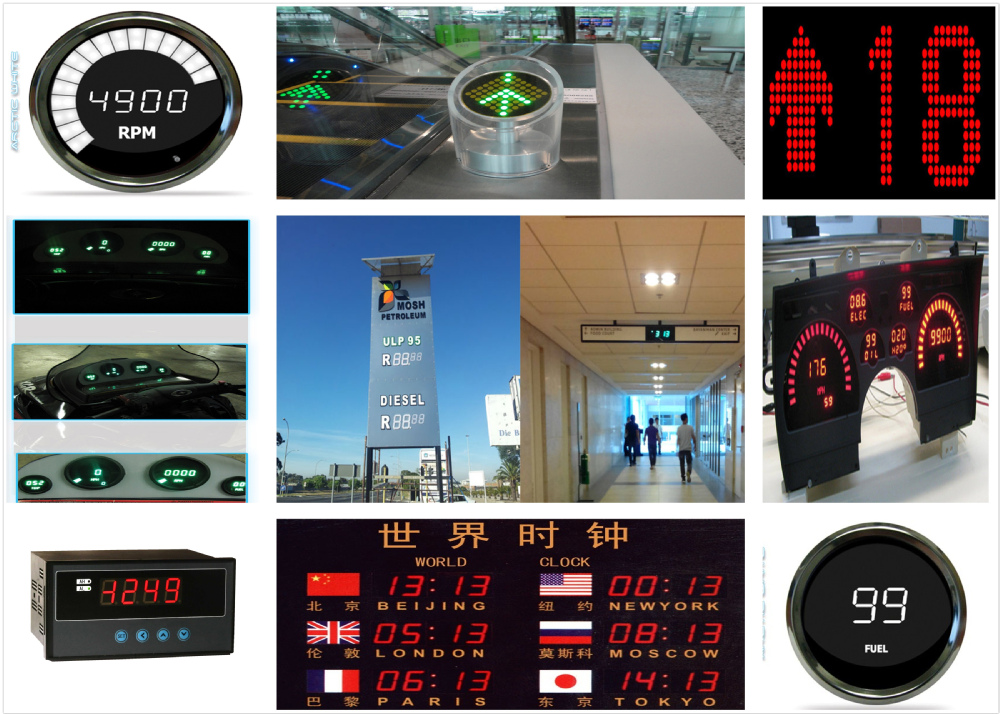

Application
Quantity lead time
1-10Kpcs 3-7 days
10.1K-50Kpcs 7-15 days
All delivery way is available.
Under proper use, all the displays are with three yearswarranty.
Notice
In order to ensure you receive your order with low tax upon import, we will declare with a lower value according to your inform.
