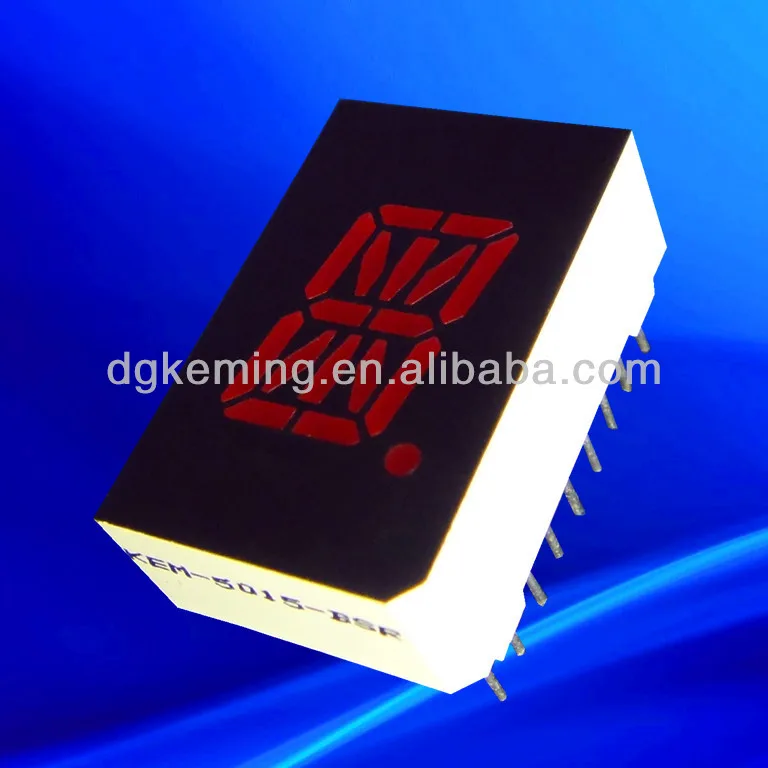

0.5 inch mini red 1 digit led alphanumeric display 16 segments
0.5 inch mini red 1 digit led alphanumeric display 16 segments
0.5 inch mini red 1 digit led alphanumeric display 16 segments
0.5 inch mini red 1 digit led alphanumeric display 16 segments
0.5 inch mini red 1 digit led alphanumeric display 16 segments

0.5 inch mini red 1 digit led alphanumeric display 16 segments

Model NO.
KEM-5015-AB
Price:
USD 0.15-1.00 / pieces
Delivery:
FOB
Minimum order quantity:
500 pieces
Supply Ability:
30000 pieces / Day
Country of Origin:
Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:ANIMATION
  • Pixels:15mm
  • Brand Name:KEM
  • Model Number:KEM-5015-AB
  • Screen Dimension:25*16mm


 0.5 inch mini red 1 digit led alphanumeric display 16 segments



Overview



1. We can supply you all kinds of 7 segment LED display:

   ---Digit size: from 0.25"to 16"

   ---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color

4. Available surface color: black and grey

5. Lens color: milky white or same with emitting color



Features



1. High intensity and reliability

2. Low current operation.

3. Excellent character appearance.

4. Easy mounting on PCB board or sockets



Specifications

ModelKEM-5015-AB
Digit height0.5 inch
Digit numberone
Segment colorgreen
Face colorblack
Emitting colorGreen
Dominant wavelength 515-575nm
Luminous intensity200mcd
Forward voltage3.1-3.3v
Recommend used current20mA
Operating temperature range25~75

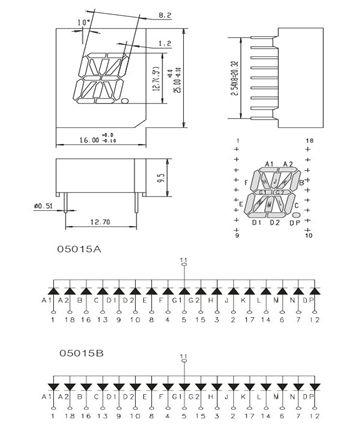

Dimension and circuit diagram










Note: If this PCB Layout not meet your requirements, please contact us for other choices.







Delivery Time



1-50pcs                     2-3 working days

51-3000 pcs              4-7working days

3001pcs-10000pcs   7-10 working days

10001-100000pcs      10-15 working days

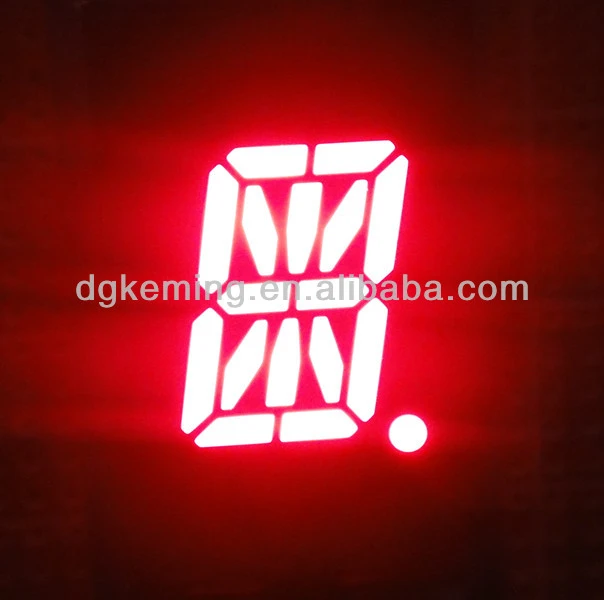

Product Picture





5015-1111

 5015-111

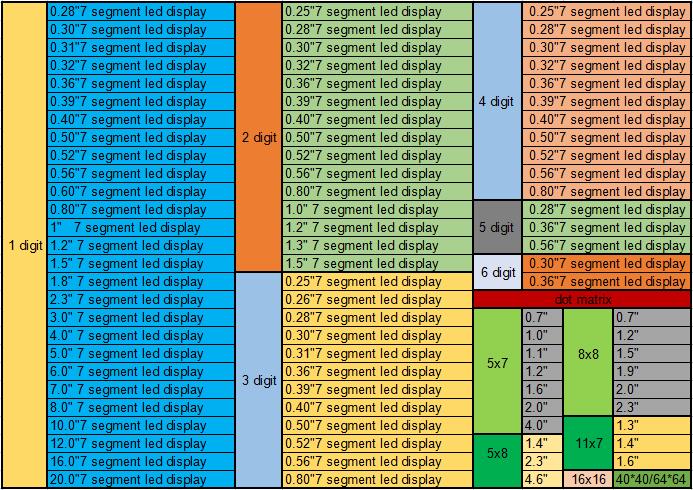

All of our products


7 segment dot matrix LED

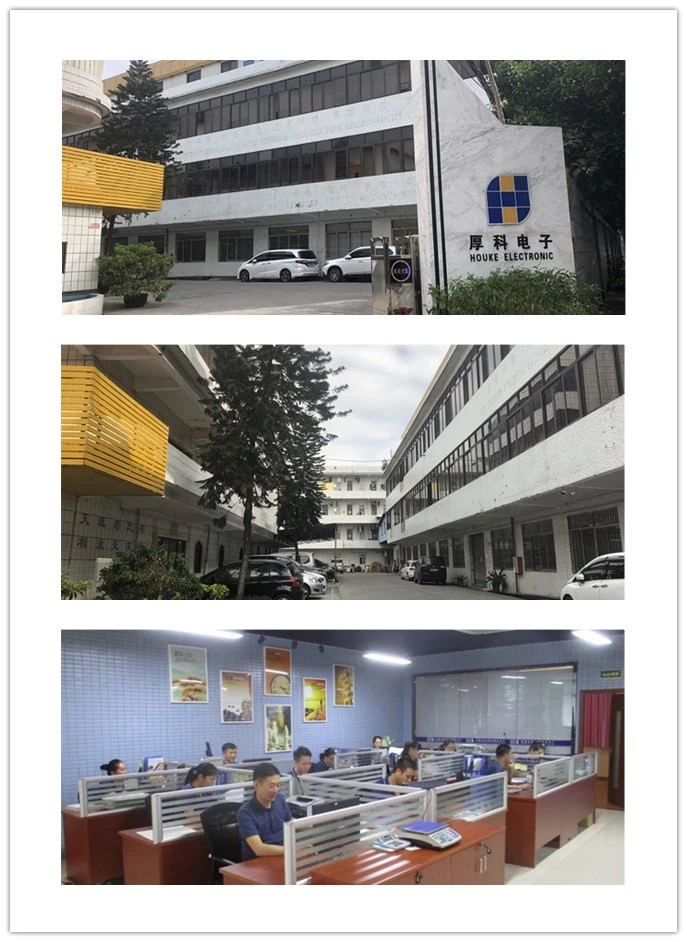

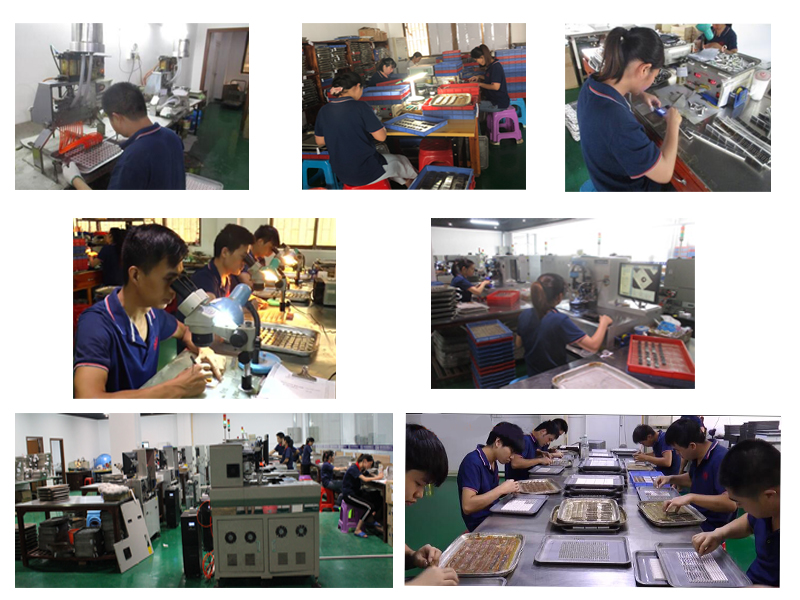

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix ,bar graph

arrays ,arrow led display and high power led.etc.
