Model No: HOUKEM-A4021SMD-BSR
0.4 inch 2 digit smd led 14 segment display
smd 7 segment display houkem is smd 7 segment led display professional manufacturer
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
5000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.90 - US $1.50 / pieces
- Application:Indoor, home appliance, elevator, digital counter
- Color:red, RED
- Panel Size:18.8*19mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-A4021SMD-BSR
- Brand Name:HOUKEM
- use:advertising publish, retail store, self-service business, Restaurant & Hotel Supplies
- Pixels:2.54mm
- Specification:--
- Screen Dimension:18.8*19*3.75mm
- Warranty:2Years
- PCB Polarity:common anode
- operating temperature:-35 ~ +60 ℃
- OEM:YES
- Custom made:YES
- Life span:50000hours
- Certificate:CE ROHS
Product Describtion

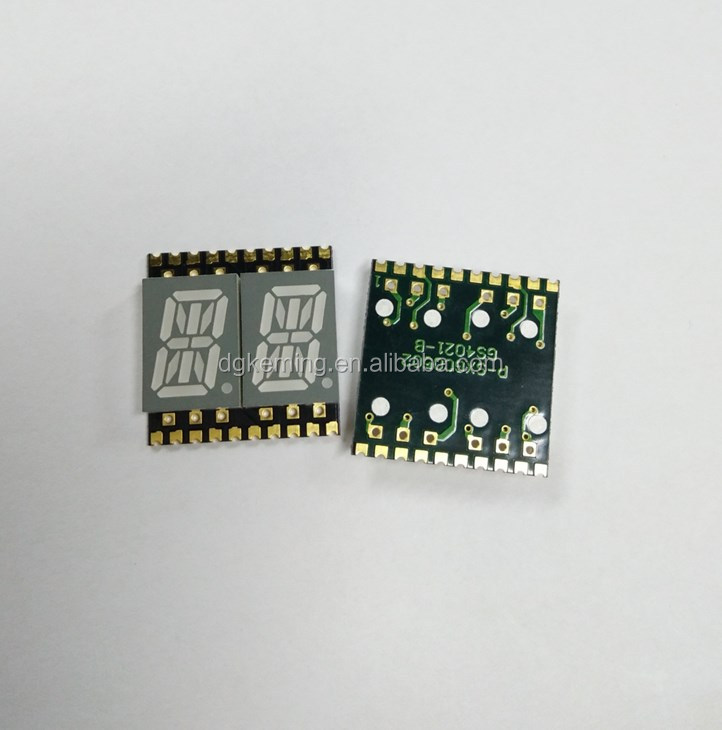

0.4'' dual digits 14 segment led display
Features:
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-A4021SMD-BSR |
| Dimension | 18.8*19*3.75mm |
| digit height | 0.4'' (10.16mm) |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | super red |

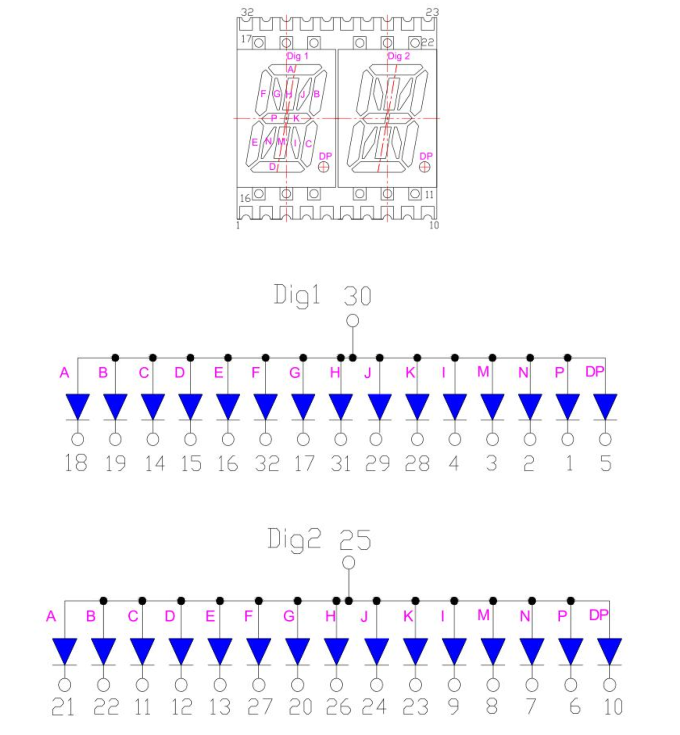

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=10-15mA | 600-605 | 30 | 1.8 | 2.0 | 90 | 100 |
Super green | IF=10-15mA | 565-575 | 30 | 1.8 | 2.0 | 48 | 55 |
Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red 1 | IF-10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=10-15mA | 570-580 | 30 | 1.8 | 2.0 | 43 | 50 |
Yellow | IF=10-15mA | 580-600 | 35 | 1.8 | 2.0 | 70 | 80 |
Blue | IF=10-15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
Pure green | IF=10-15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=10-15mA | - | - | 2.8 | 2.9 | 180 | 200 |
Two years quality warranty
Our Services

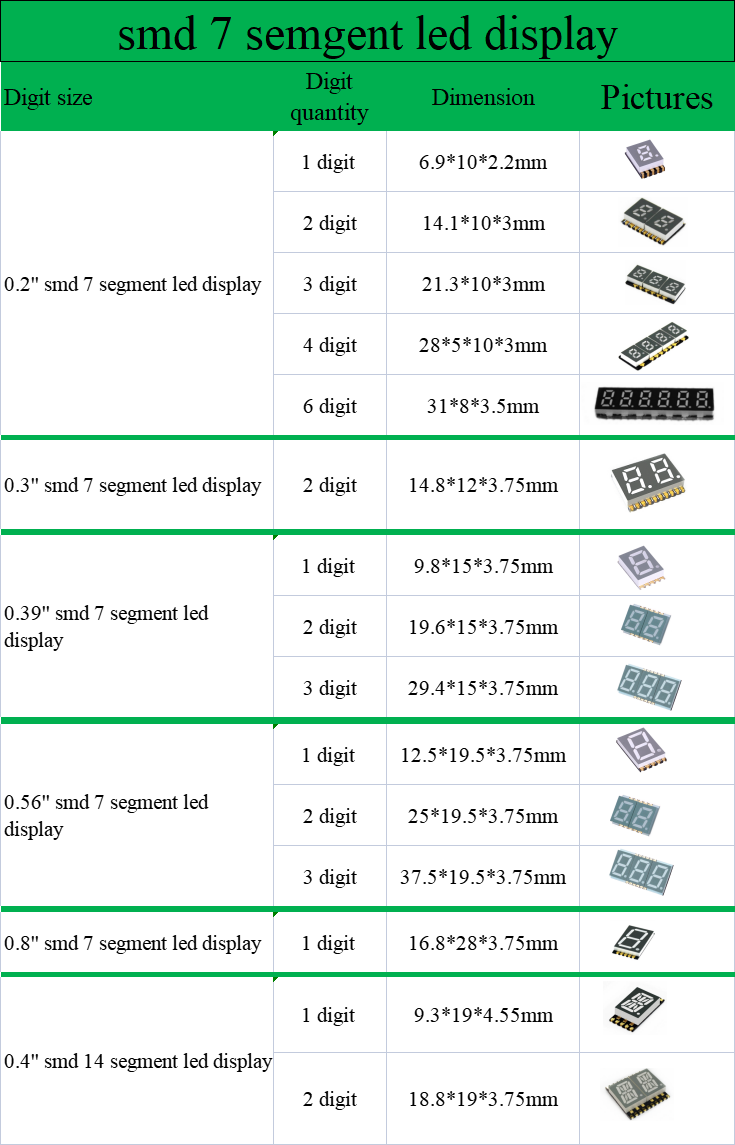

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
7 segment LED display
| 1 digit | 0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20'' |
| 2 digit | 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5'' |
| 3 digit | 0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8'' |
| 4 digit | 0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2'' |
| 5 digit | 0.28'', 0.36'', 0.39'' 0.56'' |
| 6 digit | 0.36'', 0.56'' |

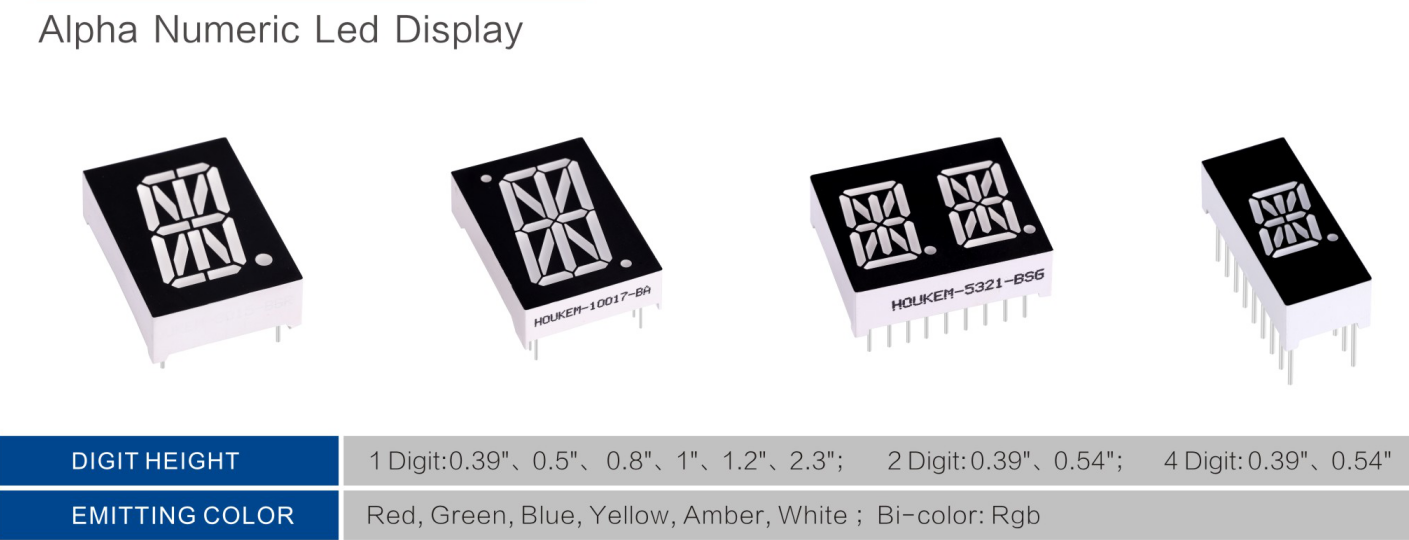

14 /16 segment
| 1 digit | 0.39'', 0.5'', 0.8'', 1.2'', 2.3'' |
| 2 digit | 0.54'' |
| 3 digit | 0.54'' |
| 4 digit | 0.39'' |
| 6 digit | 0.4'' |
Various colors: super red, ultra red, high red, yellow green, pure green, super green,
pure green, blue, yellow, white, amber, orange, Bi-color, RGB.
Custom 7 segment display are available
Certifications
Contact us
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, and all LED lighting application solution, etc.
