0.39 inch white 2 digits smd 7 segment led display - Houkem
- Application:Indoor, display digits
- Color:white
- Panel Size:20.74*13mm
- Pixel Pitch:2
- Supplier Type:Original manufacturer
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:KEM-3921SMD-A/BW
- Brand Name:KEM
- use:retail store, self-service business
- Pixels:1mm
- Specification:Digital Poster
- Screen Dimension:20.74*13mm
- Light Source:LED Epistar
- Emitting Color:white
- Surface color:Black or gray
- Segment color:white ,water clear, or same as emitting color
- OEM:yes
- Package:EPE+ carton or tube packaging
- Digit height:0.39''(10mm)
- product name:0.39 inch 2 digit 7 segment smd
- Usage:Clock, weighing scale, counter, price sign,etc
Products Description

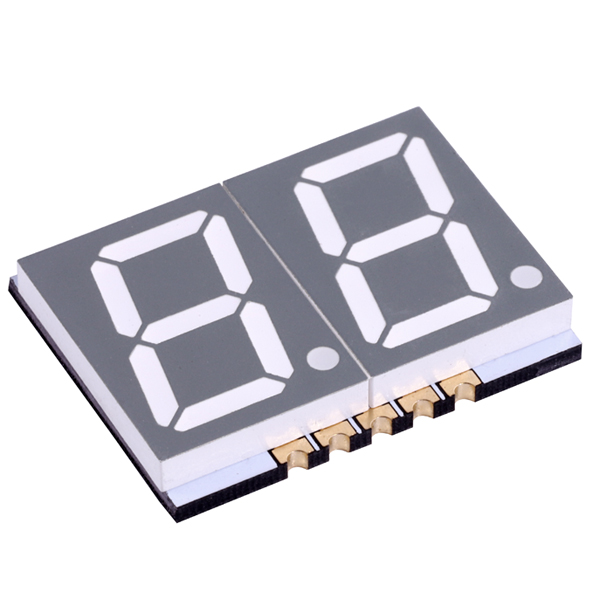

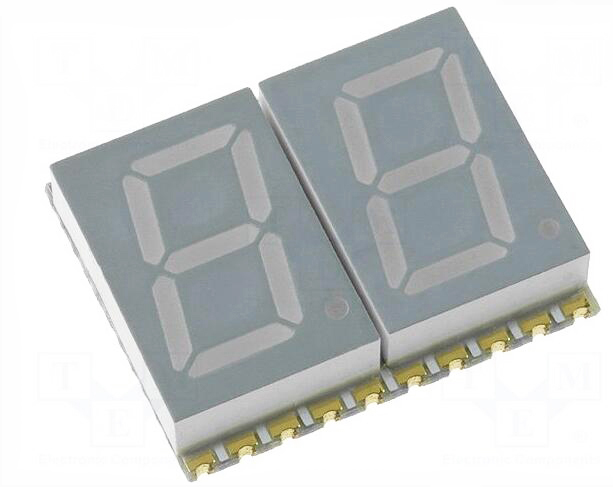

0.39 inch white 2 digits smd seven-segment smd 7 segment led display dual digits
| Part No. | Houkem-3921smd-BSR | Dimension | 20.74*15*3.75mm |
| Digit Height | 10mm | Surface color | Black/gray |
| Epoxy color | White | Emitting color | super red |
| Forward current | 20mA | Forward voltage | 2 v |
| Luminous intensity | 100-150 mcd | Polarity | Common anode |
| If need other specifications, Please contact with our sales get what you want. | |||

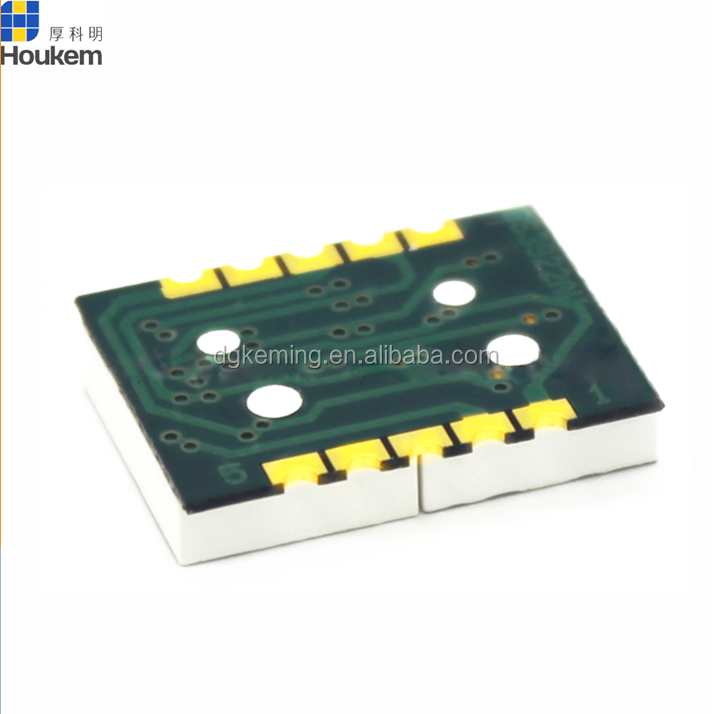

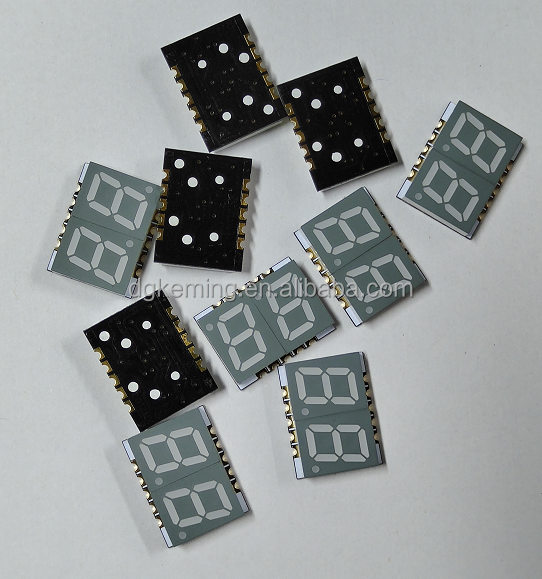

Images Details
Features:
1.High brightness 0.39 inch dual digit smd 7 segments led.
2.Wide viewing angle
3.Different colors :red,green,blue,white,yellow,orange/amber
5.RoHS CE compliant
6. Low energy
7.Stable high quality
8.ISO 9001 Factory

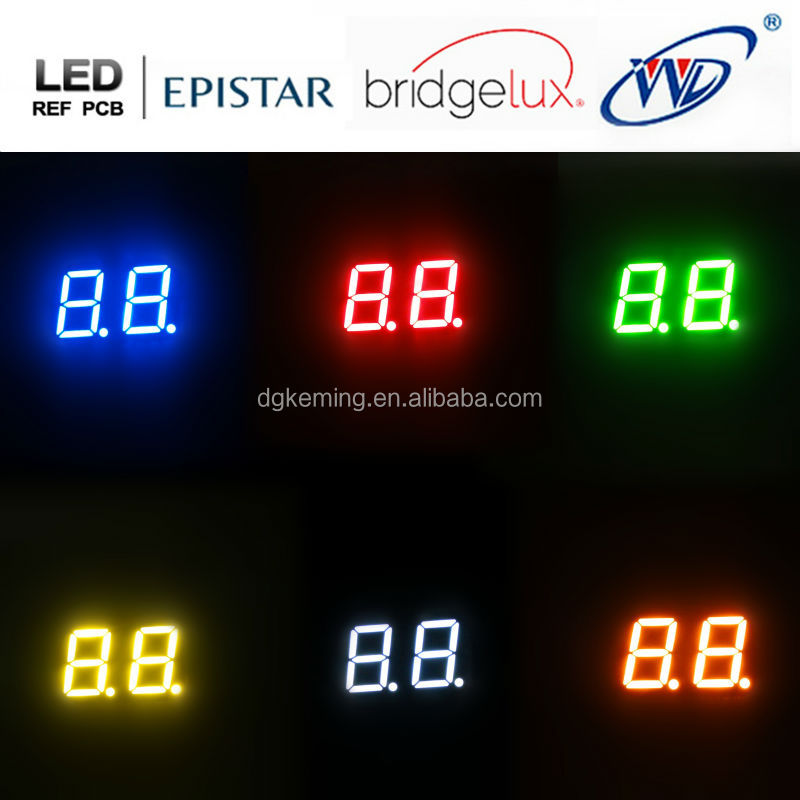

Valerious emitting colors

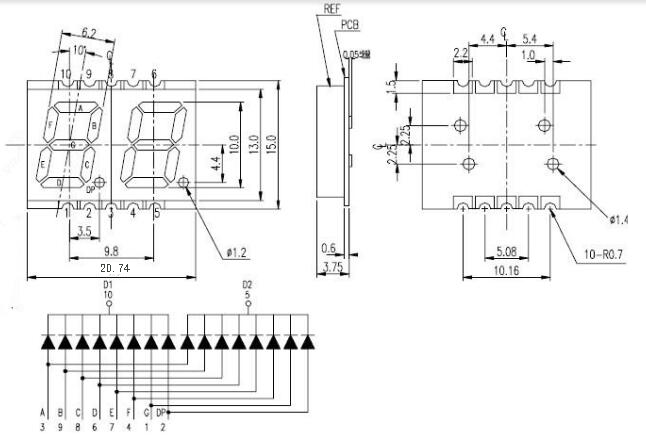

Dimension and internal circuit diagram:
Relative products:

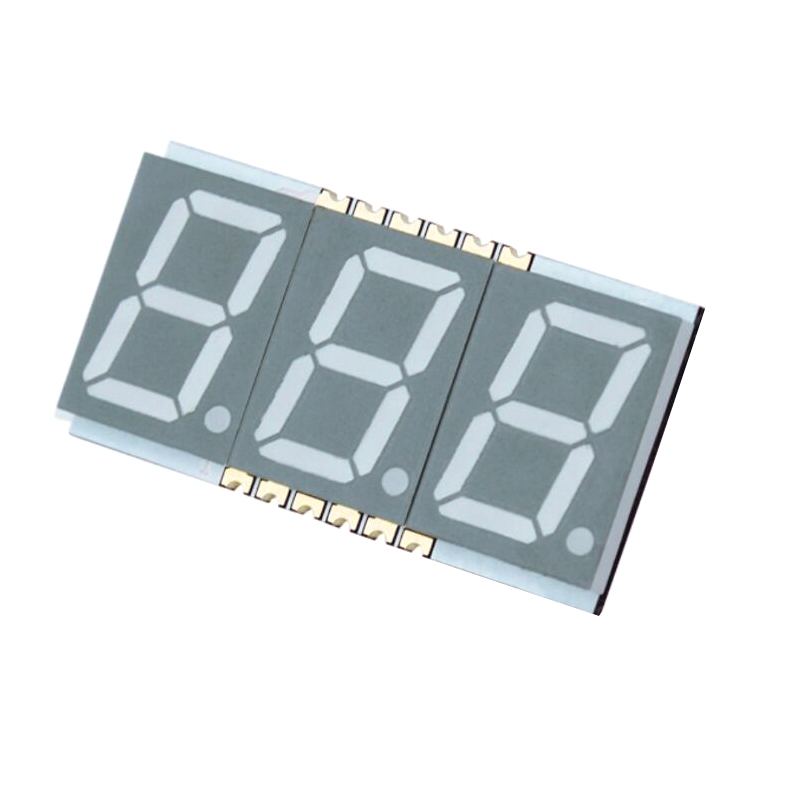

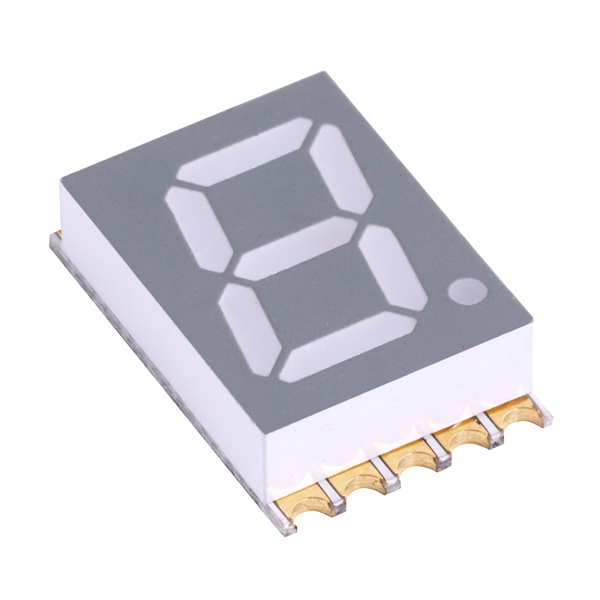

1 digit 7 segment smd 2 digit 7 segment smd 3 digit 7 segment smd
Other specifications we can supply:
| Items | Wavelength (nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) |
| Super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 20 | 5 | 10 |
| High red | 638-660 | 1.8-1.9 | 18 | 15-20 | 20 | 5 | 10 |
| Ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 20 | 5 | 10 |
| Super green | 656-675 | 1.9-2.0 | 18 | 48-55 | 20 | 5 | 10 |
| Pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 20 | 5 | 10 |
| White | 10000-12000k | 2.6-2.8 | 20 | 200-250 | 20 | 5 | 10 |
| Blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 20 | 5 | 10 |
| Yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 20 | 5 | 10 |
| Amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 20 | 5 | 10 |
| 1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3" /3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||
| 2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/ 1.5"/1.8"/2.3" | ||||||
| 3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||
| 4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||
| 5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||
| 6 digit 7 segment led display | 0.3"/0.36" | ||||||
Application:
Industrial equipment Led clock display Home appliance led display

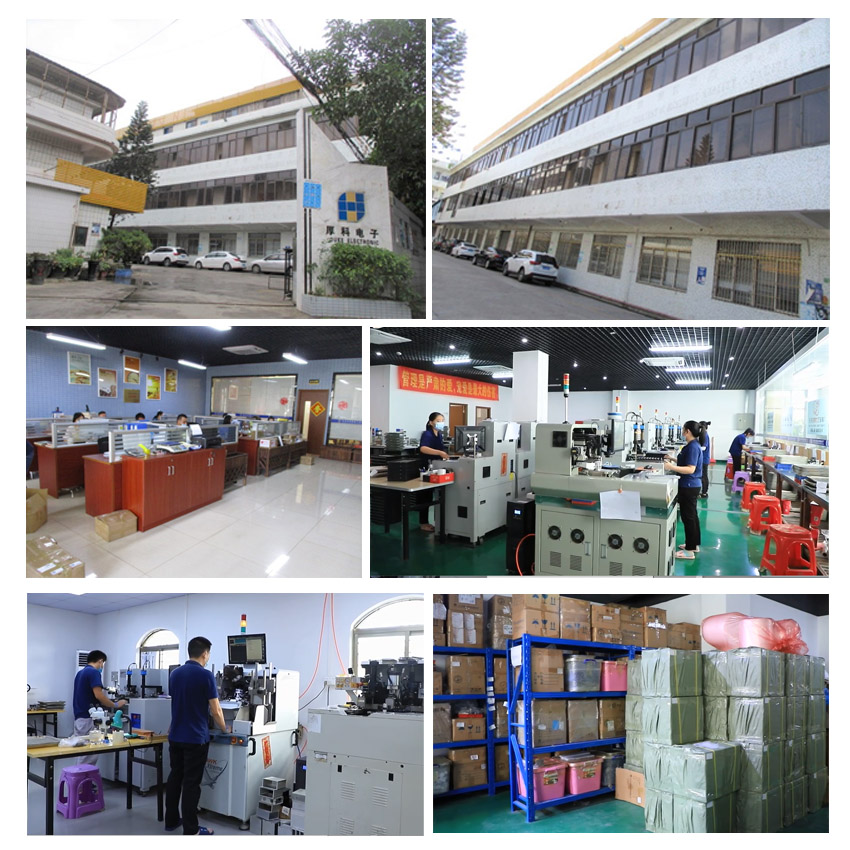

Company profile:
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and
certified by ISO 9001 international quality system.our main products are:customized led display,7
segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service
acquired high reputation from our customers.Sincerely hope to cooperate with you and create a
bright future!
Certifications
Exhibition:
FAQ:
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
EXW.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
