Model NO.
HOUKEM-8016-BA
Price:
$ 0.18-0.20 / piece
Minimum order quantity:
1 piece
Quantity:
  • Application:Indoor, Graphics
  • Color:amber
  • Panel Size:20*27.7*10mm
  • Pixel Pitch:2.54mm
  • Supplier Type:Original manufacturer, ODM, OEM
  • Media Available:datasheet, Photo
  • Place of Origin:Guangdong, China
  • Model Number:HOUKEM-8016-BA
  • Brand Name:HOUKEM
  • use:advertising publish, shopping mall, exhibition hall, Restaurant & Hotel Supplies
  • Pixels:2.54mm
  • Specification:---
  • Usage:Indoor
  • Product name:0.8 inch 1 digit 7 segment led display
  • Warranty:2Years
  • PCB Polarity:common anode
  • operating temperature:-20 ~ +50 ℃
  • OEM:YES
  • Custom made:YES
  • Certificate:CE ROHS IOS9001 reach
  • Brightness:90-100MCD
Product Describtion


orange 1 digit 0.8 inch 7 segment led display

1,Low consumption     2, High brightness

Item No.HOUKEM-8016-BA
Dimension20*27.7*10mm
Surface color  Black  /Grey
epoxy color white
Emitting color amber(orange)

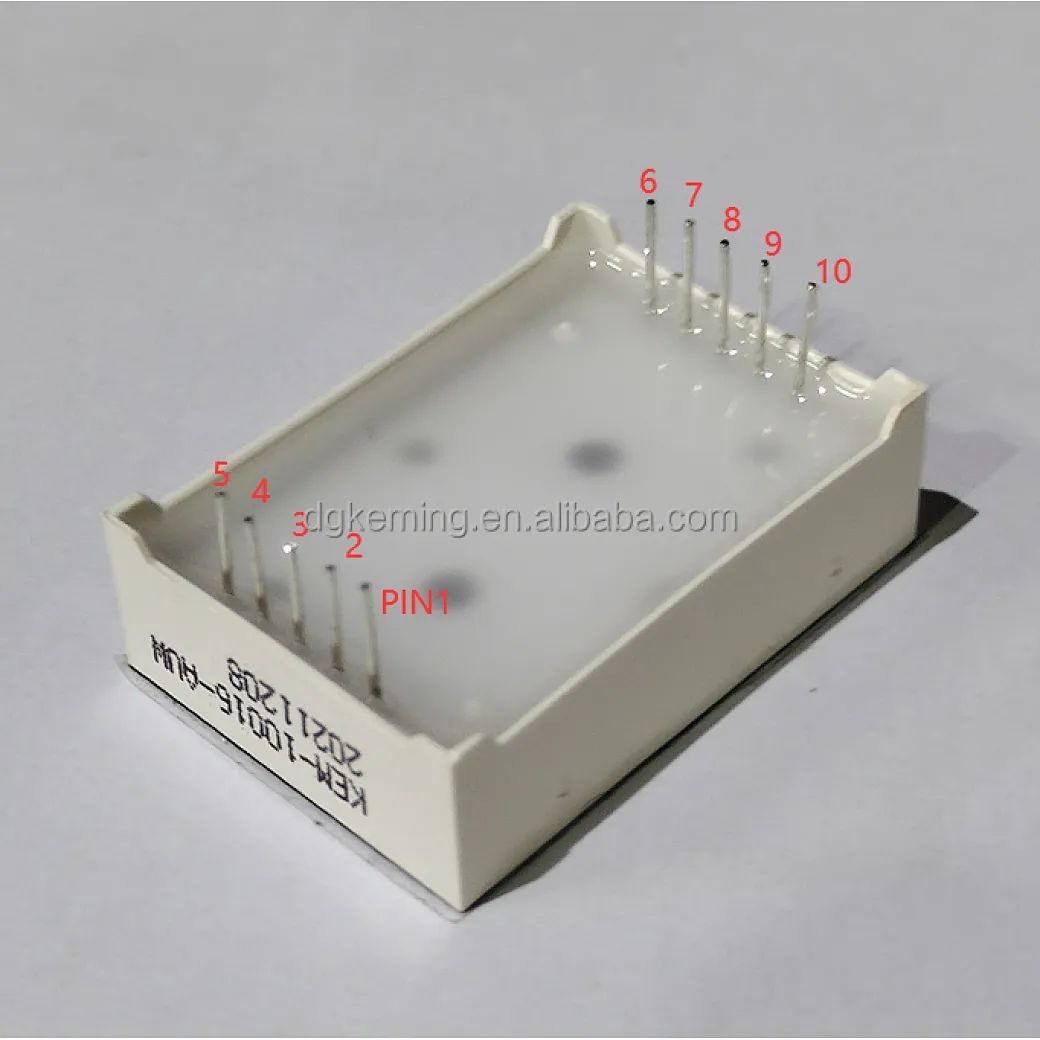

 Package dimension & Internal circuit diagram





Note: If this PCB layout don't meet your requirements, please contact me for other choices.

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=15mA

600-605

30

1.9

2.0

90

100

Super green

IF=15mA

565-575

30

1.9

2.0

48

55

Super red

IF=15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=15mA

620-625

20

1.8

2.0

300

350

High red

IF=15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=15mA

580-600

35

1.9

2.0

70

80

Blue

IF=15mA

465-475

40

2.9

3.0

150

200

Pure green

IF=15mA

515-525

40

2.9

3.0

600

640

White

IF=15mA

-

-

2.8

2.9

180

200
