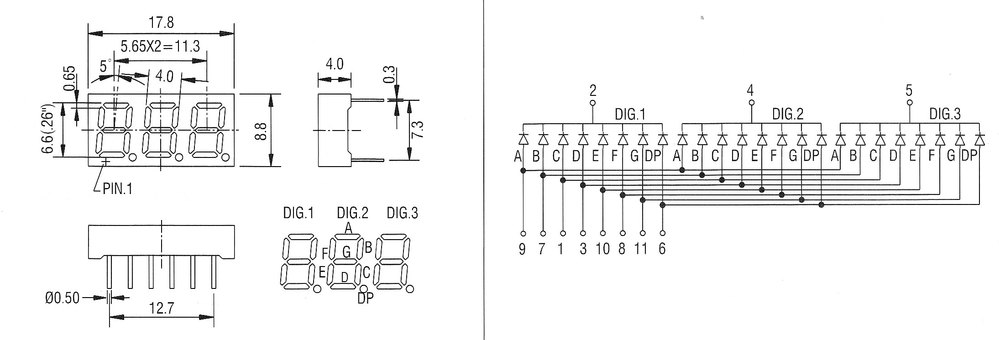

Dimension and Internal Circuit Diagram:
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

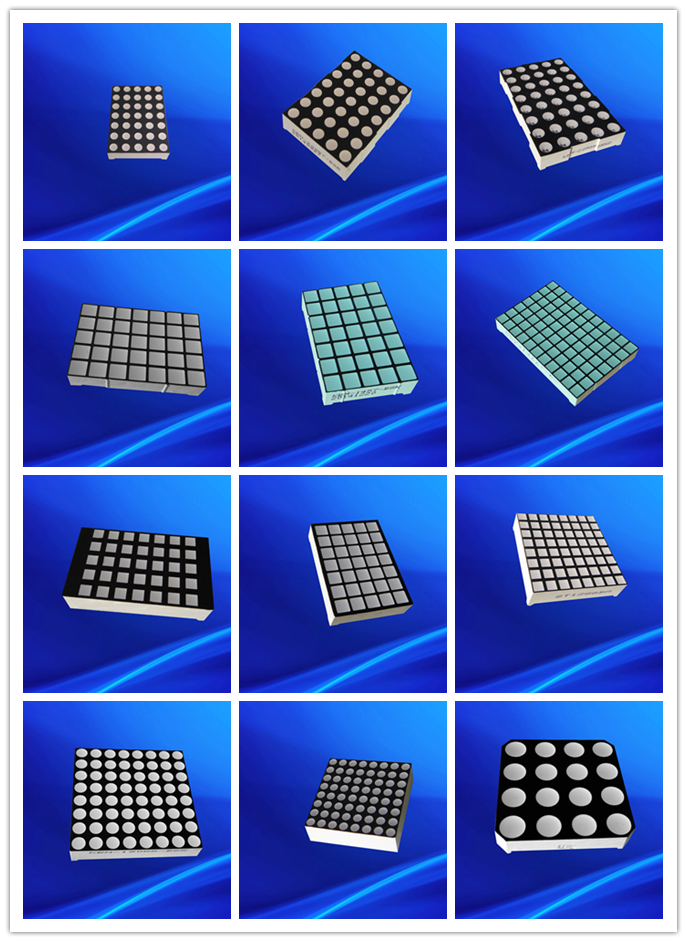

2. Dot matrix: 8x8 5x7 5x8 7x11.

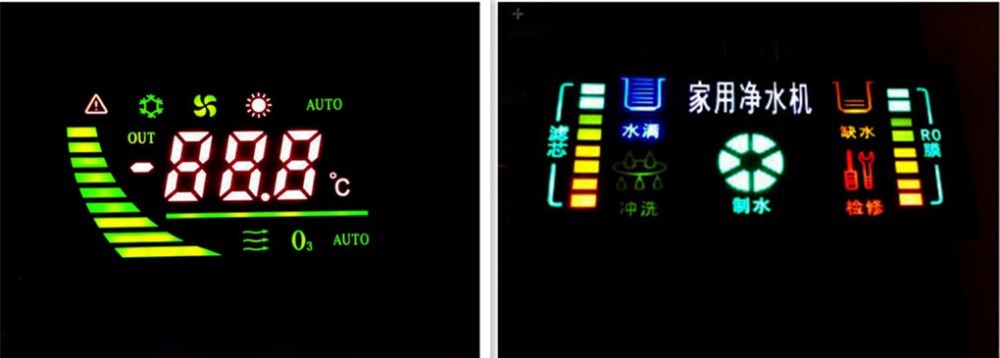

3.custom design led display.
4. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color.
5. Available surface color: black,grey,white or red.
All of our led products with 2 years warranty.
Any quality problem caused by our factory,we will return or replace the goods.

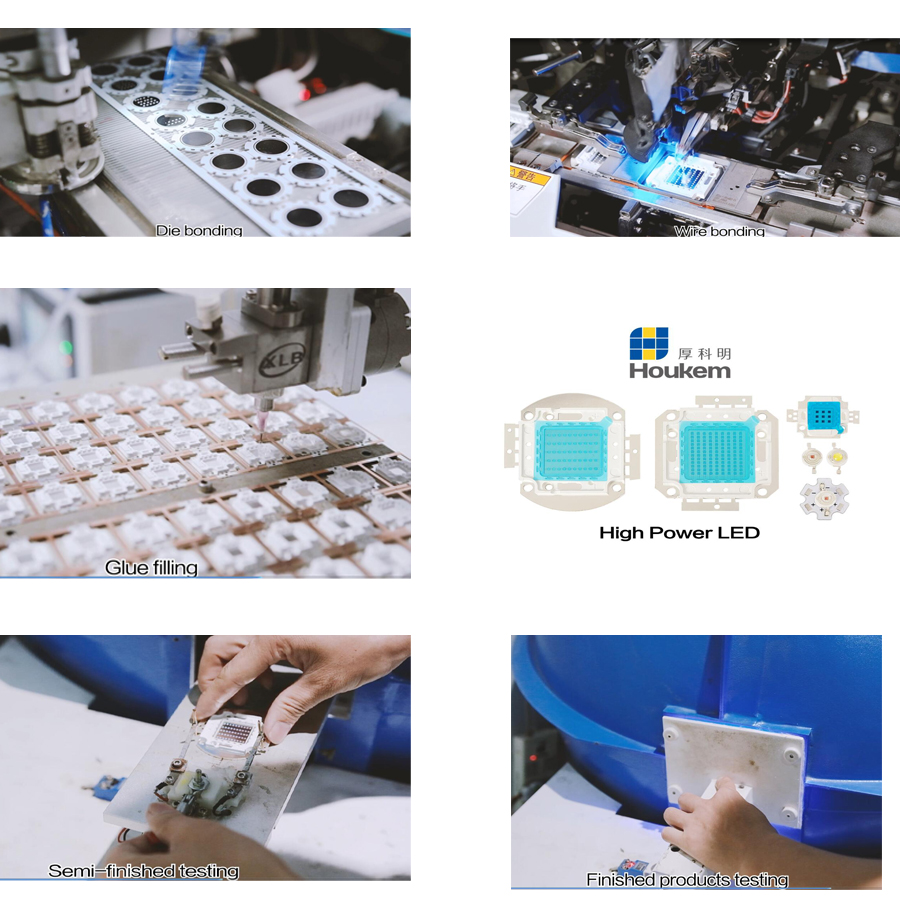

Main Processes of Our Segment Display(Factory pictures):
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Safety Packaging details:
Small carton size:40*27*40cm.Export carton size:50*43*43cm(two small cartons packed inside)

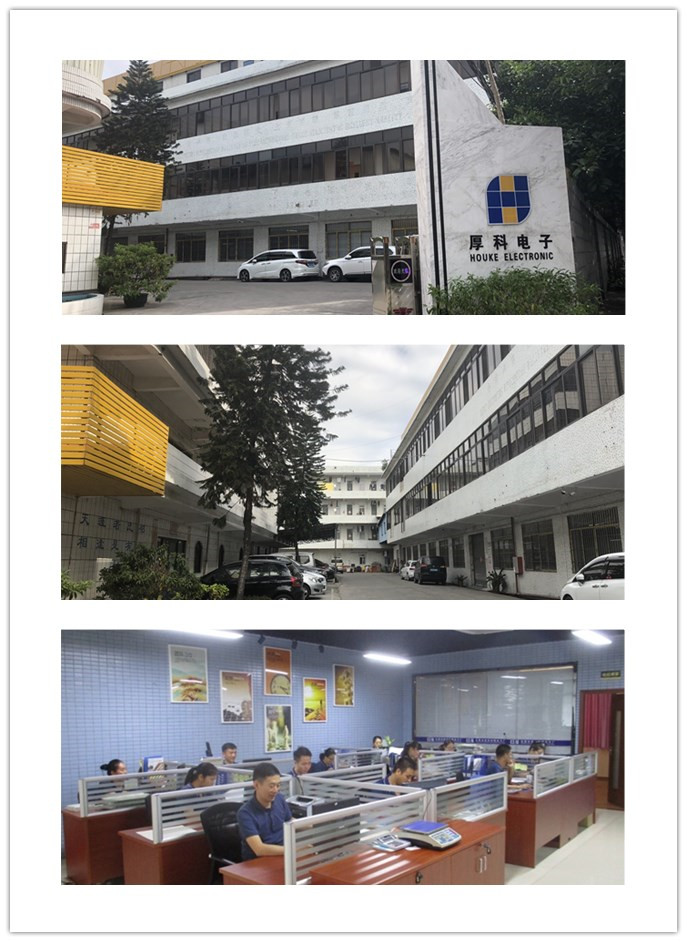

Established in 2003,Dongguan city,our factory specializes in LED products,
including 7 segment LED/SMD displays, dot-matrix,
high power led(IR & UV led).etc.
