Model No: HOUKEM-14117-BSR

7x11 Red LED Matrix Module

HOUKEM 7x11 red LED dot matrix display module for industrial control panels and electronic instruments. Available in common anode and common cathode versions for OEM applications.
Delivery :
EXW
minimum order :
100 pieces
Supply Ability :
100000pieces / Month
Stock Time :
10-20Day
Country of Origin :
China
Quantity :
US $1.00 - US $1.10 / pieces
add to cart
Contact Now

7x11 Red LED Dot Matrix Display Overview

TheHOUKEM 7x11 red LED dot matrix display module is designed for industrial control panels, electronic instruments, and OEM equipment. It features a 7×11 LED array, super red output, and a compact 37.1 × 55 × 8 mm package.

Two circuit configurations are available:

  • HOUKEM-14117-BSR: Common Anode (CA), Row Anode.

  • HOUKEM-14117-ASR: Common Cathode (CC), Row Cathode.

Choose the configuration that matches your PCB design and driving circuit. Contact HOUKEM for the corresponding pinout and technical drawings before integration.

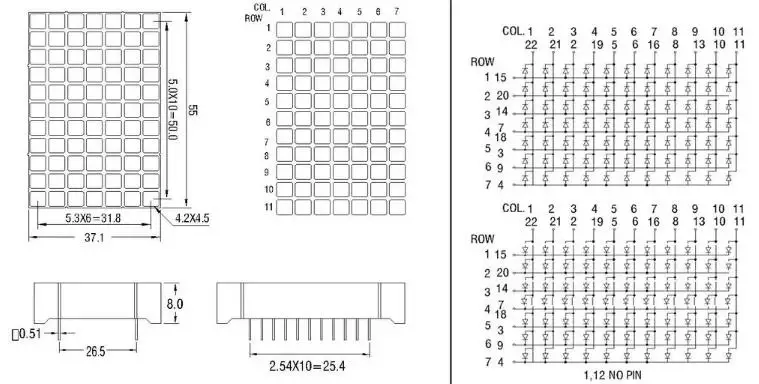

7x11 led matrix display module red square common anode view

Technical Specifications of LED Dot Matrix Display Module

Item No.HOUKEM-14117-BSR
Dimension37.1 × 55 × 8 mm
Surface ColorBlack / Grey
Epoxy ColorWhite
Emitting ColorSuper Red

Model Note: The dimensions above apply to HOUKEM-14117-BSR. For HOUKEM-14117-ASR, please request the latest datasheet to confirm the dimensions, pin assignments, and circuit configuration before PCB integration.

LED Chip Electrical Characteristics

TheHOUKEM-14117-BSR red LED matrix features super red LEDs with a wavelength of 620–625 nm, forward voltage of 1.8–2.0 V, and luminous intensity of 110–130 mcd at IF = 15 mA.

The table below also lists reference characteristics for other LED colors. Please confirm color availability and electrical specifications for each model before ordering.

ColorWavelength (nm)Voltage (V)Intensity (mcd)
Amber600–6051.9–2.0100–120
Super Green565–5751.9–2.048–55
Super Red620–6251.8–2.0110–130
Blue465–4752.95–3.0150–200
Pure Green515–5252.95–3.0600–640
White-2.8–2.9200–220

How to Choose the Right 7x11 LED Matrix Module

Before selecting a 7x11 LED matrix display, check the module dimensions, LED color, circuit configuration, and pin layout against your PCB design.

  • Matrix Layout: Confirm that the 7×11 LED arrangement meets your display requirements.

  • Display Color: The red model features super red LEDs with a listed wavelength of 620–625 nm.

  • Circuit Type: Choose common anode or common cathode according to your driving circuit.

  • Mechanical Fit: Check the 37.1 × 55 × 8 mm dimensions and request technical drawings before finalizing your PCB layout.

For OEM projects, share your required dimensions, LED color, circuit type, and estimated order quantity with HOUKEM for technical review.

Applications of 7x11 LED Matrix Display

The7x11 red LED matrix display is suitable for numeric and status indication in industrial and OEM electronics.

  • Industrial control panels

  • Electronic instruments and test equipment

  • Equipment status indicators

  • Embedded electronic devices

  • Custom OEM display assemblies

led dot matrix display module related products and matrix display types

OEM & Custom LED Display Solutions

HOUKEM supports OEM projects involving LED dot matrix display modules, including custom display sizes, LED colors, and PCB layouts.

Share your required matrix arrangement, dimensions, circuit configuration, and estimated order quantity. Our team can review your specifications and discuss suitable manufacturing options.

custom led dot matrix display module OEM manufacturing service

FAQ

Can I order samples of the 7x11 LED matrix module?

Yes. Please contact HOUKEM to check sample availability for HOUKEM-14117-BSR or HOUKEM-14117-ASR before ordering.

What is the lead time for a 7x11 LED matrix display order?

Lead time depends on stock availability, order quantity, and customization requirements. Please contact HOUKEM to confirm the current production and delivery schedule.

Can HOUKEM customize LED matrix display modules?

Yes. HOUKEM offers OEM customization for LED matrix displays, including display sizes, LED colors, and PCB layouts. Please share your specifications for technical review.

What is the minimum order quantity for the 7x11 LED matrix module?

The listed MOQ is 100 pieces. For samples or smaller trial orders, please contact HOUKEM to confirm availability.

How does HOUKEM ensure LED display quality?

HOUKEM performs quality checks on its LED display modules. Buyers can request product specifications, available test information, and warranty details before placing an order.

Get a Quote for LED Dot Matrix Display Module

Need a 7x11 red LED matrix display for your project? Contact HOUKEM with your required quantity, circuit type, and technical specifications.

Request a Datasheet or Quotation →

QUALITY ASSURANCE
Certificates & Quality Standards
As a professional LED manufacturer, our 7 segment led display,7 segment smd display,dot matrix,ir led,uv led,high power led fully comply with European Union import requirements.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Certificate 01
UR / IR LED RoHS Certificate
01
Certificate 02
UR / IR LED SVHC Compliance Certificate
02
Certificate 03
7-Segment LED Display Certificate
03
Certificate 04
7-Segment LED Display Certificate
04
Certificate 05
UR / IR LED CE Certificate
05
Certificate 06
7-Segment LED Display Certificate
06
Certificate 07
UR / IR LED EMC Certificate
07
Certificate 08
7-Segment LED Display Certificate
08

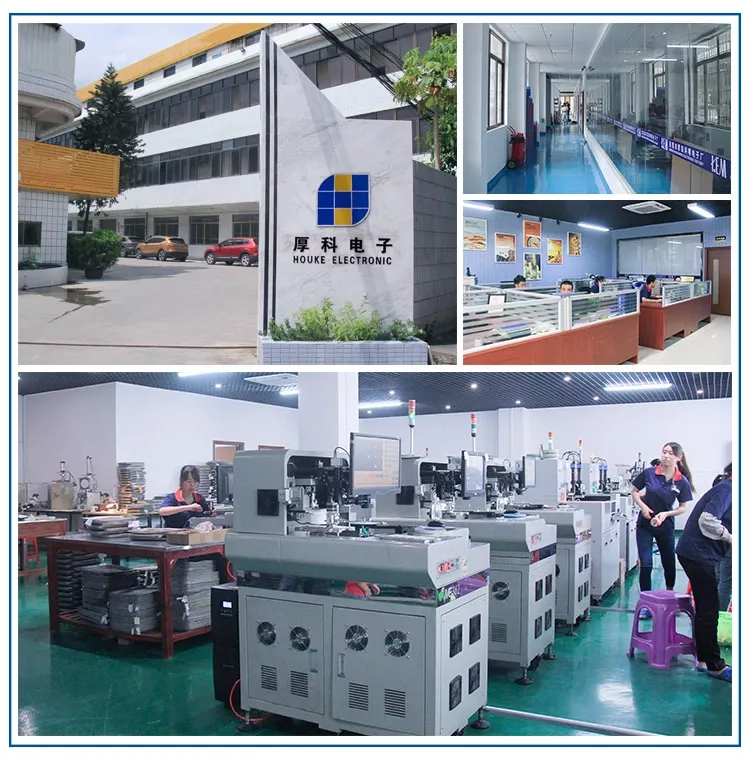

LED dot matrix display factory production line SMT assembly automated manufacturing HOUKEM

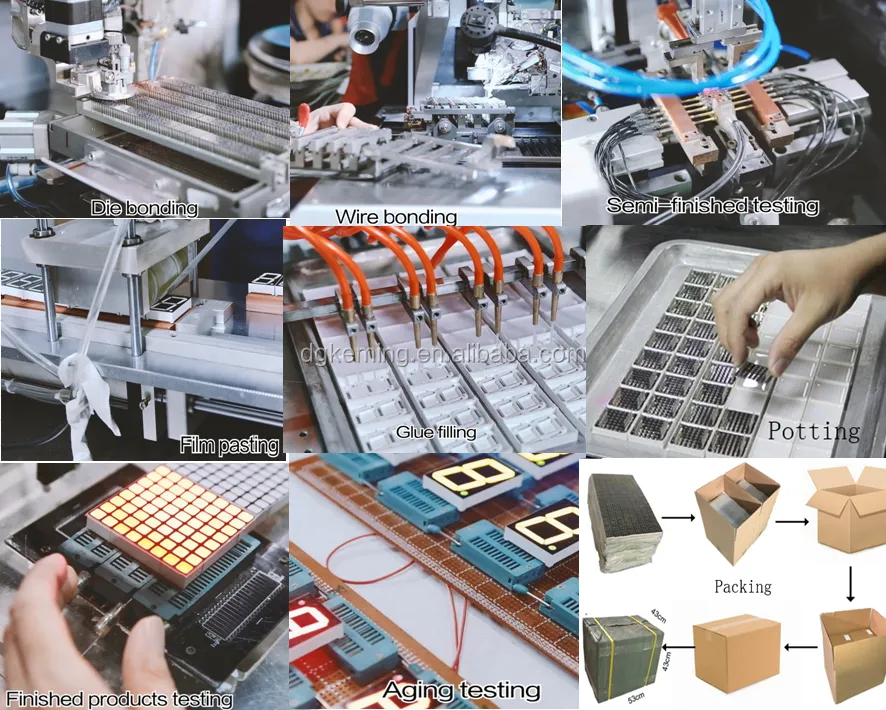

industrial LED module factory quality inspection testing red LED matrix display modules
