Model No: HOUKEM-5611-BSR

0.56 Inch SMD 7 Segment Display

HOUKEM 0.56 inch SMD 7 segment display features a single-digit numeric design, 14.22mm character height and super red LED output for PCB-mounted industrial instruments, control panels and electronic equipment.
Delivery :
EXW
minimum order :
100 pieces
Supply Ability :
50000pieces / Day
Stock Time :
15Day
Country of Origin :
China
Quantity :
US $0.08 - US $0.20 / pieces
add to cart
Contact Now

0.56 Inch SMD 7 Segment Display | Single Digit LED Numeric Display

The HOUKEM 0.56 inch SMD 7 segment display is a single-digit LED numeric display designed for surface-mount PCB assembly. It features a 14.22mm character height, a compact 19 × 12.4 × 3.75mm package, and super red LED output at 620–625nm.

This SMD 7 segment LED display is suitable for industrial instruments, control panels, power supply indicators, and other electronic equipment requiring a compact numeric readout.

Common anode and common cathode configurations are listed in the product specifications. Buyers should confirm the exact part number, pin arrangement, and electrical requirements before selecting a version for PCB integration.

Key Features of the 0.56 Inch SMD LED Display

  • 0.56 inch digit height: A 14.22mm numeric character for compact electronic displays.
  • Single-digit configuration: Designed to display individual numbers and suitable symbols.
  • Surface-mount design: Intended for integration into SMD PCB assemblies.
  • Compact package: Published dimensions of 19 × 12.4 × 3.75mm.
  • Super red LED output: Published wavelength range of 620–625nm.
  • Configuration options: Common anode and common cathode versions are listed in the product information.
  • OEM integration: Suitable for evaluation in customized electronic equipment and numeric display assemblies.

0.56 Inch SMD 7 Segment Display Specifications

The following specifications summarize the published product information. Exact electrical values, model configurations, and mechanical drawings should be confirmed against the applicable HOUKEM datasheet before production.

ParameterSpecification
Product TypeSingle Digit SMD 7 Segment LED Display
Digit Height0.56 inch (14.22mm)
Package Dimensions19 × 12.4 × 3.75mm
Mounting TypeSurface Mount Device (SMD)
Display ConfigurationSingle Digit, 7 Segment
Emitting ColorSuper Red
Peak Wavelength620–625nm (published range; verify wavelength definition)
Luminous Intensity100mcd/chip (published value; test conditions to be confirmed)
Surface ColorBlack / Gray
Segment AppearanceWhite / Clear
Electrical ConfigurationCommon Anode / Common Cathode options
ManufacturerHOUKEM

For accurate model selection, confirm the part number corresponding to the required color, polarity, electrical characteristics, and PCB footprint. The package dimensions alone do not establish the correct pad layout or pin assignment.

PCB Mounting and Electrical Configuration

The 0.56 inch SMD 7 segment display is designed for surface-mount assembly on printed circuit boards. Its compact package allows equipment designers to integrate a single-digit numeric indicator into instruments, control panels, and embedded electronic products.

Common Anode and Common Cathode Options

The product specifications list both common anode and common cathode configurations. These versions require different circuit connections and driving arrangements.

Before ordering, confirm the exact part number and pin assignment for the selected version. A common anode display should not be treated as electrically interchangeable with a common cathode display without checking the circuit design.

PCB Footprint and Mechanical Dimensions

The published package dimensions are 19 × 12.4 × 3.75mm, with a 0.56 inch (14.22mm) digit height.

For PCB layout, request the mechanical drawing, recommended footprint, and pin configuration. These documents help engineers verify mounting compatibility before prototype assembly or volume production.

LED Driving Requirements

The published super red version has a wavelength range of 620–625nm and a listed luminous intensity of 100mcd per chip. The applicable measurement conditions should be confirmed with HOUKEM.

Circuit designers should verify the forward voltage, operating current, and electrical limits for the selected model. Appropriate current-limiting or LED driver circuitry is necessary to operate the segments within their specified ratings.

Applications of the 0.56 Inch Single Digit LED Display

This single digit LED display can be considered for electronic products that require a compact, easily recognizable numeric indication.

  • Industrial instruments: Numeric status and measurement indicators.
  • Control panels: Equipment settings, operating modes, and status information.
  • Power supply equipment: Voltage or operating-state display assemblies.
  • Electronic controllers: Compact numeric readouts in embedded systems.
  • OEM electronic products: Customized PCB assemblies requiring SMD numeric display components.

For applications requiring multiple digits, engineers should evaluate the complete display architecture, including the number of digits, driving method, available PCB space, and viewing requirements.

If your application requires two numerical digits instead of one, compare our 0.56 Inch 2 Digit SMD Display. The two products use different display arrangements and mechanical dimensions, so buyers should confirm the required PCB footprint, electrical configuration, and driving method before selecting a model.

OEM and Bulk Supply Support

HOUKEM supplies LED display components for equipment manufacturers, electronics distributors, system integrators, and OEM/ODM projects.

For a new project, buyers can provide the required digit height, emitting color, common anode or common cathode configuration, mechanical dimensions, electrical specifications, and estimated purchasing quantity.

HOUKEM can help review the requested configuration and provide available product specifications for engineering and purchasing evaluation.

Frequently Asked Questions

What is the digit height of this SMD 7 segment display?

The published digit height is 0.56 inch, equivalent to approximately 14.22mm. The complete package dimensions are 19 × 12.4 × 3.75mm.

Is this a single-digit or multi-digit LED display?

This product is a single-digit 7 segment LED display. Buyers requiring multiple digits should select a suitable multi-digit display or evaluate a design using multiple display components.

Is this 0.56 inch SMD display available in common anode and common cathode versions?

The published product specifications list common anode and common cathode configurations. Buyers should confirm the corresponding part number, pin assignment, and availability with HOUKEM before ordering, as the two configurations have different electrical connections.

Can this display be used in industrial control panels?

Yes, the compact single-digit format can be considered for industrial control panels, instruments, and electronic indicators. Engineers should verify the viewing requirements, electrical specifications, PCB footprint, and operating conditions for the intended equipment.

What information is needed for an OEM or bulk quotation?

Provide the required display size, emitting color, common anode or common cathode configuration, part number if known, electrical requirements, estimated quantity, and delivery destination. Mechanical drawings or existing product samples can also help clarify the project requirements.

Request a 0.56 Inch SMD 7 Segment Display Quote

Looking for a 0.56 inch SMD 7 segment display for industrial instruments, control panels, or an OEM electronic product? Contact HOUKEM with your required configuration, electrical specifications, and purchasing quantity to discuss model availability, technical documentation, and bulk pricing.

QUALITY ASSURANCE
Certificates & Quality Standards
As a professional LED manufacturer, our 7 segment led display,7 segment smd display,dot matrix,ir led,uv led,high power led fully comply with European Union import requirements.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
Certificate 01
UR / IR LED RoHS Certificate
01
Certificate 02
UR / IR LED SVHC Compliance Certificate
02
Certificate 03
7-Segment LED Display Certificate
03
Certificate 04
7-Segment LED Display Certificate
04
Certificate 05
UR / IR LED CE Certificate
05
Certificate 06
7-Segment LED Display Certificate
06
Certificate 07
UR / IR LED EMC Certificate
07
Certificate 08
7-Segment LED Display Certificate
08

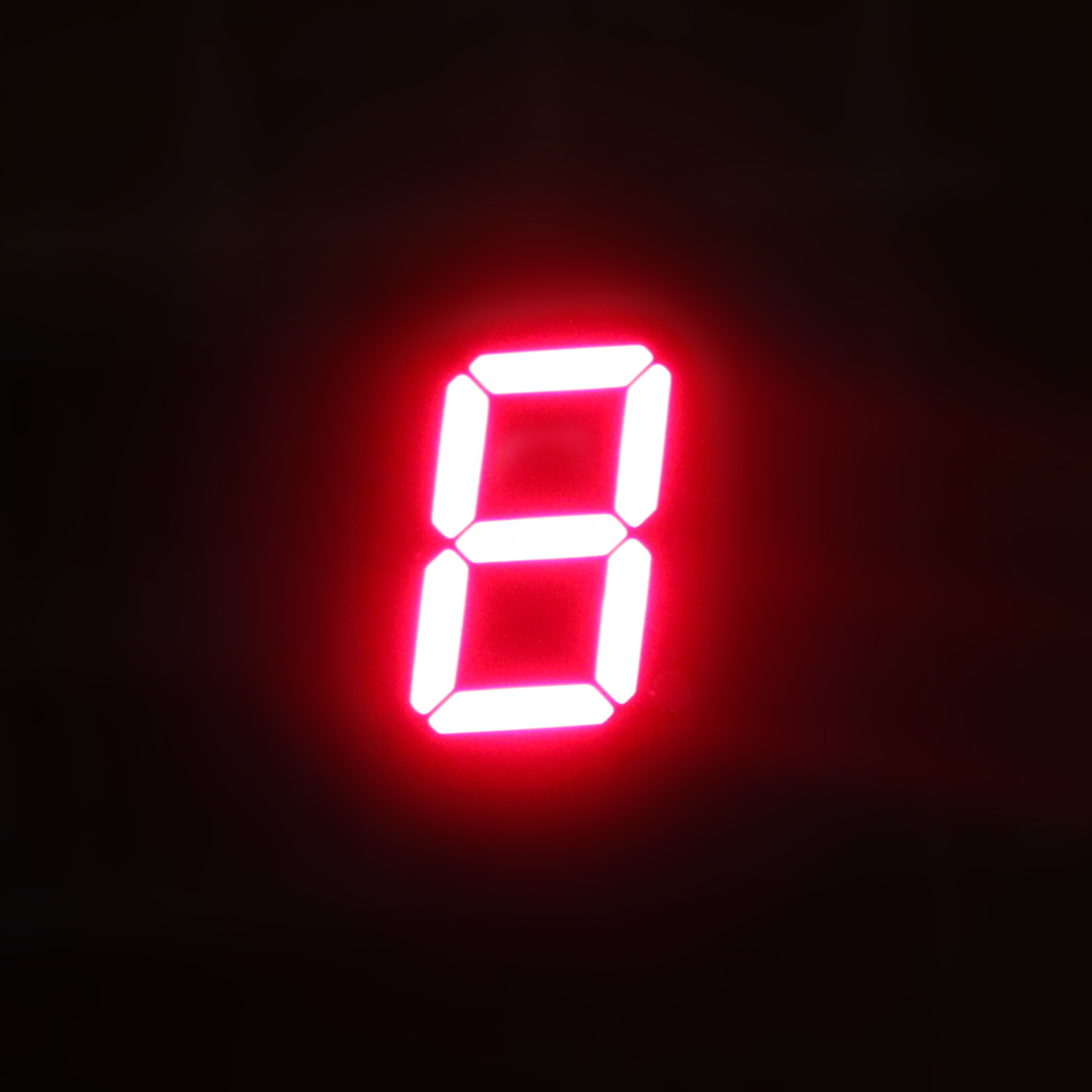

0.56 inch 7 segment display SMD red LED light on numeric display

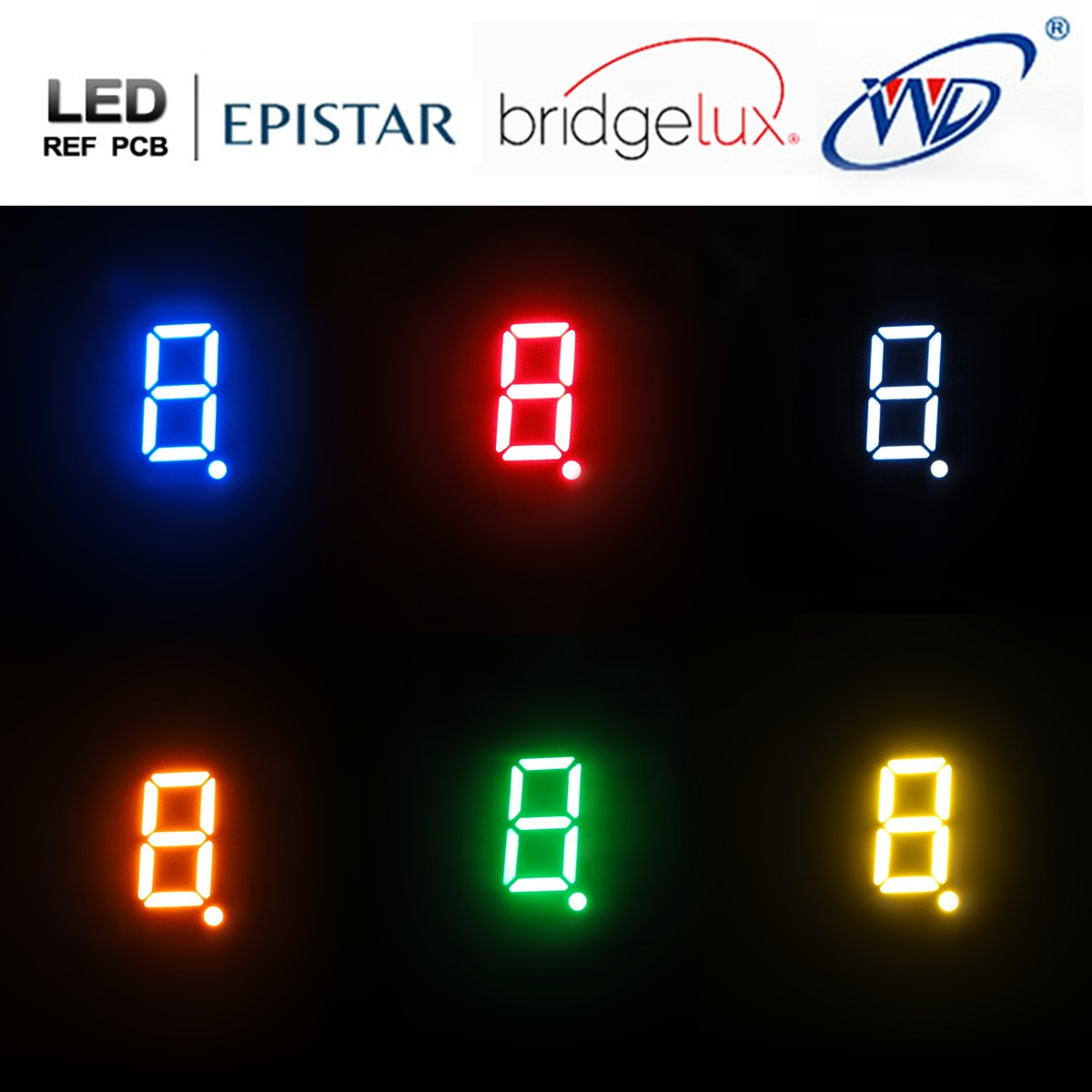

SMD 7 segment LED display 0.56 inch multiple color options numeric display

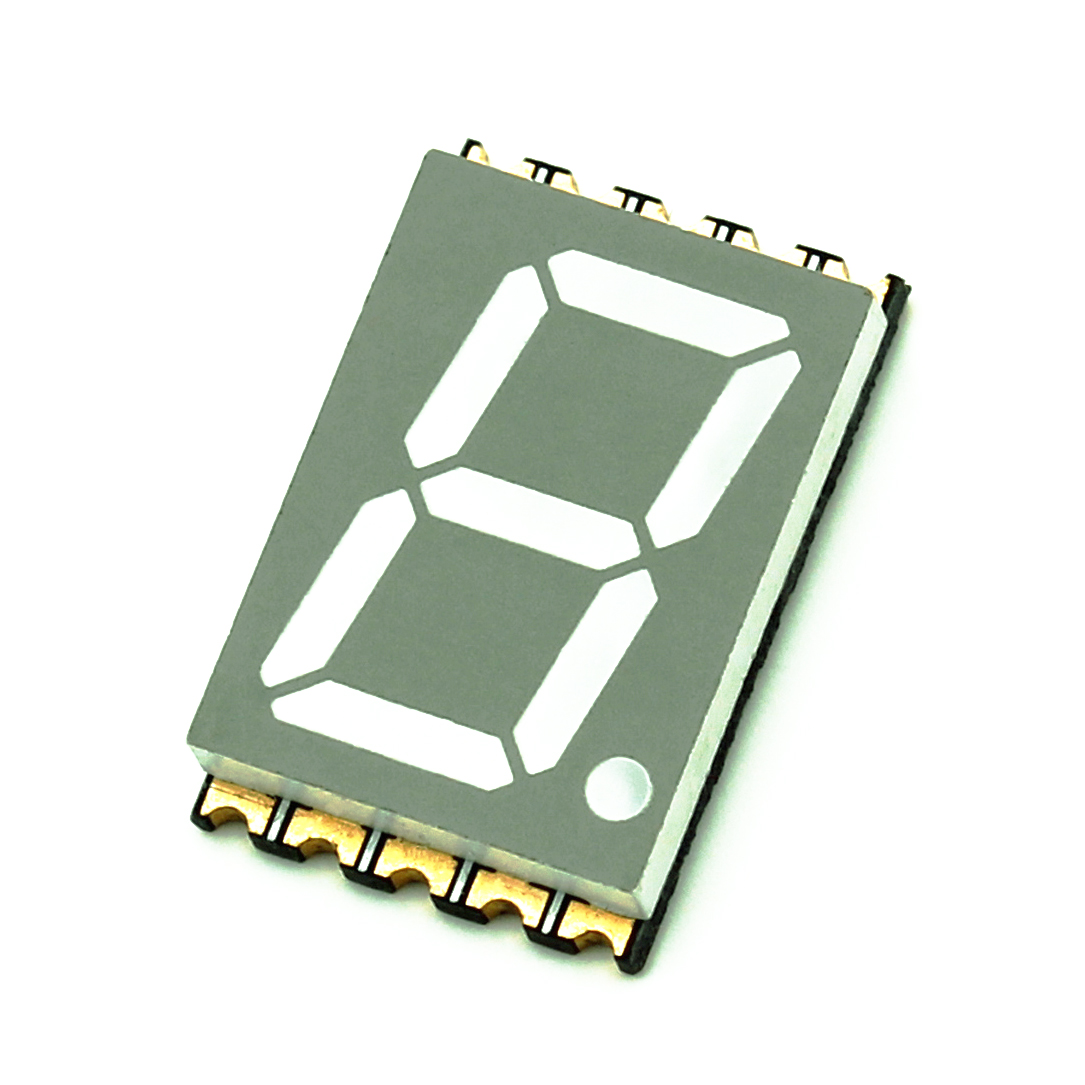

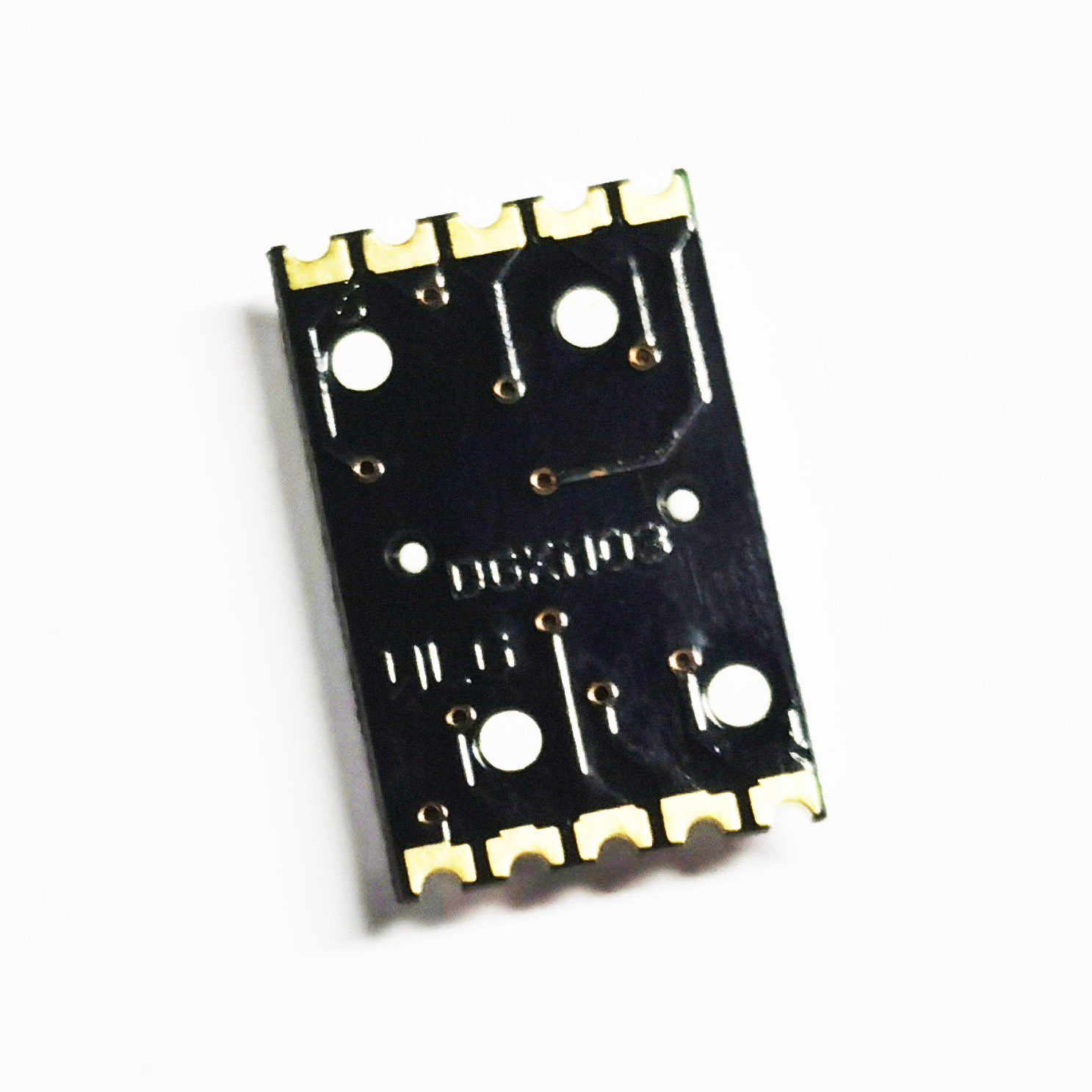

0.56 inch 7 segment display SMD structure LED numeric display light offsingle digit 7 segment LED display SMD PCB mount numeric display structure
