Model NO.
Houkem-3211-BPG
Price:
USD 0.35-0.60 / pieces
Delivery:
FOB
Minimum order quantity:
2000 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Green
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:Houkem-3211-BPG
  • Screen Dimension:7*11mm


Product Describtion

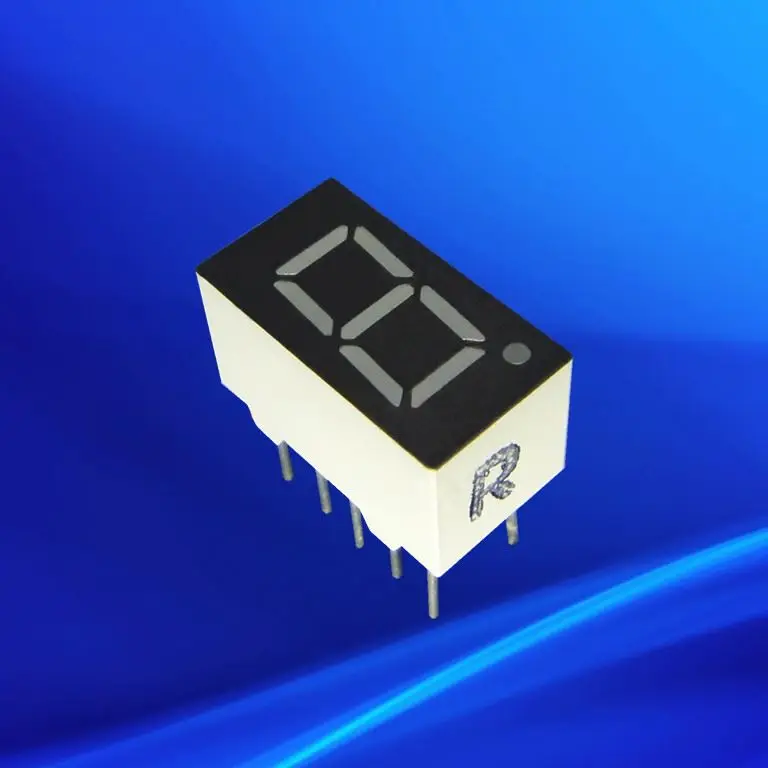

 single digit 0.32 inch 7 segment led display green 7*11mm







Houkem-3211-BPG---------common andoe(CA)

Houkem-3211-APG----------common cathode(CC)





Item No.Houkem-3211-BPG
dimension7*11*5mm
Surface color  Black  /Grey
epoxy color white
Emitting color  Pure green

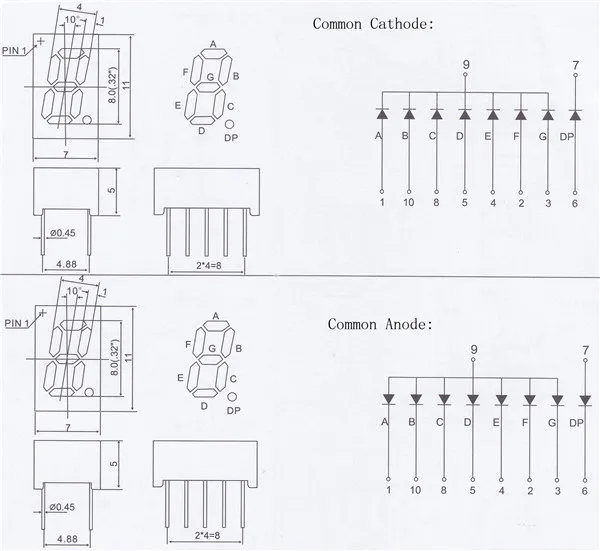

Package dimension & Internal circuit diagram







3211-11





Note: If this PCB layout don't meet your requirements, please contact me for other choices.





Two years quality warranty

1,Low consumption

2, High brightness









3211-1

KEM-3611-2











Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200





Our Services



Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green,

blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led
