0.36 Inch Common Cathode 7 Segment Display
0.36 Inch Common Cathode 7 Segment Display
The HOUKEM-3611-BSR is a high-brightness common cathode 7 segment display designed for industrial control systems, measurement instruments, digital counters, timer modules, and electronic display applications.
This0.36 inch 7 segment display features super red LED illumination, excellent visibility, low power consumption, and stable performance. Both common cathode and common anode configurations are available to meet different circuit requirements.
Key Features
- 0.36 inch (9.1mm) digit height

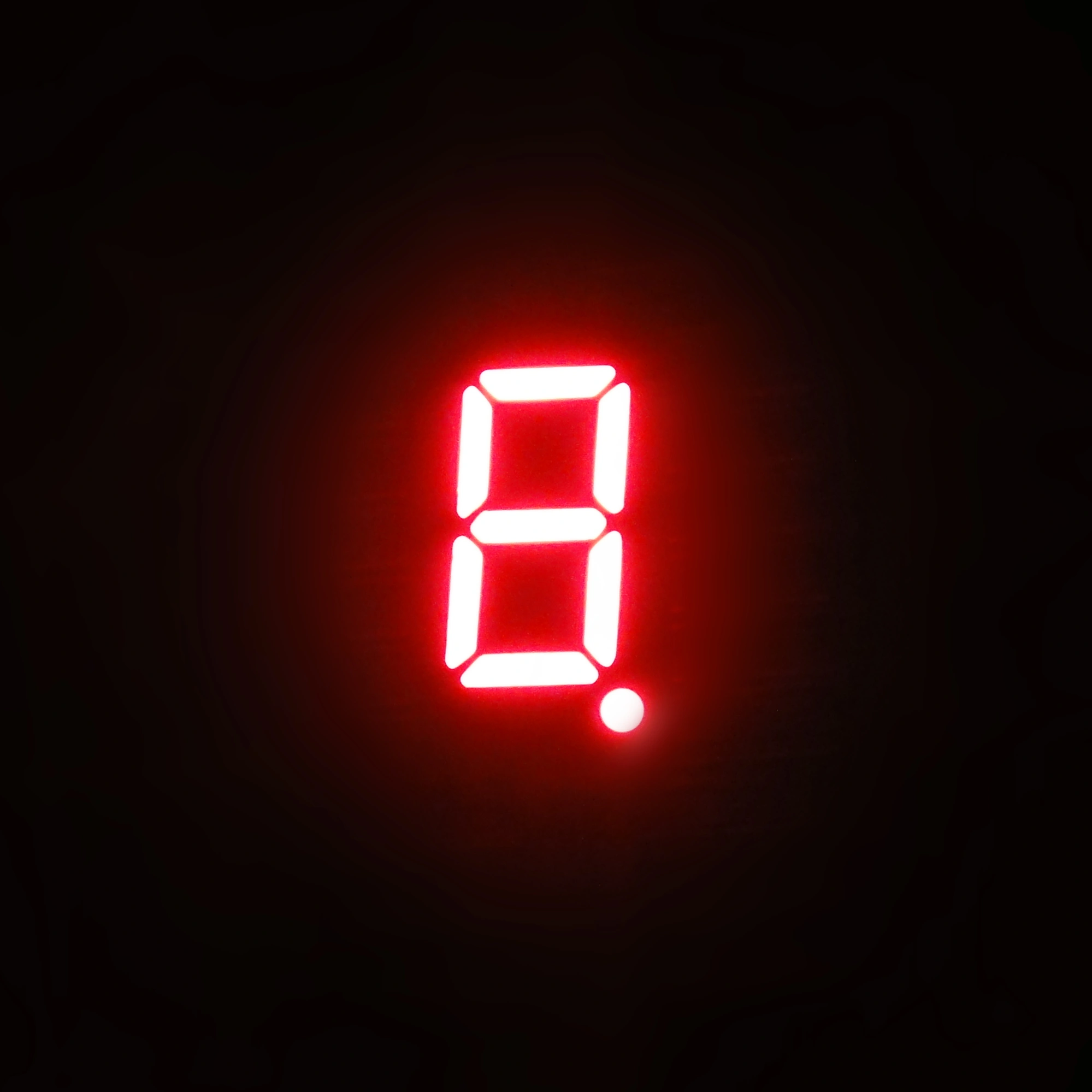

- High brightness super red LED output
- Available in common cathode and common anode versions
- Wide viewing angle and clear numeric display
- Suitable for PCB mounting applications
- Industrial-grade reliability
- RoHS compliant materials
- OEM and custom solutions available

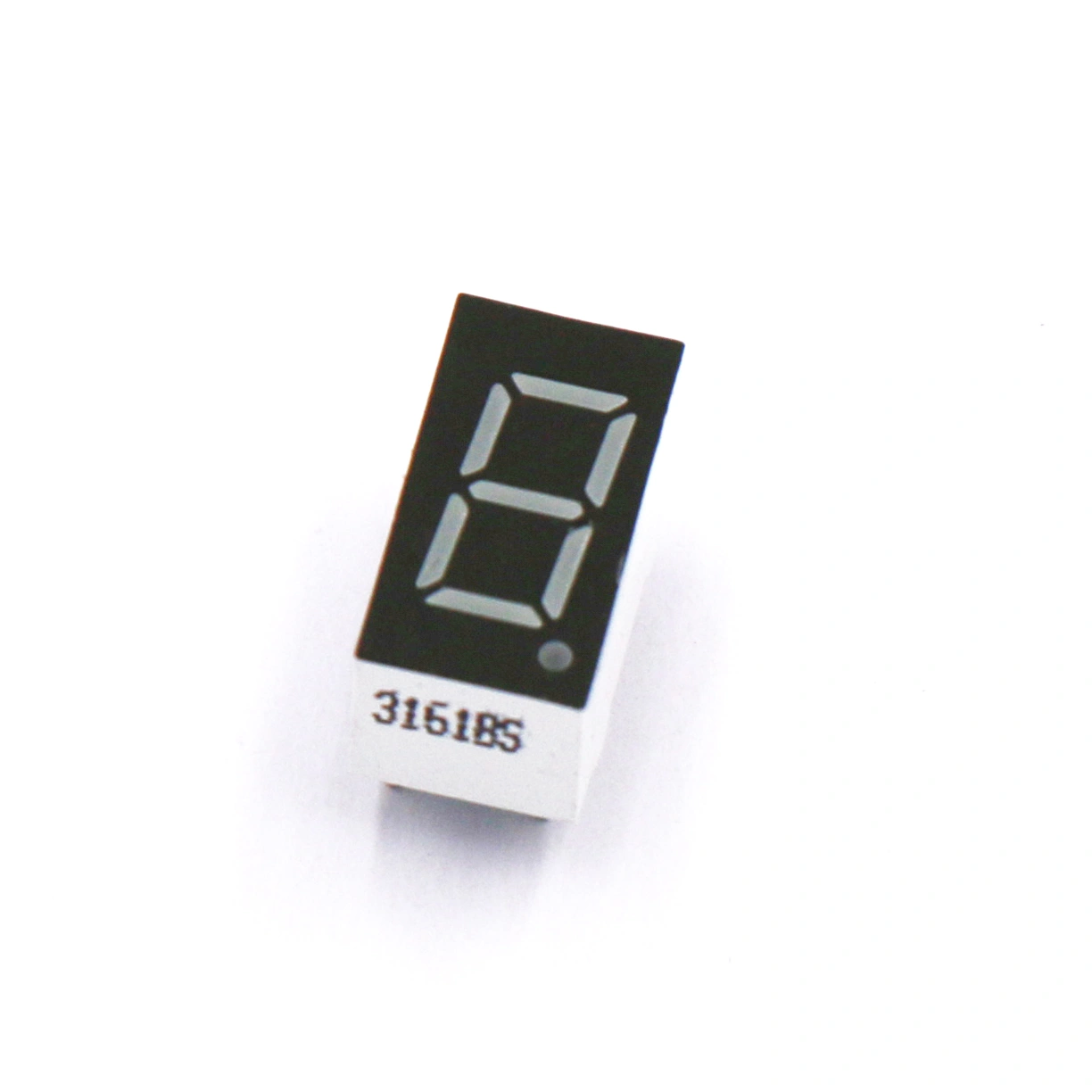

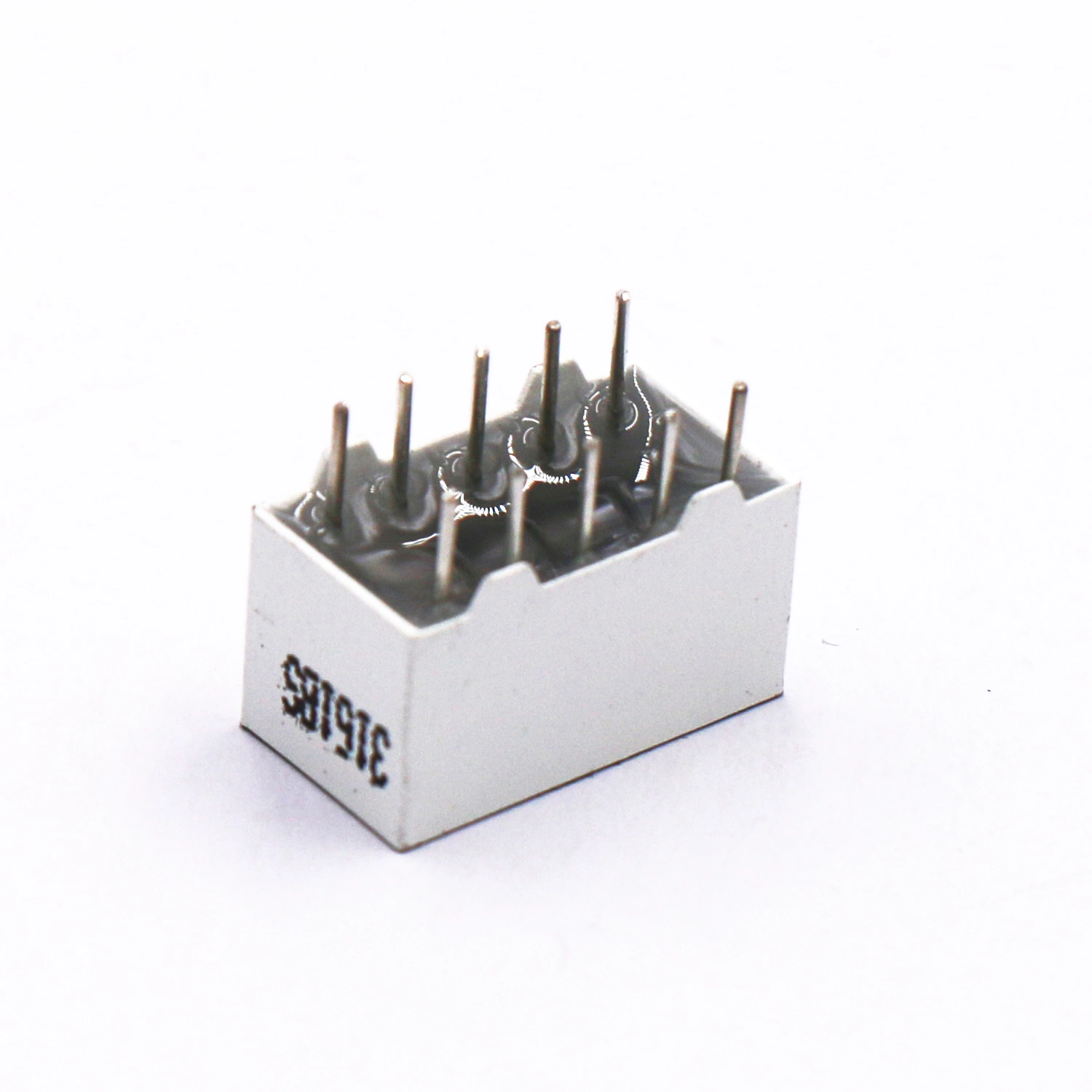

Product Images
Technical Specifications
| Part No. | HOUKEM-3611-A/BSR |
| Dimension | 14x7.5x8.5mm |
| Digit height | 0.36 inch(9.1mm) |
| Surface color | Black/gray |
| Segment color | white / clear |
| Emitting color | Super red (620~625nm) |
| Luminous intensity | 100mcd/chip |
| Pin configuration | common anode/common cathode |
Applications
This common cathode 7 segment display is widely used in:
- Industrial control equipment
- Digital panel meters
- Power monitoring devices
- Medical instruments
- Consumer electronics
- Home appliances
- Electronic timers and counters
- Test and measurement equipment
OEM & Custom Manufacturing Service
As a professional LED display manufacturer, HOUKEM supports OEM and ODM projects for global electronics manufacturers and distributors.
- Custom digit height
- Custom emitting colors
- Custom PCB compatibility
- Custom pin configuration
- Custom lens and surface colors
- Private label manufacturing
Frequently Asked Questions
Can this display be supplied as a common cathode version?
Yes. The HOUKEM-3611-BSR supports common cathode configuration and can also be produced as common anode.
Do you provide custom LED colors?

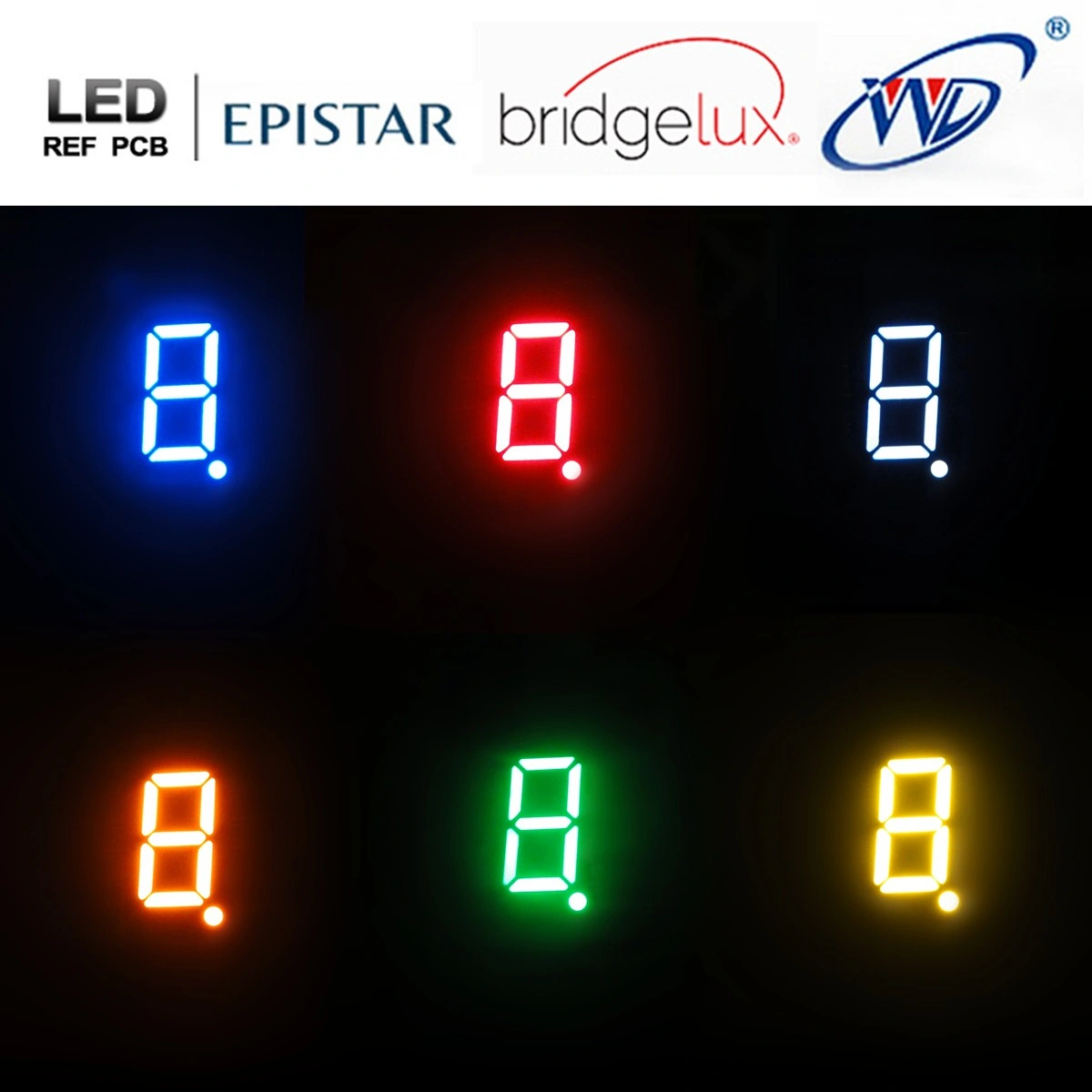

Yes. Red, green, blue, yellow, amber, white and bi-color options are available for OEM projects.
What industries commonly use this display?
Industrial automation, power equipment, instruments, medical devices and consumer electronics frequently use this type of display.
Can you provide datasheets and engineering drawings?
Yes. Complete datasheets, dimensions and internal circuit diagrams are available upon request.
What is your MOQ for bulk orders?
MOQ depends on configuration and customization requirements. Contact our sales team for quotation details.
Request a Quote
Looking for a reliable supplier of common cathode 7 segment displays?
Contact HOUKEM today for datasheets, samples, pricing, OEM customization, and volume order quotations.
Our engineering and sales team will respond within 24 hours.
