Model No: HOUKEM-18011-A/BSRPG
ultra bright 1.8 inch red+green bi-color led 7 segment digital display 7 segment indicator - Houkem
Houke is 7 segment display, 7 segment digital display, 7 segment indicator professional manufacturer.
Delivery :
EXW
minimum order :
1 piece
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.74 - US $0.79 / piece
- Application:Indoor, display digit
- Color:red+green
- Panel Size:38*56mm
- Pixel Pitch:1
- Supplier Type:ODM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-18011-A/BSRPG
- Brand Name:HOUKEM
- use:retail store, welcome display, airport
- Pixels:2.5mm
- Specification:Digital Poster
- Dimension:38*56*11mm
- Light Source:LED Epistar
- Emitting Color:red+green
- Certificate:CE ROHS reach EMC
- Product name: ultra bright 1.8 inch red+green bi-color led 7 segment digital display 7 segment indicator 7 segment display
- Logo:Houkem
- Part No.:Houkem-18011-A/BSRPG
- Warranty:2 Years
- Forward current:20mA/led
- Forward voltage:2v red led,3v pure green led
Products Description
ultra bright 1.8 inch red+green bi-color led 7 segments display single digit
Part No. | HOUKEM-18011-A/BSRPG | Dimension | 38*56*11mm | |||
Digit Height | 45 mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | super red+pure green | |||
Luminous intensity | 200-300mcd/chip | Polarity | Common anode/cathode | |||
If need other specifications, Please contact with our sales. | ||||||

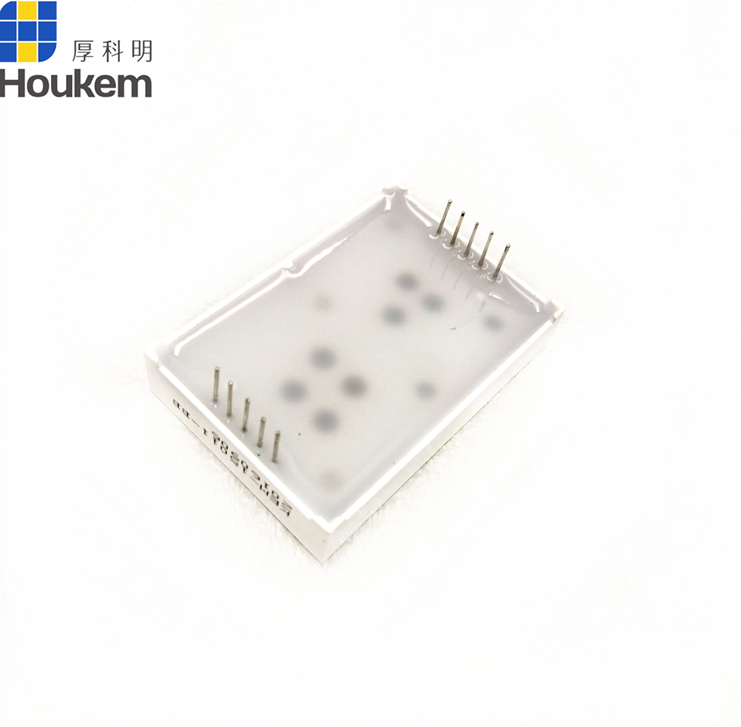

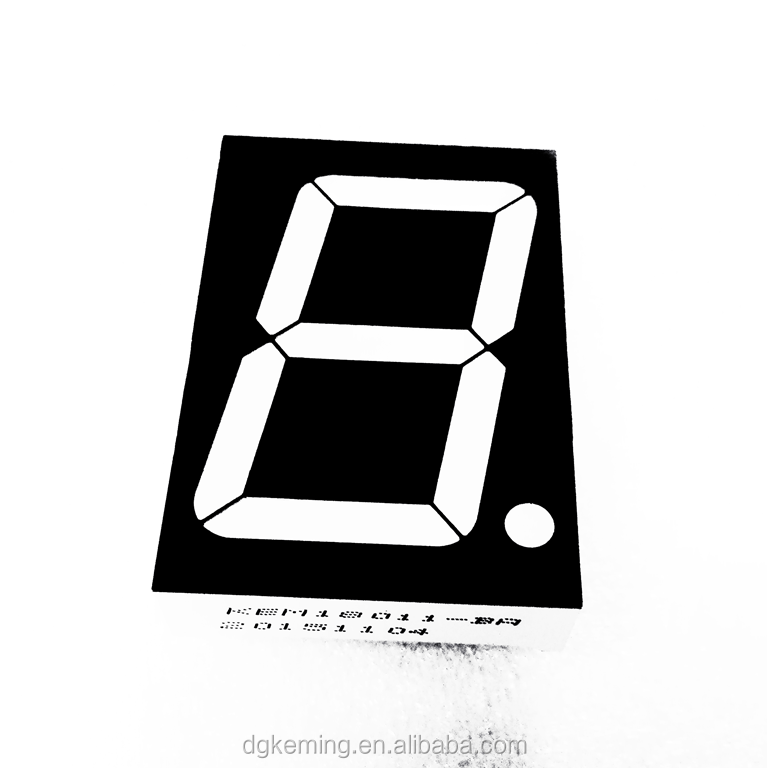

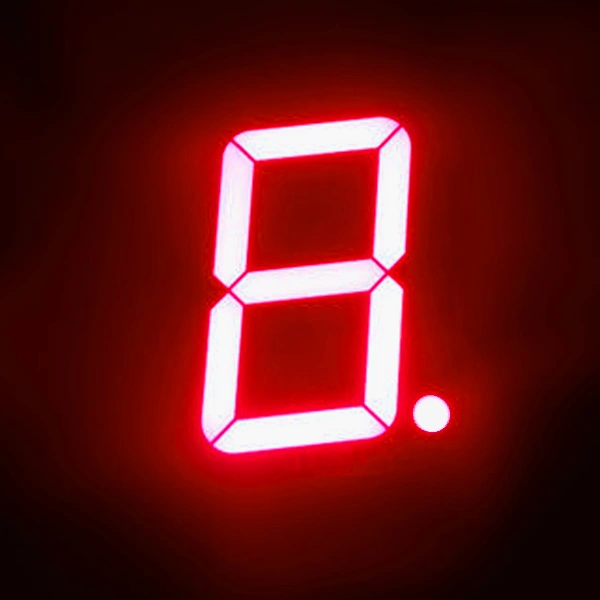

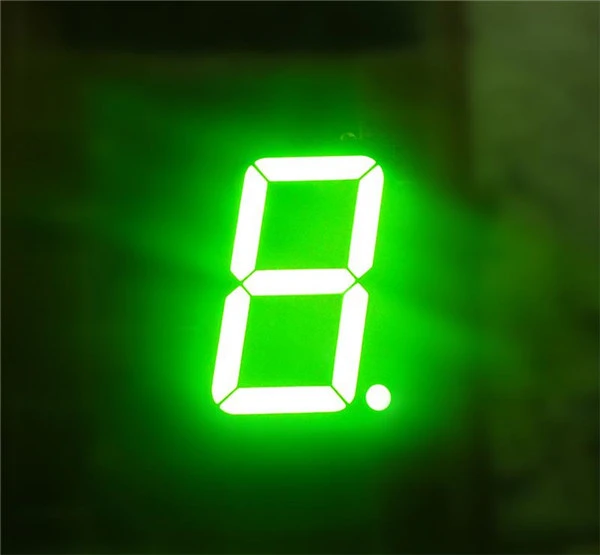

Details Images
Features:
1.1.8"( 45mm) digit height.
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

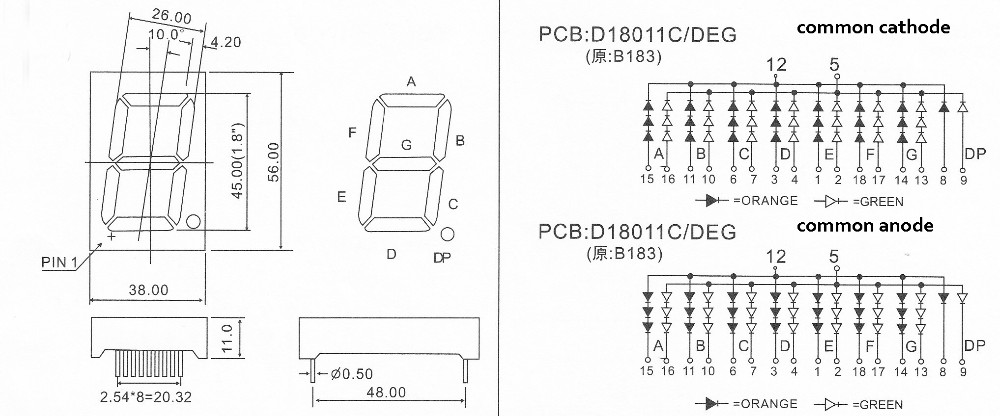

Dimension and Internal Circuit Diagram
Relative Products:
All colors and size we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 620-625 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 515-525 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display

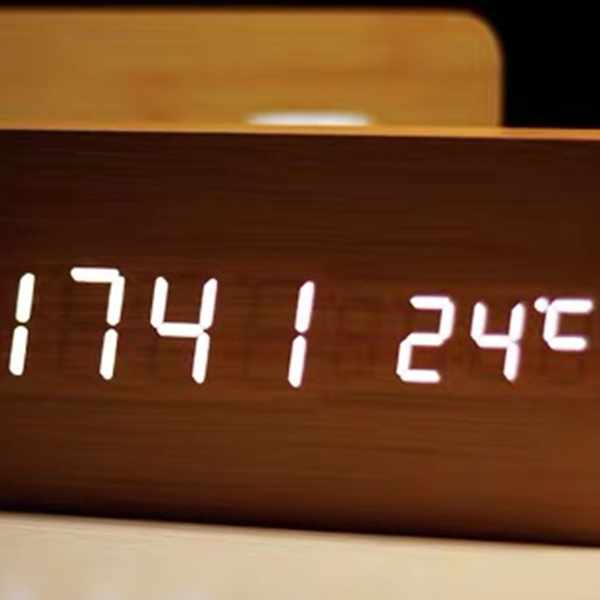

Clock LED Display
Home Appliance LED Display

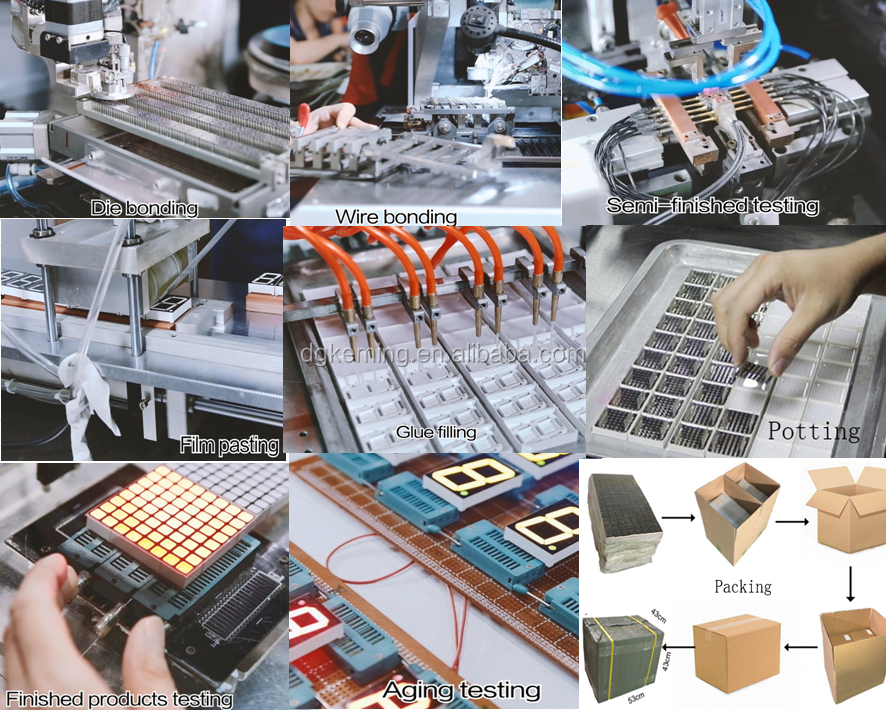

Company Profile
Houkem has 19 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.
Our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

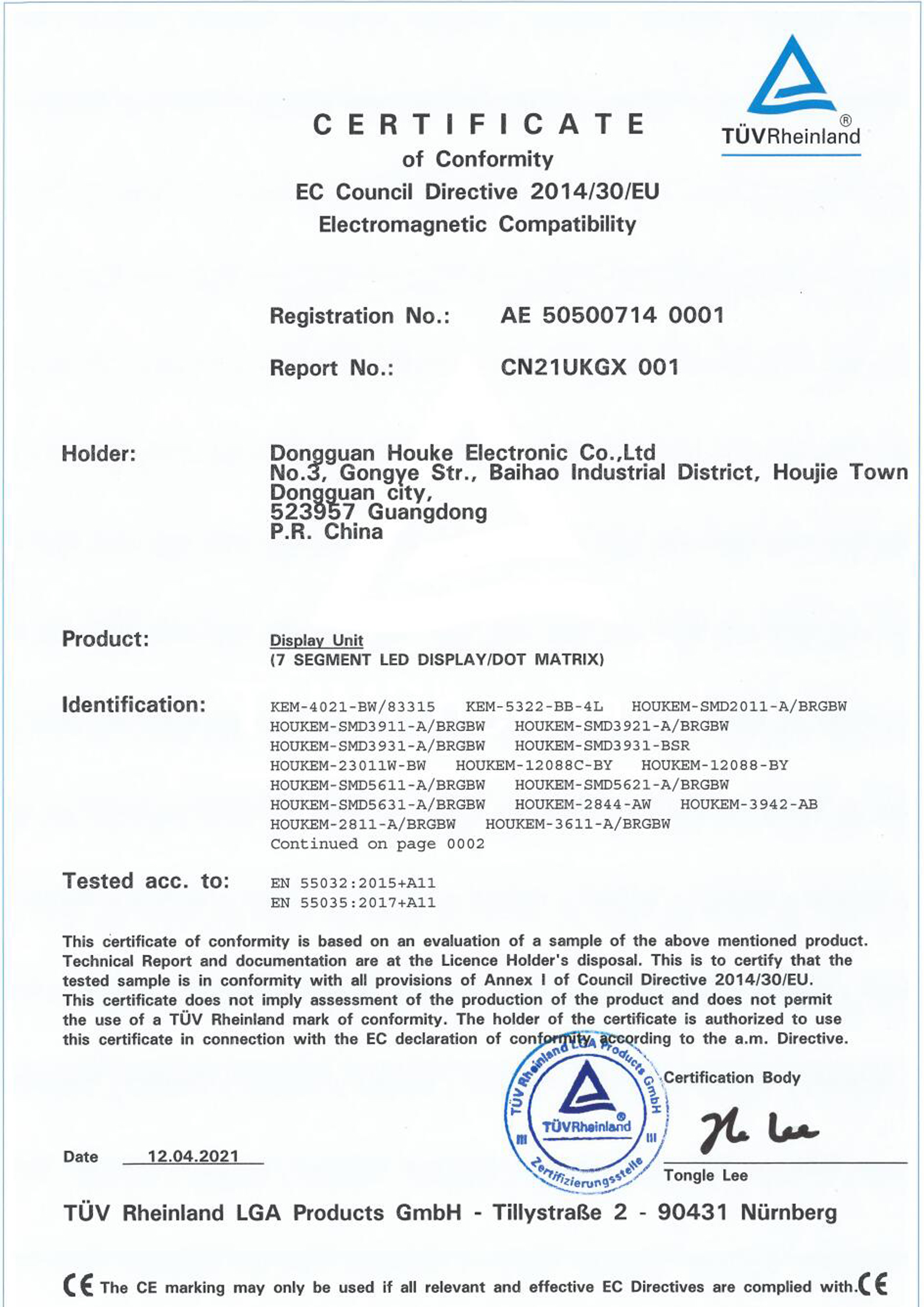

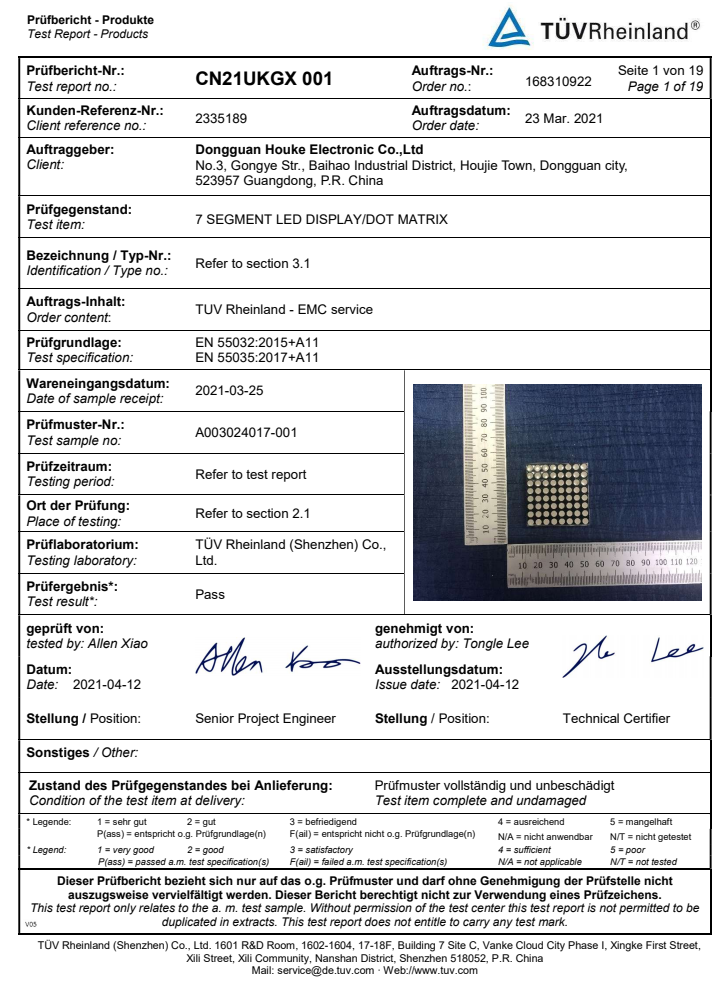

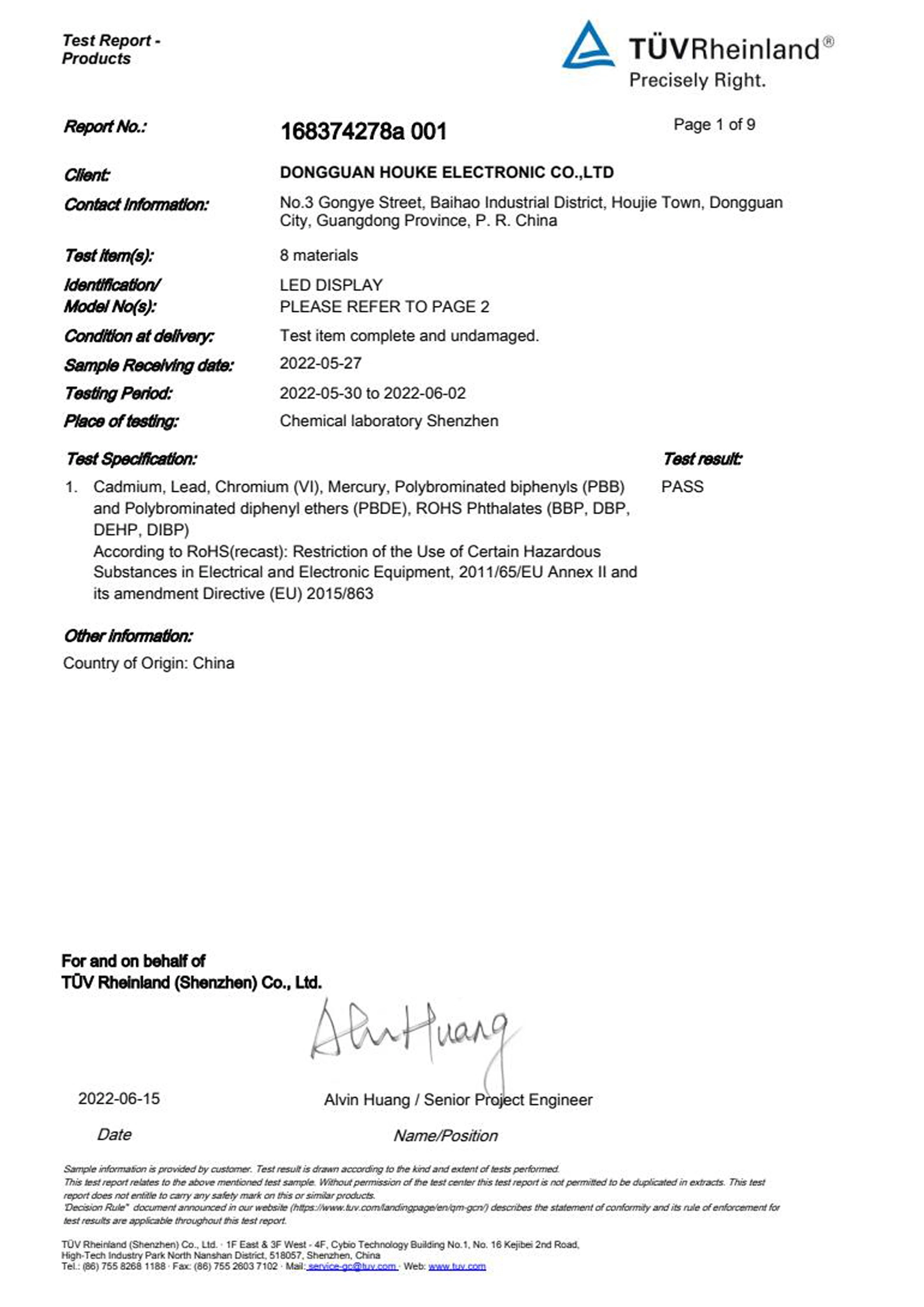

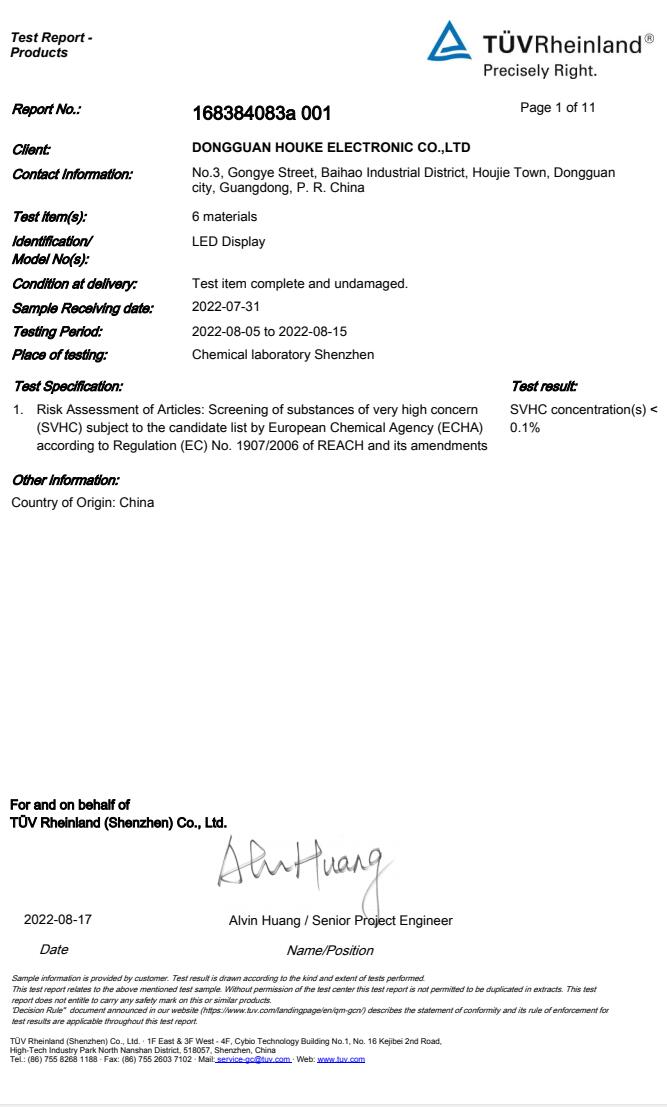

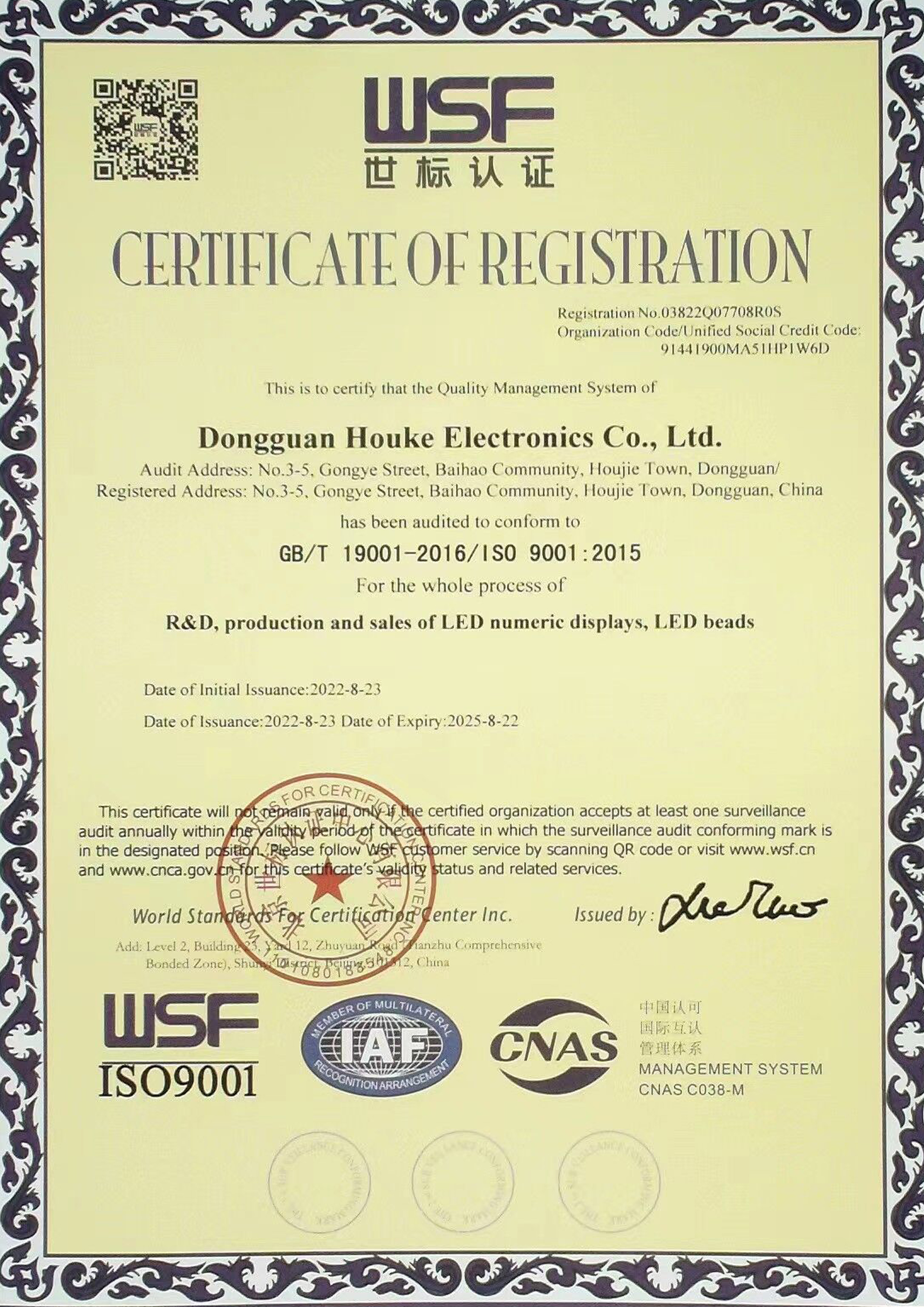

Certifications
Exhibition
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.
Q6: How about your quality?
Our products are CE, Rohs , Reach, and EMC approved.
Q7: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide shipment service door to door (China to your warehouse).
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
FOB, CIF, CFR, EXW are available.
Q6: How about your quality?
Our products are CE, Rohs , Reach, and EMC approved.
Q7: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide shipment service door to door (China to your warehouse).
