P9 bicolor 4x4 led matrix dot display array 4*4
P9 bicolor 4x4 led matrix dot display array 4*4
P9 bicolor 4x4 led matrix dot display array 4*4

P9 bicolor 4x4 led matrix dot display array 4*4

Model NO.
KEM-3544A/B
Price:
USD 0.30-1.50 / pieces
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
10000 pieces / Day
Country of Origin:
shenzhen
Stock Time:
7-15days Days
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Screen Dimension:50.5*50.5*8.7mm
  • Brand Name:KEM
  • Pixels:16mm
  • Model Number:KEM-3544A/B
  • Tube Chip Color:red and green
  • Usage:outdoor/indoor


P9 bicolor 4x4 led matrix dot display array P9 bicolor 4x4 led matrix dot display array 4*4

We can provide different sizes & color as per your request

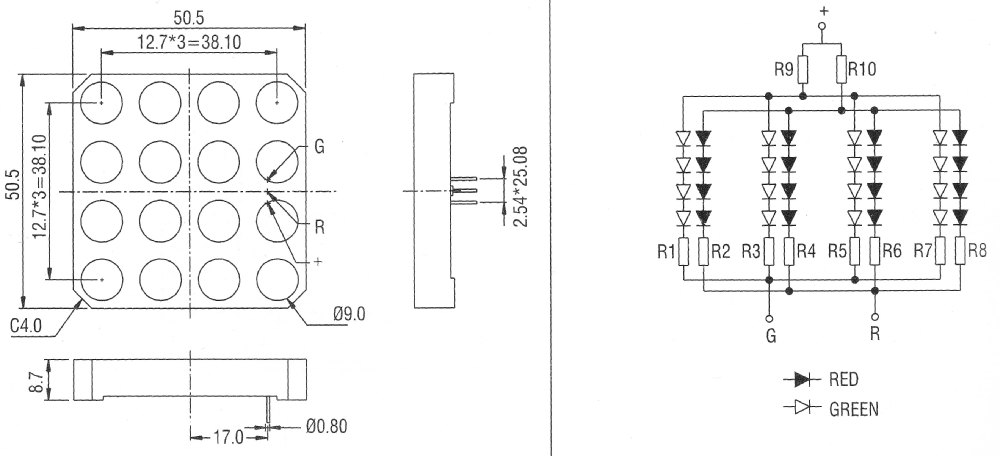

Dimension and Internal Curcuit:

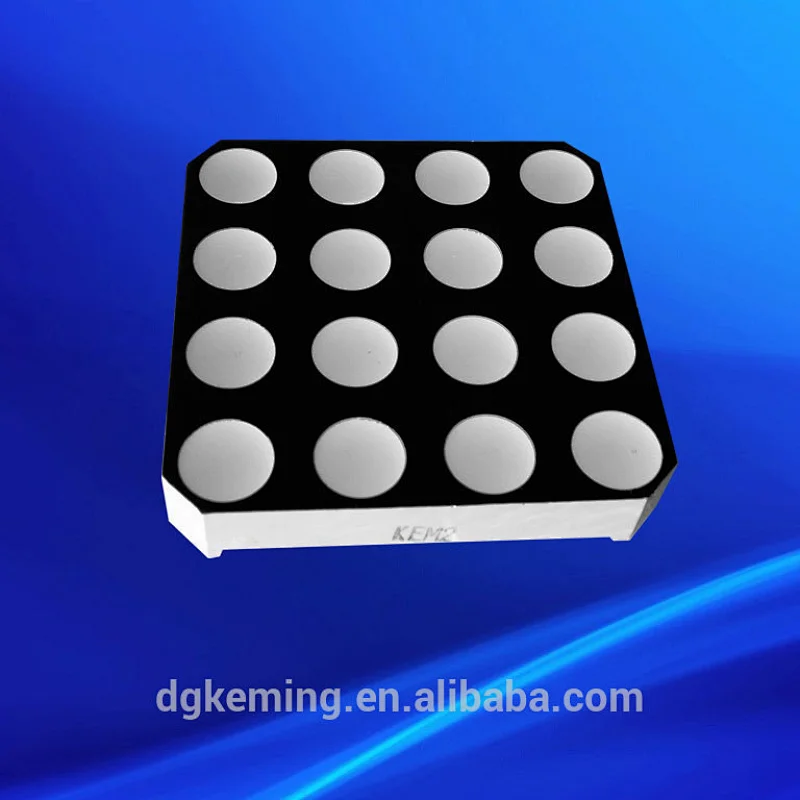

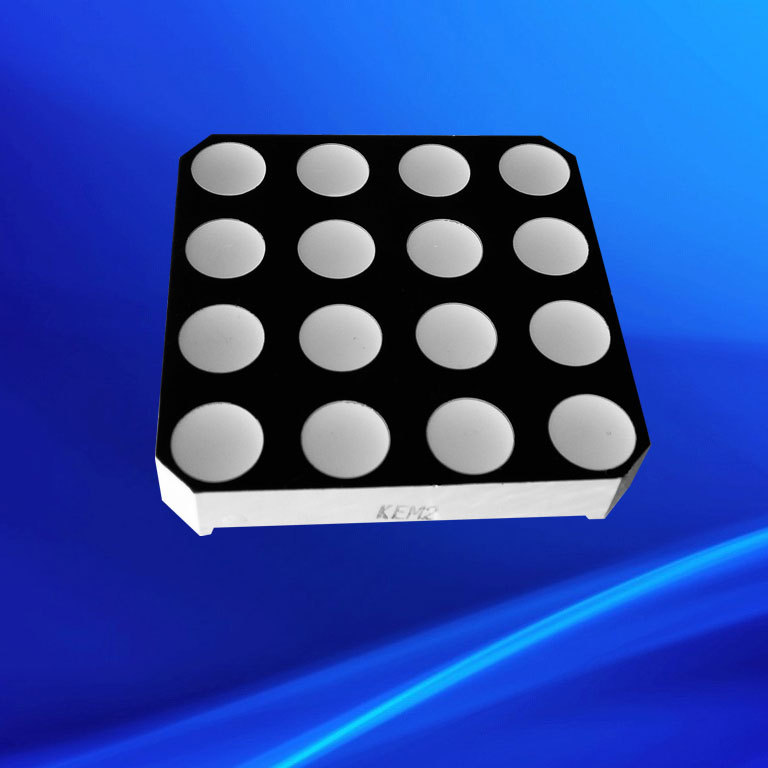

More Pictures




Other hot products(more details please click the link or picture):



7 segemnt led display
ItemcolorItemcolor
0.3”  1 digitsingle color0.56” 4 digitsingle color
0.36” 1 digitsingle color0.8”  1 digitsingle color,bicolor
0.36” 3 digitsingle color0.8”  2 digitsingle color
0.36” 4 digitsingle color1”    1 digitsingle color,bicolor
0.39” 1 digitsingle color,bicolor1.2”  1 digitsingle color,bicolor
0.39” 3 digitsingle color1.5”  1 digitsingle color,bicolor
0.39” 4 digitsingle color1.8”  1 digitsingle color,bicolor
0.4”  1 digitsingle color2.3”  1 digitsingle color,bicolor
0.4”  2 digitsingle color3”    1 digitsingle color,bicolor
0.52” 1 digitsingle color4”   1 digitsingle color,bicolor
0.56” 1 digitsingle color,bicolor5”   1 digitsingle color,bicolor
0.56” 2 digitsingle color8”   1 digitsingle color,bicolor
0.56”  3 digitsingle color12”  1 digitsingle color
dot matrix
ItemcolorItemcolor
0.7" 8x8single color,bicolor0.7" 5x7 single color,bicolor
1.2" 8x8single color,bicolor1.2"   5x7single color,bicolor
1.5" 8x8single color,bicolor,tricolor2.3" 5x8single color,bicolor,tricolor
1.9" 8x8single color,bicolor2.3" 8x8single color,bicolor,tricolor



Features two color 8x8 led dot matrix display 60.2*60.2 mm :

  • Low current operation.
  • Low power consumption.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
  • Face color : black / gray.
  • Surface dot type : epoxy diffusion / clear lens.

Part details  :



Model.

:KEM-3544A/B



Description

:50.5*50.5*8.7mm



Surface color

:Black / gray/red



Emitting color

:red and green



Luminous intensity

50-200mcd



Voltage/ Current

1.8-2.1v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode









Various color available for  KEM 23088 round dot matrix   :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA



If the PCB curcuit can not meet your need, pls contact me for other choices.









two color 8x8 led dot matrix display 60.2*60.2 mm



What We Can Provide:

7 segment / 14 segment / 16 segment display :



 1 Digit

:

 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8"

 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16"



 2 Digit

: 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3"



 3 Digit

: 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8"



 4 Digit

:

 0.25"0.28"0.3"0.36"0.39"0.4"

 0.5"0.52"0.56"0.8"



Emitting Color Available

:Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB



Standard Face color

:Black Face / Gray Face (white segment)



PCB Polarity

:Common Anode / Commone Cathode



LED Dot Matrix Display:



Dot Array

:8*8 /  5*7 /  5*8 / 7*11



Dot Shape

:Round Dot , Square Dot



Dot Diameter

:

1.9mm, 3.0mm, 3.45mm,3.7mm

4.8mm, 5.0mm, 6.0mm, 10mm



Various Color

:

Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB.





Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.



We Promise:

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Experienced sales and engineers will answer all your requirements in fluent English.

3. Advanced equipments & good material:ASM machines; chips,PCB boards & epoxy resin of RoHS compliant.

4. No matter big order or small order, we will provide our products with the best quality & also best service.

5. We are a direct factory in Dongguan and we've been doing the OEM and ODM service for over 10 years.



Welcome To Inquire!
