Model NO.
KEM-SMD-5611-A/BSR
Price:
USD 0.54-0.65 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
100000 pieces / Day
Country of Origin:
EXW Dongguan
Stock Time:
6-11days Days
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Screen Dimension:19*12.5mm
  • Brand Name:KEM
  • Tube Chip Color:Red
  • Pixels:20mm
  • Usage:Indoor
  • Model Number:KEM-SMD-5611-A/BSR


new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led
Pictures of products

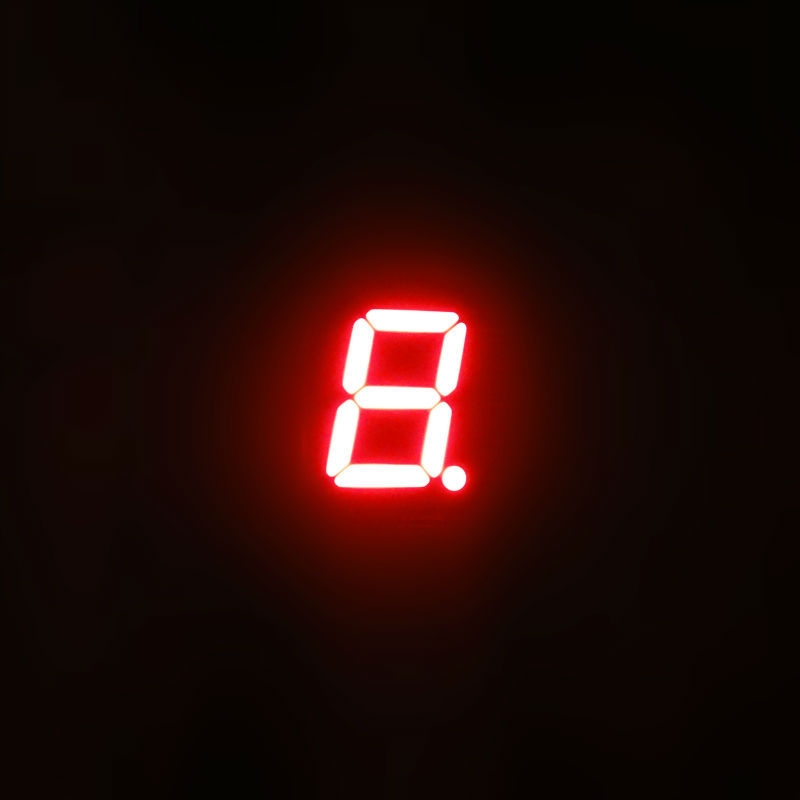

Light on:

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led

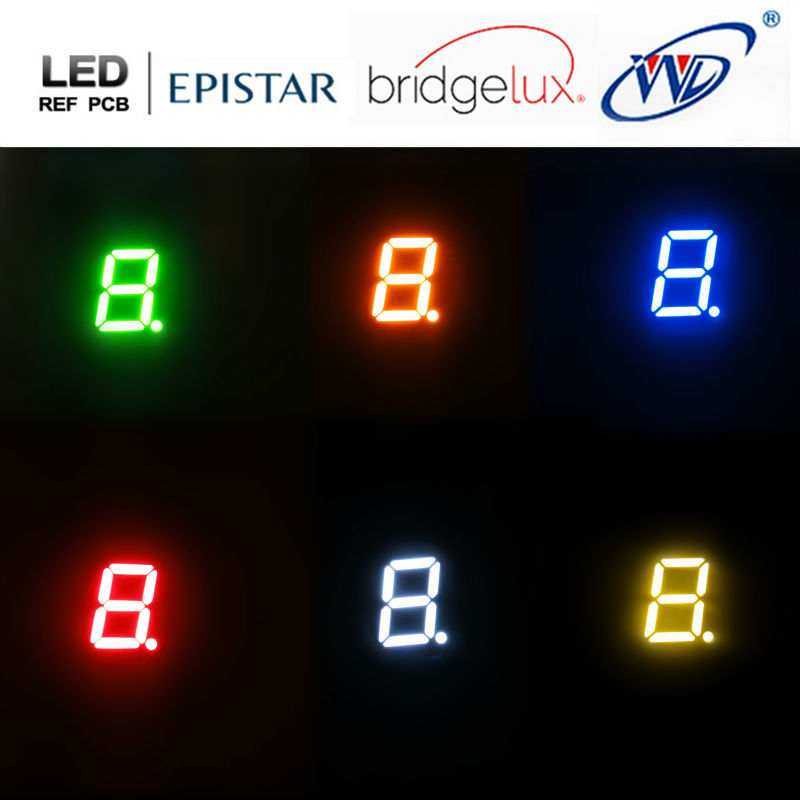

All of colors are available:

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led

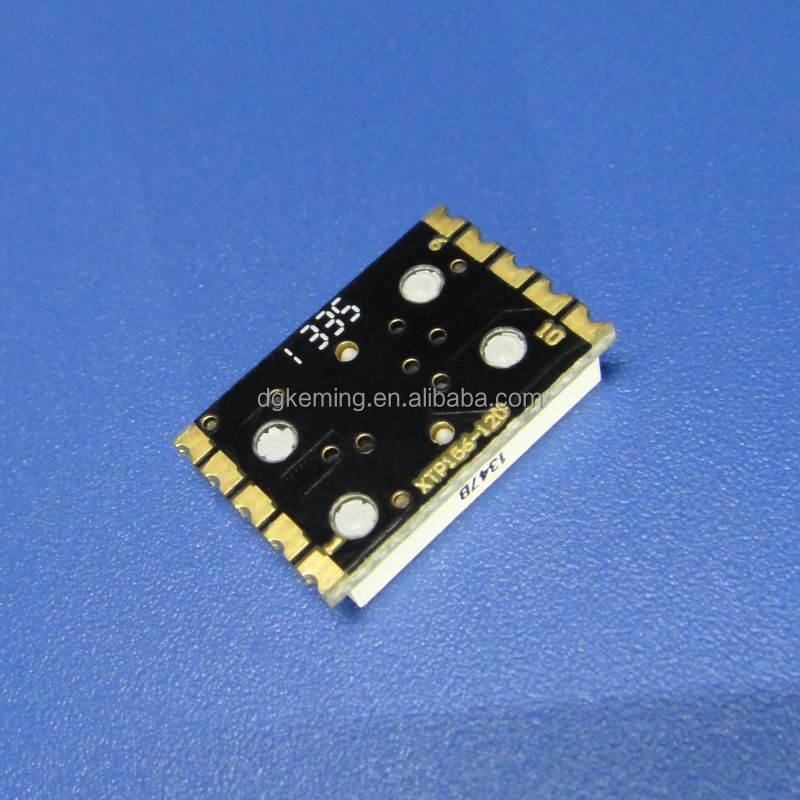

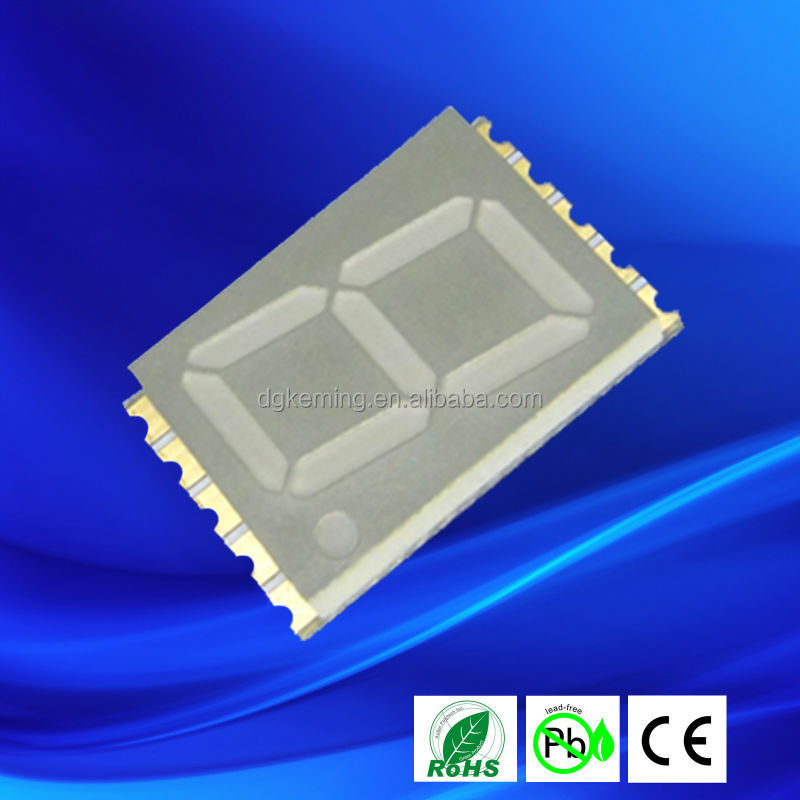

Light off:

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display lednew design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led









Product Description



Part No

KEM-SMD-5611-A/BSR
Dimension19*12.5*3.75mm
Digit heightOne
Surface colorBlack/gray
Segment colorwhite / clear
Emitting colorUltra Red
Luminous intensity180mcd/chip
Pin configurationcommon anode/common cathode

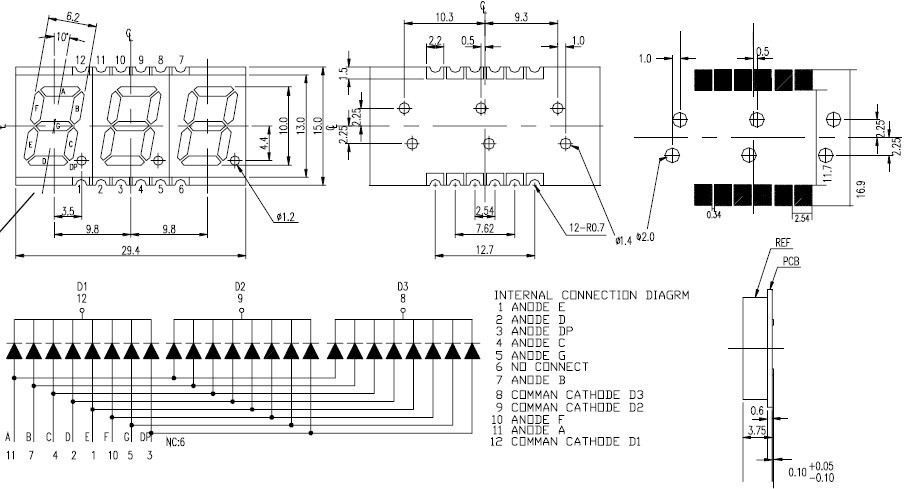

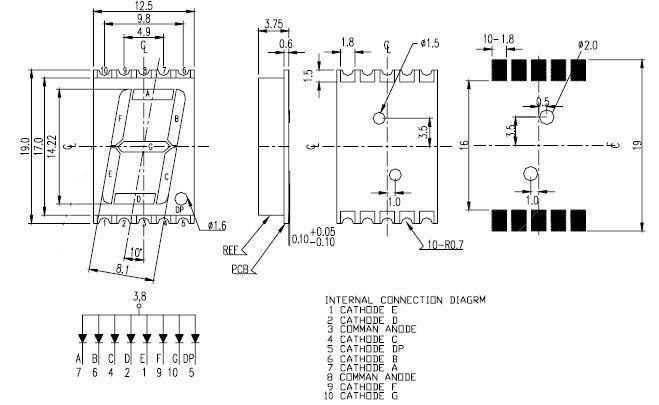

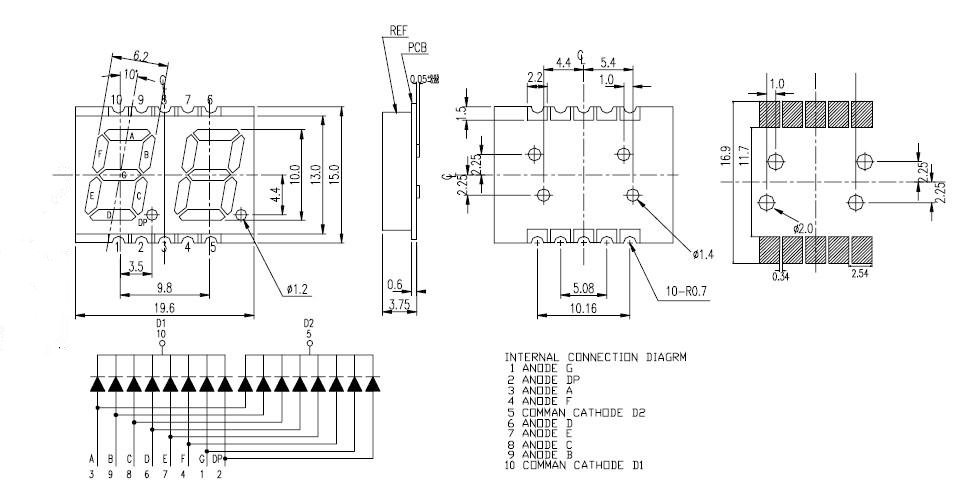

Dimension and Internal Circuit Diagram:

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display lednew design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display lednew design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led



 Note: If this PCB layout don't meet your requirements, please contact me for other choices.



Our Services



 1. We can supply you all kinds of new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led:



---Digit size: from 0.25"to 16"



---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 16 segment both available



3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color



4. Available surface color: black,grey or red



5. Lens color: white or same as emitting color





Related Products

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led





Why choose us?

 new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led



Certifications

  new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led



Warranty

All of our led products with 3 years warranty.



Factory Images

Main Processes of Our Segment Display(Factory pictures):

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led

 new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led

Delivery Time:



Quantity              Lead time



1-10K pcs           3-7 days



10.1K-50K pcs    7-15 days



Our safety packing for your goods:

Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)



Shipping way

new design 0.39 0.56 inch 2 single 1 digit led smd 7-segment display led



 LED professional manufacturer KEM with over 11 years experience in led field,

we do believe we can become your reliable supplier!
