Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip
Led rgb 3w multi color high power led chip

Led rgb 3w multi color high power led chip

Price:
USD 0.40-0.66 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
100000 piece / Day
Country of Origin:
Shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Emitting Color:Tri-Color(Red-Blue-Green)
  • Power:1-3W
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Luminous Intensity:R:120 , G:160 , B:260
  • Luminous Flux(lm):120
  • Optical Attenuation(%):1
  • Power Dissipation:1
  • Viewing Angle(°):120/140
  • Color Rendering Index(Ra):80
  • Color Temperature:2800-15000K
  • Operating Temperature(℃):-40 - 70
  • Storage Temperature(℃):-40 - 100
  • Brand Name:HNK
Packaging & Shipping

Packaging Detail:                6pieces/tray,10 trays/box,4boxes/carton    240pcs/carton

                                               Tray size:20cm×15cm×1cm

                                               Box size:25cm×20cm×10cm

                                               Carton size:55cm×45cm×15cm

                                               Or as per customer's request

Shipping Detail:                  1-3 for sample, 7-15 days for normal order according to quantity.

                                              Can be delivered by sea,air and express.



Led rgb 3w multi color high power led chip


Product Description



3W 6W 12W 18W 30W 60W 120W RGB 3in1 Emitting Color High Power  Multi Chip Led Diode





Features:

1. Bridgelux, Epistar, Epileds Chips

2.Japanese Dow Corning Silicon packing, in accordance with environmental protection

3.Intematix fluorescent powder, quality assurance

4. Gold wire: 1.25mil huge diameter

5. High brightness,low light attenuation,less power, Long lifespan.

6. Lights attenuation: less than 1%

7. Reasonable prices, fast delivery(3-5 days)

8. CE & RoHS

9. MOQ: 1 piece

3W RGB (2).jpg

Led rgb 3w multi color high power led chip

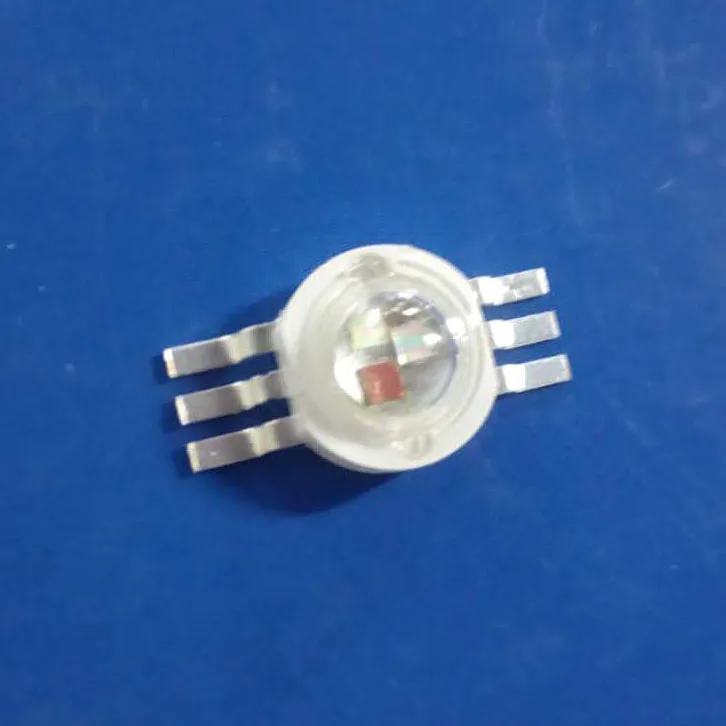

Detail information for 3w RGB high power LED

ItemRed Green Blue White color led diode
Product nameLed rgb 3w multi color high power led chip
Power3w
Model NoHNK-HP003RGB-E45
ColorRed Green Blue
Chip MaterialInGaN
Luminous Flux(lm)R:120 , G:160 , B:260
Color Temperature(NM/K)2800-15000K
Working temperature-40 °C-+70 °C
Current(mA)300-700mA
Forward Voltage1.8-3.5V
CertificationCE, RoHS
Warranty2 years
Place of OriginDongguan,Guangdong,China



Led rgb 3w multi color high power led chip





Led rgb 3w multi color high power led chip

Led rgb 3w multi color high power led chip

Led rgb 3w multi color high power led chip

Advantages:

1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%

2, long life: product life of up to 50,000 hours

3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control

4, Individualized design: can be designed by your picturers or mind

5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation

6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors

7,2 years warranty



Applications for RGB color high power led light source

This LED include 3 different wavelngth.Mixed different color.It is very good to make plant growing light.

We can also provice customized growing led design.

You can choose the chips and wavelength according to your requirements.



Led rgb 3w multi color high power led chip

Led rgb 3w multi color high power led chip

FAQ

1.What about our Materials?

  • LED Chip:White LED use Epistar/ Bridgelux 33mil/45mil chip.Red,Green,Blue,Yellow,UV,IR LED use Epileds 45mil chip.
  • LED Holder:Aluminum and Red Copper
  • Wire Bonding:1.2mil Gold wire
  • Die Bonding:Silver Glue
  • Power Supply/ Driver:IP67 Water Proof Driver







Our Services
 The CE&RoHS certificated of our products



Led rgb 3w multi color high power led chip

Our company

  • Producing 1w-500w high power led from 365nm-950nm and 1200k-12000k white led.
  • 1w-30w COB white led
  • 5050, 0603, 1206, 0805 SMD LED
  • 12 Years LED light source manufacturer in China.
  • Customized LED products
