- Model Number:KEM-23016-A/BSR
- Brand Name:KEM
- Place of Origin:CN
- Application:Alphanumeric led display
- Panel Size:69.8*47.9mm
- Color:Red
Large alphanumeric display 2.3 inch 16 segment alphanumeric led display
Pictures of products
Light on:

All colors are available: Red, Blue, Orange, White, Green, Amber
Light off:



Product Description
Part No | KEM-23016-A/BSR |
Dimension | 69.8*47.9*10mm |
Digit height | 2.3" |
Surface color | Black/gray |
Segment color | white / clear/milk diffused |
Emitting color | Super red |
Luminous intensity | 120mcd/chip |
Pin configuration | common anode/common cathode |

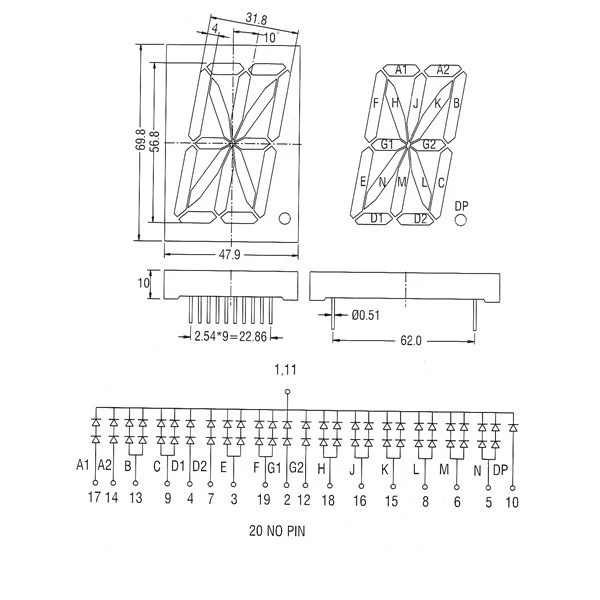

Dimension and Internal Circuit Diagram:

Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Application:

What we can do?
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
Warranty
All of our led products with 3 yearswarranty.
Factory Images
Main Processes of Our Segment Display(Factory pictures):


Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
Payment ways
1. T/T
2. Western Union
3. Ali Escrow
4. L/C
