Model NO.
KEM-12011-A/BB
Price:
USD 0.33-0.68 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
9999 pieces / Day
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:KEM-12011-A/BB
  • Screen Dimension:40.8*28.8mm


Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue

Product Pictures

Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue

Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue



Product Overviews

Spec of Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue

Part NoKEM-12011-A/BB
Dimension40.8*28.8*9mm
Digit heightOne
Surface colorBlack/gray
Segment colorwhite / clear
Emitting colorUltra Blue (465~475nm)
Luminous intensity200mcd/chip
Pin configurationcommon anode/common cathode



Internal Circuit Dia

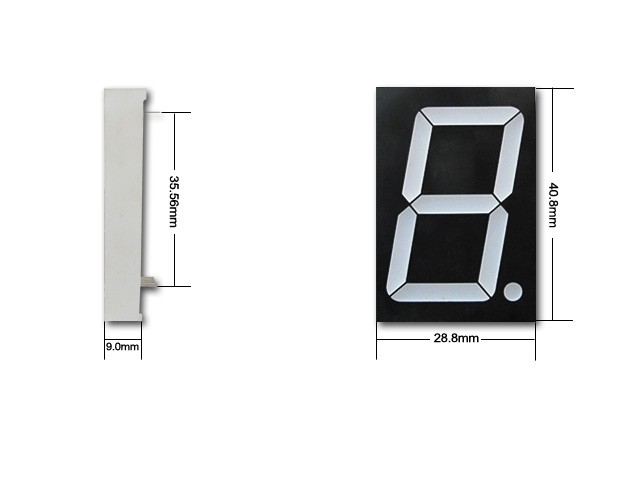

Dimension and Internal Circuit Diagram

 Note: If this PCB layout don't meet your requirements, please contact me for other choices.



Related Products

  Overview



 1. We can supply you all kinds of 7 segment LED display:



---Digit size: from 0.25"to 16"



---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 16 segment both available



3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color



4. Available surface color: black,grey or red



5. Lens color: white or same as emitting color





Delivery Time



Quantity              Lead time



1-10K pcs           3-7 days



10.1K-50K pcs    7-15 days





Certifications

 Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue

Packaging

 Our safety packing for your goods:

Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)

Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display BlueKem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue



With over 13 years experience in this field, we do believe we can become your reliable supplier!



Factory overview

 Main Processes of Our Segment Display(Factory pictures):

Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display BlueKem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue

Kem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display BlueKem-12011-BB Common Anode 1.2 inch Single Digit 7 Segment LED Display Blue





LED professional manufacturer---- 13 years experience makes high quality products!

                                        Welcome To Inquire !
