- Input Voltage(V):DC 15-16V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power ir LED 850nm
- Emitting Colour:red
- Forward Current:3000-3500mA
- Forward Voltage:15-16v
- Application:medical treatment
- Warranty:2 Years
- Wave length:850-855nm
- Chip Size:42mil
- Certification:RoHS, CE, ISO9001
- Chip brand:Epileds

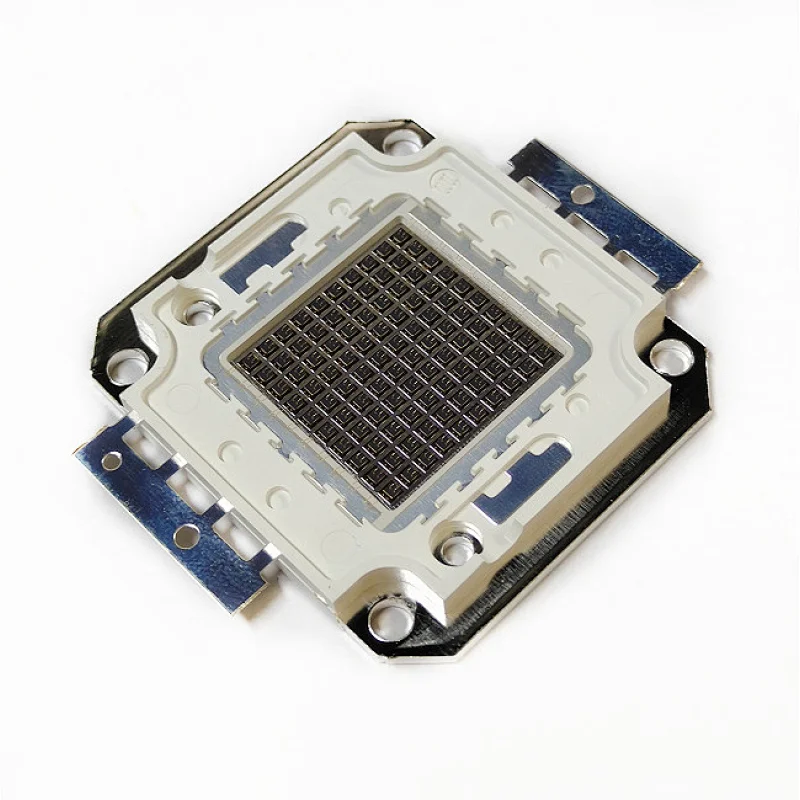

High power 100w 850nm ir led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 100w IR LED 850nm |
| Power | 100w |
| Color | red |
| Optical power | 7000-7500mw |
| Wavelength | 850-855nm |
| Forward Current | 3000-3500mA |
| Forward Voltage | 15-16v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
| other wavelength | 255-1550nm |
The Features of Our Product
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 140 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently

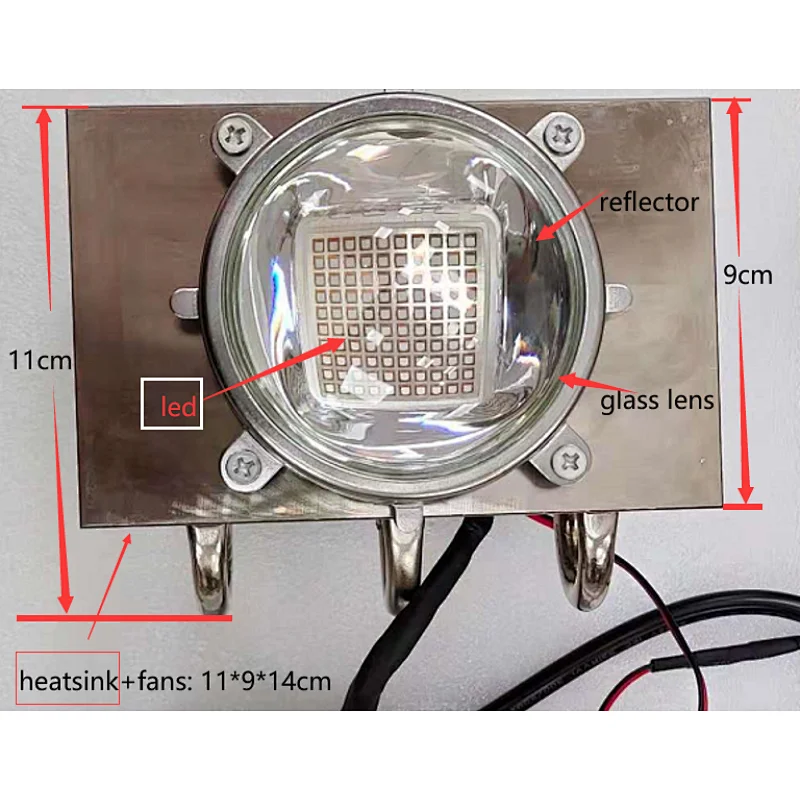

4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1600nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
