Germicidal UV LED 255nm 0.6W Chip
High Power Germicidal UV LED 255nm 0.6W 3535 SMD
High power germicidal UV LED 255nm is a deep ultraviolet light source designed for sterilization and disinfection applications. It is widely used in air, water, and surface sterilization systems as a reliable solid-state replacement for traditional 254nm mercury lamps.
This product delivers stable UV-C output with high efficiency, making it ideal for OEM UV disinfection module manufacturers.
Product Overview
TheHOUKEM-06W-255 UV LED is a 3535 SMD deep UV LED designed for professional industrial and medical sterilization systems.
It operates in the 250–260nm germicidal range, offering strong disinfection performance for OEM integration.
Product Specifications
| Item | Specification |
|---|---|
| Product | High Power 0.6W 255nm UV LED 3535 SMD |
| Power | 0.6W |
| Color | UV-C (Deep UV) |
| Diode Type | 3535 SMD (3.5 × 3.5mm) |
| PCB Board | 20mm aluminum star PCB |
| Lens Angle | 30° / 60° / 90° / 120° |

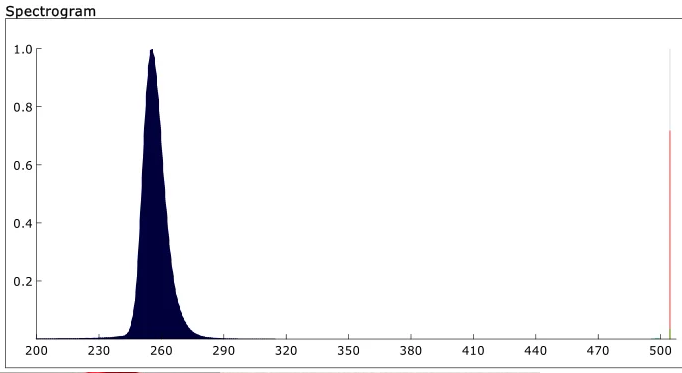

| Wavelength | 250–260nm |
| Forward Current | 100mA |
| Forward Voltage | DC 5–6V |
| Radiant Flux | 10–15mW |
| Other Wavelength Options | 255nm–1650nm |
| Certifications | CE, RoHS |
Key Features of Germicidal UV LED 255nm
Stable Deep UV Output
Designed for consistent germicidal performance in continuous operation systems.
Mercury-Free UV Solution
A modern alternative to traditional 254nm mercury lamps, safer and more environmentally friendly.
OEM Integration Ready
Compatible with UV sterilization modules, air purifiers, and water disinfection systems.

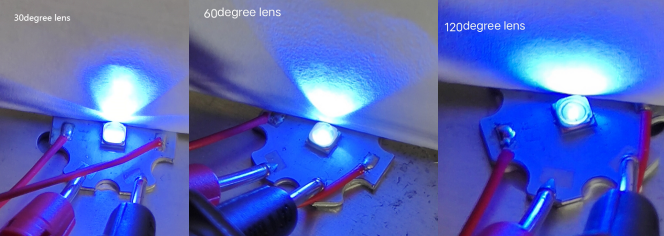

Multiple Beam Angles
Available in 30°, 60°, 90°, and 120° for flexible optical design.
Applications
Thegermicidal UV LED 255nm is widely used in:
- Air purification systems (HVAC UV modules)
- Water disinfection equipment
- Surface sterilization systems
- Medical device sterilization
- Food processing disinfection lines
- Laboratory and biotech equipment
254nm Mercury Lamp Replacement Advantage
Compared with traditional mercury lamps, the 255nm UV LED provides:
- Instant ON/OFF operation
- Lower energy consumption
- No mercury pollution
- Compact OEM integration design
- Longer system lifespan
OEM & B2B Supply Capability
HOUKEM is a professional UV LED manufacturer supplying:
- OEM UV LED modules
- Industrial UV disinfection solutions
- Customized wavelength UV LED chips
- Bulk production for system integrators
We support global B2B customers including UV equipment manufacturers, engineering companies, and industrial system integrators.
FAQ – Germicidal UV LED 255nm
1. What is a germicidal UV LED 255nm used for?
It is used for sterilization applications such as air, water, and surface disinfection in industrial and medical systems.
2. Can 255nm UV LED replace 254nm mercury lamps?
Yes. It is designed as a solid-state replacement with lower energy consumption and no mercury risk.
3. Is this UV LED suitable for OEM integration?
Yes. It is widely used by OEM manufacturers in UV sterilization modules and systems.
4. What industries use this UV LED chip?
It is used in HVAC systems, water treatment equipment, medical devices, and food sterilization systems.
5. Do you provide customized UV LED solutions?
Yes. We support OEM/ODM customization including wavelength, power, and packaging design.
Request a Quote – Germicidal UV LED 255nm
Looking for a reliable germicidal UV LED 255nm supplier for OEM sterilization systems?
HOUKEM provides high-performance UV-C LED solutions for air, water, and surface disinfection applications.
👉 Get a Fast Response
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
