Model NO.
HOUKEM-8012-AW
Price:
USD 0.36-0.60
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:white
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-8012-AW
  • Screen Dimension:20*27.7mm


Product Describtion


0.8'' 7 segment display  1 digit 0.8 inch 7 segment led display CA white



1, Low consumption  2, High brightness  3, High intensity and reliability  4, Easy assembly



HOUKEM-8011-AW (common cathode)---- CC ;   HOUKEM-8011-BW (common anode) ----- CA



Item No.HOUKEM-8012-AW
Dimension20*27.27*8.4mm
Surface color  Black  /Grey
epoxy color white
Emitting color white

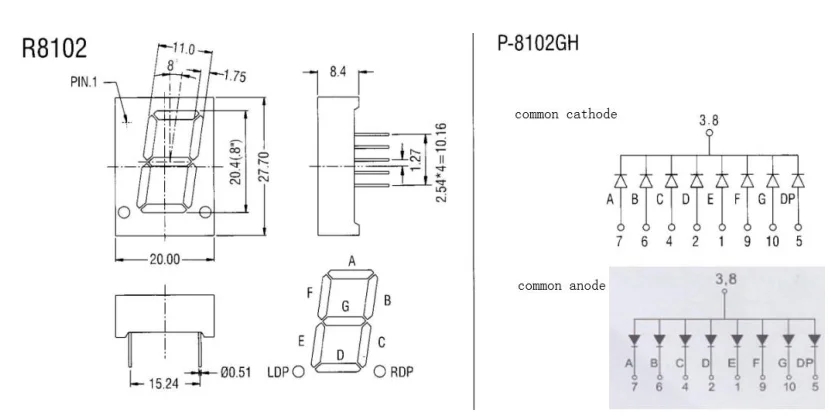

 Package dimension & Internal circuit diagram

 0.8'' single digit 7 segment led display

Note: If this PCB layout don't meet your requirements, please contact me for other choices.

 Two years quality warranty , sample are available

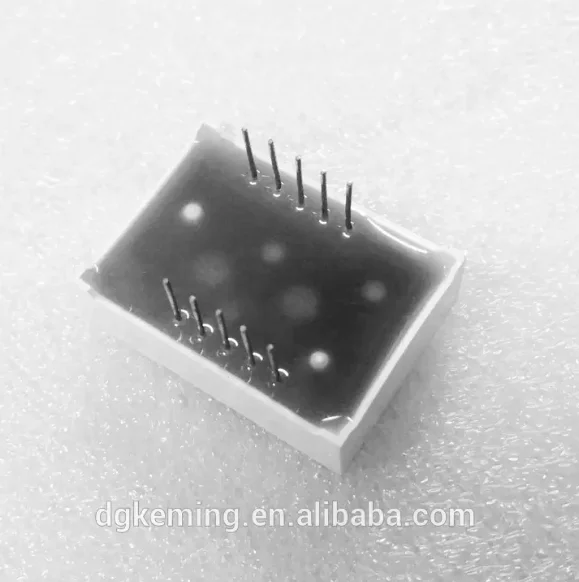

 0.8 inch 1 digit 7 segment led display

0.8 inch 1 bit seven segment led display



 Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.9

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.9

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF=10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

2

2.1

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.9

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.9

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200

 Different color epoxy are available

 3 inch 7 segment led display

Our Services

7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',  0.3'',  0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39''

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

 4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

5, customized product are available

customized 7 segment led display

Working Process

working process

Packaging & Shipping



packing & shipping

Contact us

 Established in 2003,our factory is specialized in LED products, including 7 segment LED/SMD displays,Alphanumeric displays,

SMD LEDs,dot-matrix Led displays,bar graph arrays and LED directon indicator displays.etc.
