High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip
High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip

High power germicidal uv led 255nm 260nm uvc LED smt type 3535 led chip

Price:
USD 77.00-85.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
10000 pieces / Day
Country of Origin:
Shenzhen/ Guangzhou
Quantity:
  • Type:High Power LED
  • Chip Material:AlGaInP
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Emitting Color:uv
  • Viewing Angle(°):60 or 120
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:HOUKEM








business





Product Describtion
 High power sterilization uv led 255nm 260nm uvc LED smt type 3535 led chip



ItemHigh Power uvc LED 3535
Power0.2w
Coloruv
Diode type3535 smd type
Lens Material of DiodeQuartz
View Angle of the Lens60 degree
Wavelength

255-260nm

Forward Current40mA/chip
Forward Voltage5-8v/chip
CertificationCE, RoHS

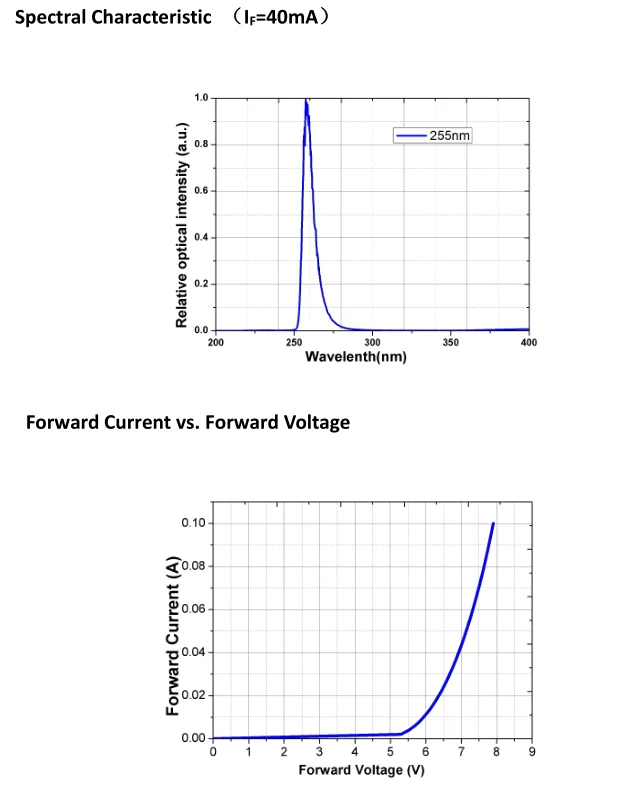

Optical Electrical Characteristics (T A =25℃ ℃ I F =40mA)



ParameterUnitConditionMIN TYP MAX
Forward Voltage (V F )VI F =40mA56.58
Optical Output Power (P out )mWI F =40mA0.20.41
Peak Wavelength (λp) nmI F =40mA250256260
FWHM (Δλ)    nmI F =40mA91114
Viewing Angle 2θ 1/2 dge  120°
ESD(H.B.M) V  v  4000V

















 50w 3535 array led.jpg



 power supply

high power led

 Features:

1. Less power consumption: light effects of the LED power consumption than equivalent incandescent brightness reduced by 80%;



2. Long life: product life of up to 50,000 hours;



3. Nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control;



4. A large design space: the organic architecture can be realized with the integration to only see the effect of light not seen light;



5. Environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation;



6. Color: different wavelengths produce different colored light, bright saturated, no filter,   can control red, green and blue primary

colors to form a variety of colors, can realize full-color gradients, and other color effects.











Our Services

1. We have our own independent R&D department on existing products for better maintenance,



    we still continue to develop high-tech products. We have our own patented products.



2. Our products must pass strict quality control procedures.



3. We have advanced production equipment.



4. We use the raw materials are from domestic and foreign well-known brand manufacturers.



5. After repeated tests before shipment.











Packaging & Shipping

pack

express-611







Certifications

 Hongke-certificates





Factory pictures

 We are the LED professional manufacturer, have over 14 years experience on LEDs. We can offer you 7 segment led display,  dot matrix,

high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light, street light, grow light

and all LED lighting application solution.



process
