Edison day light 6000K 1w high power leds 1w for downlight
Edison day light 6000K 1w high power leds 1w for downlight

Edison day light 6000K 1w high power leds 1w for downlight

Model NO.
HNK-HP001PW-E45
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:KEM
  • Max. Reverse Current:300mA
  • Max. Forward Voltage:3V
  • Package Type:Surface Mount
  • Type:LED
  • Max. Forward Current:700mA
  • Max. Reverse Voltage:3V
  • Model Number:HNK-HP001PW-E45

Edison day light 6000K 1w high power leds 1w for downlight

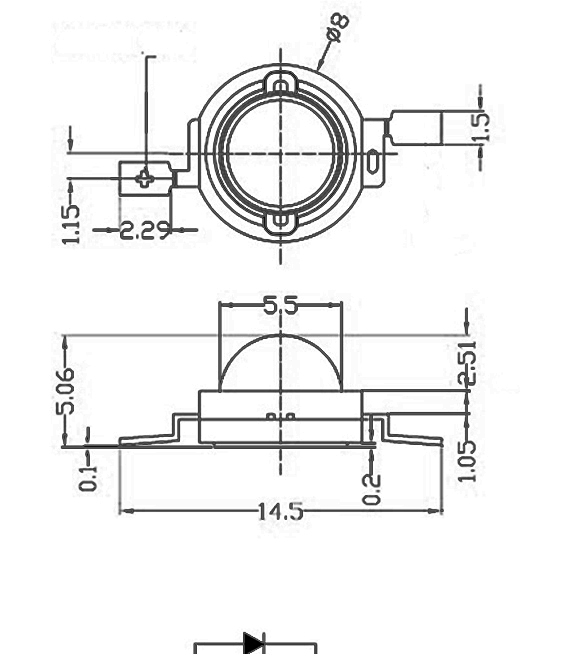

Dimension

















Specification







1Watt Series
ModelColorAngle(°)

WL /CCT

(IF=300-350mA)

Luminous Flux

  (IF=300-350mA)

Forward Voltage

 (IF=300-350mA)

MinMaxMinMaxMinMax
HNK-HP001RW-E35RED140±5620nm630nm506022.4
HNK-HP001RW-E35RED140±5650nm660nm506022.4
HNK-HP001BW-E35BLUE140±5455nm470nm607033.4
HNK-HP001GW-E35GREEN140±5510nm525nm809033.4
HNK-HP001WW-E35WHITE140±52800K3500K10015033.4
HNK-HP001PW-E35WHITE140±56000K7000K11016033.4
HNK-HP001PLW-E35Purple140±5390nm420nm304033.4
HNK-HP001UV365-E35UV140±5365nm375nm304033.4

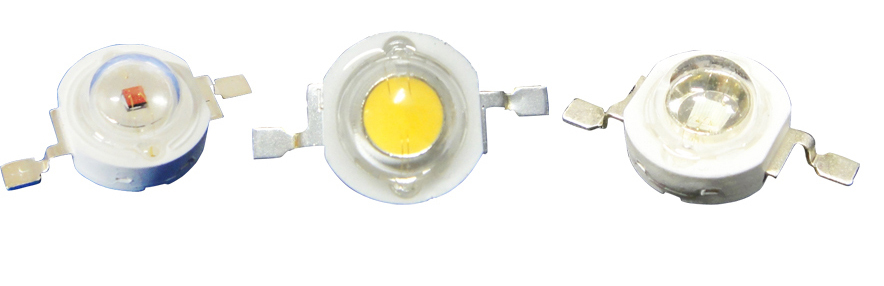

 Product photo:

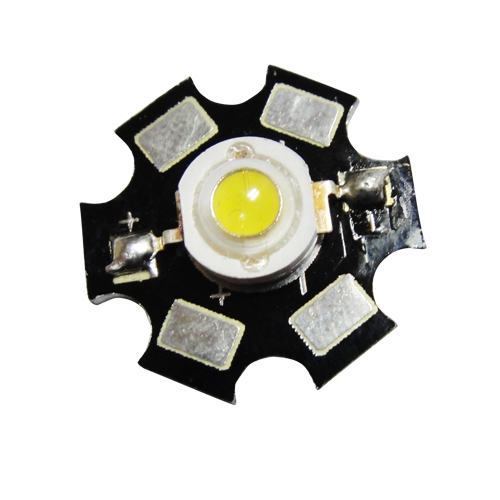

 1W-WWW.jpg          1W-heatsink.jpg

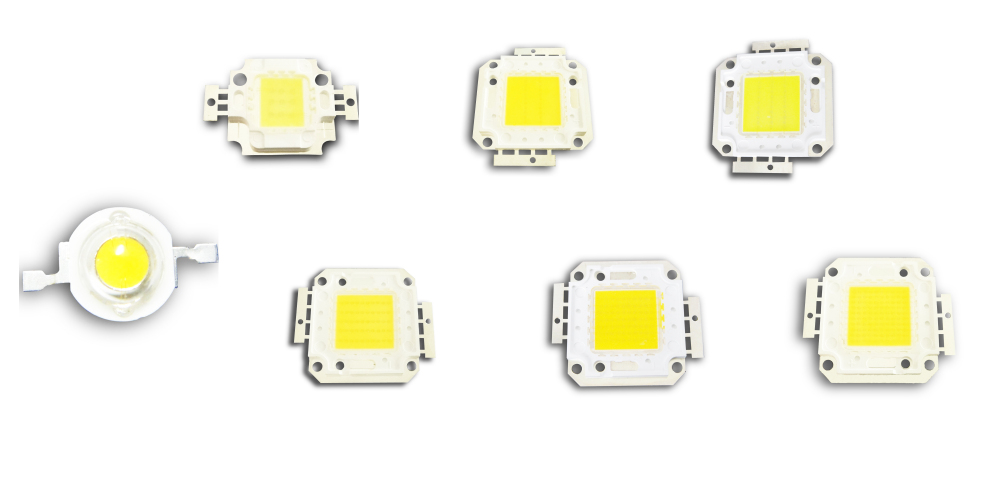

Series information

.jpg





                                                Chip information.jpg

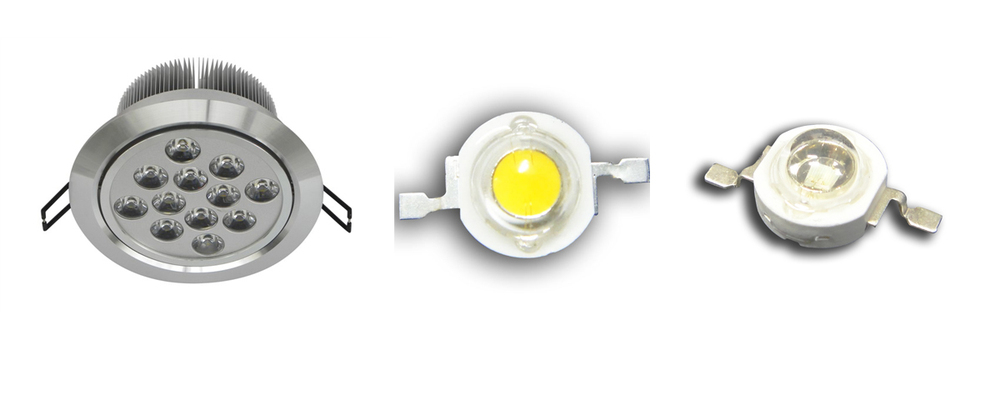

Application



Application for Edison day light 6000K 1w high power leds 1w for downlight



Round full lighting module is widely used for LED bulb,LED cup,LED spotlight,LED downlight and so on.












Certifications

 Certification for Edison day light 6000K 1w high power leds 1w for downlight
