custom 7 segment led pcb board customized 7 segment
- Application:Indoor, display custom icons
- Color:customized
- Panel Size:customized
- Pixel Pitch:customized
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet
- Place of Origin:Guangdong, China
- Model Number:KEM-4712-AB
- Brand Name:KEM
- use:advertising publish
- Pixels:2mm
- Specification:Digital Poster
- Screen Dimension:36*13*7.5mm
- Light Source:LED Epistar
- Emitting Color:red,green,white,blue,yellow,amber and bi-color
- Surface color:Black/red/white/gray
- Segment color:white ,water clear, or same as emitting color
- OEM/ODM:yes
- Package:EPE+ carton or tube packaging
- Place of origin:Dongguan,China
- Usage:washing machine, weighing scale, counter, price sign,etc
- Operating temperature:-35 ~ +85 ℃
Products Description

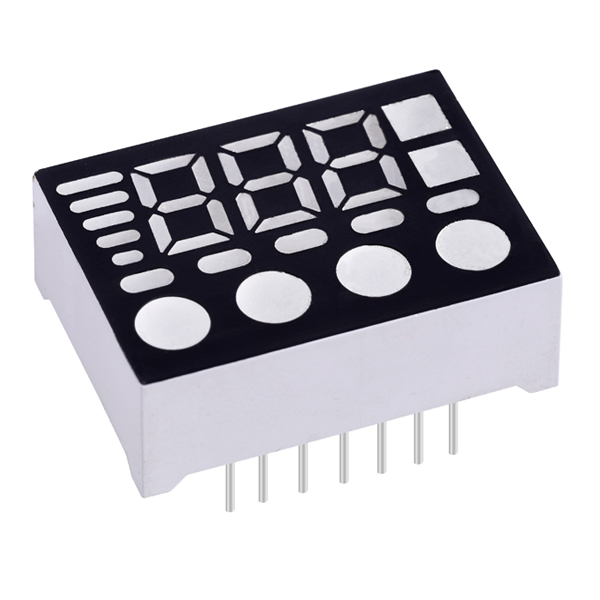

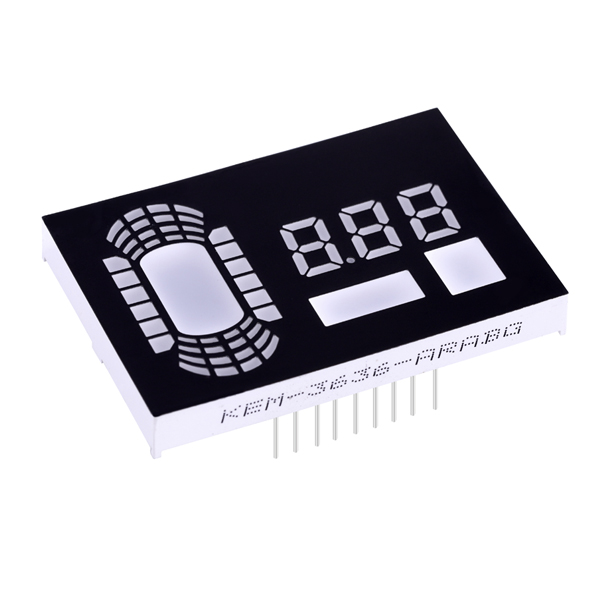

custom 7 segment led pcb board
| Custom type | Through hole or smd/smt | Dimension | custom |
| Digit Height | single color,bicolor,RGB | Surface color | Black/gray/white |
| Epoxy color | White | Emitting color | single color,bicolor,RGB |
| Shape | Tectangle,triangle,square, semi-circle | Polarity | common anode/cathode |
| Adding IC for less pins is possible. | |||
| If need other specifications, Please contact with our sales get what you want. | |||
Images Details
Features:
1.High brightness
2.Wide viewing angle
3.Different colors :red,green,blue,white,yellow,orange/amber
5.RoHS CE compliant
6. Low energy
7.Stable high quality
8.ISO 9001 Factory
Please just tell us dimension(WxLxT),emitting color and icons you need,
we can design and manufacture it for you.3D printing samples is acceptable before molding.
Other specifications we can supply:
| Items | Wavelength (nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) |
| Super red | 620-625 | 1.8-2.0 | 18 | 100-150 | 20 | 5 | 10 |
| High red | 638-660 | 1.8-1.9 | 18 | 15-20 | 20 | 5 | 10 |
| Ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 20 | 5 | 10 |
| Super green | 556-575 | 1.9-2.0 | 18 | 48-55 | 20 | 5 | 10 |
| Pure green | 515-525 | 2.8-3.0 | 20 | 260-300 | 20 | 5 | 10 |
| White | 10000-12000k | 2.6-2.8 | 20 | 200-250 | 20 | 5 | 10 |
| Blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 20 | 5 | 10 |
| Yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 20 | 5 | 10 |
| Amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 20 | 5 | 10 |
Application:
1. Audio equipment or instrument panels. 2. Indoor and outdoor display.
3. General use for digital indicators.
4. Multimedia product. 5. Elevtor/lift.6. Bank exchange rate display.
7. LED clock display
8.Display for gas station and other different display areas.
of equipment/machine, such as smart meter, electronic balance, microwave oven,
induction cooker.
9. electric water heater, electric pressure cooker, disinfection cabinet.

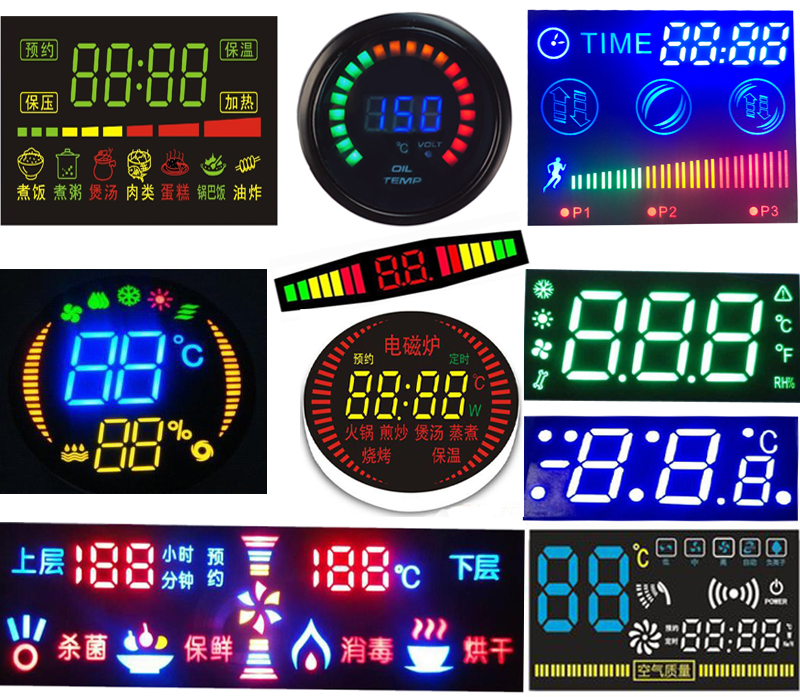

Industrial equipment Led clock display Home appliance led display

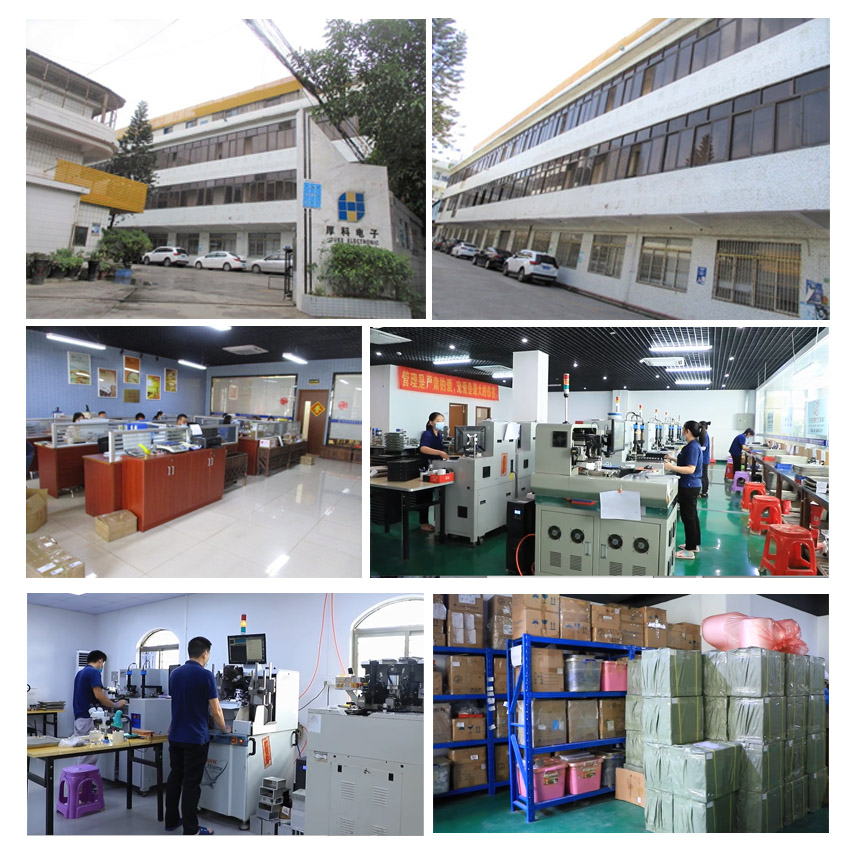

Company profile:
Houkem has 19 years of experience in manufacturing,developing,selling of led products,and
certified by ISO 9001 international quality system.our main products are:customized led display,7
segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service
acquired high reputation from our customers.Sincerely hope to cooperate with you and create a
bright future!

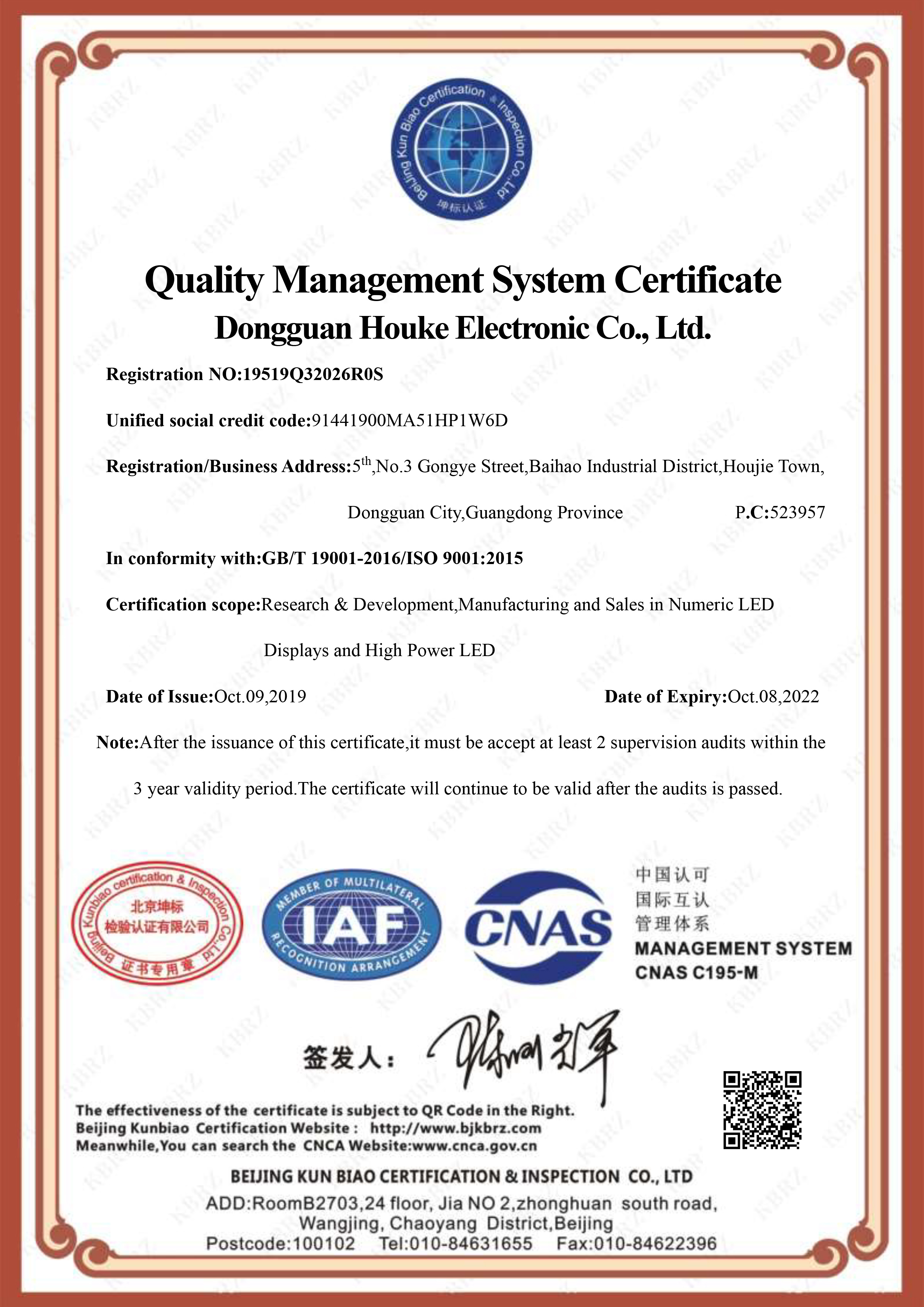

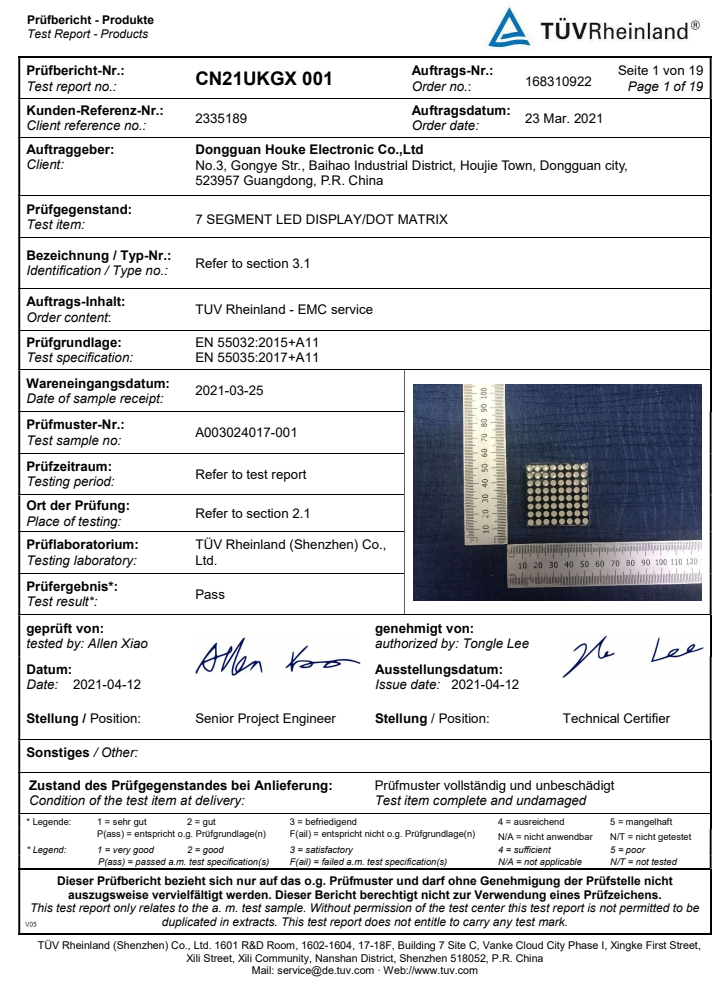

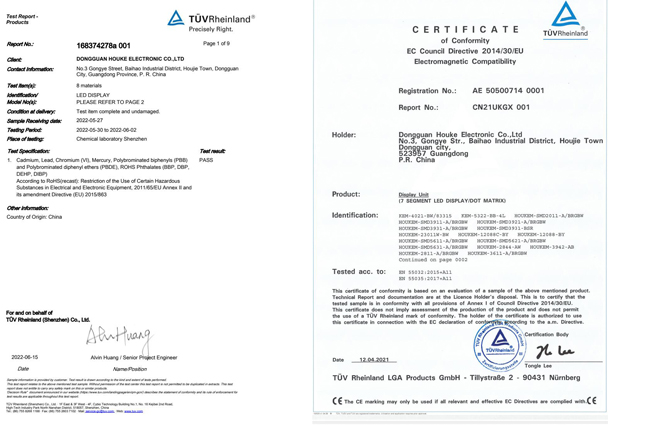

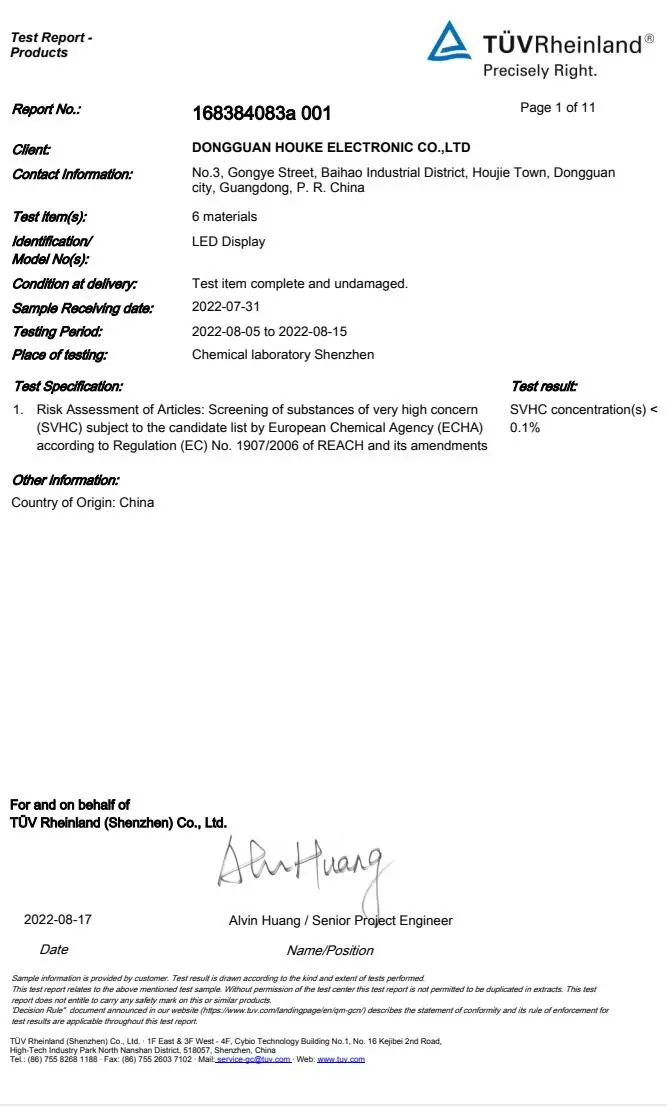

Certifications
Exhibition:
FAQ:
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
EXW.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
