Model NO.
KEM-23011-A/BSR
Price:
USD 0.90-1.30 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
9999 pieces / Day
Country of Origin:
Shenzhen/Guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:KEM-23011-A/BSR
  • Screen Dimension:69.7*47.8mm

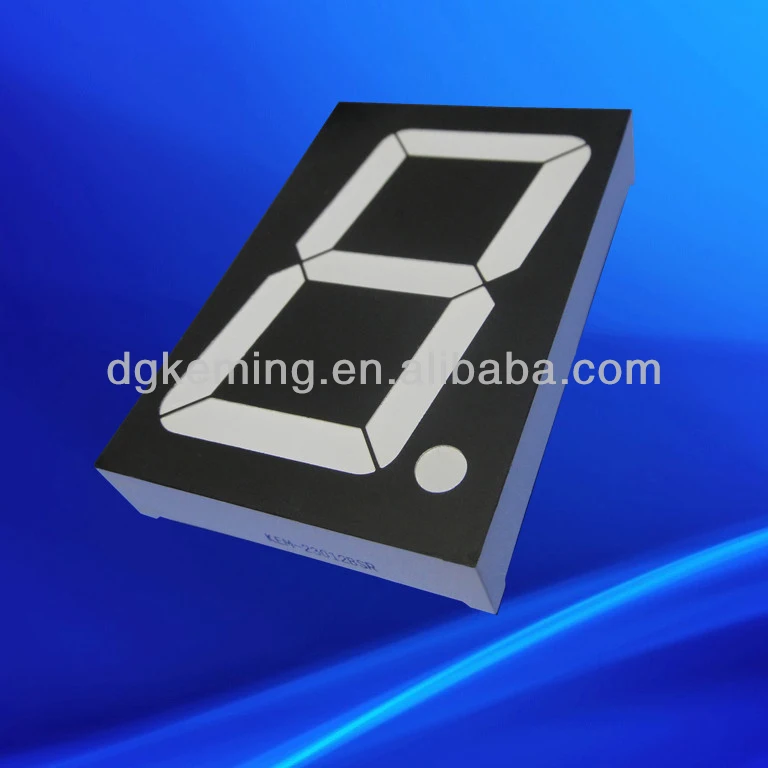

Super red 2.3 inch 1 digit led 7 segment numeric display:

Product Overviews



Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''





Spec of  2.3"1 digit 7 segment led numeric display:

Part NoKEM-23012-A/BSR
Dimension69.7*47.8*12mm
Digit height2.3 inch
Surface colorBlack/Gray
Segment colorWhite / Clear
Emitting colorSuper red
Luminous intensity80mcd/chip
Pin configurationCommon Anode/Common Cathode

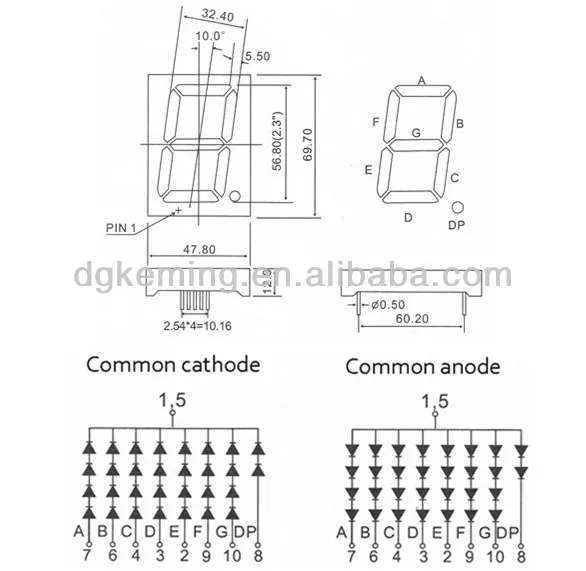

Dimension and Internal Circuit Diagram

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''



 Note: If this PCB layout don't meet your requirements, please contact me for other choices.



 Overview



 1. We can supply you all kinds of 7 segment LED display:



---Digit size: from 0.25"to 16"



---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 16 segment both available



3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color



4. Available surface color: black,grey or red



5. Lens color: white or same as emitting color





Delivery Time

 Quantity              Lead time



1-10K pcs           3-7 days



10.1K-50K pcs    7-15 days



Delivery Ways

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''

Packaging

 Our safety packing for your goods:

Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''



Warranty

All of our led products made o fo Epistar LED chips with 3 years warranty.

With over 13 years experience in this field, we do believe we can become your reliable supplier!



Factory & Production



 Main Processes of Our Segment Display(Factory pictures):

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''

Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''Common anode ultra 2.3 inch 1 digit 7 segment red led display 2.3''





LED professional manufacturer---- 15 years experience makes high quality products!
