common anode 18pins 3mm bi-color 5x7 dot matrix led display
common anode 18pins 3mm bi-color 5x7 dot matrix led display
common anode 18pins 3mm bi-color 5x7 dot matrix led display
common anode 18pins 3mm bi-color 5x7 dot matrix led display
common anode 18pins 3mm bi-color 5x7 dot matrix led display

common anode 18pins 3mm bi-color 5x7 dot matrix led display

Model NO.
KEM-11057A/BRG
Price:
USD 0.65-0.76 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED square dot)
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Tube Chip Color:milky white or as emitting color
  • Brand Name:KEM
  • Model Number:KEM-11057A/BRG
  • Screen Dimension:29.4*44.9mm


 common anode 18pins 3mm bi-color 5x7 dot matrix led display

Product Description
Part No. Houkem-11057-A/BEmitting colorred/blue/amber/green/white/yellow
Polarity

Common anode

Common cathode

Epoxy colorwhite/blue/red/green/yellow
Current20mASurface colorBlack/gray/white
Contact us

Sales:Ellen Liu

Tel:+86755-85933616

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Wechat:ellen432555

Whatsapp:+8618825779357

Email:sales3.jpgdgkeming.com.cn

s per your request.

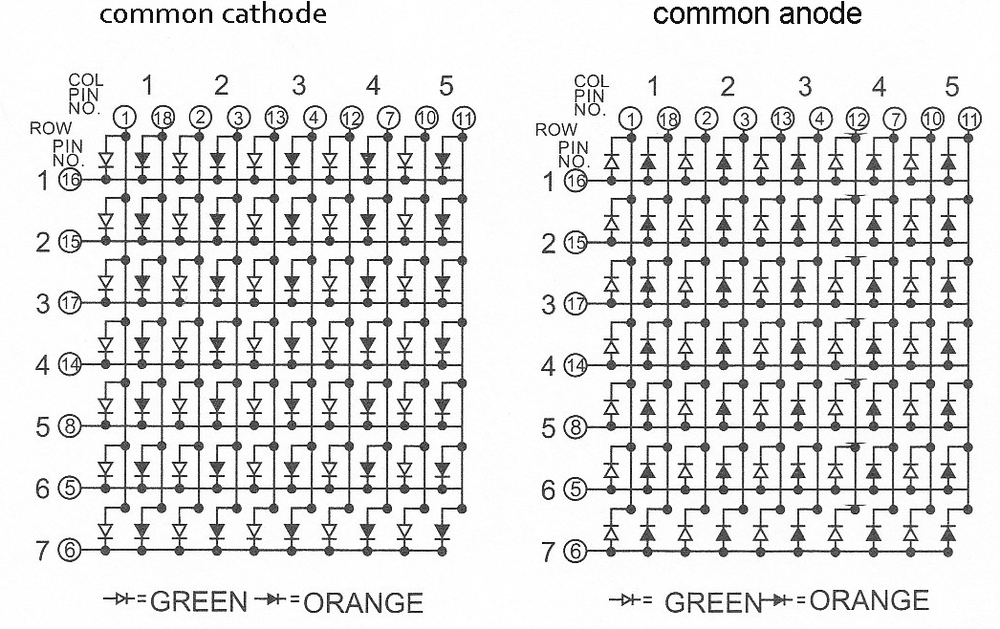

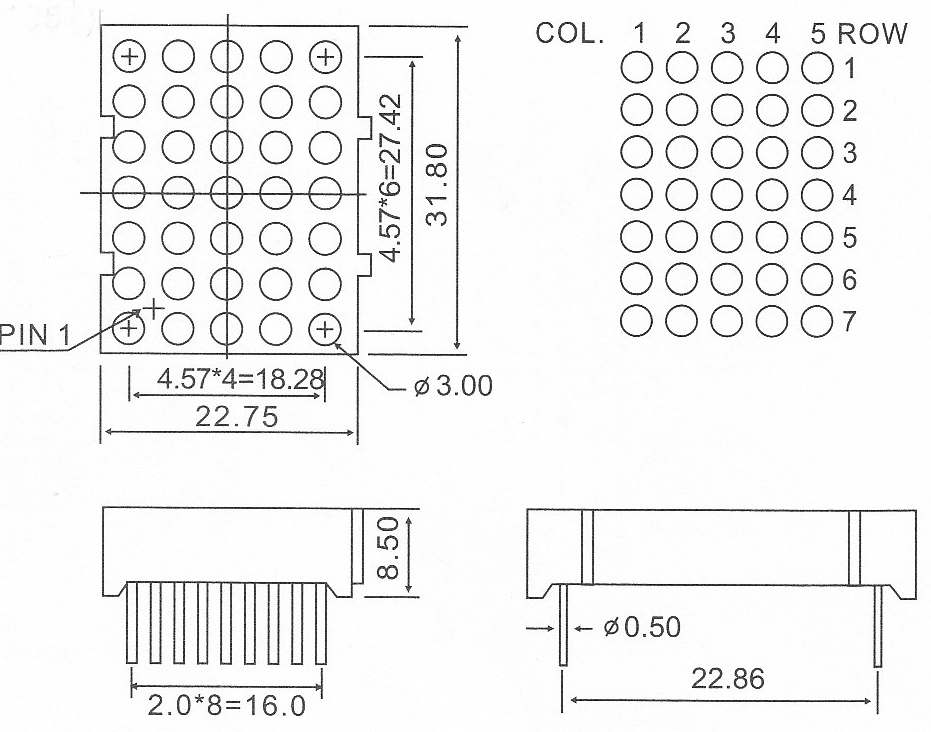

Dimension and Internal Curcuit :

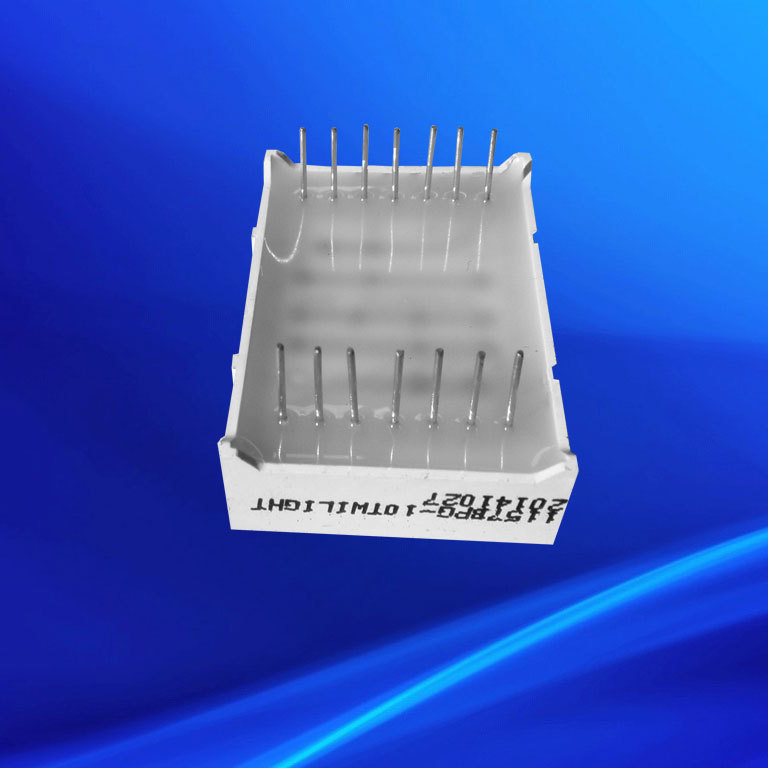

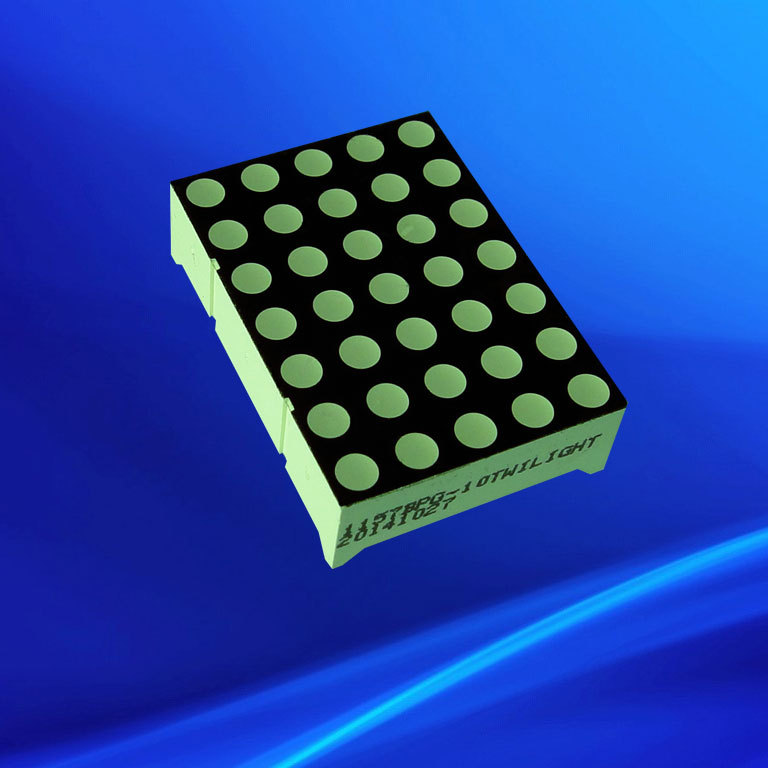

More Pictures for your easy ref

11571157.5

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
  • Face color : black / gray.
  • Surface dot type : epoxy diffusion / clear lens.





Part details :



Model.

:KEM-16057A/B



Description

:29.4*44.9mm



Surface color

:Black / gray/red



Emitting color

: red and green



Wavelength

475-635 nm



Luminous intensity

50-200mcd



Voltage/ Current

1.8-3.3v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode









Various color available for  custom led dot matrix module 4.5 mm  :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA



If the PCB curcuit can not meet your need, pls contact me for other choices.









custom led dot matrix module 4.5 mm



What We Can Provide:

7 segment / 14 segment / 16 segment display :



 1 Digit

:

 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8"

 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16"



 2 Digit

: 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3"



 3 Digit

: 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8"



 4 Digit

:

 0.25"0.28"0.3"0.36"0.39"0.4"

 0.5"0.52"0.56"0.8"



Emitting Color Available

:Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB



Standard Face color

:Black Face / Gray Face (white segment)



PCB Polarity

:Common Anode / Commone Cathode



LED Dot Matrix Display:



Dot Array

:8*8 /  5*7 /  5*8 / 7*11



Dot Shape

:Round Dot , Square Dot



Dot Diameter

:

1.9mm, 3.0mm, 3.45mm,3.7mm

4.8mm, 5.0mm, 6.0mm, 10mm



Various Color

:

Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB.





Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.



We Promise:

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Experienced sales and engineers will answer all your requirements in fluent English.

3. Advanced equipments & good material:ASM machines; chips,PCB boards & epoxy resin of RoHS compliant.

4. No matter big order or small order, we will provide our products with the best quality & also best service.

5. We are a direct factory in Dongguan and we've been doing the OEM and ODM service for over 10 years.



Welcome To Inquire!
