CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness
CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness

CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness

Model NO.
KEMING-200011-BUR
Price:
USD 50.00-100.00 / pieces
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:KEM
  • Model Number:KEMING-200011-BUR
  • Screen Dimension:350*500mm


Product Describtion
 1

 CC.CA large 20 inch 7 segment LED display 1 digit ultra red high brightness





 Part no: KEMING-200011-BUR -------common anode (CA)

               KEMING-200011-BUR -------common cathode (CC)

Item No.KEMING-200011-BUR
Dimension350*500mm
Surface color  Black  /Grey
Emitting color  ultra red

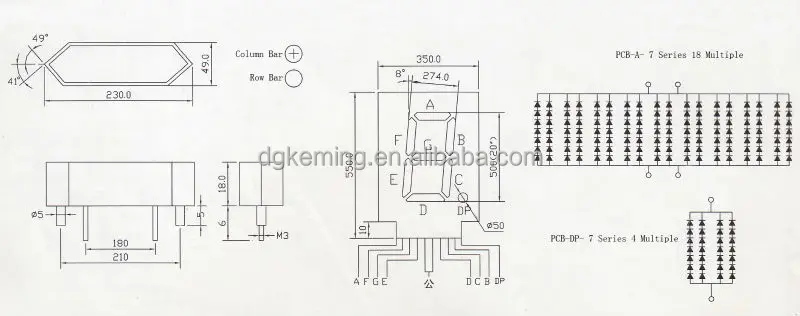

Package dimension & Internal circuit diagram

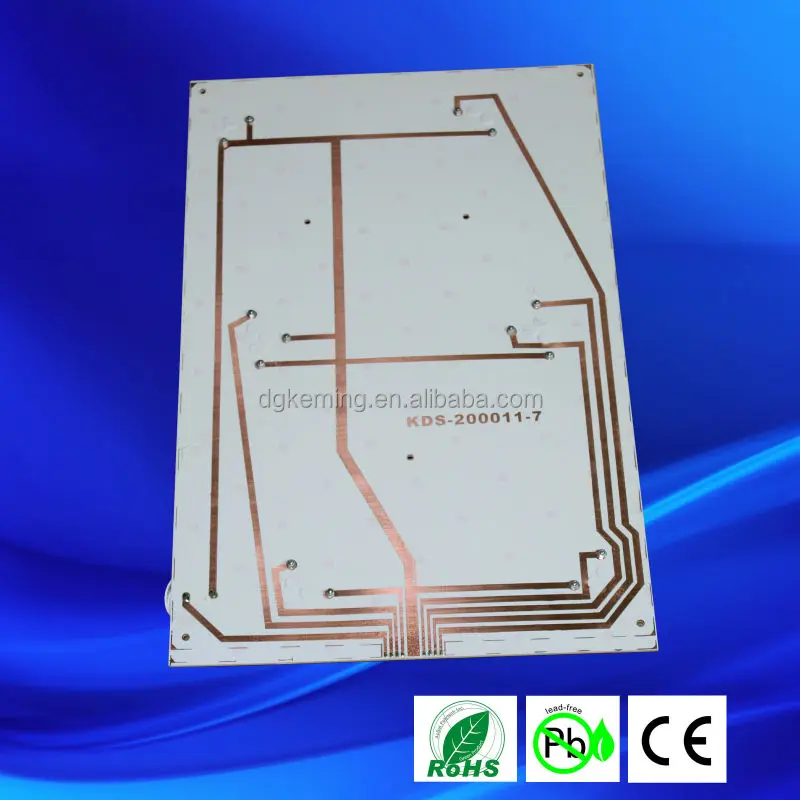

 KEM-200011-LAYOUT





Note: If this PCB layout don't meet your requirements, please contact me for other choices.







1,Low consumption

2, High brightness

3,High intensity and reliability

4,Easy assembly

                                                  Two years quality warranty

   20'' segment led display red color



20 inch seven led display 7 seg

 seven segment led display 20 inch

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.


Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green,

super green, pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led
