cathode 0.8 inch single digit smd 7 segment display 0.8'' fnd segment blue color

Model NO.
HOUKEM-8011SMD-AB
Price:
USD 2.90-3.10
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:20mm
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-8011SMD-AB
  • Screen Dimension:16.8*28mm


Product Describtion

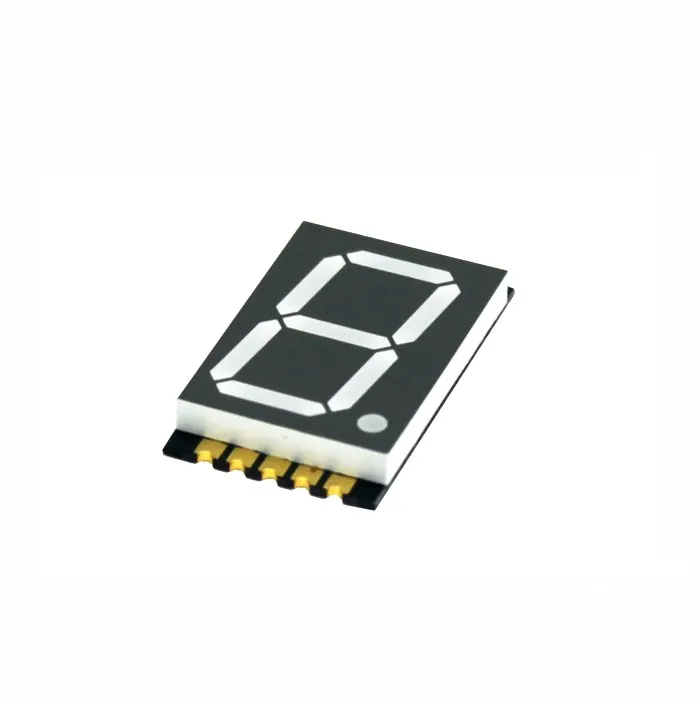

 blue 0.8 inch smd 7 Segment display single digit



1, Low consumption

2, High brightness

 HOUKEM-8011SMD-BB-------common anode(CA)

 HOUKEM-8011SMD-AB-------common cathode(CC)



Product details:

Item No.HOUKEM-8011SMD-AB
Dimension 16.8*28*3.75mm
Digit height0.8''
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color  Blue

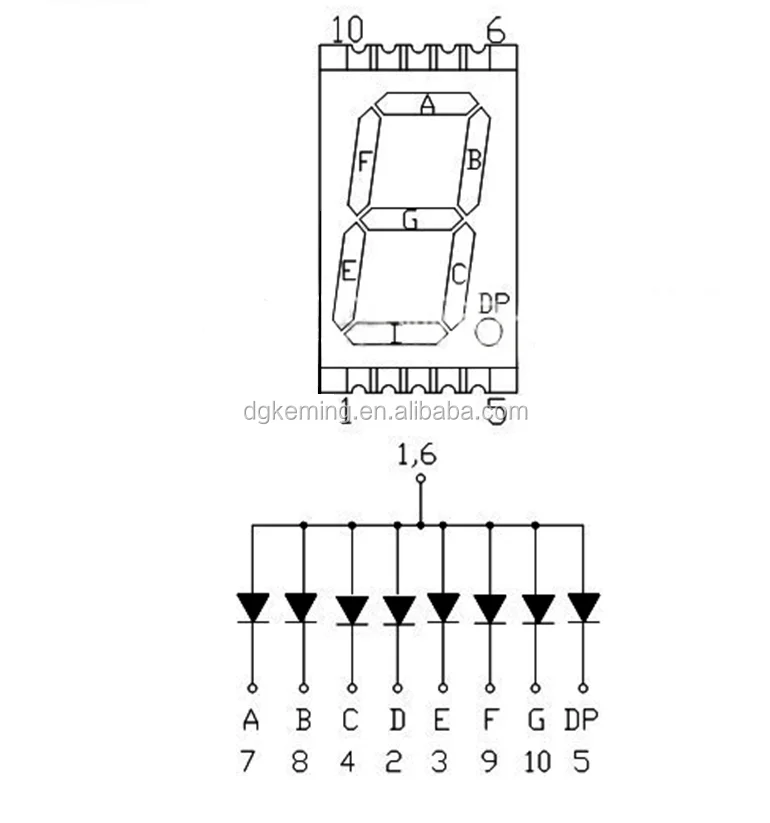

Package dimension& Internal circuit diagram







Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

620-625

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Two years quality warranty

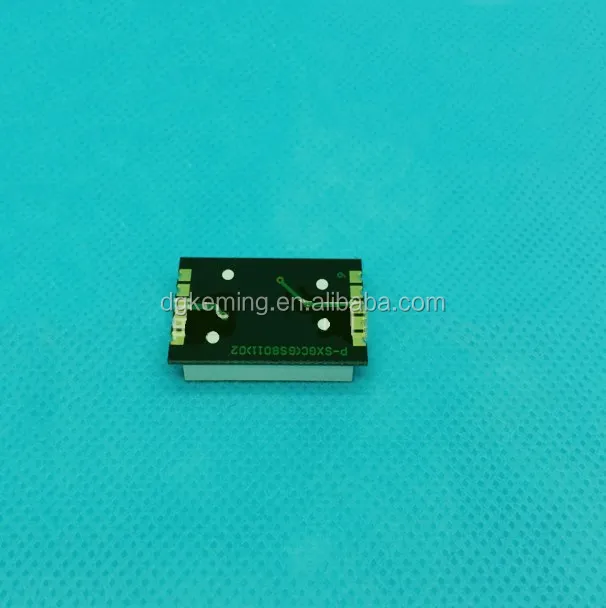

 8011smd back.jpg











Our Services


Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer----  SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green,

blue, yellow, white, amber, Bi-color, RGB.



Packaging & Shipping



packing & shipping

Contact us




Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, etc.
