LED Display Brightness Explained: What mcd Means for Engineers

This value is related to LED luminous intensity, and it helps engineers understand how strong the LED appears from a specific viewing direction.

However, mcd is also easy to misunderstand. A higher mcd value does not always mean a better LED display. Real display performance also depends on viewing angle, forward current, LED color, lens type, power consumption, and the final application environment.

This guide explains what mcd means in LED display brightness, how to read luminous intensity in an LED datasheet, and how engineers and OEM buyers can choose a suitable brightness level for their projects.

---

What Does mcd Mean in LED Display Brightness?

In LED specifications, mcd stands for millicandela. It is a unit used to measure luminous intensity.

In simple terms, luminous intensity describes how strong the light appears in a certain direction. For LED displays, this is important because users usually read the display from the front or from a defined viewing angle.

So when a datasheet lists LED display brightness mcd, it is not describing the total light output of the LED. It is describing how intense the light appears from a specific direction under specific test conditions.

For example, a 7 segment LED display may have different mcd values depending on the LED chip, color, lens structure, and test current. A red display, green display, and blue display may not look the same even if the listed mcd values are close.

That is why engineers should not only ask:

“Is this display bright enough?”

A better question is:

“What is the mcd value, and under what current, viewing angle, and test condition was it measured?”

This is the right starting point for real LED display selection.

---

Why LED Luminous Intensity Matters in Datasheets

LED luminous intensity matters because it affects display readability.

If the luminous intensity is too low, the display may look weak or unclear, especially under bright indoor lighting, industrial workshop lighting, or semi-outdoor conditions. If the luminous intensity is too high, the display may create glare, use more power, or feel uncomfortable in darker environments.

For engineers, luminous intensity helps answer practical questions:

• Will the display be readable at the expected viewing distance?
• Will it be too bright in a dark environment?
• Does the brightness match the planned current and driver design?
• Will the display remain visible through a cover lens or front panel?
• Can the brightness remain consistent in mass production?

For OEM buyers, LED luminous intensity also makes supplier comparison more objective. Product photos are not enough because camera exposure, lighting, and editing can easily change how bright a display looks.

A datasheet gives a clearer basis for comparison, especially when brightness, viewing angle, current, and color are listed together.

---

mcd vs Lumens: What Is the Difference?

A common question is the difference between mcd vs lumens LED specifications.

Both are related to light, but they describe different things.

For LED lighting products, lumens are more common because users care about the total amount of light a lamp produces.

For LED displays, indicator LEDs, and 7 segment displays, mcd is more useful because readability depends on how bright the display appears from the user’s viewing direction.

A simple way to understand it:

mcd tells you how strong the light looks from one direction. Lumens tell you how much total visible light is produced.

This is why LED display datasheets usually focus on luminous intensity instead of lumens.

---

Why a Higher mcd Rating Is Not Always Better

A higher LED mcd rating may look better on paper, but it is not always the right choice.

In real product design, brightness must be balanced with viewing angle, power consumption, user comfort, and the use environment.

Viewing Angle Affects Perceived Brightness

LED display viewing angle has a direct impact on how brightness is seen.

A narrow-angle LED display may look very bright from the front, but the brightness may drop quickly from the side. A wider-angle display may have a lower mcd value, but it can look more readable from different positions.

This matters for control panels, appliances, medical devices, automotive interfaces, and industrial equipment, where users may not always look directly at the display.

When comparing LED display brightness mcd values, engineers should always check viewing angle together with mcd.

Forward Current Changes the Brightness Value

Luminous intensity is usually measured at a specific forward current.

This means the mcd value depends partly on the current used during testing. If one supplier tests brightness at 10mA and another tests at 20mA, the mcd values cannot be compared directly.

Higher current can increase brightness, but it also increases power consumption and heat. If the LED is driven too hard for a long time, it may affect product life.

When reading LED datasheet luminous intensity, always check the test current behind the value.

LED Color Changes What Users See

Different LED colors can appear differently to the human eye.

For example, green or yellow-green may appear brighter to many users than deep red or blue under the same environment. Red, amber, yellow, green, blue, and white LED displays may also have different forward voltage and brightness behavior.

So it is not always accurate to compare mcd values directly across different colors.

Lens Type Affects Light Distribution

Lens design also changes how brightness looks.

A clear lens may create a stronger and more focused appearance. A diffused lens spreads light more evenly and can reduce glare. For many LED displays, a uniform and comfortable appearance is more useful than maximum brightness.

The goal is not to choose the highest mcd. The goal is to choose a brightness level that makes the display easy to read in the final product.

---

How Engineers Read Luminous Intensity in an LED Datasheet

When reviewing luminous intensity, engineers should not look at the mcd number alone. The surrounding test conditions are just as important.

1. Check the Luminous Intensity Value

Find the luminous intensity section in the datasheet. It may be shown as IV, brightness, or luminous intensity, usually with mcd as the unit.

Check whether the value is listed as minimum, typical, or maximum. For production projects, the minimum value is often more useful than the typical value because it gives a safer reference for batch consistency.

2. Check the Test Current

Look at the forward current used for the test.

If one LED display has a higher mcd value only because it was tested at a higher current, it may not be more efficient. It may simply be driven harder.

For fair comparison, compare brightness values under similar current conditions.

3. Check the Viewing Angle

A brightness value without viewing angle is incomplete.

A display with a narrow viewing angle may show a high mcd number but may not be suitable for products viewed from different positions. For user-facing products, a wider viewing angle can often improve real-world readability.

4. Check the LED Color and Wavelength

Color affects both appearance and perceived brightness.

If your product requires red, green, amber, blue, white, or another specific color, check the wavelength range as well as the mcd value. For products using multiple displays, ask whether the supplier can control color consistency across batches.

5. Check the Product Environment

The same LED display brightness may work well in one product but not in another.

An indoor appliance does not need the same brightness as a semi-outdoor device. A bedside product should not be as bright as an industrial warning display. A medical device needs clear visibility, but the brightness should still feel comfortable to the user.

This is why LED display brightness selection should always be based on the final application.

6. Test Samples in the Real Product

A datasheet helps narrow down options, but it cannot replace real testing.

Engineers should test samples inside the actual housing, PCB, front panel, cover lens, and lighting environment. This is the most reliable way to confirm whether the selected LED display brightness is suitable before mass production.

---

LED Display Brightness Selection for Different Applications

Different products need different brightness levels. The right choice depends on where the display will be used, how far users will view it from, and how much ambient light is present.

For indoor appliances, too much brightness can make the product look harsh, especially at night.

For industrial panels, consistent visibility and viewing angle may matter more than the highest mcd value.

For automotive or semi-outdoor products, stronger brightness may be needed, but engineers still need to consider power consumption, thermal design, and LED lifespan.

For 7 segment LED display brightness, the goal is usually simple: make the numbers easy to read without uneven segments, glare, or unnecessary power use.

---

Common Mistakes When Comparing LED mcd Ratings

Brightness-related selection problems often happen because buyers focus too much on one number.

Only Choosing the Highest mcd

The highest mcd value is not always the best option. It may create glare, consume more power, or make the display uncomfortable in dark environments.

Ignoring Viewing Angle

Two displays with similar mcd values may look very different if their viewing angles are different. A wider-angle display may perform better in real use, even if the mcd number is not the highest.

Ignoring Forward Current

If the mcd values are tested at different current levels, the comparison is not fair. Always check the test current before judging brightness.

Comparing Different LED Colors Directly

Different colors are perceived differently by the human eye. A red display and a green display with similar mcd values may not look equally bright.

Forgetting the Front Cover or Housing

The final product structure can reduce visible brightness. Smoked covers, plastic windows, display films, or front panels can all affect how the display looks after assembly.

Not Checking Batch Consistency

For OEM production, one good sample is not enough. Buyers should confirm whether brightness and color can remain consistent across production batches.

---

How OEM Buyers Should Discuss Brightness with LED Display Suppliers

For OEM buyers, asking for a “high brightness LED display” is often not specific enough.

A better approach is to explain the application and ask the supplier to recommend a suitable brightness range.

Useful questions include:

• Will the display be used indoors, outdoors, or semi-outdoors?
• What viewing distance is expected?
• Does the product require a wide viewing angle?
• What LED color is needed?
• Is low power consumption important?
• Will there be a cover lens or front panel?
• Can the brightness be customized?
• Can samples be provided for comparison?
• Can brightness and color consistency be controlled in mass production?

A professional LED display supplier should be able to discuss mcd value, viewing angle, forward current, LED color, lens type, and customization requirements together.

For OEM and ODM projects, brightness may need to be adjusted based on the product design. HOUKEM can support custom LED display brightness, custom color, custom pin configuration, and sample testing for different project requirements.

This is useful when a standard LED display does not fully match the product’s visual, electrical, or mechanical needs.

---

Quick Checklist Before Choosing LED Display Brightness

Before confirming an LED display model, use this checklist.

This checklist helps avoid choosing a display only by the highest number in the datasheet.

---

LED Display Brightness and Power Consumption

Brightness and power consumption are closely related.

In many LED displays, increasing forward current can increase luminous intensity. But it also increases energy use and may generate more heat.

For battery-powered products, compact devices, portable instruments, and control modules, engineers often need to balance visibility and efficiency.

The display does not need to be brighter than necessary. It needs to be readable under the real operating conditions of the product.

This is why LED display brightness should be reviewed together with circuit design, thermal conditions, and product usage.

---

LED Display Brightness for OEM Custom Projects

In OEM projects, standard brightness is not always the best fit.

Some products need softer brightness for indoor use. Some need higher brightness for stronger ambient light. Some need a specific color and brightness combination to match an existing product line.

For custom LED display projects, engineers and buyers may need to adjust:

• LED color
• Luminous intensity range
• Lens type
• Display size
• Pin configuration
• Common anode or common cathode structure
• Segment layout
• Brightness consistency requirements

This is where supplier communication becomes important. A good LED display manufacturer should not only provide a datasheet, but also help confirm whether the display suits the actual application.

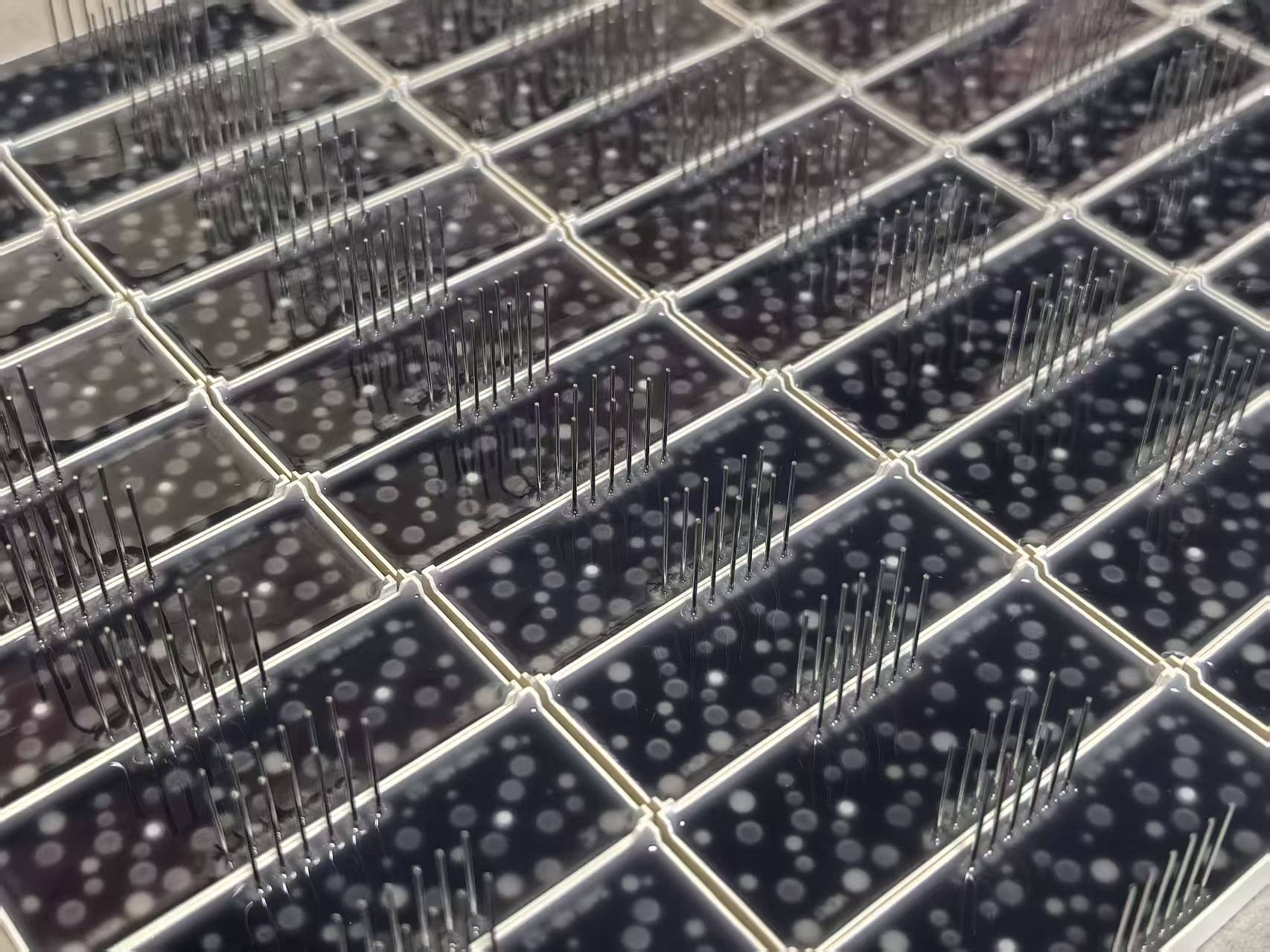

HOUKEM supports OEM and ODM LED display solutions, including custom brightness, custom color, sample support, and project-based specification review.

---

FAQ

What does mcd mean in LED displays?

mcd means millicandela. It is a unit of luminous intensity. In LED display datasheets, it describes how strong the LED light appears from a specific direction.

Is higher mcd always better for LED displays?

No. Higher mcd is not always better. Very high brightness may cause glare, consume more power, or reduce comfort in darker environments. The right brightness depends on the application.

What is the difference between mcd and lumens?

mcd measures luminous intensity in a specific direction. Lumens measure total visible light output. For LED displays and indicator LEDs, mcd is usually more useful. For LED lighting, lumens are more common.

Why does viewing angle affect LED display brightness?

Viewing angle affects how the light spreads. A narrow viewing angle may look brighter from the front, while a wider viewing angle can improve readability from different positions.

How do engineers choose the right LED display brightness?

Engineers should review the mcd value, test current, viewing angle, LED color, lens type, product structure, power consumption, and application environment. Sample testing in the real product is also important.

Can HOUKEM customize LED display brightness?

Yes. HOUKEM can support custom LED display brightness, color, pin configuration, structure, and OEM/ODM requirements based on specific project needs.

---

Conclusion

LED luminous intensity is an important specification, but mcd should not be judged alone.

To choose the right LED display brightness, engineers should consider mcd, viewing angle, forward current, LED color, lens type, power consumption, and the final application environment.

For OEM buyers, clear datasheets and sample testing can reduce selection mistakes and make supplier comparison easier.
