How to Read an LED Display Datasheet Correctly: A Practical Guide for Engineers and OEM Buyers

A datasheet tells you whether the display can work safely in your circuit, fit your PCB layout, meet the required brightness level, and remain stable in real operating conditions. It also helps buyers compare suppliers more accurately instead of relying only on product photos or unit price.

This guide explains how to read an LED display datasheet step by step, including electrical characteristics, optical performance, dimensions, pin configuration, and common selection mistakes.

---

Why Reading an LED Display Datasheet Matters

An LED display may look simple, but small differences in specifications can affect the final product.

For engineers, the datasheet is used to confirm circuit compatibility, current limits, voltage range, pin layout, brightness performance, and thermal conditions. Without checking these details, a display may appear correct during sourcing but fail during PCB design, testing, or mass production.

For OEM buyers, the datasheet is also a quality-control document. A complete datasheet shows whether the supplier understands engineering requirements and whether the product is suitable for long-term production.

In many LED display sourcing projects, problems do not happen because the product is obviously wrong. They happen because one small specification was missed.

Common examples include:

• The display is bright enough in a sample photo but too dim in the final device.
• The pin configuration does not match the PCB design.
• The selected model uses common anode, but the circuit requires common cathode.
• The product size fits the drawing roughly, but the tolerance creates assembly issues.
• The display works indoors but is not suitable for higher-temperature environments.

That is why reading the datasheet correctly is a basic but important step before confirming samples or placing an OEM order.

---

What Information Is Included in an LED Display Datasheet?

A professional LED display datasheet usually contains several key sections. The format may vary by manufacturer, but most datasheets include the following information.

Product Overview

The product overview gives basic information about the LED display, such as display type, digit size, emitting color, package style, lens color, and application range.

For example, a 7 segment LED datasheet may show whether the product is a single-digit, dual-digit, three-digit, or four-digit display. It may also specify whether the product is suitable for meters, control panels, home appliances, industrial equipment, or automotive applications.

This section helps buyers quickly confirm whether the product is in the right category before reviewing deeper technical details.

Absolute Maximum Ratings

Absolute maximum ratings show the limits the LED display must not exceed. These may include maximum forward current, reverse voltage, power dissipation, operating temperature, and storage temperature.

These values are safety limits, not recommended working conditions. A display should not be designed to run continuously near its absolute maximum rating. Doing so may shorten product life or increase the risk of failure.

Electrical Characteristics

Electrical characteristics are one of the most important sections for engineers. This part usually includes forward voltage, forward current, reverse current, and power consumption.

These specifications are used for circuit design, resistor selection, driver matching, and power calculation.

Optical Characteristics

Optical characteristics describe how the display performs visually. This section may include luminous intensity, dominant wavelength, peak wavelength, viewing angle, and color consistency.

For products where readability is important, optical specifications should be checked carefully. A display used in an indoor appliance, medical device, industrial control panel, or automotive dashboard may require different brightness and viewing angle performance.

Mechanical Dimensions

The mechanical drawing shows the physical size of the LED display. It may include overall length, width, height, digit height, pin length, pin pitch, and dimensional tolerance.

This section is important for PCB layout, housing design, front panel design, and assembly planning.

Pin Configuration

Pin configuration shows how each pin connects to the internal LED segments. It also tells you whether the display is common anode or common cathode.

This section must be checked before PCB design. Two displays may look almost identical from the outside but have completely different pin layouts.

Reliability Information

Some LED display datasheets include reliability information such as high-temperature testing, humidity testing, soldering conditions, thermal cycling, and life testing.

For OEM and industrial projects, reliability information is useful because it helps buyers understand whether the product is suitable for long-term production and real application environments.

---

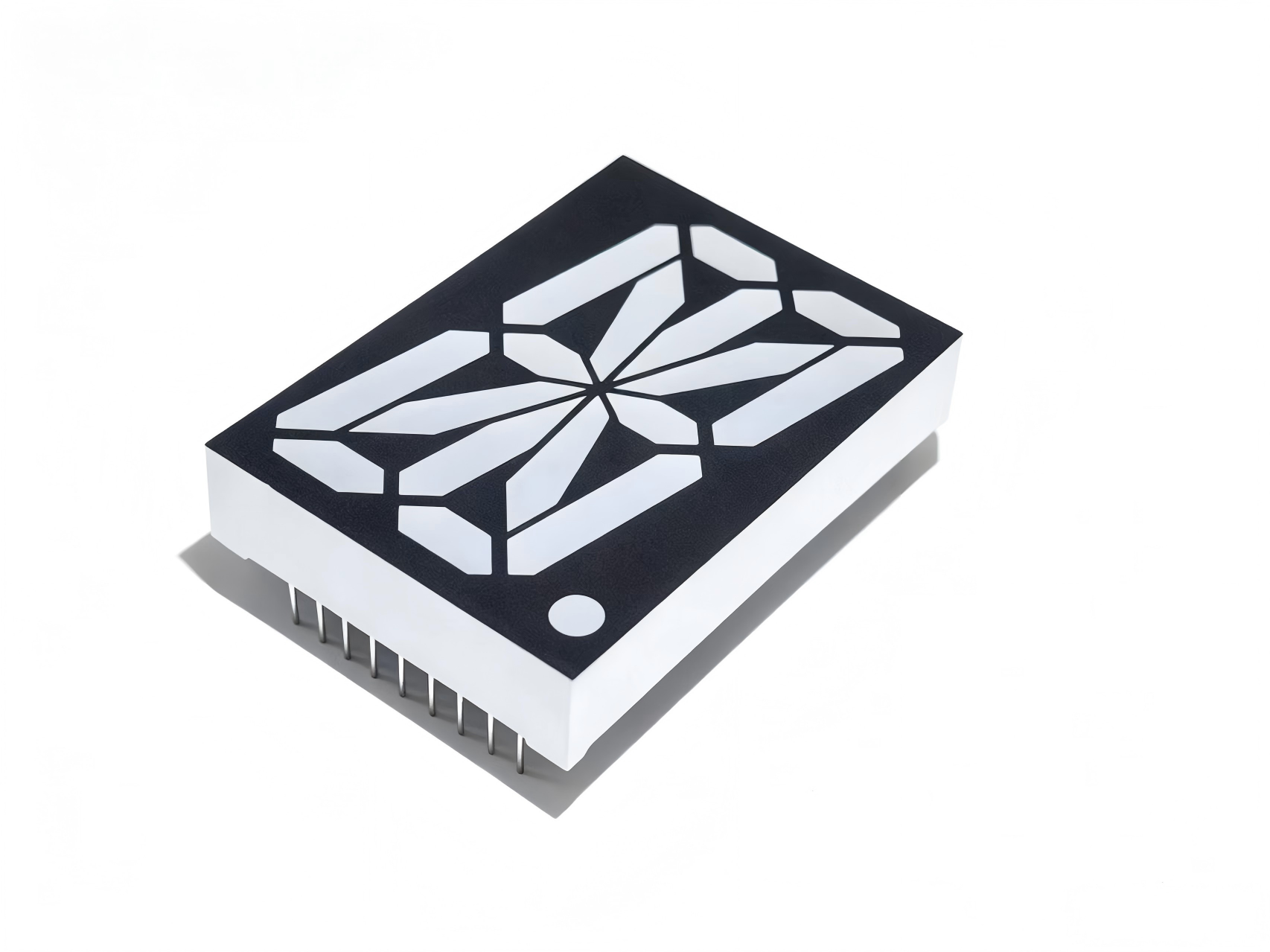

Understanding the Key Electrical Specifications

Electrical specifications decide whether an LED display can operate safely and consistently in your design.

Forward Voltage

LED display forward voltage, often shown as VF, is the voltage required for current to flow through the LED segment in the forward direction.

Forward voltage varies by LED color, material, and current level. Red, yellow, green, blue, and white LED displays may have different VF values.

Engineers use forward voltage to calculate current-limiting resistors and match the display with the circuit driver. If VF is ignored, the display may become too dim, too bright, unstable, or damaged by excessive current.

When comparing datasheets, check whether the forward voltage is listed as typical value, maximum value, or both.

Forward Current

Forward current, often shown as IF, is the current flowing through each LED segment during operation.

Forward current directly affects brightness, heat, and lifespan. Increasing current may improve brightness, but it can also increase power consumption and reduce long-term reliability.

When comparing two LED displays, do not only compare brightness values. Check the test current behind the brightness data. A display tested at a higher current may appear brighter on paper, but that does not always mean it is more efficient.

Power Consumption

Power consumption matters in compact devices, battery-powered products, and multi-digit display applications.

The total power depends on forward voltage, forward current, number of active segments, and driving method. For multi-digit LED displays, total current can become significant when several digits or segments are lit at the same time.

OEM buyers should check power consumption early, especially if the final product has strict energy, heat, or battery-life requirements.

Reverse Voltage

Reverse voltage is the maximum voltage the LED can withstand in the reverse direction. LEDs are not designed to operate under reverse bias.

Although reverse voltage is not always the first parameter buyers review, it is still important for circuit protection and reliability.

Operating Temperature

Operating temperature shows the temperature range in which the LED display can work normally.

This is especially important for industrial, automotive, outdoor, and equipment-control applications. A display used in a simple indoor consumer product may not need the same temperature range as a display used in a factory panel or vehicle-related device.

Storage Temperature

Storage temperature shows the safe temperature range for storing the product when it is not powered.

This matters for international shipping, warehousing, and long-term inventory. For OEM buyers, storage temperature is worth checking when products may pass through different climates before final assembly.

---

Understanding Optical Specifications

Optical specifications determine how the LED display looks to the user.

Luminous Intensity

LED display luminous intensity is usually measured in millicandela, or mcd. It indicates how bright the LED appears from a certain direction.

Many buyers focus heavily on luminous intensity, but this number should not be judged alone. It should be reviewed together with forward current, viewing angle, lens color, and application environment.

A display with high luminous intensity but a narrow viewing angle may look bright from the front but weak from the side.

Dominant Wavelength

Dominant wavelength describes the perceived color of the LED. It is usually measured in nanometers.

For red, green, yellow, amber, and blue LED displays, wavelength helps control color consistency across different batches and product lines.

Peak Wavelength

Peak wavelength refers to the wavelength where the LED emits the strongest light.

It is more technical than dominant wavelength, but it can be useful when color precision or optical matching is important.

Viewing Angle

Viewing angle shows the range where the display remains visible at an acceptable brightness level.

A narrow viewing angle may be suitable for front-facing indicators. A wider viewing angle is often better for control panels, appliances, public-facing equipment, and automotive interfaces.

Ignoring viewing angle is one of the most common mistakes when reading an LED display datasheet.

Color Consistency

Color consistency matters when multiple displays are used in the same product or across the same product series.

If color varies too much between batches, the finished product may look inconsistent or low quality. OEM buyers should ask whether the supplier can control color bins for mass production.

Brightness

Brightness should match the actual use environment.

A display that is too dim may be difficult to read. A display that is too bright may cause glare, increase power consumption, or affect user comfort.

For indoor products, balanced brightness is usually better than maximum brightness. For outdoor or automotive applications, stronger visibility may be required.

---

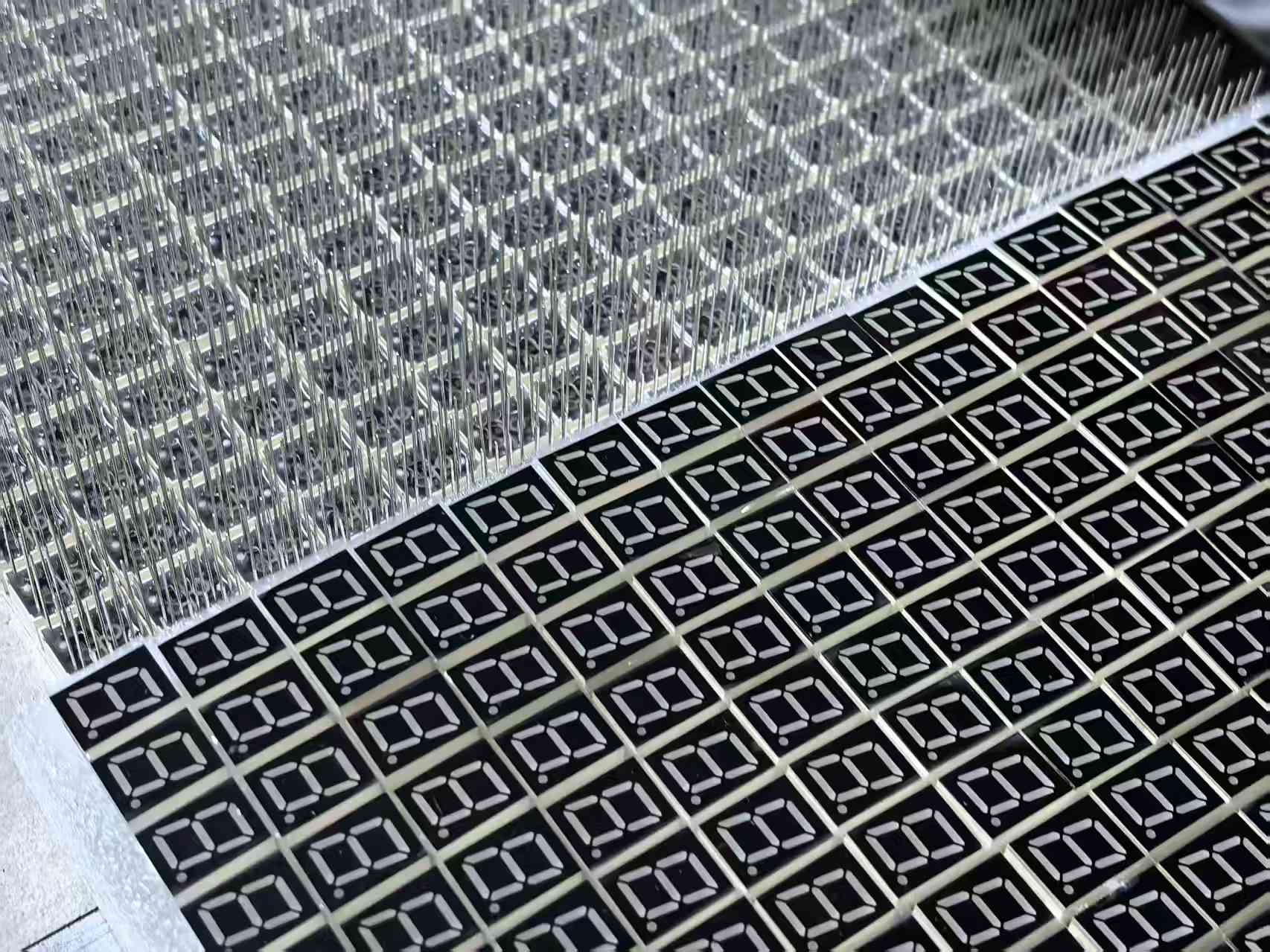

How to Read LED Display Dimensions and Pin Configuration

Mechanical size and pin layout are just as important as electrical data.

Mechanical Drawing

The mechanical drawing shows the exact size of the LED display. This may include body length, width, thickness, digit height, pin pitch, pin length, and tolerance.

Before confirming a model, engineers should compare the drawing with the PCB layout, housing design, and front panel opening.

A display that is only slightly different in size may still create assembly problems.

Pin Number

Each pin number corresponds to a specific segment, decimal point, or common terminal.

Pin numbering should be checked carefully because similar LED displays may not share the same internal wiring. Never assume that two displays have the same pinout just because they look similar.

Common Anode

In a common anode display, the positive terminals of the LED segments are connected together. The segments are controlled by applying a low signal to the corresponding cathode pins.

Common anode displays are used with specific driver circuits and control logic.

Common Cathode

In a common cathode display, the negative terminals of the LED segments are connected together. The segments are controlled by applying a positive signal to the corresponding anode pins.

When comparing common anode vs common cathode display options, the key question is not which one is better. The key question is which one matches your circuit design.

PCB Footprint

The PCB footprint must match the pin layout and pin spacing shown in the datasheet.

For OEM projects, it is best to confirm the datasheet, mechanical drawing, PCB footprint, and physical sample before mass production.

---

Quick Checklist: 10 Things to Check Before Choosing an LED Display

Before selecting an LED display, check these items:

This checklist is useful for both engineers and buyers during model selection and supplier comparison.

---

LED Display Datasheet Terms Explained

---

Common Mistakes When Reading an LED Display Datasheet

Many LED display selection problems happen because buyers focus on one specification and ignore the rest of the datasheet.

Only Looking at Brightness

Brightness is important, but it must be compared under the same test conditions. If one supplier measures brightness at a higher forward current, the result may look better but may not represent better efficiency.

Ignoring Forward Current

Forward current affects brightness, heat, and service life. A display driven at excessive current may pass short-term testing but fail earlier in real use.

Confusing Luminous Intensity and Luminous Flux

Luminous intensity measures brightness in a specific direction. Luminous flux measures total light output.

For LED displays, luminous intensity is usually more useful because the user reads the display from a viewing direction.

Ignoring Viewing Angle

A display may look bright from the front but become difficult to read from the side. For control panels, appliances, and automotive interfaces, viewing angle should be checked carefully.

Choosing the Wrong Pin Configuration

Common anode and common cathode displays are not normally interchangeable without circuit changes. This mistake can delay PCB design and sample approval.

---

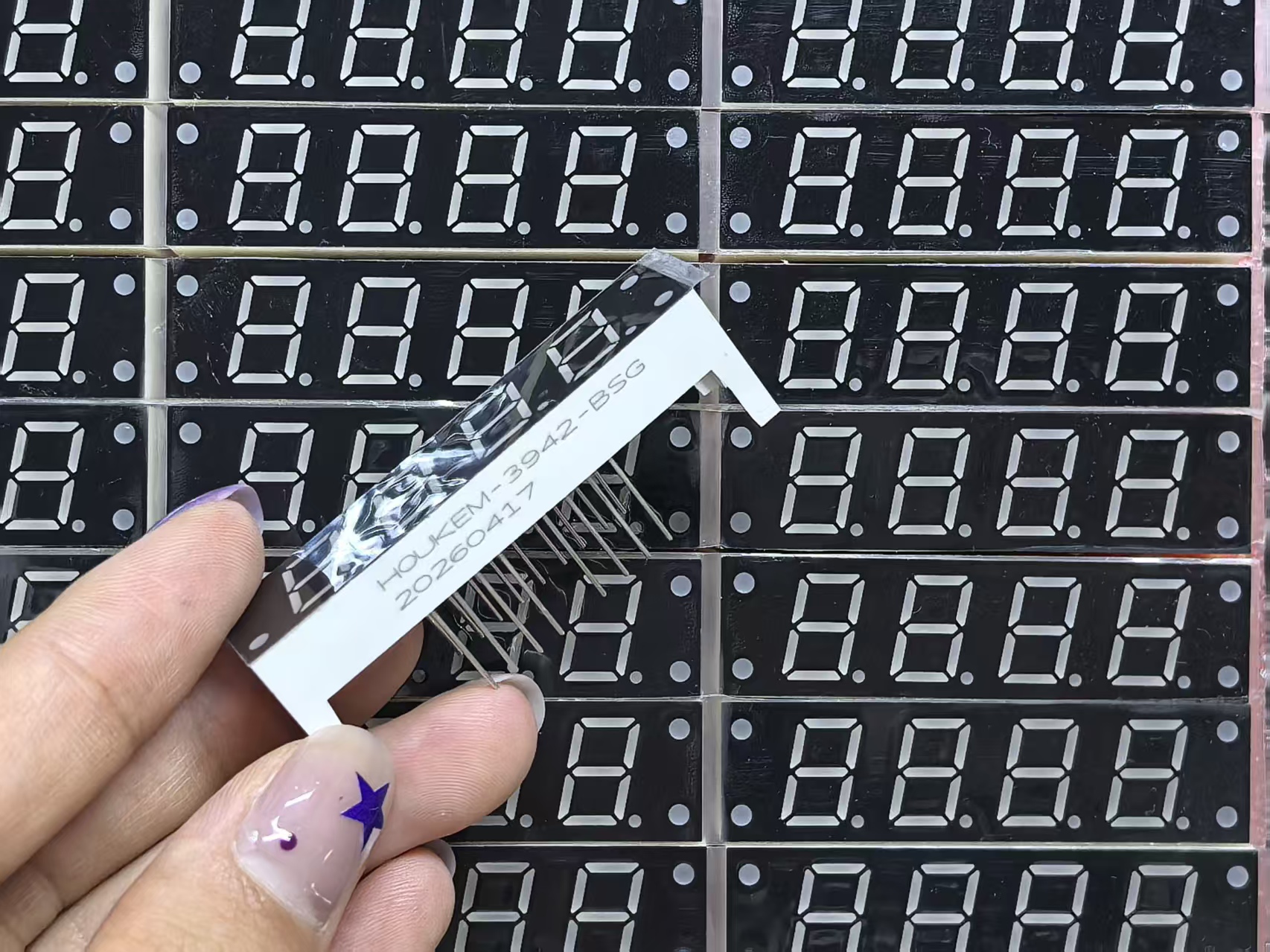

How Engineers Compare Different LED Display Datasheets

Engineers usually compare datasheets side by side instead of reviewing one supplier at a time.

This kind of comparison helps engineering and purchasing teams make decisions based on real data, not just catalog appearance.

---

Comparison Table: Good vs Poor LED Display Datasheets

A good datasheet reduces engineering questions and helps speed up sample approval. A poor datasheet often creates extra communication and sourcing risk.

---

Engineer Tips

When reviewing an LED display datasheet, always check the test conditions behind the numbers.

For example, luminous intensity should be reviewed together with forward current. Mechanical dimensions should be reviewed together with tolerance. Pin configuration should be checked before PCB layout is finalized.

For new designs, request samples and test the display in the real circuit. A datasheet is necessary, but it should be verified with actual application testing before mass production.

---

Buyer Tips

OEM buyers should not compare LED displays only by price.

A lower-cost display may become more expensive later if the datasheet is incomplete, the brightness is unstable, the pin configuration is wrong, or the supplier cannot maintain color consistency across batches.

A reliable LED display supplier should provide clear datasheets, stable production quality, sample support, customization options, and responsive technical communication.

---

How to Choose the Right LED Display for Your Project

The right LED display depends on where and how the product will be used.

For indoor products, such as appliances, meters, and control panels, balanced brightness, clean appearance, and stable color are usually important.

For outdoor products, brightness and viewing angle become more critical because the display may need to remain readable under stronger ambient light.

For industrial applications, operating temperature, reliability, and long-term supply stability should be checked carefully.

For medical devices, readability, color consistency, quality control, and stable production are important.

For automotive applications, temperature range, vibration resistance, brightness, and reliability should be considered early in the selection process.

Instead of choosing only by one specification, engineers and buyers should review electrical, optical, mechanical, and reliability data together.

---

Why OEM Buyers Choose HOUKEM

HOUKEM supports OEM and ODM LED display projects for customers who need stable specifications, clear datasheets, and flexible customization.

Since 2003, HOUKEM has supplied LED display products for applications such as appliances, meters, control panels, industrial equipment, medical devices, and automotive-related products.

For OEM projects, HOUKEM can support:

• Custom LED display color
• Custom brightness
• Custom pin configuration
• Custom size and structure
• Sample support
• OEM and ODM production
• CE, RoHS, and ISO-related quality requirements

Many buyers choose HOUKEM because they need more than a standard LED display. They need a supplier that can understand application requirements, provide technical communication, support samples, and maintain repeatable quality for long-term production.

---

Frequently Asked Questions

How do I read an LED display datasheet?

Start by checking the product overview, electrical characteristics, optical specifications, mechanical dimensions, and pin configuration. The most important parameters include forward voltage, forward current, luminous intensity, viewing angle, operating temperature, and common anode or common cathode type.

What is forward voltage in an LED display datasheet?

Forward voltage is the voltage required for current to flow through an LED segment. Engineers use it to design the circuit, select resistors, and match the display with the driver.

Why is forward current important?

Forward current affects brightness, heat, power consumption, and LED lifespan. A display should be driven within the recommended current range, not near the absolute maximum rating.

How do I choose between common anode and common cathode?

Choose the type that matches your circuit and driver design. Common anode displays share the positive terminal, while common cathode displays share the negative terminal. They are not usually interchangeable without circuit changes.

Why is luminous intensity important?

Luminous intensity shows how bright the display appears from a specific direction. It helps engineers evaluate readability for meters, appliances, control panels, industrial equipment, and automotive applications.

Can HOUKEM customize LED display specifications?

Yes. HOUKEM can support OEM and ODM customization, including display color, brightness, pin configuration, size, structure, and application-specific LED display requirements.

---

Conclusion

Reading an LED display datasheet correctly helps engineers avoid circuit, brightness, pinout, and assembly problems before mass production.

For OEM buyers, it also makes supplier comparison easier and reduces sourcing risk.

Before choosing a model, review the key LED display specifications, confirm samples, and make sure the supplier can support your project requirements.

Contact HOUKEM to request a datasheet, sample, or custom LED display solution for your next project.
